IDE2510U2
2.5" USB 2.0 IDE HDD Enclosure
Turn a 2.5in IDE drive into an external storage device with USB 2.0 connectivity
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2.5" USB 2.0 IDE HDD Enclosure Product Number IDE2510U2 UPC 065030823647 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 2.5 USB to IDE External HDD Enclosure Product Title (Standard) StarTech.com 2.5 USB to IDE External HDD Enclosure Product Title (Long) 2.5in Silver USB 2.0 to IDE External Hard Drive Enclosure Product Title (AMZ) 2.5in Silver USB 2.0 to IDE External Hard Drive Enclosure - 2.5 IDE Enclosure - 2.5 HDD Enclosure (IDE2510U2) Title Ingram (Part 1) 2.5in Silver USB 2.0 to IDE Exte Title Ingram (Part 2) rnal Hard Drive Enclosure Website Product Headline Turn a 2.5in IDE drive into an external storage device with USB 2.0 connectivity Bullet 1 Light-weight, durable aluminum construction Bullet 2 High Speed USB 2.0 compliant host interface, with transfer rates up to 480 Mbps Bullet 3 Power/activity LED Bullet 4 Compatible with PATA (IDE) 66/100/133 Mbps drives Bullet 5 Supports 2.5" form factor IDE hard drives Marketing Copy Applications - Create a fast, ultra portable external storage solution for laptops or netbooks
- Add-on storage to any USB enabled computer system
- Backup data to an external storage device
- Retrieve data from old laptop drive, or turn the unused drive into additional external storage space
Website Search Keyword - InfoSafe 2.5 external hard drive enclosure
- 2.5" 2.5 inch portable
- IDECASE25U2B
- SAT2510BU2B
- ide 2.5"
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - USB2HABM6
- USB2HABM10
- USB2HABMY1
- USB2HABMY3
- USB2HABMY6
Related Products - SAT2510U2
- IDECASE25U2B
- IDECASE25OTG
Replacement Product UNI251BMU33 Input Voltage 5 DC Power Source Not Included (not required for standard applications) Color Silver Humidity 0~90% RH Material Aluminum Max Drive Height (mm) 9.5 Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 120 Product Width (mm) 75 Product Height (mm) 10 Product Weight (g) 62.1 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Drive Capacity 160GB @ 5400 RPM Maximum Data Transfer Rate 480Mbps OS Compatibility OS Independent RAID No UASP Support No Bus Type USB 2.0 Chipset ID Genesys Logic - GL811E Compatible Drive Types IDE (ATA) Fans Included? Yes/No No Interface/Bridge USB 2.0 LED Indicators 1 - Green: Power / Red: Drive Activity Number of Drives 1 Carton Depth (mm) 546 Carton Height (mm) 315 Carton Quantity 44 Carton Weight Gross (g) 11760 Included in Package - 1 - 2.5in IDE Enclosure

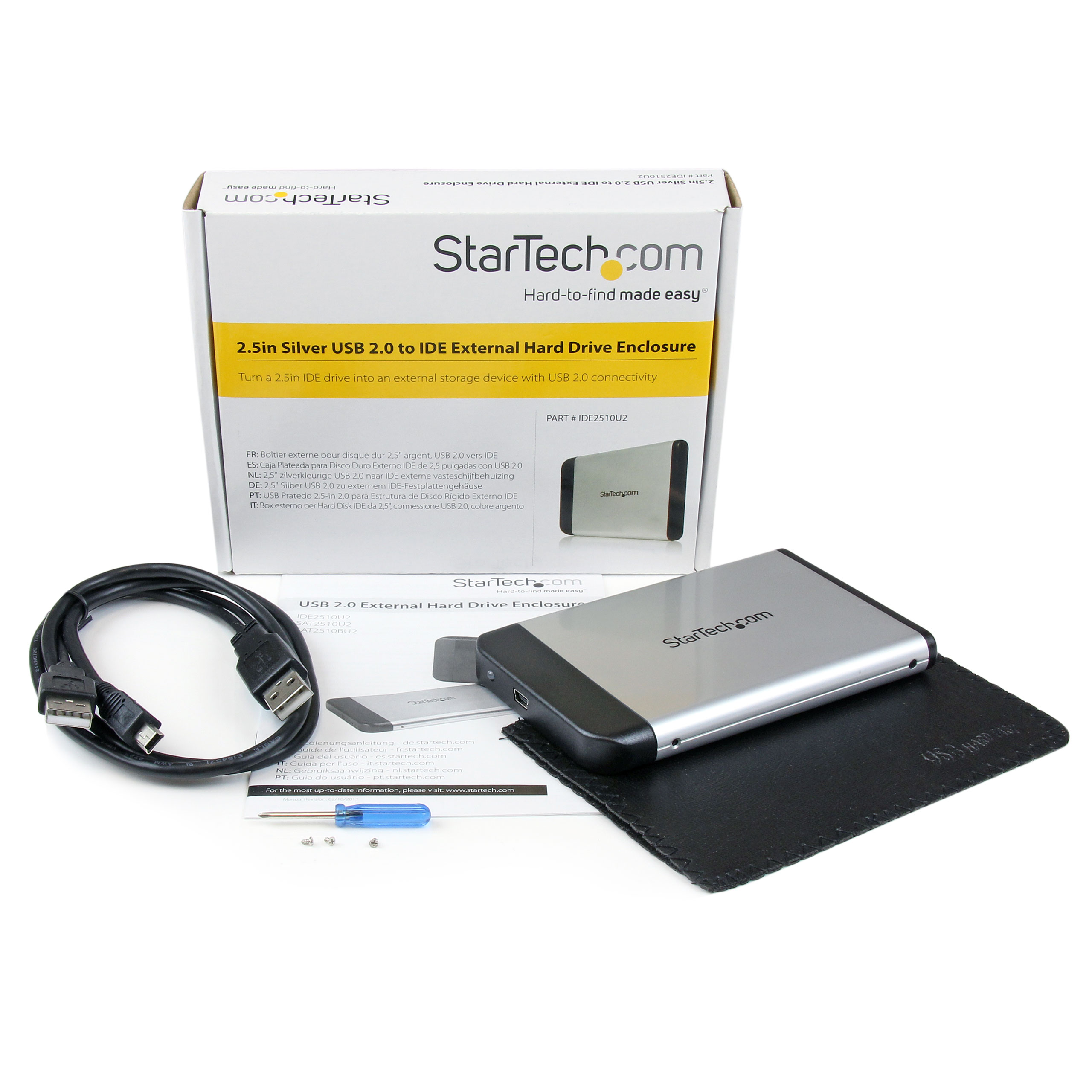

- 1 - Instruction Manual
- 1 - Screw Kit
- 1 - Mini Screwdriver
- 1 - USB 2.0 Y-Cable
- 1 - Protective Case
Package Depth (mm) 50 Package Height (mm) 134 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 240 Packaging Description USB to 2.5 IDE External HDD Enclosure Packaging Description India USB to 2.5 IDE External HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB Mini-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tony Parackal Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
