IDE2CF

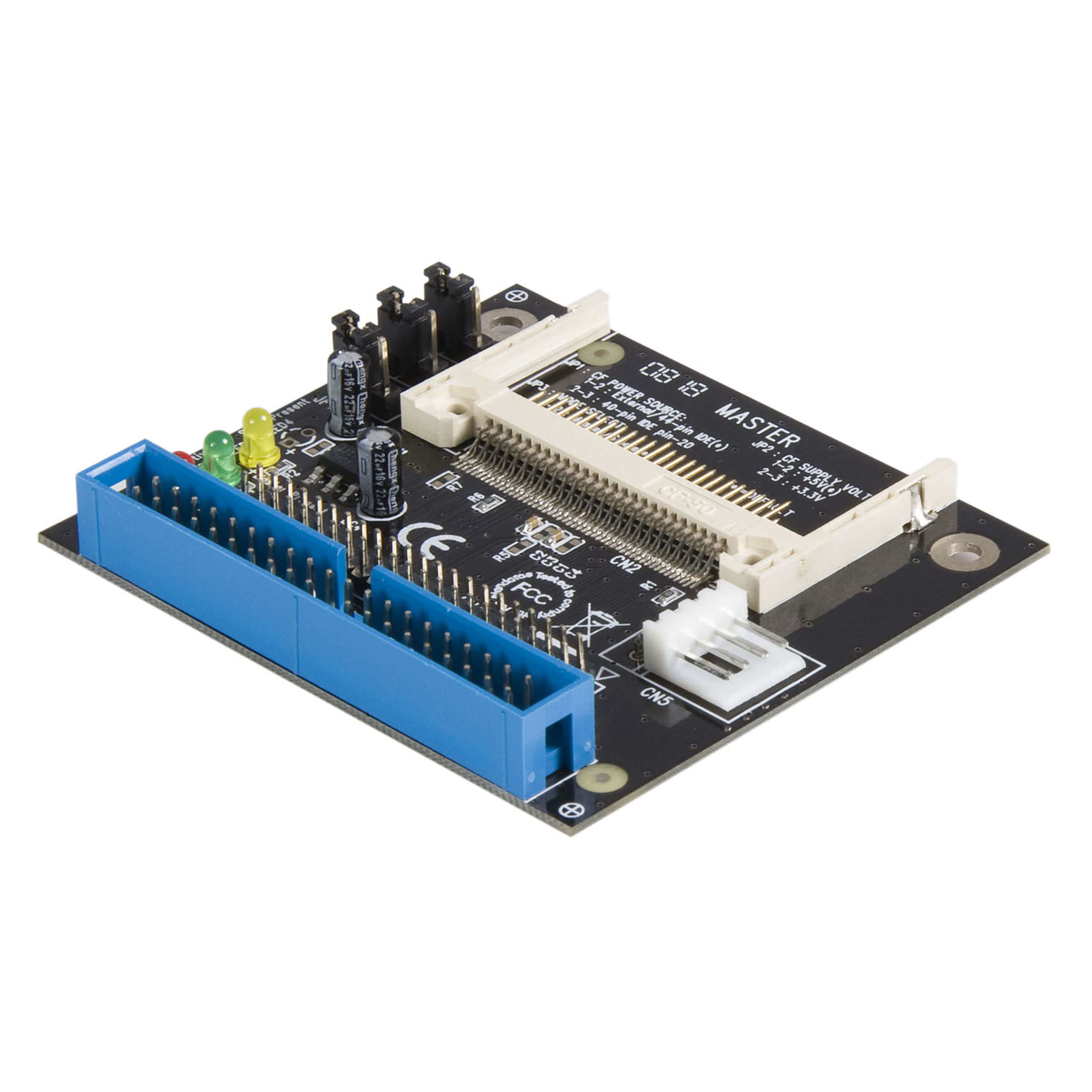

IDE to CF Solid State Drive Laptop Adapter
Connect a CompactFlash card to a 40 or 44-pin IDE host
Main Image
Product Images
Product Images
Product Name IDE to CF Solid State Drive Laptop Adapter Product Number IDE2CF UPC 065030834735 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 Other Cards And Adapters - mSATA/CF/IDE Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 40/44 Pin IDE to CF SSD Adapter Product Title (Standard) StarTech.com IDE to CompactFlash adapter - 40 pin - 44 pin - CF SSD adapter - Product Title (Long) 40/44 Pin IDE to Compact Flash SSD Adapter Product Title (AMZ) 40/44 Pin IDE to Compact Flash SSD Adapter - IDE to CF Card reader - CF to IDE Converter (IDE2CF) Title Ingram (Part 1) 40/44 Pin IDE to Compact Flash S Title Ingram (Part 2) SD Adapter Website Product Headline Connect a CompactFlash card to a 40 or 44-pin IDE host Bullet 1 Supports Ultra DMA mode Bullet 2 Compatible with CompactFlash Type I, Type II, and Micro Drives Bullet 3 Power, activity, and card detection LED indicators Bullet 4 Supports 40 and 44 pin IDE interfaces Bullet 5 Configurable IDE jumper settings for master or slave mode Bullets (Consolidated) CompactFlash Card adapter - IDE - black Marketing Copy Applications - Use a small ComactFlash card in place of an IDE hard drive for small embedded solutions
- Use a solid state CompactFlash card in place of a mechanical hard drive for better durability
- Reduce system noise and heat by running a CompactFlash card instead of a tradition hard drive
Website Search Keyword - SSD Adapter
- IDE to CF adapter
- IDE to Compact Flash
- IDE to Micro Drive
- Compact Flash Adapter
- IDE to SSD adapter
- IDE Converter
- IDE to Compact Flash Converter
- PATA
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements 40 or 44 pin IDE interface Accessory Products - IDE66
- IDE66_24
- IDE66_36
- IDE100RND18
- IDE100RND24
- IDE100RND36
- IDE44
- PYO2S
- PYO2SL
Related Products - CF2IDE18
- CF2X2IDE25
- IDE2CFINT
- PLATEIDE2CF
- 35BAYCF2IDE
- IDE441CF
- IDE442CF
- SAT2CF
- 35BAYCF2SAT
Input Voltage 5V DC / 12V DC Output Voltage (V) 5 DC Color Black Humidity 75% RH Operating Temperature 0°C to +50°C (32°F to +122°F) Product Length (mm) 70.000 Product Width (mm) 63.000 Product Height (mm) 13.000 Product Weight (g) 21.000 Storage Temperature -10°C to +70°C (14°F to +158°F) TAA Compliant No Memory Media Type - Compact Flash I
- Compact Flash II
- IBM Micro Drive
OS Compatibility OS Independent RAID No LED Indicators - 1 - Red - Power
- 1 - Green - Activity
- 1 - Yellow - Card Present
Number of Drives 1 Carton Depth (mm) 270 Carton Height (mm) 366 Carton Quantity 50 Carton Weight Gross (g) 4334 Included in Package - 1 - IDE to CompactFlash Adapter
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 168 Package Quantity 1 Package Weight (g) 76 Packaging Description 40/44 Pin IDE to CF Adapter Packaging Description India 40/44 Pin IDE to CF Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 CompactFlash Slot Connector 2 (Quantity) 1 Connector 3 IDE / PATA 2.5in (ATA/133, Power) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
