Main Image
IDE66BASIC
Main Image

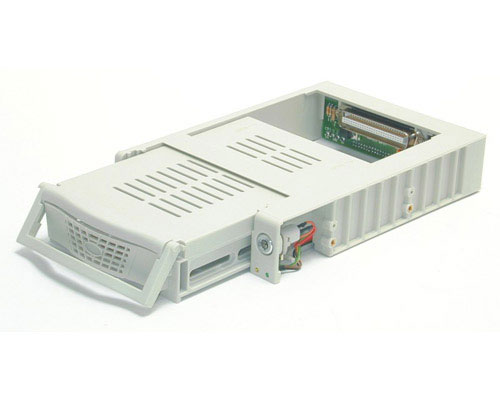

Product Name *D* Ultra IDE 100/133 Plastic Drive Drawer Product Number IDE66BASIC UPC 065030785730 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Long) Ultra IDE 100/133 Plastic Drive Drawer w. Fan Bullet 1 Supports Ultra ATA/66, ATA/100, and ATA/133 Hard Drives Bullet 2 Ball Bearing cooling fan keeps the drive running cool Bullet 3 Removable front caddy panel allows IDE Zip, LS-120, or 3.5 inch tape drives to be installed and used as removable devices Bullet 4 Spring loaded front cover closes the bay opening when the drive caddy is removed Bullet 5 Locking mechanism with key prevents the drive from being accidentally removed while operating Marketing Copy StarTech.com’s IDE66BASIC removable hard drive drawer offers a cost-effective way to quickly insert or remove IDE hard drives from any PC with an available 5.25 inch drive bay without opening the computer. It is an ideal solution for high-speed back-ups of critical files, moving large files from one computer to another, and for running multiple operating systems on the same PC. The unit consists of two pieces: a bay that mounts into the PC, and a removable drawer that encases the hard drive. It also supports Ultra ATA/66, ATA/100 and ATA/133 IDE transfer rates of up to 133 MB/s. The IDE66BASIC guarantees compatibility with your computer system and its high-quality construction offers protection for critical data - meaning you’ll never have to worry for the drive’s safety as you move it from one place to another. Additional features include: a key-lock mechanism that prevents the drive from being removed while operating; a handle-activated drawer release mechanism that allows the drive to be inserted or removed with minimal force; a ball-bearing cooling fan that provides air-flow over the hard drive, preventing overheating and data loss; dual LEDs indicating drive power and activity status. Applications - Can be used as a fast, high-capacity, removable backup system
- Can be used in education for providing the ability to run multiple operating systems and applications on the same group of PCs
- Can be used for transporting huge files or databases from one location to another
Accessory Products - IDE66CADDY
- DRAWERBAG
- IDE100RND18
- IDE100RND24
- IDE100RND36
- IDE100TPO18
Related Products - SNT127A
- IDE66PRODRWR
- SNT127ABK
Color Beige Material Plastic Product Length (mm) 225 Product Width (mm) 148 Product Height (mm) 41 Product Weight (g) 540 TAA Compliant No General Specifications - Dimensions: 8.86 x 5.75 x 1.61 Inches (22.5 x 14.8 x 4.1 cm)
- Weight (without drive): 1.18 lbs (0.54 kg)
- Internal Connectors: 40 Pin Header Female, 4 Pin LP4 Female
- External Connectors: 40 Pin Header Male, 4 Pin LP4 Male
- LEDs: Yellow - Drive Activity, Green - Drive Power
- Fans: One rear-mounted 4cm ball bearing fan
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 1 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - Ultra IDE 66/100 Plastic Drive Drawer w. Fan
- 1 - Set of Keys and Screws
- 1 - Manual
Package Depth (mm) 50 Package Height (mm) 230 Package Width (mm) 156 Package Weight (g) 500 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
