Main Image
IDE66PRODRWR
Main Image

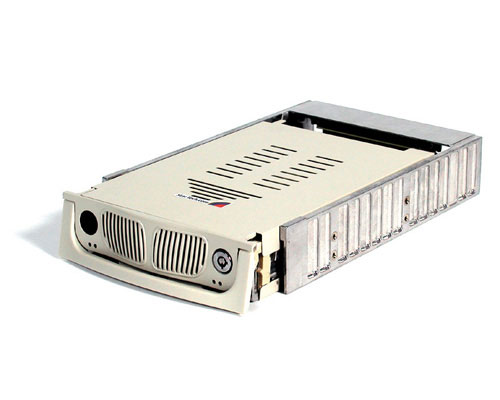

Product Name IDE 100/133 Aluminum Removable Drive Drawer w. Dual Fan Product Number IDE66PRODRWR UPC 065030785747 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Country of Origin History (2) China Product Title (Long) IDE 100/133 Aluminum Removable Drive Drawer w. Dual Fan Bullet 1 Easy-to-install and use. Bullet 2 Two ball-bearing cooling fans keep the drive cool. Bullet 3 Lock-controlled drive power prevents hard drive damage from accidental removal. Bullet 4 Power, activity and fan lights indicate operating status. Bullet 5 Light-weight, durable aluminum frame and drawer. Marketing Copy StarTech.com’s premium IDE66PRODRWR aluminum removable hard drive drawer offers a cost-effective way to quickly insert or remove IDE hard drives from any PC with an available 5.25 inch drive bay without opening the computer. It is an ideal solution for high-speed back-ups of critical files, moving large files from one computer to another, and for running multiple operating systems on the same PC. The unit consists of two pieces: an aluminum bay that mounts into the PC, and a heavy-duty removable drawer that encases the hard drive. It also supports Ultra ATA/66 ATA/100 and ATA/133 IDE transfer rates. The IDE66PRODRWR guarantees compatibility with your computer system and its high-quality aluminum construction offers protection for critical data - meaning you’ll never have to worry for the drive’s safety as you move it from one place to another. Additional features include: a key-lock mechanism that prevents the drive from being removed while operating; a handle-activated drawer release mechanism that allows the drive to be inserted or removed with minimal force; dual ball-bearing cooling fans that provide air-flow over the hard drive, preventing overheating and data loss; Four LEDs indicating drive power and activity status. Applications - Can be used as a fast, high-capacity, removable backup system
- Can be used in education for providing the ability to run multiple operating systems and applications on the same group of PCs
- Can be used for transporting huge files or databases from one location to another
Accessory Products - IDEPROCADDY
- DRAWERBAG
- IDE100RND18
- IDE100RND24
- IDE100RND36
- IDE100TPO18
Related Products - IDE66BASIC
- SNT127A
- SNT127ABK
Color Beige Material Aluminum Product Length (mm) 227 Product Width (mm) 146 Product Height (mm) 41 Product Weight (g) 940 TAA Compliant No General Specifications - Dimensions: 5.75 x 1.66 x 8.94 Inches (14.6 x 4.22 x 22.7 cm)
- Weight (without drive): 2.1 lbs (0.94 kg)
- Internal Connectors: 40 Pin Header Female, 4 Pin LP4 Female
- External Connectors: 40 Pin Header Male, 4 Pin LP4 Male
- LEDs: Red - Drive power, Yellow - Drive Activity, Left Green - Left fan operating OK, Right Green - Right fan operating OK
- Fans: Two front-mounted 4cm ball bearing fans, moving 10 CFM at zero static pressure
- Certifications: CE
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
- 1 - Left Fan OK
- 1 - Right Fan OK
Included in Package - 1 - Ultra IDE/66 Aluminum Drive Drawer
- 1 - Instruction Manual
- 1 - Set of Keys and Screws
Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes
