IDEPROCADDY
Main Image

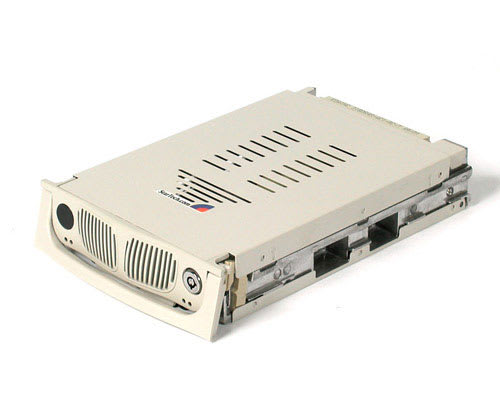

Product Name *D* Extra Drive Caddy for IDE66PRODRWR Product Number IDEPROCADDY UPC 065030789028 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX075X Product Title (Long) Extra Drive Caddy for IDE66PRODRWR Bullet 1 Handle activated release mechanism Bullet 2 Fits StarTech.com IDE66PRODRWR Removable drive drawer system (required) Marketing Copy This hard drive caddy is designed to fit the StarTech IDE66PRODRWR IDE Removable Disk Drawer. It allows another drive to be swapped into a PC with the bay portion of the IDE66PRODRWR installed. PCs can then have many interchangeable hard drives with different software or operating systems installed. Several could be used to create a high-speed backup system. Applications - Swap drives between systems
- Swap several drives into a single system
Accessory Products - IDE66PRODRWR
- DRAWERBAG
Related Products - SNT127A
- SNT127ACADDY
- IDE66BASIC
Color Beige Product Height (mm) 41 TAA Compliant No General Specifications - Internal Connectors: 40 Pin Header Female, 4 Pin LP4 Female
- External Connectors: 40 Pin Header Male, 4 Pin LP4 Male
- LEDs: Red - Drive power, Yellow - Drive Activity, Left Green - Left fan operating OK, Right Green - Right fan operating OK
- Fans: Two front-mounted 4cm ball bearing fans, moving 10 CFM at zero static pressure
- Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Fans 2 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power
- 1 - Activity
- 1 - Left Fan OK
- 1 - Right Fan OK
Carton Depth (mm) 329 Carton Height (mm) 268 Carton Quantity 20 Carton Weight Gross (g) 15200 Included in Package - 1 - Extra Drive Caddy for IDE66PRODRWR
- 1 - Instruction Manual
- 1 - Set of keys and screws
Package Depth (mm) 47 Package Height (mm) 228 Package Width (mm) 152 Package Weight (g) 700 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
