IDERND24PWBL
Main Image

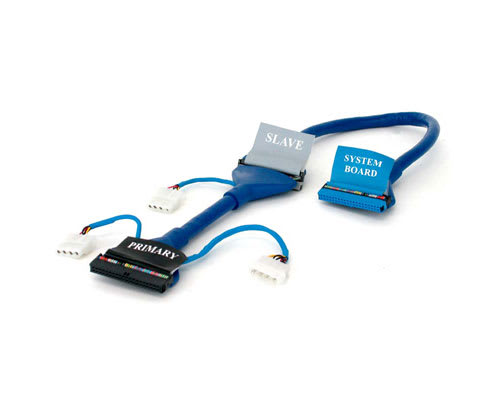

Product Name 24 in Blue Round ATA133 cable w Power Product Number IDERND24PWBL UPC 065030795159 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX087X Product Title (Long) 24in Blue Round ATA133 Adapter Cable with Power Connectors Bullet 1 A hard-to-find computer part that combines a round IDE cable with three power connectors for superior cable management Bullet 2 Rounded cables take up less area thereby reducing the clutter and allowing for better air flow Bullet 3 Made of flexible rubber sheathing of various lengths which eliminates the need to relocate devices Bullet 4 Uses AWM style 20276 twisted-pair wires instead of split ribbon cables Bullet 5 Constructed with foil shielding to eliminate noise interference Marketing Copy Applications - Rounded IDE cables are used anywhere that flat IDE ribbon cables are required
- Replaces multiple cables by combining an IDE cable with a power cable
Related Products - IDERND18PWBL
- IDERND36PWBL
Color Blue Product Length (mm) 609.6 TAA Compliant No General Specifications - Total Cable Length: 24 inches; 16 and 8 inches between connectors
- Power Cable Length: 2x 3.6 inch female connector, 1x 7 inch male connector
- IDE End 1: 40 Pin Header Female, Large internal power Male
- IDE End 2: 40 Pin Header Female x2, Large internal power Female
- Power: 2x 4-Pin Female, 1x 4-Pin Male
- Data Transfer Rate: Up to 133Mbps burst transfer rate
Maximum Cable Length (mm) 914 Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package 1 - 24 in Blue Round ATA133 cable w Power Package Depth (mm) 25 Package Height (mm) 290 Package Width (mm) 146 Package Weight (g) 140 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Keith Rodrigues
