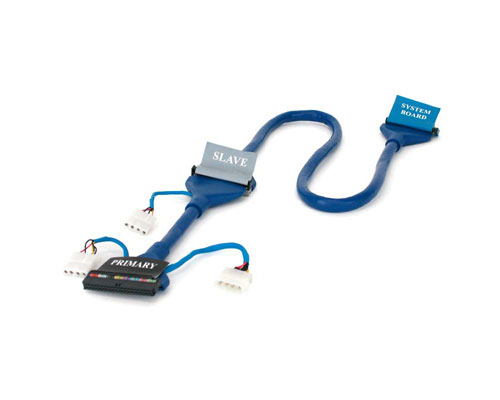

36 in Blue Round ATA133 Cable with Power Connectors

Main Image

Product Name	36 in Blue Round ATA133 Cable with Power Connectors
Product Number	IDERND36PWBL
UPC	065030795166
Warranty	Lifetime
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	1
Country of Origin History (2)	China

Product Title (Long)	36 in Blue Round ATA133 Cable with Power Connectors
Bullet 1	A hard-to-find computer part that combines a round IDE cable with three power connectors for superior cable management
Bullet 2	Rounded cables take up less area thereby reducing the clutter and allowing for better air flow
Bullet 3	Made of flexible rubber sheathing of various lengths which eliminates the need to relocate devices
Bullet 4	Uses AWM style 20276 twisted-pair wires instead of split ribbon cables
Bullet 5	Constructed with foil shielding to eliminate noise interference
Marketing Copy
Applications	Rounded IDE cables are used anywhere that flat IDE ribbon cables are required Replaces multiple cables by combining an IDE cable with a power cable

General Specifications	Total Cable Length: 36 inches; 20 and 16 inches between connectors Power Cable Length: 2x 3.6 inch female connector, 1x 7 inch male connector IDE End 1: 40 Pin Header Female, Large internal power Male IDE End 2: 40 Pin Header Female x2, Large internal power Female Power: 2x 4-Pin Female, 1x 4-Pin Male Data Transfer Rate: Up to 133Mbps burst transfer rate
Maximum Cable Length (mm)	914

Included in Package 1 - 36 in Blue Round ATA133 cable w Power
Connector 1 IDE / PATA (ATA/133)
Connector 1 (Quantity) 1
Connector 2 IDE / PATA (ATA/133)
Connector 2 (Quantity) 2
