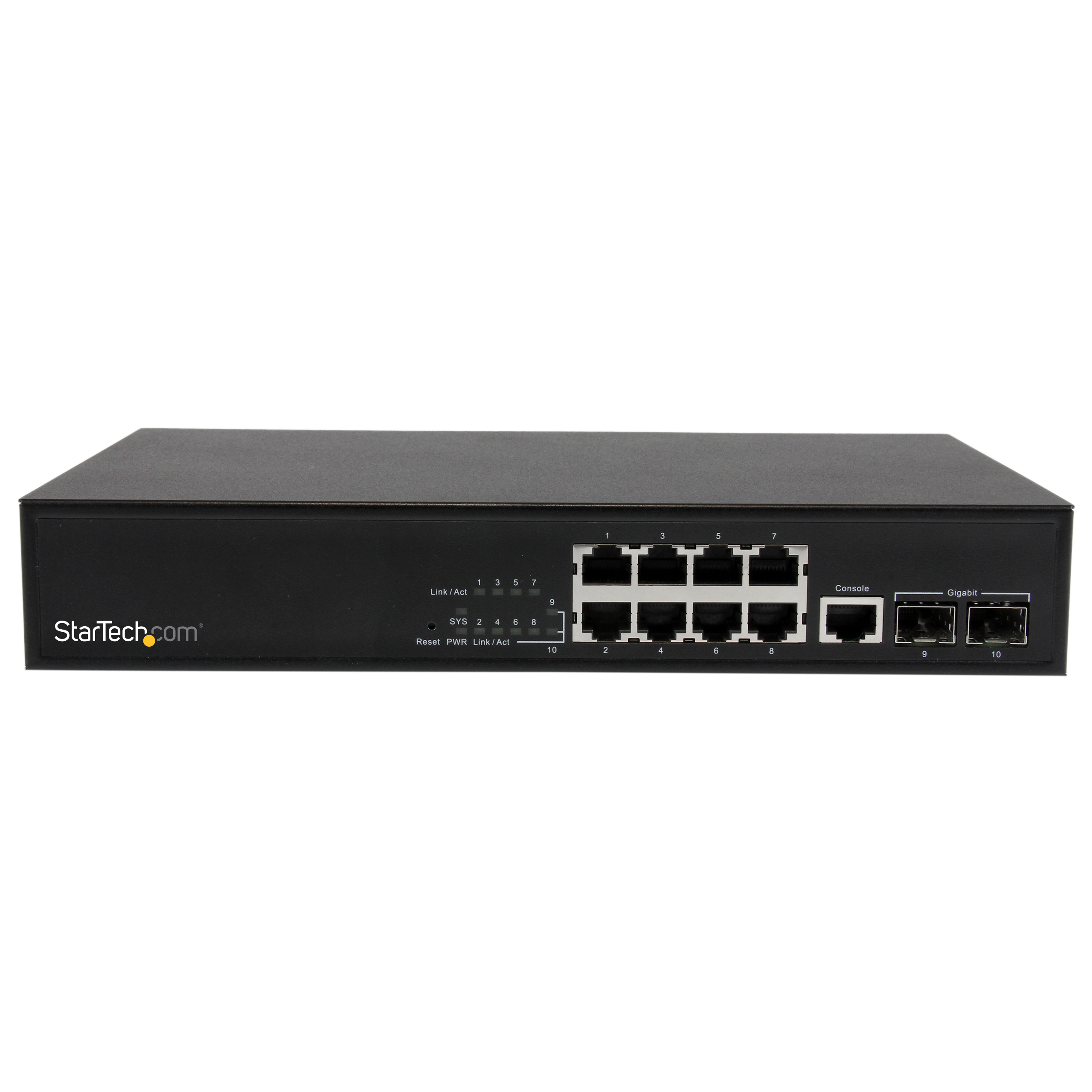

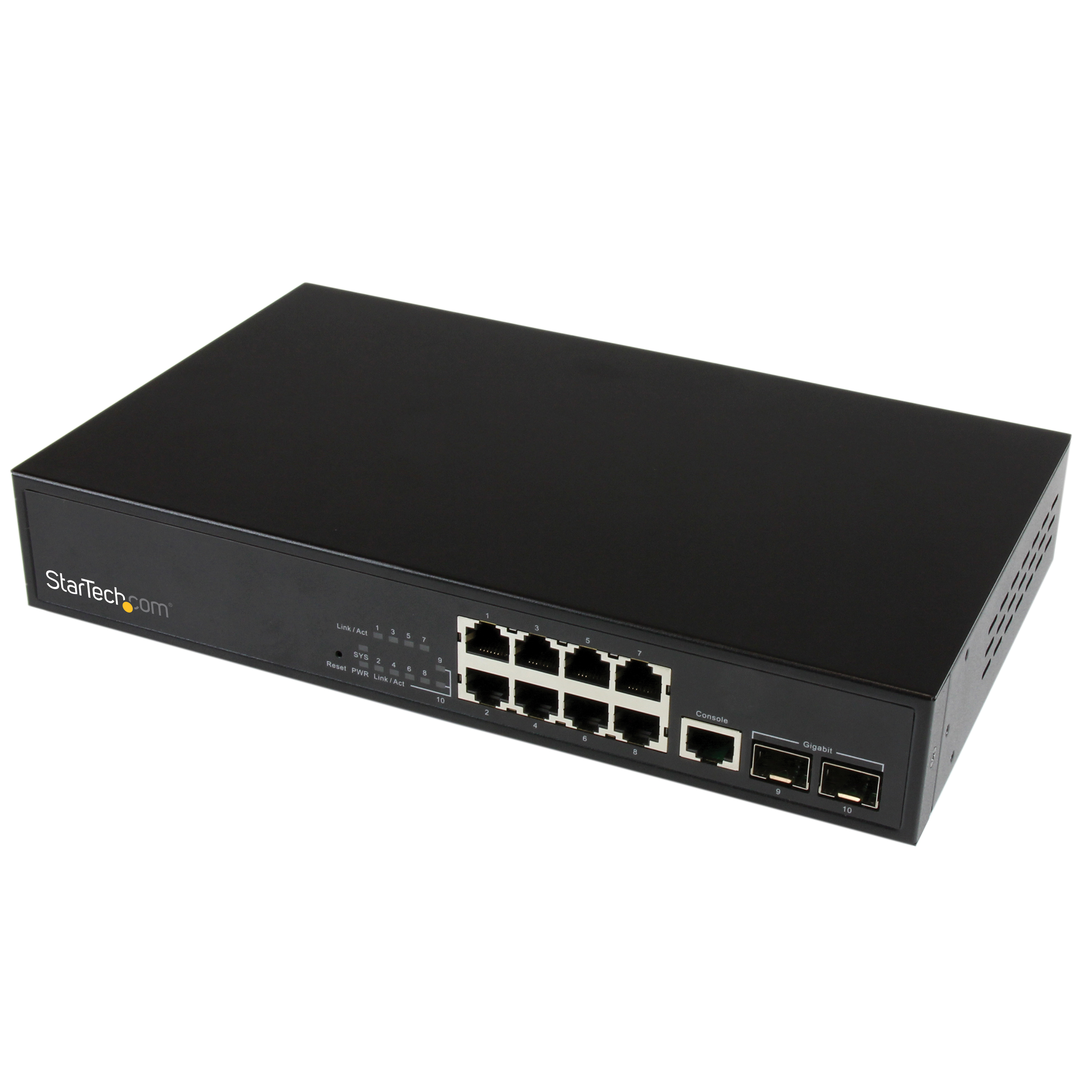

IES101002SFP
10Pt Layer 2 Gigabit Network Switch w/ 2 SFP Slots
Scale your network and connect up to 10 different Gigabit Ethernet devices, including 8x RJ45 + 2x fiber optic connections using the SFPs of your choice
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 10Pt Layer 2 Gigabit Network Switch w/ 2 SFP Slots Product Number IES101002SFP UPC 065030858236 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 10 Port GbE Switch Product Title (Short) 10 Port Managed Gigabit Ethernet Switch Product Title (Medium) 10 Port L2 Managed Gigabit Ethernet Switch w/ 2 Open SFP Slots - Rack Mountable Product Title (Standard) 10 Port L2 Managed Gigabit Ethernet Switch with 2 Open SFP Slots - Rack Mountable Product Title (Long) 10 Port L2 Managed Gigabit Ethernet Switch with 2 Open SFP Slots - Rack Mountable Product Title (AMZ) 10 Port L2 Managed Gigabit Ethernet Switch with 2 Open SFP Slots - Rack Mountable - Layer 2 Network Switch (IES101002SFP) Title Ingram (Part 1) 10Port Layer 2 Gigabit Network Title Ingram (Part 2) Switch w/ Two Fiber SFP Slots Website Product Headline Scale your network and connect up to 10 different Gigabit Ethernet devices, including 8x RJ45 + 2x fiber optic connections using the SFPs of your choice Bullet 1 8x RJ45 ports + 2 fiber SFP slots, merged into a convenient Gigabit network switch Bullet 2 Compliant with most SFP modules, for broad compatibility and flexibility Bullet 3 Layer 2 management capabilities, for improved network control, efficiency, and stability Bullet 4 Optional 19” rackmount brackets Bullet 5 Web-based GUI and command-line management Bullets (Compact) Scale your network and connect up to 10 different Gigabit Ethernet devices - 8x RJ45 + 2x fiber optic connections - Use the SFPs of your choice - 10 Port L2 Managed Gigabit Ethernet Switch w/ 2 Open SFP Slots - Rack Mountable Layer 2 Network Switch Bullets (Consolidated) Scale your network and connect up to 10 different Gigabit Ethernet devices including 8x RJ45 + 2x fiber optic connections using the SFPs of your choice - 10 Port L2 Managed Gigabit Ethernet Switch with 2 Open SFP Slots - Rack Mountable - Layer 2 Network Switch - Gigabit Switch with Two Fiber SFP Slots - Managed Rackmount Switch - Compliant with most SFP modules - Layer 2 Management Capabilities - Includes Optional 19" Rackmount Brackets Marketing Copy Applications - Use fiber optic cable to connect to your network from remote areas, at greater distances than copper cable would permit
- Ideal for secure setups, fiber connections provide reduced electronic interference in complex network infrastructures
- Connect both copper and fiber Ethernet devices to just a single switch
- Install in a server rack or cabinet in a network room or test lab environment
- Easily expand the number of ports on your existing network, perfect for small or medium business environments
- Interconnect a fiber device to a copper device and use the SFP ports to daisy chain multiple switches together
Website Search Keyword - Ethernet Switch
- Network Switch
- Gigabit Switch
- 10 port switch
- 10 Port Gigabit Switch
- Unmanaged Ethernet Switch
- gigabit ethernet switch
- gigabit network switch
- gigabit ethernet network switch
- 10/100/1000 Mbps Switch
- managed network switch
- rack mount network switch
- rackmount network switch
- managed ethernet switch
- managed gigabit switch
- l2 managed switch
- 10/100/100 managed switch
- gigabit sfp switch
- layer 2 switch
- open sfp switch
- switch with sfp
- fiber optic switch
- fiber switch
- sfp gigabit switch
- fiber open sfp switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
Special Notes Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) Accessory Products - SFPGLCLHSMST
- SFPGLCSXMMST
- SFPGESST
- SFPG1320C
- SFPG1340C
- DB9CONCABL6
- N6PATCH100BK
- N6PATCH50BL
- N6PATCH25OR
- N6PATCH7WH
Related Products - IES51000
- DS51002
- IES61002POE
- IES81000POE

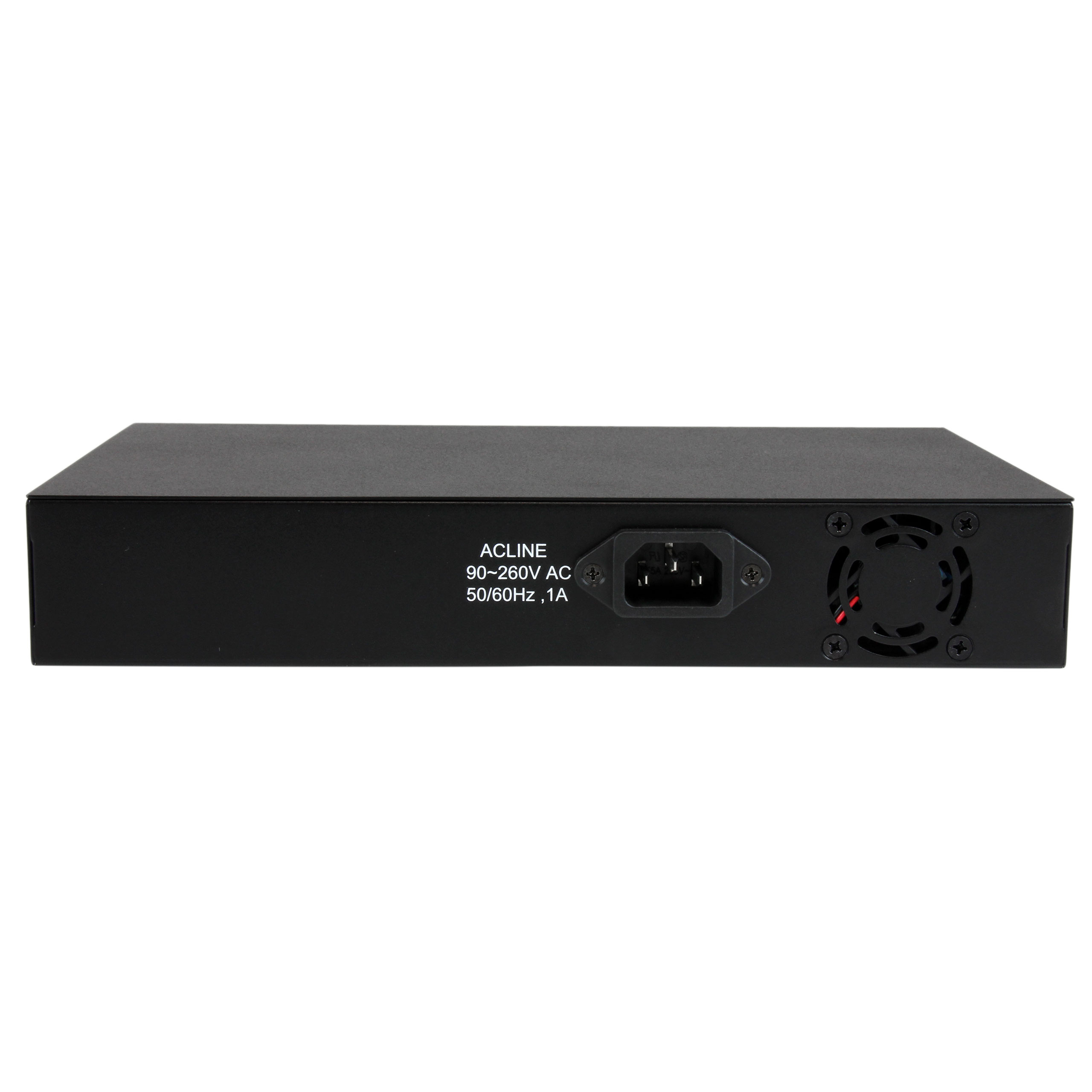

Input Current 1.0 A Input Voltage 90 ~ 260 AC Power Consumption (In Watts) 14 Power Source AC Adapter Included Color Black Humidity 10~90% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 263.000 Product Width (mm) 160.000 Product Height (mm) 44.000 Product Weight (g) 1070.000 Storage Temperature -20°C to 90°C (-4°F to 194°F) TAA Compliant Yes Auto MDIX Yes Auto-Negotiation Yes Buffer Size 4 MB Compatible Networks 10/100/1000 Mbps Flow Control Half-duplex back-pressure, IEEE 802.3x full-duplex Full Duplex Support Yes Jumbo Frame Support 9.6K max. Maximum Data Transfer Rate 2000 Mbps (2 Gbps) - Full-Duplex OS Compatibility OS Independent Supported Protocols IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, RFC 3810 MLD version 2, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, bIEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP Switching Architecture Store-and-Forward Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000Base-SX/LX
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol
Interface/Bridge - RJ45 (Gigabit Ethernet)
- Fiber Ethernet
LED Indicators - 10 - Link / Activity
- 1 - Power
- 1 - System

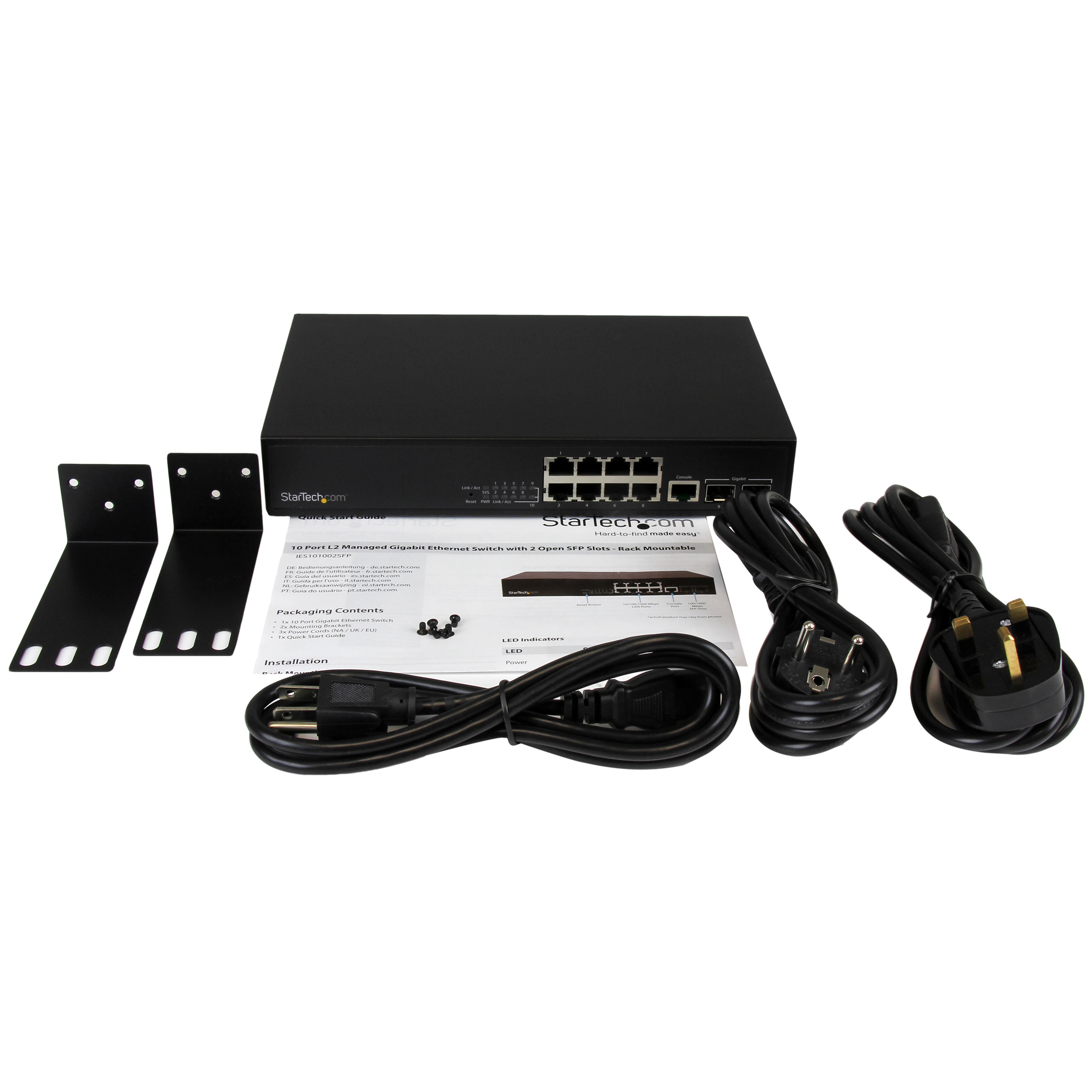

Carton Depth (mm) 292 Carton Height (mm) 442 Carton Quantity 8 Carton Weight Gross (g) 17600 Included in Package - 1 - 10 Port Gigabit Ethernet Switch w/ 2 Open SFP Slots
- 2 - Mounting Brackets (1 set)
- 3 - Power Cords (NA/UK/EU)
- 1 - Instruction Manual (CD)
- 1 - Quick Start Guide
Package Depth (mm) 209 Package Height (mm) 67 Package Width (mm) 465 Package Quantity 1 Package Weight (g) 2200 Packaging Description 10 Port Gigabit Ethernet Switch with 2 SFP Slots Packaging Description India 10 Port Gigabit Ethernet Switch with 2 SFP Slots Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 Connector 2 SFP Slot Connector 2 (Quantity) 2 Connector 3 RJ45 Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-04-11 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
