Main Image

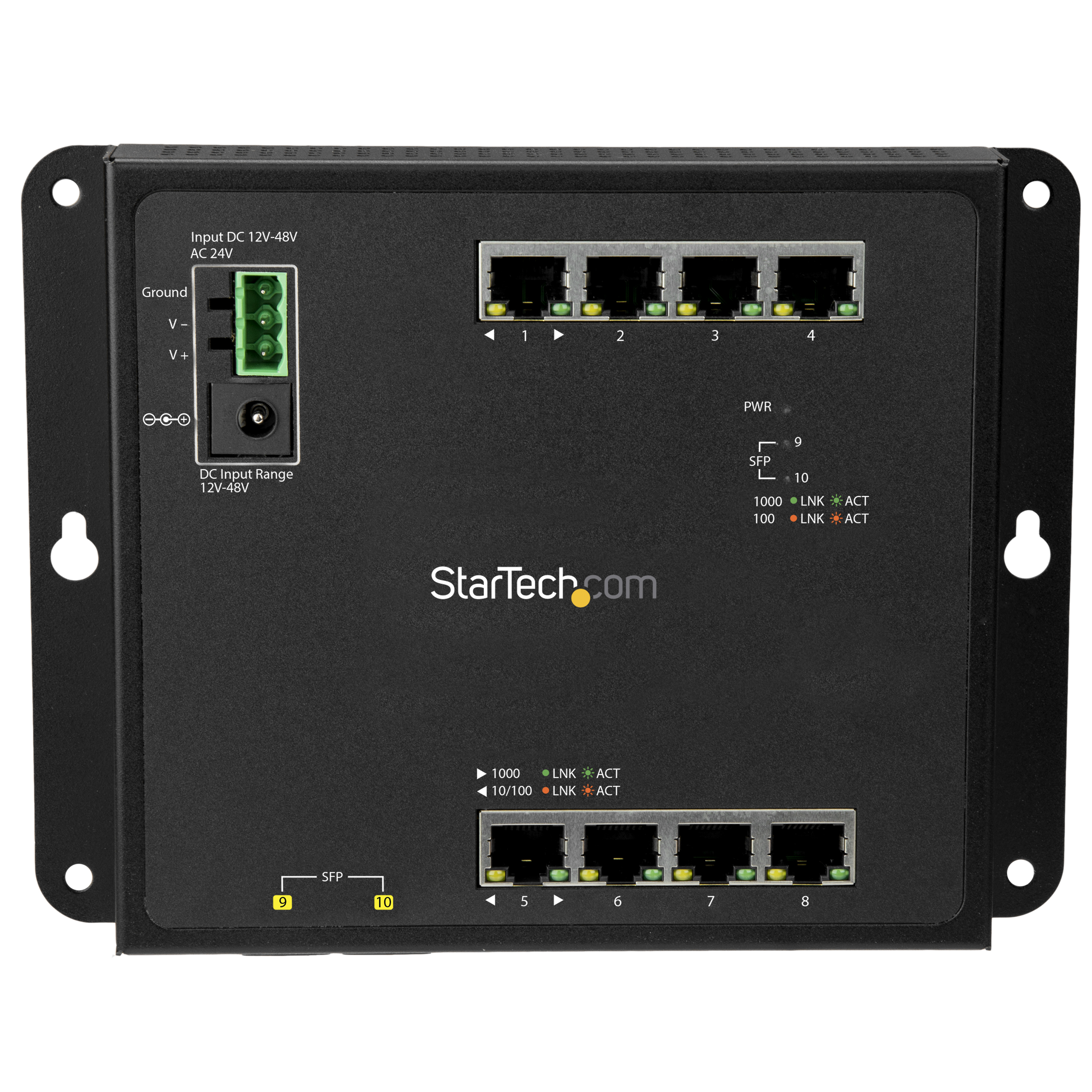

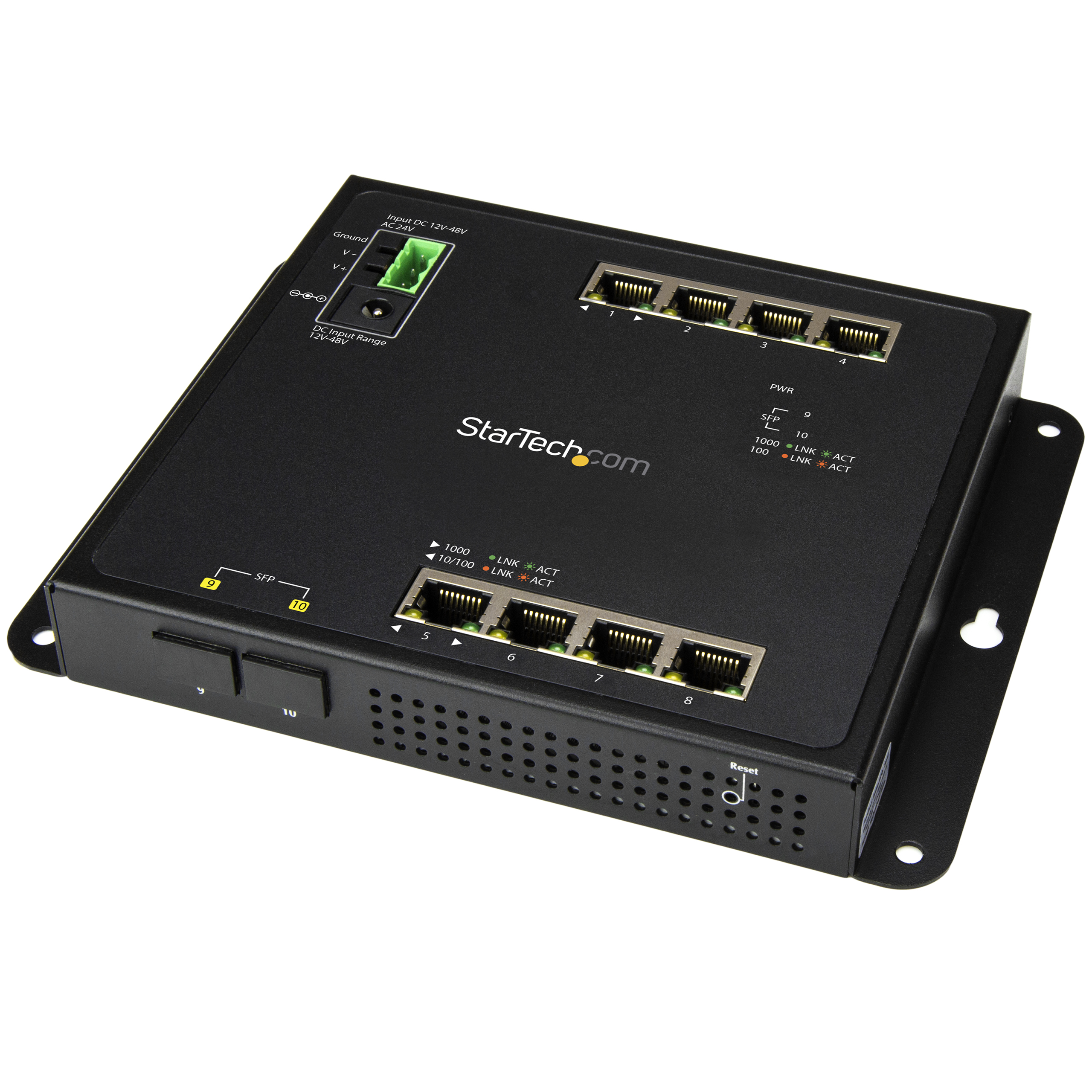

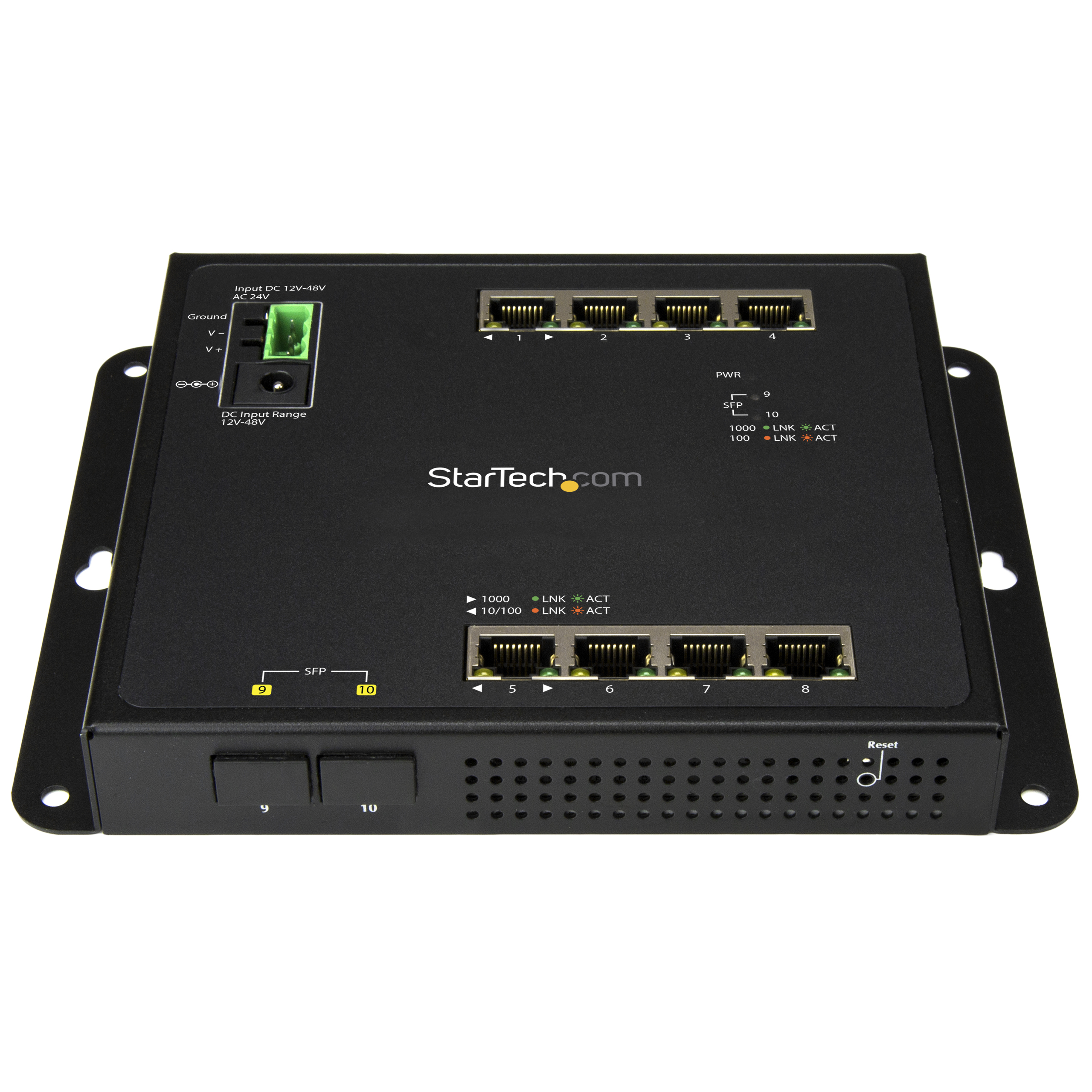

IES101G2SFPW
GbE Switch - 8-Port RJ45 plus 2 SFP Pts - Managed
Wall Mount Ethernet Switch | 10/100/1000Mbps | 8 RJ45 Ports | L2 Managed
Main Image
Product Images
Product Images
BOM Image
Product Name GbE Switch - 8-Port RJ45 plus 2 SFP Pts - Managed Product Number IES101G2SFPW UPC 065030868495 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) GbE Switch - 8 Pt Product Title (Short) Industrial 8+2(SFP) Port Gigabit Switch Product Title (Medium) GbE Switch - 8 Port - 2 Open SFP Ports Product Title (Standard) Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots L2 Managed Network RJ45 LAN Layer2 Switch Din Rail Hardened IP-30 Product Title (Long) Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots - Hardened GbE L2 Managed Network Switch - Rugged RJ45 LAN Layer 2 Switch Din Rail Wall Mount IP-30/-40C to 75C - TAA Product Title (AMZ) Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP Slots - Hardened GbE L2 Managed Network Switch - Rugged RJ45 LAN Layer 2 Switch Din Rail Wall Mount IP-30/-40C to 75C (IES101G2SFPW) Title Ingram (Part 1) 8 Port Gigabit Ethernet Switch Title Ingram (Part 2) - 2 Open SFP Slots - L2 Managed Website Product Headline Wall Mount Ethernet Switch | 10/100/1000Mbps | 8 RJ45 Ports | L2 Managed Bullet 1 FLAT DESIGN: Industrial 8 Port Gigabit Ethernet Switch with 2 MSA Open SFP Slots .Compact housing allows for front access, easy installation & troubleshooting; DIN rail or wall mountable Bullet 2 FULL LAYER 2 MANAGEMENT CAPABILITIES: Through built in web-based GUI/Telnet/SSH; Switch can be managed to configure features like Ports/VLAN/Link Aggregation/SNMP/QoS/Spanning Tree among others Bullet 3 TECH SPECS: 8 + 2 port Gigabit switch | 8 x RJ45 | 2 x Open SFP slot (MSA Compliant) | 12-48VDC power input | 10/100/1000 Mbps auto | Redundant power inputs w/terminal block kit or using incl AC adapter Bullet 4 ROBUST DESIGN: Steel housing with IP-30/vibration/shock/free fall ratings and 6kV ESD; Operating temperature range of -40C to 75C w/ MTBF of 500,000+ hrs using MIL-HDBK-217F @ 25C; RJ45 dust caps incl Bullet 5 STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This L2 Gigabit network switch is backed for 2-years by StarTech.com, including 24/5 North America based multi-lingual tech support Bullets (Compact) Industrial 8 Port Gigabit Ethernet Switch w/2 MSA SFP slots 8x RJ45/LAN +75C to -40C 10/100/1000 Mbps Network auto IP-30 housing MTBF 500000+ hrs Vibration/shock/free fall rated 6kV ESD Full layer/L2 managed 12V adapter w/DIN Rail/wall mount 2yr warr Bullets (Consolidated) Industrial 8 Port Gigabit Ethernet Switch w/ 2 Open SFP slots MSA Compliant|8x RJ45|-40C to 75C|10/100/1000 Mbps network auto|IP-30 housing|MTBF 500000+ hrs|Vibration/shock/free fall rated|6kV ESD - Flat design w/ front access DIN rail/wall mounting HW incl - Layer/L2 mgmt web-based GUI/Telnet/SSH; Managed to config Ports/VLAN/Link Aggregation/SNMP/QoS/Spanning Tree - Terminal block 48-56VDC power/Type-M barrel plug 12-48v - w/ 12V 1.5A adapter and terminal block kit - StarTech.com 2-year warranty Marketing Copy Marketing Copy (No HTML) Applications - Install in a server rack or cabinet, or wall mount in a convenient location
- An ideal solution for many network applications including IP surveillance, wireless LAN, building/home automation network and Internet of things (IoT)
- Add small workgroups to expand your existing network in a business or home office
- Works well in industrial, non-climate controlled environments, such as warehouses
Website Search Keyword - 8 port gigabit ethernet switch
- 8 port gigabit switch
- 8 port network switch
- 8 port switch
- 8-port ethernet switch
- cisco layer 2 switch
- din rail ethernet switch
- Gigabit ethernet switch
- gigabit sfp ports
- hp layer 2 managed switch
- in wall ethernet switch
- industrial managed ethernet switch
- Industrial network switch
- L2 switch
- lan switch
- layer 2 switch
- Managed network switch
- netgear 8 port gigabit ethernet switch
- netgear switch gigabit
- rj45 switch
- sfp network switch
- sfp switch
- tp link managed switch
- Wall mount ethernet switch
- wall mounted ethernet switch
- wall mounted network switch
- wallmount switch
- wall mount switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - C6PATCH6BK
- N6PATCH10BL
- GLCLHSMDST
- SFPG1320C
- J4858CST
- SVA12M2NEUA
- SVA12M5NA
Related Products - IES81GPOEW
- IES81000POE
- IES8100POE
- IES101GP2SFW
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature -40°C to 75°C (-40°F to 167°F) Product Length (mm) 178.000 Product Width (mm) 139.000 Product Height (mm) 30.000 Product Weight (g) 626.000 Storage Temperature -40°C to 90°C (-40°F to 194°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 512 KB Compatible Networks 10/100/1000 Mbps Flow Control IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2 Gbps (Full-Duplex) MTBF (hours) > 100,000 hrs @ 25 degrees C Supported Protocols IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, RFC 3810 MLD version 2, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, bIEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP Surge Protection 6kV ESD, 6kV EFT Switching Architecture Store-and-Forward Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, , IEEE 802.3u 100BASE-FX, IEEE 802.3u 100BASE-LX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX, IEEE 802.3x Flow Control LED Indicators - 1 - Power

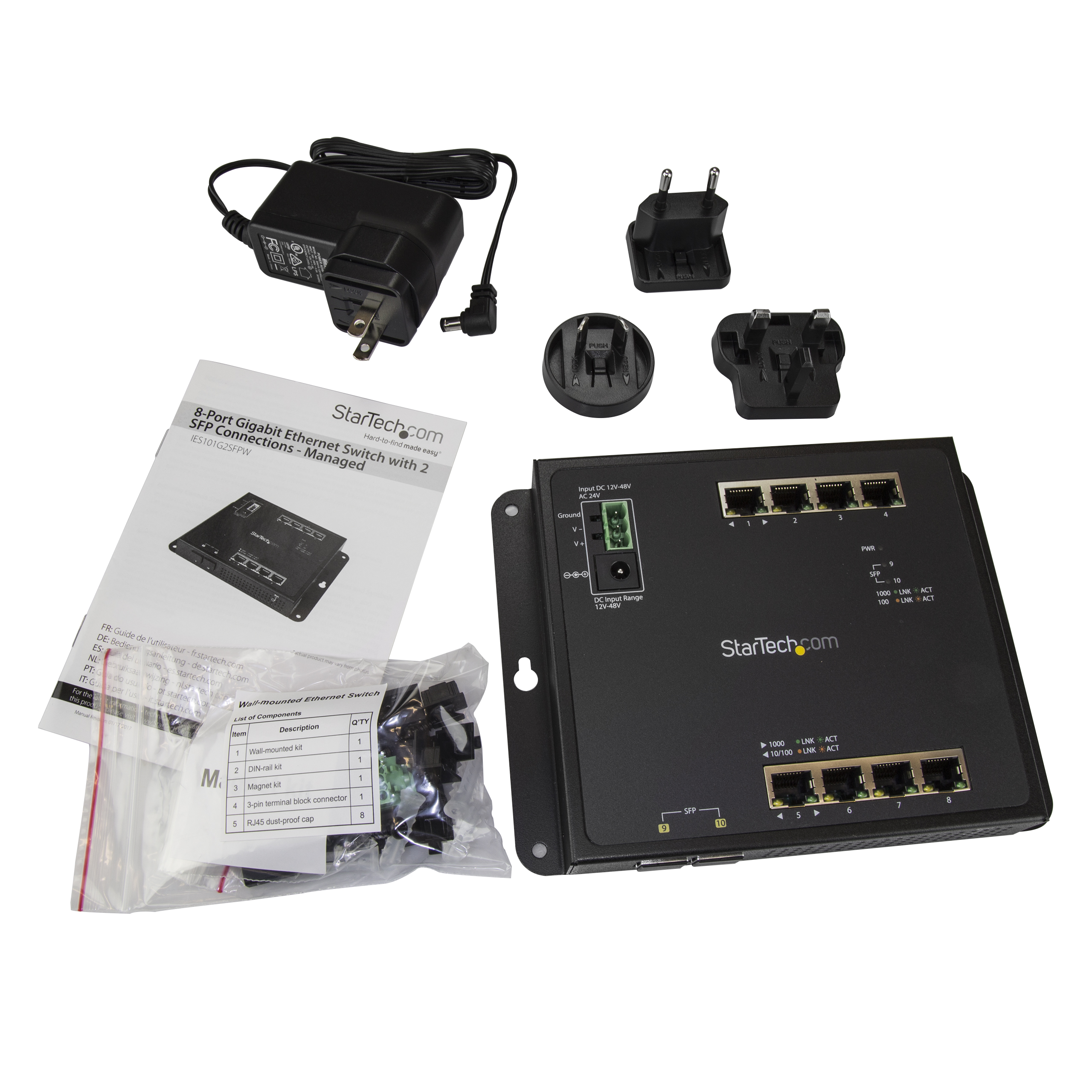

Carton Depth (mm) 342 Carton Height (mm) 474 Carton Quantity 10 Carton Weight Gross (g) 11810 Included in Package - 1 - network switch
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - terminal block connector
- 4 - screw anchors
- 4 - screws
- 4 - attaching pins
- 4 - locking pins
- 4 - washers
- 4 - magnets
- 1 - DIN rail
- 3 - DIN-rail screws
- 1 - quick-start guide
- 8 - RJ45 dust caps
- 2 - SFP dust caps
Package Depth (mm) 173 Package Height (mm) 91 Package Width (mm) 303 Package Quantity 1 Package Weight (g) 1110 Packaging Description 8-Port GbE Switch with 2 SFP Connections - Managed Packaging Description India 8-Port GbE Switch with 2 SFP Connections - Managed Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 Connector 2 Terminal Block (3 Wire) Connector 2 (Quantity) 1 Connector 3 SFP Slot Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-12-30 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-04-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-12-19 Target Production Release 2017-01-13 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
