IES101GP2SFW
GbE Switch 8 Port PoE plus 2 SFP Pts Managed
Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management
Main Image
Product Images
Product Images
BOM Image
Product Name GbE Switch 8 Port PoE plus 2 SFP Pts Managed Product Number IES101GP2SFW UPC 065030871198 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) 8-Port GbE Switch Product Title (Short) Industrial 8 + 2Port Gigabit PoE+ Switch Product Title (Medium) Gigabit Ethernet Switch - 8-Port PoE+ plus 2 SFP Ports - Managed Switch Product Title (Standard) Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots 30W Layer/L2 Switch Managed Ethernet Network Switch, -40C to 75C, TAA Product Title (Long) Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C - TAA Product Title (AMZ) Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C , TAA Title Ingram (Part 1) GbE Switch - 8-Port PoE+ plus 2 Title Ingram (Part 2) SFP Ports - 8-Port Managed Switch Website Product Headline Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management Bullet 1 POWER OVER ETHERNET: Industrial 8-port Gigabit PoE+ switch with 2 SFP ports, suitable for PoE devices such as cameras, sensors and WiFi APs using Cat5e or higher network cables; Up to 30W per PoE port with 200W total power budget for the switch Bullet 2 FLAT DESIGN: Compact steel enclosure allows front access for easy installation and troubleshooting; IP-30 / vibration / shock / free fall ratings & 6kV ESD; DIN rail or wall mounting options available with all hardware included; RJ45 dust caps included Bullet 3 FULL LAYER 2 MANAGEMENT CAPABILITIES: Built in web-based GUI / Telnet / SSH; This switch can be managed to configure features like Ports / VLAN / Link Aggregation / SNMP / QoS / Spanning Tree among others Bullet 4 TECH SPECS: 8 x RJ45; 2 x Open SFP slot (MSA Compliant); 48-56VDC power input; 10/100/1000 Mbps; MTBF 500,000+ hours; Redundant power inputs with terminal block kit or AC adapter (not included); IEEE 802.3af & IEEE 802.3at Compliant Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this 8 port Gigabit switch is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Industrial Gigabit PoE+ switch - 8x RJ45 + 2x MSA SFP slots +75C to -40C - Max 30W per PoE port - IP-30 housing - MTBF 500k hrs - Vibration/shock/free fall rated - 6kV ESD - Full layer/L2 managed - DIN/wall mount incl - Terminal block or AC adapter Bullets (Consolidated) Industrial 8 + 2 port Gigabit PoE+ switch|8x RJ45|2x Open SFP slots (MSA Compliant)|10/100/1000 Mbps Network auto|Managed - Up to 30W per Power over Ethernet port (PSE) to IEEE 802.3af and IEEE 802.3at over Cat5e or better; Total pwr 120W - Layer/L2 mgmt; web-based GUI/Telnet/SSH; Managed to config Ports/VLAN/Link Aggregation/SNMP/QoS/Spanning Tree - IP-30 housing|+75C to -40C temp hardened|MTBF 500k + hrs @ 25C|Vibration/shock/free fall rated|DIN/wall mount H.W. incl|6kV ESD Marketing Copy Marketing Copy (No HTML) Applications - Install in a server rack or cabinet, or wall mount in a convenient location
- An ideal solution for many network applications including IP surveillance, wireless LAN, building/home automation network and Internet of things (IoT)
- Add small workgroups to expand your existing network in a business or home office
- Works well in industrial, non-climate controlled environments, such as warehouses
Website Search Keyword - 8-port Gigabit Ethernet switch
- 8-port GbE switch
- Gigabit Ethernet Switch
- Network Switch
- 8 port Network Switch
- Gigabit switch
- L2 Managed Switch
- Wall Mount switch
- Wall Mount switch Front Access
- GbE switch
- 8x RJ45 ports
- 8x RJ45 switch
- 8-Port PoE+ switch
- 8-Port PoE+ plus 2 SFP switch
- PoE switch
- 8-port PoE + sfp switch
- 10 port switch
- 10 port network switch
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Special Notes - 8 ports support IEEE 802.3at Power over Ethernet Plus (PoE+) and IEEE 802.3af Power over Ethernet (PoE)
- Supports PoE Powered Device alive check, scheduled power recycling, and time-based PoE schedule
- PoE power up to 30W per PoE+ port (200W budget) and remote PoE power control
- A power adapter is not included with this switch.
Accessory Products - GLCLHSMDST
- SFPG1320C
- J4858CST
Related Products - IES101G2SFPW
- IES81GPOEW
Input Current 1A minimum Input Voltage 48 ~ 56V DC Power Source Terminal Block Plug Type M Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature -40°C to 75°C (-40°F to 167°F) Primary Material Steel Product Length (mm) 134.000 Product Width (mm) 178.000 Product Height (mm) 25.000 Product Weight (g) 618.000 Storage Temperature -40°C to 90°C (-40°F to 194°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 512 KB Compatible Networks 10/100/1000 Mbps Flow Control IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2 Gbps (Full-Duplex) MTBF (hours) > 100,000 hrs @ 25 degrees C Supported Protocols IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, RFC 3810 MLD version 2, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, bIEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP Surge Protection 6kV ESD, 6kV EFT Switching Architecture Store-and-Forward Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000Base-SX/LX
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol
Interface/Bridge - RJ45 (Gigabit Ethernet)
- Fiber Ethernet
LED Indicators - 1 - Power

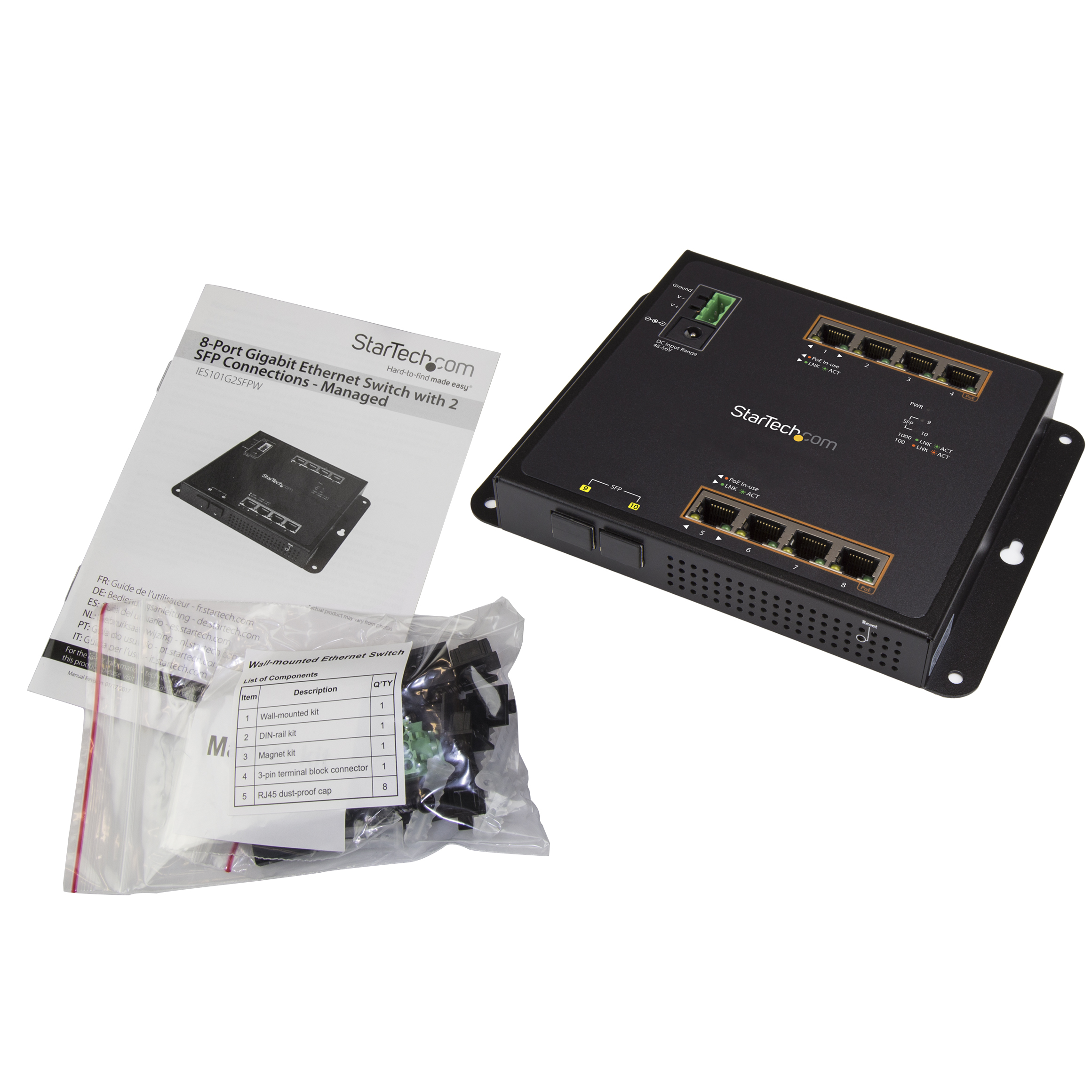

Carton Depth (mm) 325 Carton Height (mm) 470 Carton Quantity 10 Carton Weight Gross (g) 10160 Included in Package - 1 - network switch
- 1 - terminal block connector
- 4 - screw anchors
- 4 - screws
- 4 - attaching pins
- 4 - locking pins
- 4 - washers
- 4 - magnets
- 1 - DIN rail
- 3 - DIN-rail screws
- 8 - RJ45 dust caps
- 1 - quick-start guide
- 2 - SFP dust caps
Included In Package for Label - 1 - DIN rail
- 10 - dust caps
- 1 - Hardware Kit
- 4 - magnets
- 1 - network switch
- 1 - quick-start guide
- 1 - terminal block connector
Package Depth (mm) 172 Package Height (mm) 91.2 Package Width (mm) 300 Package Quantity 1 Package Weight (g) 896 Packaging Description 8-Port PoE+ GbE Switch with 2 SFP Connections - Managed Packaging Description India 8-Port PoE+ GbE Switch with 2 SFP Connections - Managed Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 Connector 2 SFP Slot Connector 2 (Quantity) 2 Connector 3 Terminal Block (3 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-01-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2017-04-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-12-19 Target Production Release 2017-01-13 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
