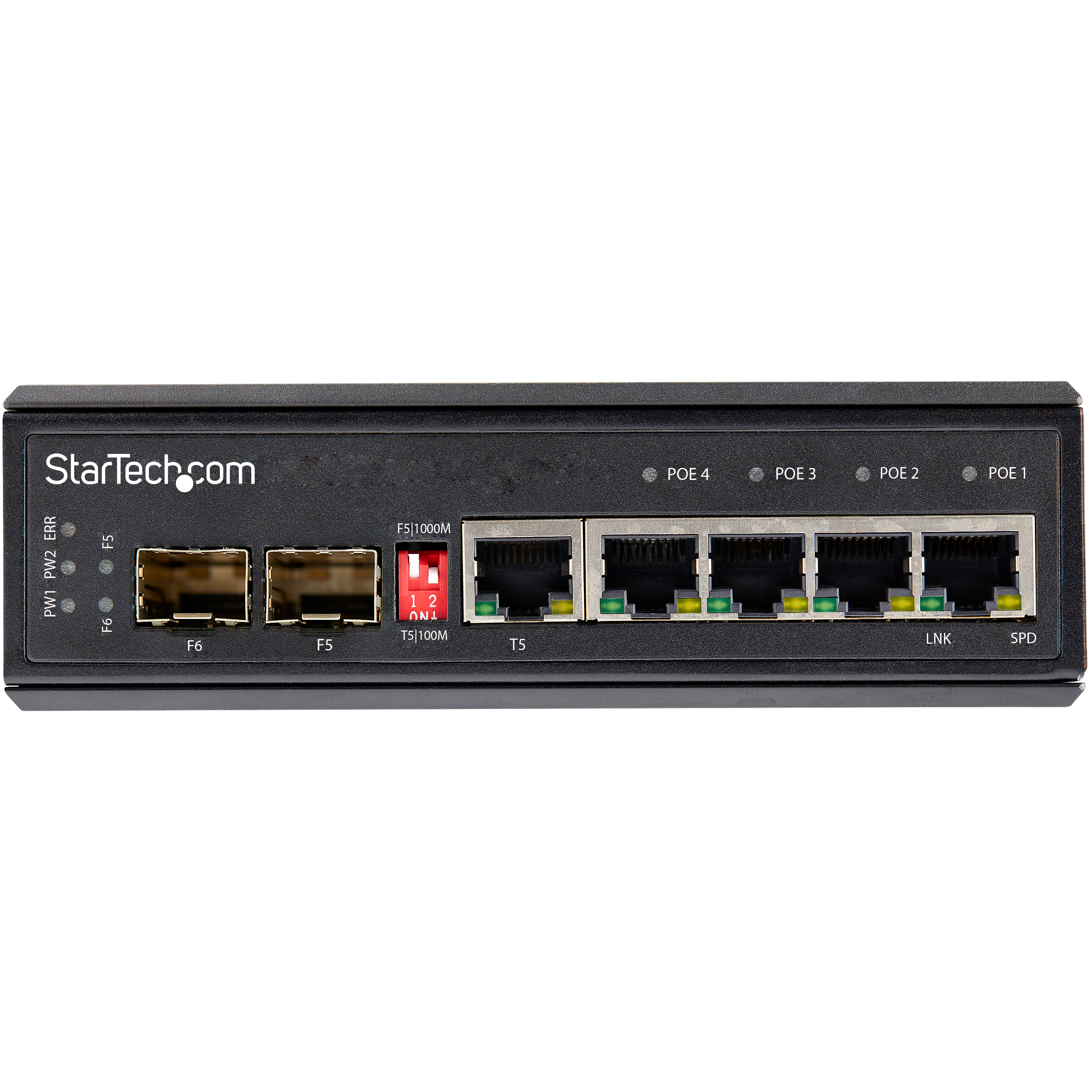

Main Image
IES1G52UP12V
Industrial 4 1 port TX 2 Open SFP port Ethernet Switch wit
Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 12V-48V DC
Main Image

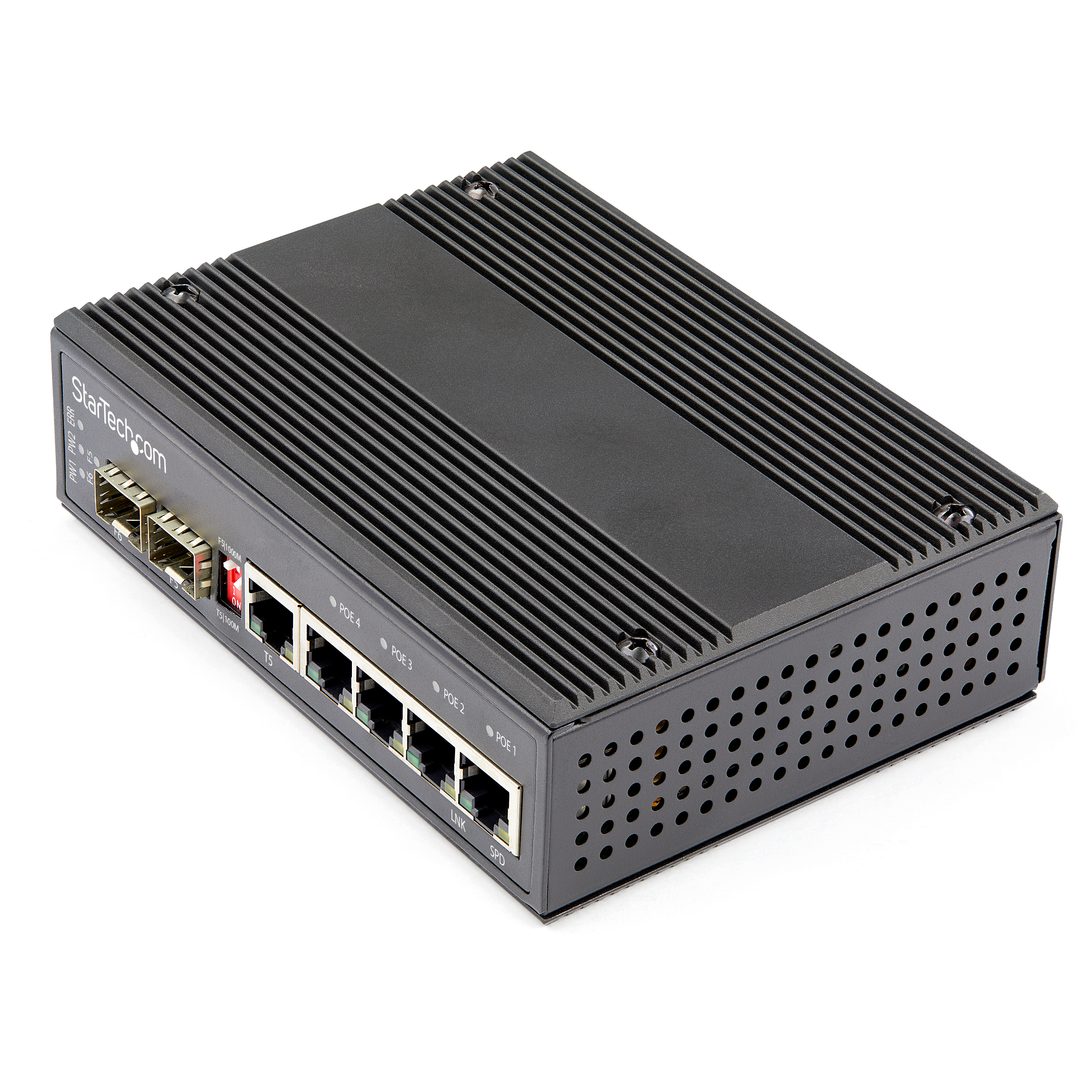

Product Images
Product Images

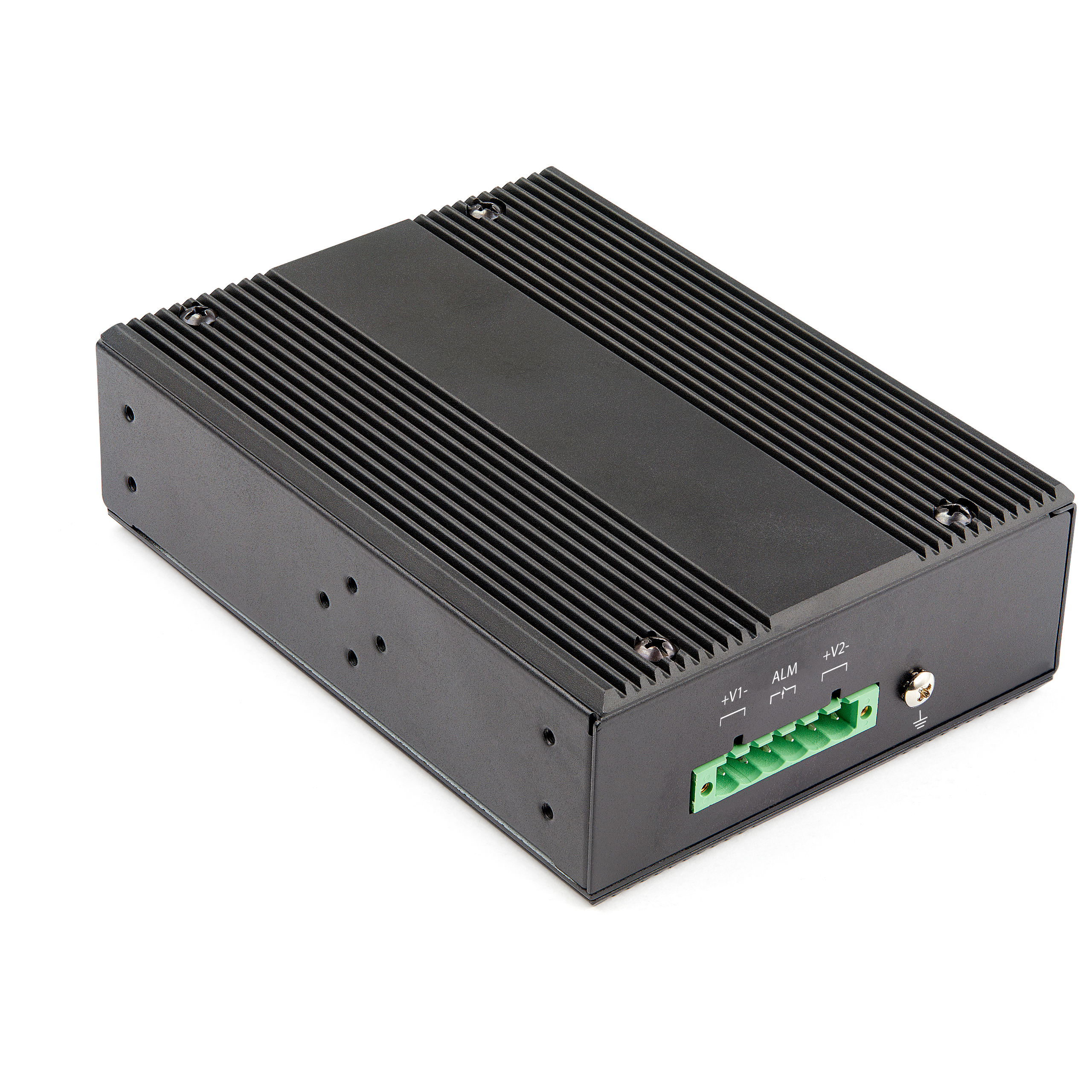

Product Images
BOM Image
Quick-Start Guide
Product Name Industrial 4 1 port TX 2 Open SFP port Ethernet Switch wit Product Number IES1G52UP12V UPC 065030889834 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family PoE Ethernet Switch - Industrial - PoE with SFP Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) 6 Pt Ethernet Switch Product Title (Short) Industrial 6Port Gigabit PoE+ Switch 30W Product Title (Medium) Industrial 6 Pt Gigabit Ethernet Switch 5 RJ45 (4 PoE) +2 SFP Slots 30W 12-48VDC Product Title (Standard) Industrial 6 Port Gigabit Ethernet Switch, 4 PoE RJ45 +2 SFP Slots 30W 802.3at PoE+ 12-48VDC 10/100/1000 Mbps -40 to 75C, TAA Product Title (Long) Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable - TAA Product Title (AMZ) Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable , TAA (IES1G52UP12V) Title Ingram (Part 1) Industrial 6 Port Gigabit Title Ingram (Part 2) Ethernet Switch Website Product Headline Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 12V-48V DC Bullet 1 FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots | Use with devices like cameras, sensors, wi-fi APs Bullet 2 FLEXIBLE 12V POWER INPUT: Can be wired via dual redundant terminal block inputs with voltage as low as 12V DC, boosted as needed to PoE/PoE+ (55V) for applications like solar, rail, and automotive Bullet 3 ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount Bullet 4 TECH SPECS: 10/100/1000 Mbps Auto-Negotiation | Unmanaged | 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flex Copper or SFP port (MSA Compliant) | Total power budget: 120W Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) Industrial 6 Port Gigabit Ethernet Switch - Up to 30W per 4 PoE ports - 75C to -40C hardened 10/100/1000 Mbps - 2 open SFP slots MSA - IP-30 steel housing MTBF 600k + hrs @ 50C Vibration/shock/free fall rated - Unmanaged DIN rail/wall mount 2yr warr Bullets (Consolidated) Industrial 6 Port Gigabit Ethernet Switch | 10/100/1000 Mbps auto | Unmanaged - 4 Power over Ethernet ports + 1 SFP + 1 flexible copper or SFP port - Up to 30W per PoE port (PSE) to IEEE 802.3af (PoE/Type 1) and IEEE 802.3at (PoE+/Type 2)w/Cat5e or better cabling; Total pwr 120W - Rugged IP-30 housing | Hardened -40C to 75C range | MTBF 600k + hrs @ 50C | Vibration/shock/free fall rated |DIN rail/wall mount H.W. incl - Redundant pwr w/terminal block or Type-M barrel plug 12-56VDC - 2-year warr Marketing Copy Website Search Keyword - 10 100 1000 ethernet switch
- 10/100/1000 ethernet switch
- 1gb network switch
- 1gb switch
- 4 port gigabit ethernet switch
- 4 port gigabit poe switch
- 4 port industrial poe switch
- 5 port 1gb switch
- 5 port ethernet switch
- 5 port fast ethernet switch
- 5 port gb switch
- 5 port gigabit ethernet switch
- 5 port gigabit network switch
- 5 port gigabit switch
- 5 port gigabit switch poe
- 5 port industrial ethernet switch
- 5 port network switch
- 5 port poe gigabit switch
- 5 port poe switch
- 5 port poe+ switch
- 5 port switch
- dc powered poe switch
- din rail ethernet switch
- din rail mount network switch
- din rail mounted switch
- din rail network switch
- din rail poe switch
- dlink gigabit ethernet switch
- ethernet hub 4 port gigabit
- ethernet lan switch
- ethernet poe switch
- fast ethernet poe switch
- fast ethernet switch
- GbE switch
- gigabit ethernet splitter
- gigabit ethernet switch
- gigabit network switch
- gigabit poe switch
- gigabit switch with sfp
- hardened ethernet switch
- hardened poe switch
- hardened switch
- high power poe switch
- industrial ethernet switch
- industrial ethernet switch 5 port
- industrial ethernet switch din rail mount
- industrial ethernet switch poe
- industrial gigabit ethernet switch
- industrial gigabit poe switch
- industrial grade ethernet switch
- industrial grade poe switch
- industrial grade switches
- industrial network switch
- industrial network switch poe
- industrial poe switch
- industrial power over ethernet
- industrial switch
- industrial switch hub
- industrial-grade poe switch
- internet switch 5 port
- lan network switch
- lan port switch
- lan switch
- lan switch 4 port
- lan switch 5 port
- linksys poe switch 5 port
- netgear 5 port ethernet switch
- netgear 5 port switch
- oem ethernet switch
- poe 5 port gigabit switch
- poe lan switch
- poe plus switch
- poe switch 5 port
- poe+
- poe+ switch
- power over ethernet switch
- rugged gigabit ethernet switch
- rugged poe switch
- ruggedized ethernet switch
- ruggedized network switch
- sfp poe switch
- sfp port switch
- switch ethernet industrial
- switch gigabit ethernet
- tp link 5 port poe switch
- tp link 5 port switch
- 6 port
Patents and Licenses United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br> Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

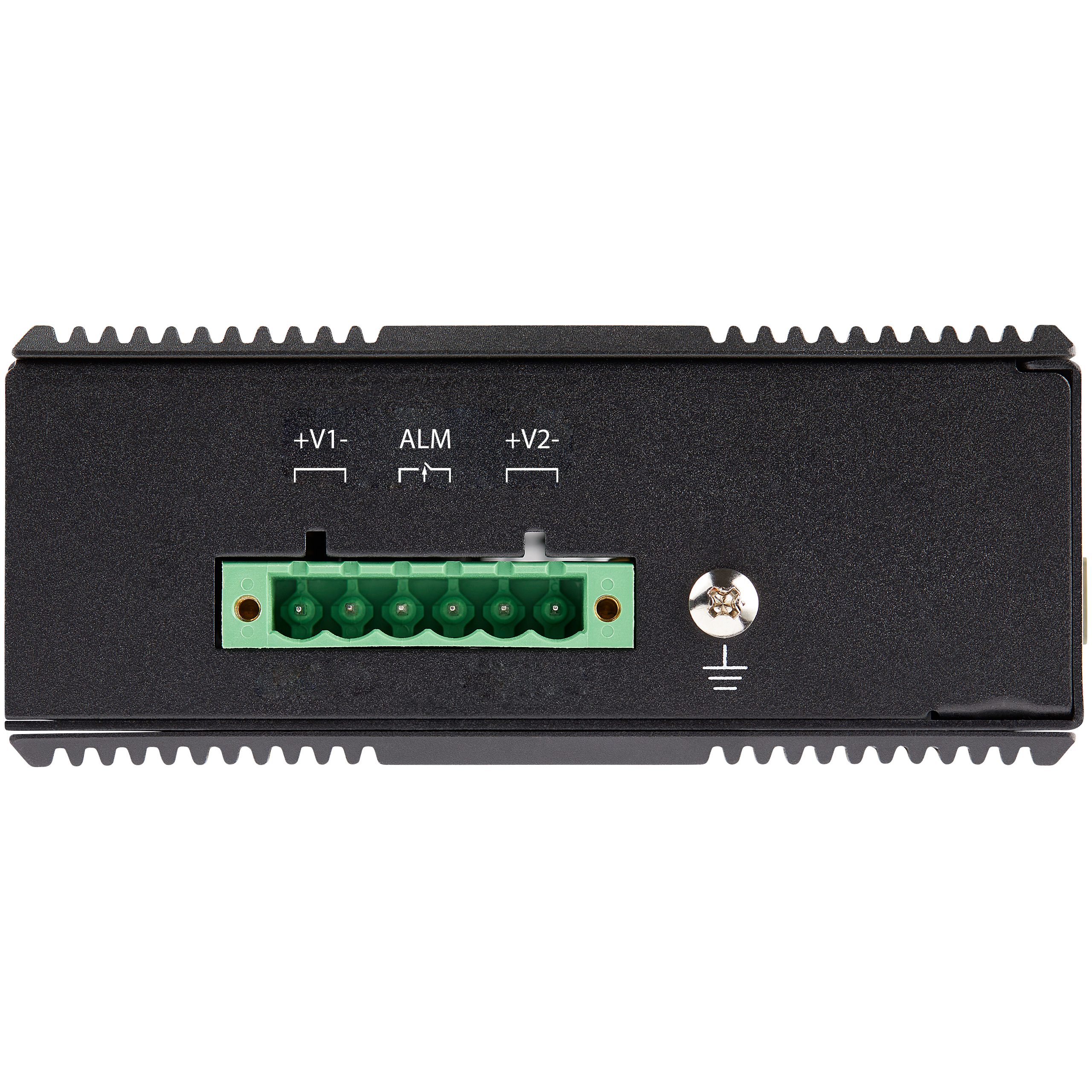

Constrained SKU Alternatives (Limited Stock) IES1G52UPDIN Power Source Terminal Block Color Black Humidity 5 to 95% (non-condensing) Material Aluminum and Steel Operating Temperature -40°C~75°C Primary Material Aluminum Product Length (mm) 142.000 Product Width (mm) 105.000 Product Height (mm) 42.800 Product Weight (g) 701.400 Storage Temperature -40°C~85°C TAA Compliant Yes Auto MDIX Yes Buffer Size 128 KB Compatible Networks 10/100/1000 Mbps Device Power Consumption (In Watts) 128W Flow Control IEEE 802.3x Flow Control and Back Pressure Full Duplex Support Yes General Specifications ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Safety Standard: EN60950-1 Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 MTBF (hours) 693,764 hours Supported Protocols CSMA/CD</br> IEEE 802.3</br> IEEE 802.3at</br> IEEE 802.3af Switching Architecture Back-plane (Switching Fabric): 12Gbps Chipset ID Marvell 88E6161</br> IC Plus IP804AR Industry Standards IEEE 802.3 10/100/1000BASE-T</br> IEEE 802.3x</br> IEEE 802.3af Power over Ethernet</br> IEEE 802.3at PoE Plus LED Indicators - 2 - PW1, PW2
- 1 - Relay
- 2 - SFP F5, F6
- 4 - PoE P1, P2, P3, P4
- 5 - Link/Active
- 5 - Speed 1000/100M

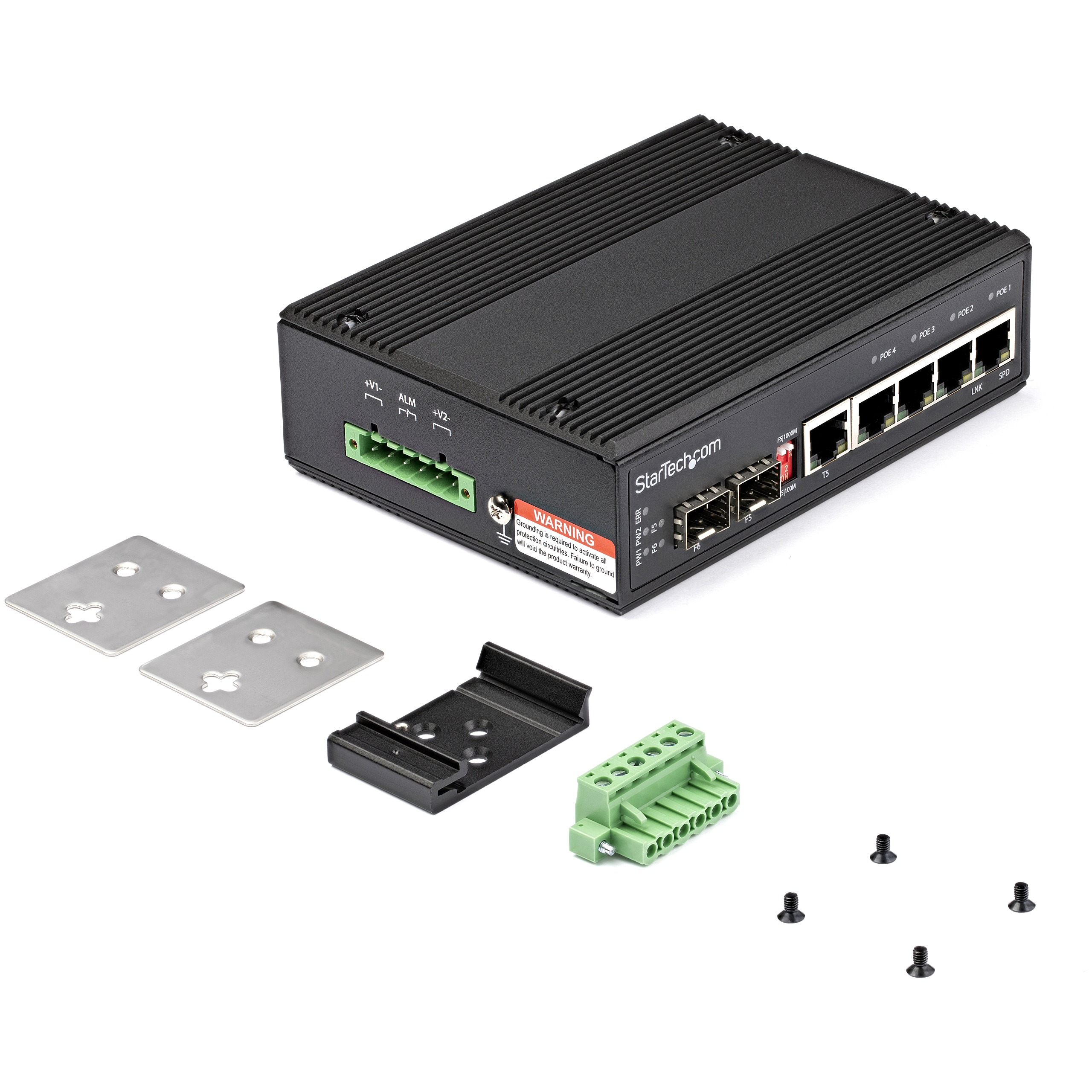

Power over Ethernet Yes Carton Depth (mm) 360 Carton Height (mm) 248 Carton Quantity 10 Carton Weight Gross (g) 10254 Included in Package - 1 - Media Converter
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block
Included In Package for Label - 1 - Media Converter
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block
Package Depth (mm) 471 Package Height (mm) 68 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 918 Packaging Description 5 Port Unmanaged Industrial-Grade Switch + 2 Open SFP Packaging Description India 5 Port Unmanaged Industrial-Grade Switch + 2 Open SFP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Terminal Block (6 Wire) Connector 1 (Quantity) 1 Connector 2 SFP Slot Connector 2 (Quantity) 2 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2020-10-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,NL,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-02-06 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
