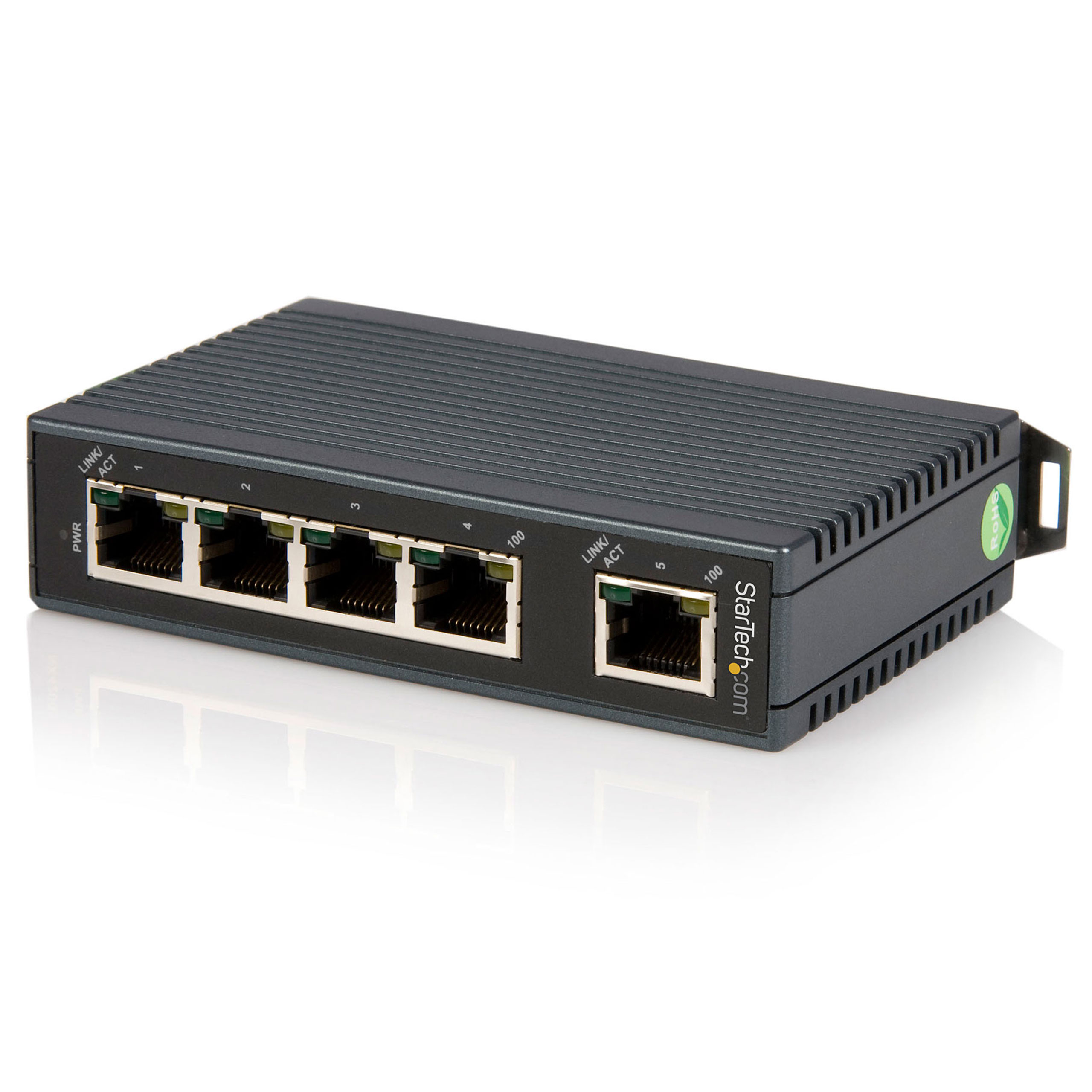

IES5100
Unmanaged Ethernet Switch DIN-Rail Mountable
Expand your network connectivity with this rugged din rail mountable industrial Ethernet switch
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Unmanaged Ethernet Switch DIN-Rail Mountable Product Number IES5100 UPC 065030832632 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Short) 5 Port Industrial Ethernet Switch Product Title (Standard) 5 Port Unmanaged Industrial Ethernet Switch - DIN-Rail Mountable Product Title (Long) 5 Port Unmanaged Industrial Ethernet Switch - DIN-Rail Mountable Product Title (AMZ) 5 Port Unmanaged Industrial Ethernet Switch - DIN-Rail Mountable (IES5100) Title Ingram (Part 1) 5 Port Unmanaged Industrial Ethe Title Ingram (Part 2) rnet Switch DIN-Rail Mount Website Product Headline Expand your network connectivity with this rugged din rail mountable industrial Ethernet switch Bullet 1 Din-Rail mounting Bullet 2 Store-and-forward switching mechanism Bullet 3 Support 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation function Bullet 4 Supports 2048 Mac addresses Bullet 5 Device powers from the Terminal Block power connector Bullets (Consolidated) Expand your Network connectivity with this rugged din rail mountable industrial Ethernet Switch - 5 Port Ethernet Switch - Industrial Ethernet Switch - Unmanaged Ethernet Switch - 10/100 Network Switch - Din Rail Ethernet Switch - DIN-Rail - Switch - Unmanaged - 5 x 10/100 - DIN Rail Mountable Marketing Copy Applications - Ideal for demanding networks in industrial applications such as warehouses and outdoor locations without temperature control
- Perfect for use on Factory/Manufacturing Floors
- Great for adding small work groups to an existing network
Website Search Keyword - Ethernet switch
- fast ethernet
- industrial switch
- industrial ethernet switch
- 5 port switch
- networking
- network solutions
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - M45PATCH10BL
- M45PATCH15BL
- M45PATCH100B
Related Products - DS5107
- DS8105
Replacement Product IES5102 Input Current 200mA Input Voltage 12 ~ 48 DC Power Consumption (In Watts) 2.4W Max Power Source Terminal Block Humidity 5~95% RH Material Plastic Operating Temperature -10°C to 60°C (14°F to 140°F) Product Length (mm) 70 Product Width (mm) 26 Product Height (mm) 110 Product Weight (g) 200 Storage Temperature -25°C to 85°C (-14°F to 185°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100 Mbps Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 100Mbps MTBF (hours) 1,677,807 Hours OS Compatibility OS Independent Industry Standards IEEE 802.3 10Base-T/100Base-TX LED Indicators - 1 - Power
- 10 - Link/Activity
Carton Depth (mm) 411 Carton Height (mm) 232 Carton Quantity 10 Carton Weight Gross (g) 4600 Included in Package - 1 - 5 Port Ethernet Switch
- 1 - Instruction Manual
Package Depth (mm) 79 Package Height (mm) 176 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 340 Packaging Description 5 Port Unmanaged Industrial Ethernet Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Connector 2 Terminal Block (3 Wire) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
