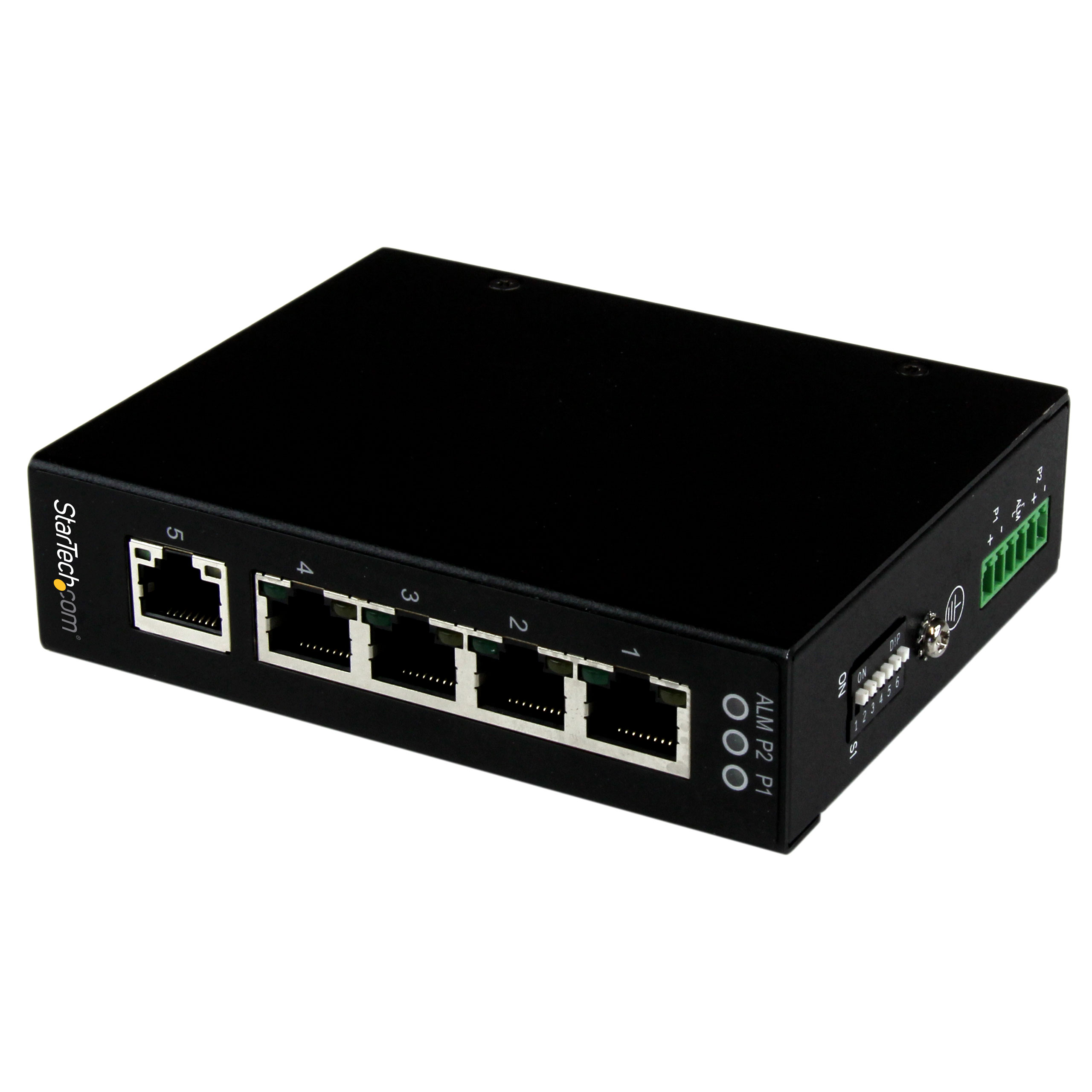

IES51000
Industrial 5 Port Gigabit Ethernet Network Switch
Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable
Main Image
Product Images
Product Images
BOM Image
Product Name Industrial 5 Port Gigabit Ethernet Network Switch Product Number IES51000 UPC 065030859318 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX065X Product Title (Ultra-Short) 5Pt GbE Switch Product Title (Short) 5 Port Industrial Gigabit Network Switch Product Title (Medium) 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Product Title (Standard) 5 Port Unmanaged Industrial Gigabit Ethernet Switch, DIN Rail / Wall-Mountable, TAA Product Title (Long) 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable - TAA Product Title (AMZ) 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30 Gigabit Switch , TAA (IES51000) Title Ingram (Part 1) 5Port Rugged IP30-Rated Title Ingram (Part 2) Gigabit Network Switch Website Product Headline Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable Bullet 1 5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports Bullet 2 IP30-rated DIN rail and wall-mountable metal enclosure Bullet 3 Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay Bullet 4 Overcurrent and reverse polarity protection Bullet 5 Speed / duplex auto-negotiation and auto-MDIX detection on each port Bullets (Consolidated) Network up to 5 Ethernet devices through a rugged industrial Gigabit Ethernet switch - 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail/Wall-Mountable Network Switch - Rugged IP30-Rated Gigabit Switch - Industrial Ethernet Switch - 5 x 10/100/1000 Mbps RJ45 Ports - Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay Marketing Copy Applications - Ideal for industrial applications such as warehouses and junction boxes without temperature control
- Suitable for adding Gigabit Ethernet on factory / manufacturing floors
- Great for adding small workgroups to an existing network
Website Search Keyword - ethernet switch
- network switch
- gigabit switch
- gigabit ethernet switch
- industrial Ethernet switch
- gigabit network switch
- unmanaged Ethernet switch
- industrial network switch
- rugged ethernet switch
- unmanaged network switch
- wall mount network switch
- industrial Gigabit Ethernet switch
- rugged network switch
- unmanaged Gigabit Ethernet switch
- gigabit ethernet network switch
- din rail mount network switch
- 10/100/1000 Mbps Switch
- NGI-U05
- NGI-U05E
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - M45PATCH3BL
- 45PATCH10BK
- 45PATCH15GN
- M45PATCH25RD
- M45CROSS35YL
- FLAT45GR6
Related Products - IES61002POE
- IES81000POE
- IES51000POE
- DS51002
Input Voltage 12 ~ 58 DC Power Consumption (In Watts) 3.63W Max. Power Source Terminal Block Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature -40°C to 75°C (-40°F to 167°F) Primary Material Steel Product Length (mm) 111.000 Product Width (mm) 89.000 Product Height (mm) 28.000 Product Weight (g) 328.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 128 KB Compatible Networks 10/100/1000 Mbps Flow Control Half-duplex back-pressure and IEEE802.3x full-duplex Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2 Gbps (Full-Duplex) OS Compatibility OS Independent Switching Architecture Store-and-Forward Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX
- IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3ad Link Aggregation
- IP30 (Enclosure)

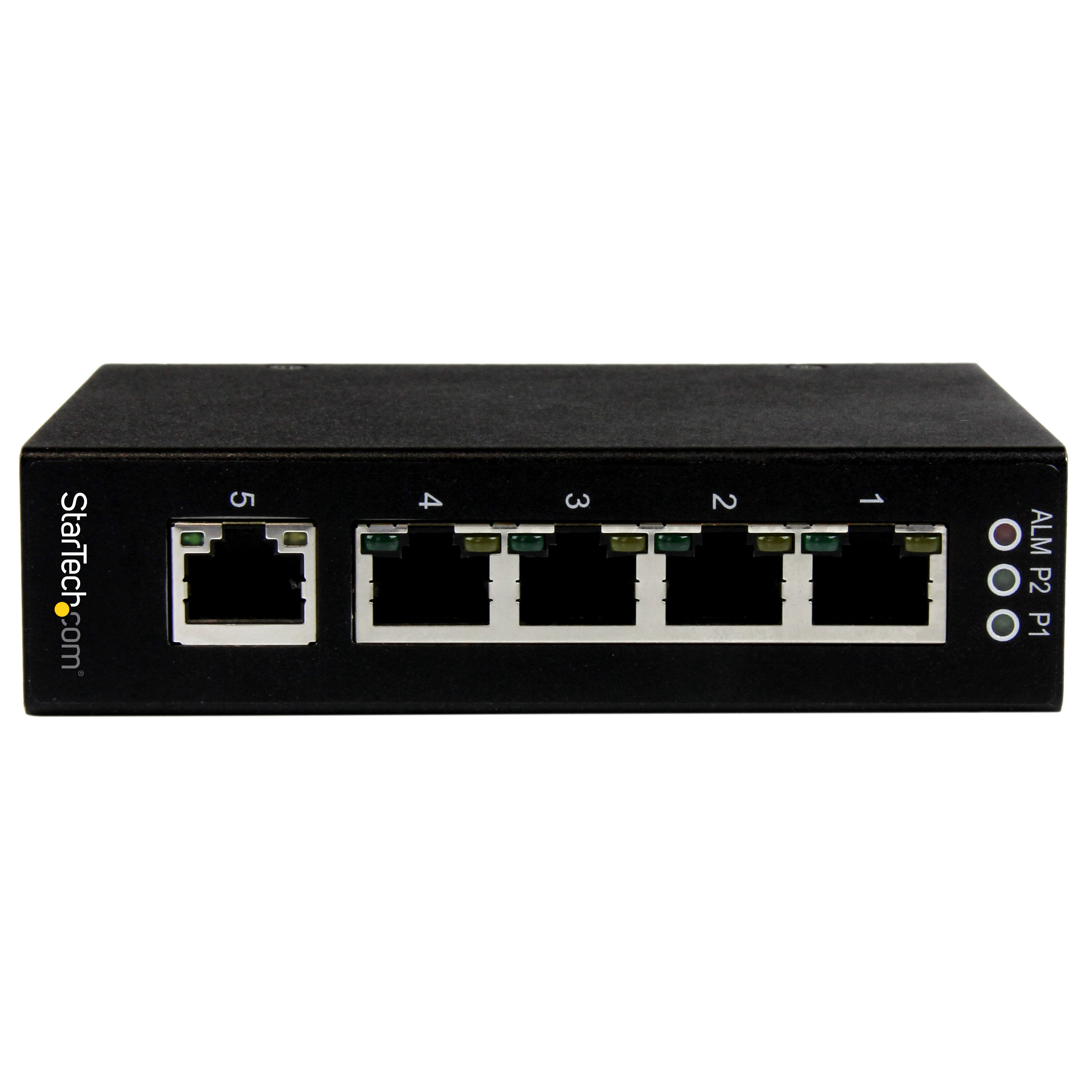

Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - P1 (Power) indicator
- 1 - P2 (Power) indicator
- 1 - ALM (Alarm) indicator
- 5 - Link / Act
- 5 - Speed indicator

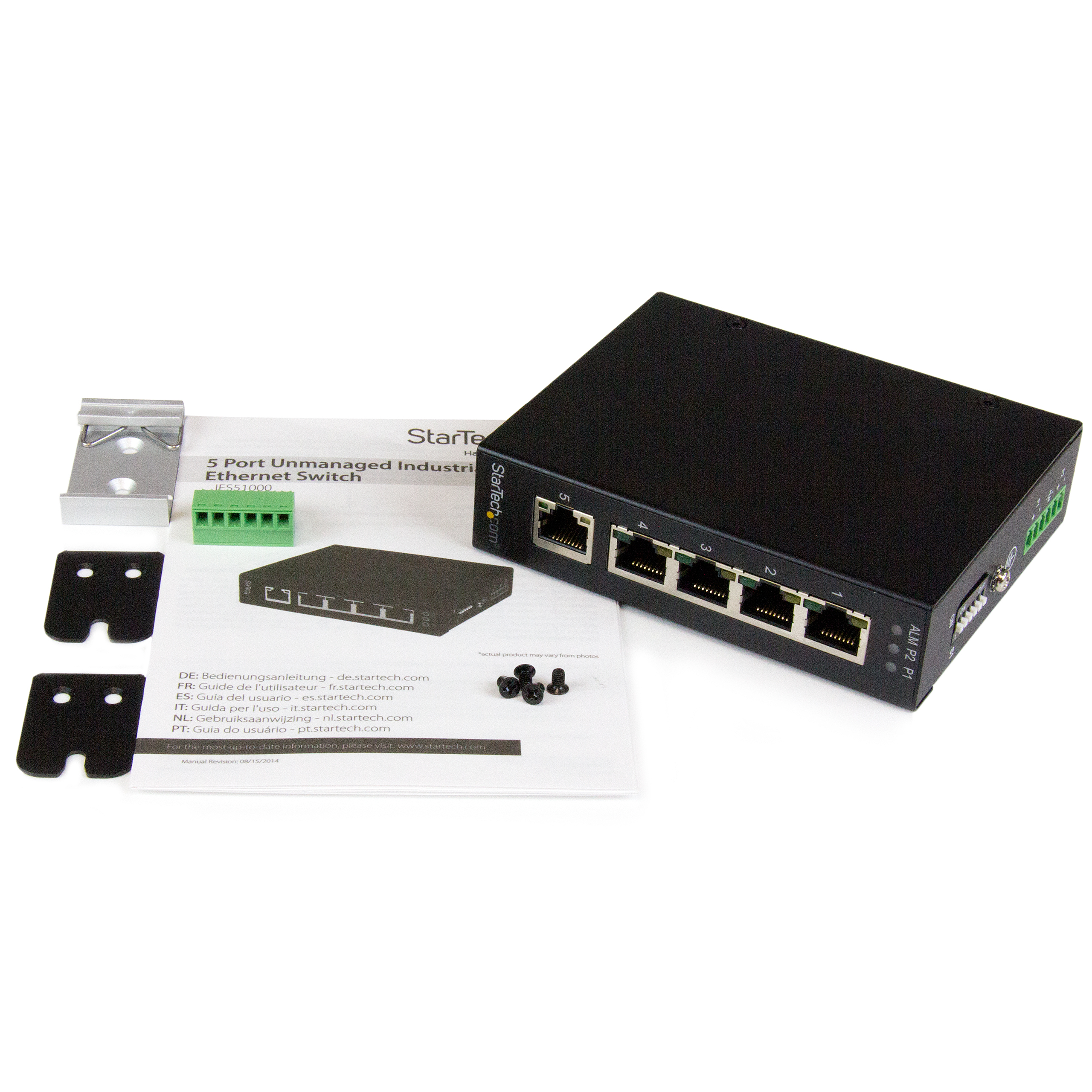

Carton Depth (mm) 440 Carton Height (mm) 362 Carton Quantity 36 Carton Weight Gross (g) 20026 Included in Package - 1 - Industrial Ethernet Switch
- 2 - Wall-Mount Brackets
- 1 - DIN-Rail Clip
- 4 - Screws
- 1 - Terminal Block
- 1 - Instruction Manual
Included In Package for Label - 1 - Industrial Ethernet Switch
- 2 - Wall-Mount Brackets
- 1 - Din-Rail Clip
- 4 - Screws
- 1 - Terminal Block
- 1 - Instruction Manual

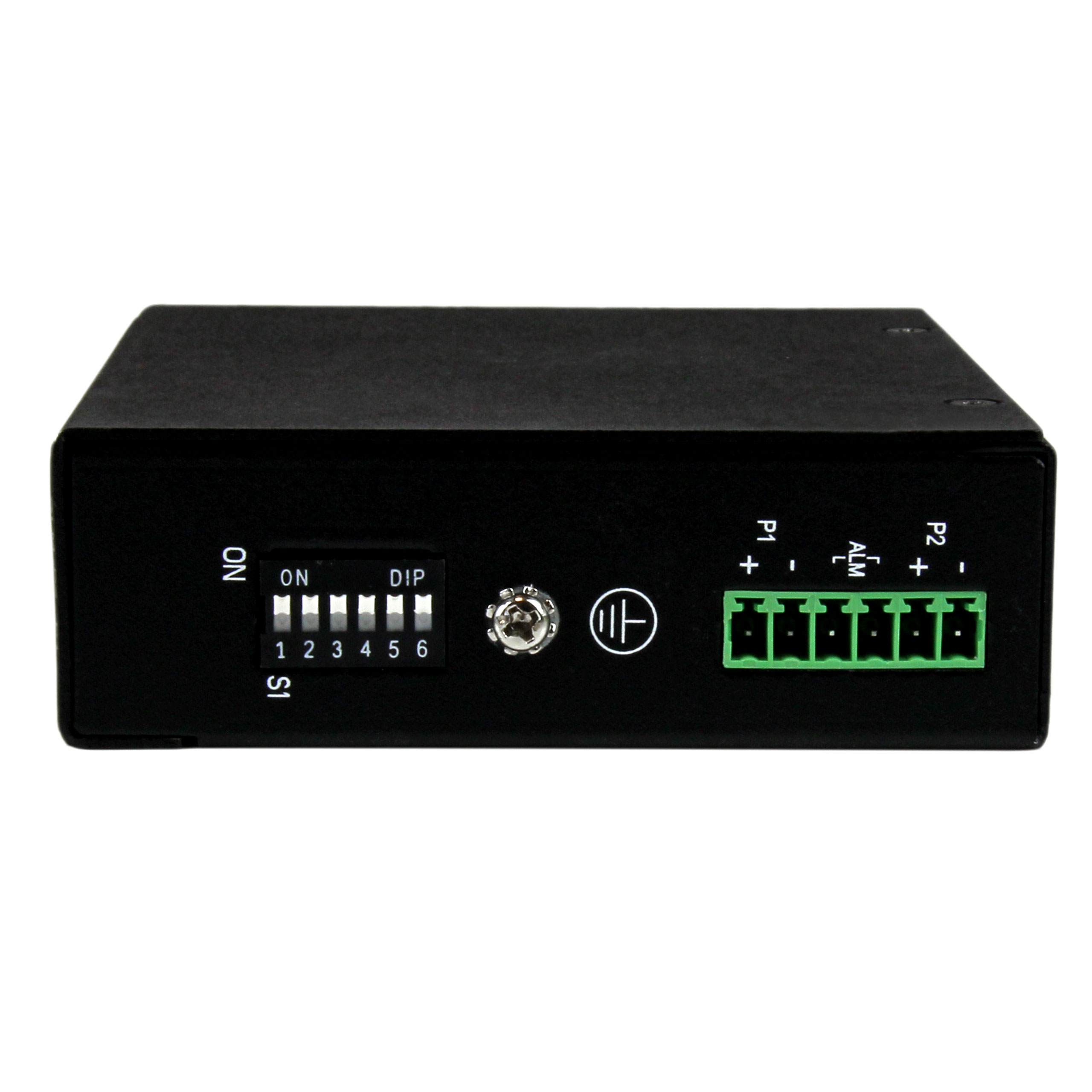

Package Depth (mm) 139 Package Height (mm) 83 Package Width (mm) 178 Package Quantity 1 Package Weight (g) 518 Packaging Description 5 Port Industrial Gigabit Ethernet Switch Packaging Description India 5 Port Industrial Gigabit Ethernet Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Connector 2 Terminal Block (6 Wire) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-02-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
