IES51000POE
5Port 1 Gbps PoE Network Switch - Wall Mountable
Connect Gigabit Ethernet and power to 4 PoE-enabled devices, with 15.4W per-port output
Main Image
Product Images
Product Images
BOM Image
Product Name 5Port 1 Gbps PoE Network Switch - Wall Mountable Product Number IES51000POE UPC 065030851916 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX065X Product Title (Ultra-Short) 5Pt 1Gbps PoE Switch Product Title (Short) 5 Port Gigabit PoE Switch w/ 4 PoE ports Product Title (Standard) 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 Power over Ethernet ports Product Title (Long) 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 Power over Ethernet ports Product Title (AMZ) 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 15.4W Power over Ethernet ports - Wall Mountable PoE Network Switch (IES51000POE) Title Ingram (Part 1) 5Port 1 Gbps PoE Network Switch Title Ingram (Part 2) - Wall Mountable Website Product Headline Connect Gigabit Ethernet and power to 4 PoE-enabled devices, with 15.4W per-port output Bullet 1 Max 15.4 W for each PSE/PoE port Bullet 2 Store-and-Forward switching Bullet 3 IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex Bullet 4 Rugged metal enclosure Bullet 5 Auto-negotiation for network speed and full/half-duplex Bullets (Consolidated) Connect Gigabit Ethernet and power to 4 PoE-enabled devices, with 15.4W per-port output - 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 Power over Ethernet ports - Wall Mountable PoE Network Switch - 802.3af Power over Ethernet - 10/100/1000 Mbps Gigabit Ethernet Switch - GbE PoE Switch Marketing Copy Applications - Power a security camera/network webcam situated in a remote area where power connection is not possible
- Perfect for powering a Wireless Access Point(WAP) in a business environment
- Great for IT administrators implementing PoE supported VoIP phones
- Power your intercom, paging or hallway speaker amplifier
- Enable remote installation of touchscreens or information kiosks
- Retail applications such as RFID readers
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - C6PATCH6BK
- N6PATCH10BL
- NETRS2321POE
- MCM110SC2P
Related Products - IES8100POE
- POEINJ100
- ET1110PSE
- ST2000PEXPSE
- POESPLT100
Constrained SKU Alternatives (Limited Stock) IESC1G50UP Input Current 2 A Input Voltage 100 - 240 AC Output Current 1.35 A Output Voltage (V) 48 DC Power Consumption (In Watts) 62 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 130.000 Product Width (mm) 90.000 Product Height (mm) 28.000 Product Weight (g) 366.000 Storage Temperature 0°C to 50°C (32°F to 122°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 104 KB Compatible Networks 10/100/1000 Mbps Flow Control Half-duplex back-pressure and IEEE802.3x full-duplex Full Duplex Support Yes Maximum Data Transfer Rate 2 Gbps (Full-Duplex) OS Compatibility OS Independent Switching Architecture Store-and-Forward Chipset ID Realtek - RTL8370 Industry Standards IEEE 802.3af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x LED Indicators - 1 - Power
- 1 - Uplink
- 4 - LAN
- 4 - PoE

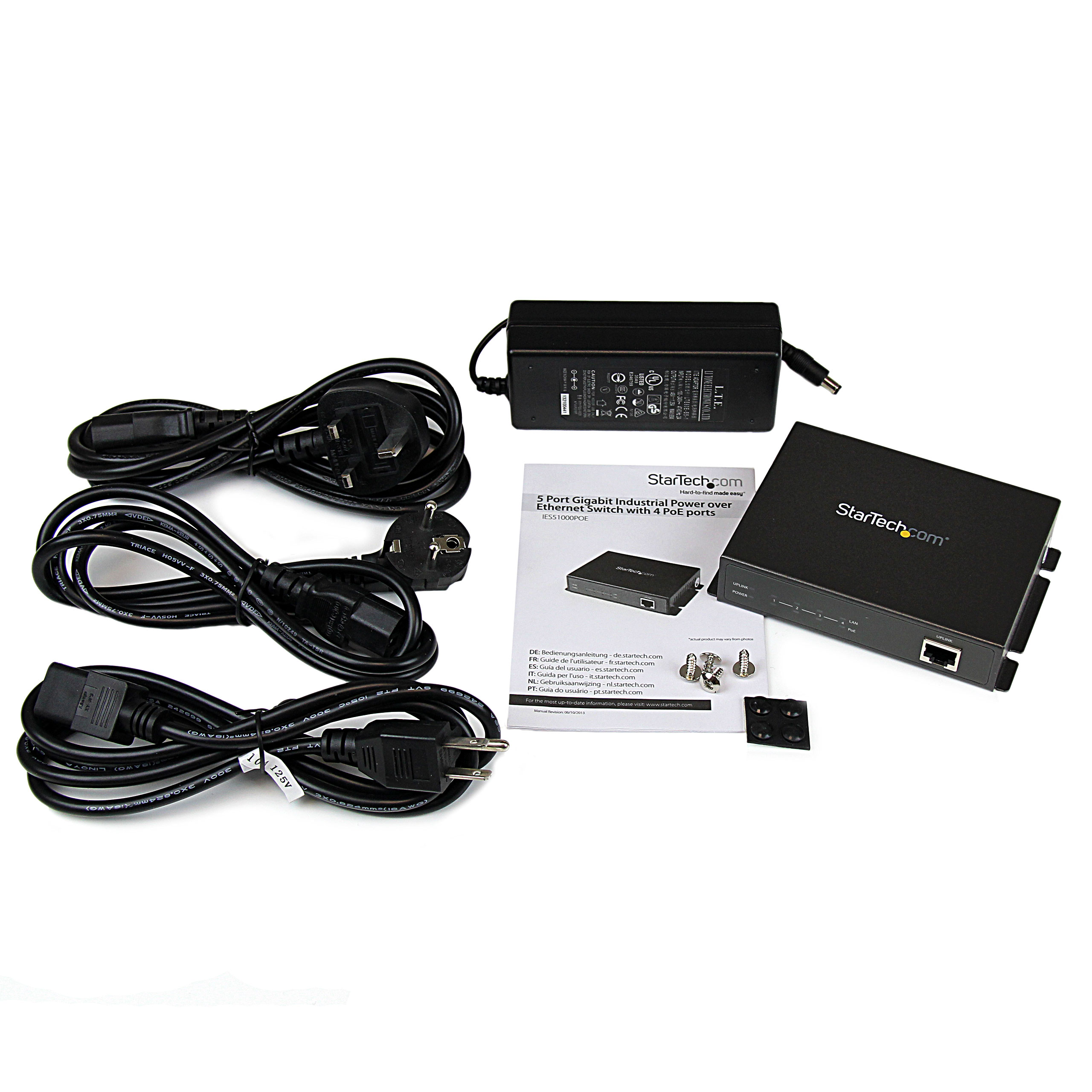

Carton Depth (mm) 402 Carton Height (mm) 392 Carton Quantity 20 Carton Weight Gross (g) 18090 Included in Package - 1 - Gigabit Ethernet PoE Switch
- 4 - Mounting Screws
- 1 - Set, Rubber Feet
- 1 - Universal Power Adapter
- 3 - Power Cords (NA, EU, UK, ANZ)
- 1 - Instruction Manual
Package Depth (mm) 201 Package Height (mm) 74 Package Width (mm) 370 Package Quantity 1 Package Weight (g) 1406 Packaging Description 5 Port Gigabit Ethernet Switch w/ 4 PoE Ports Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-06-03 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
