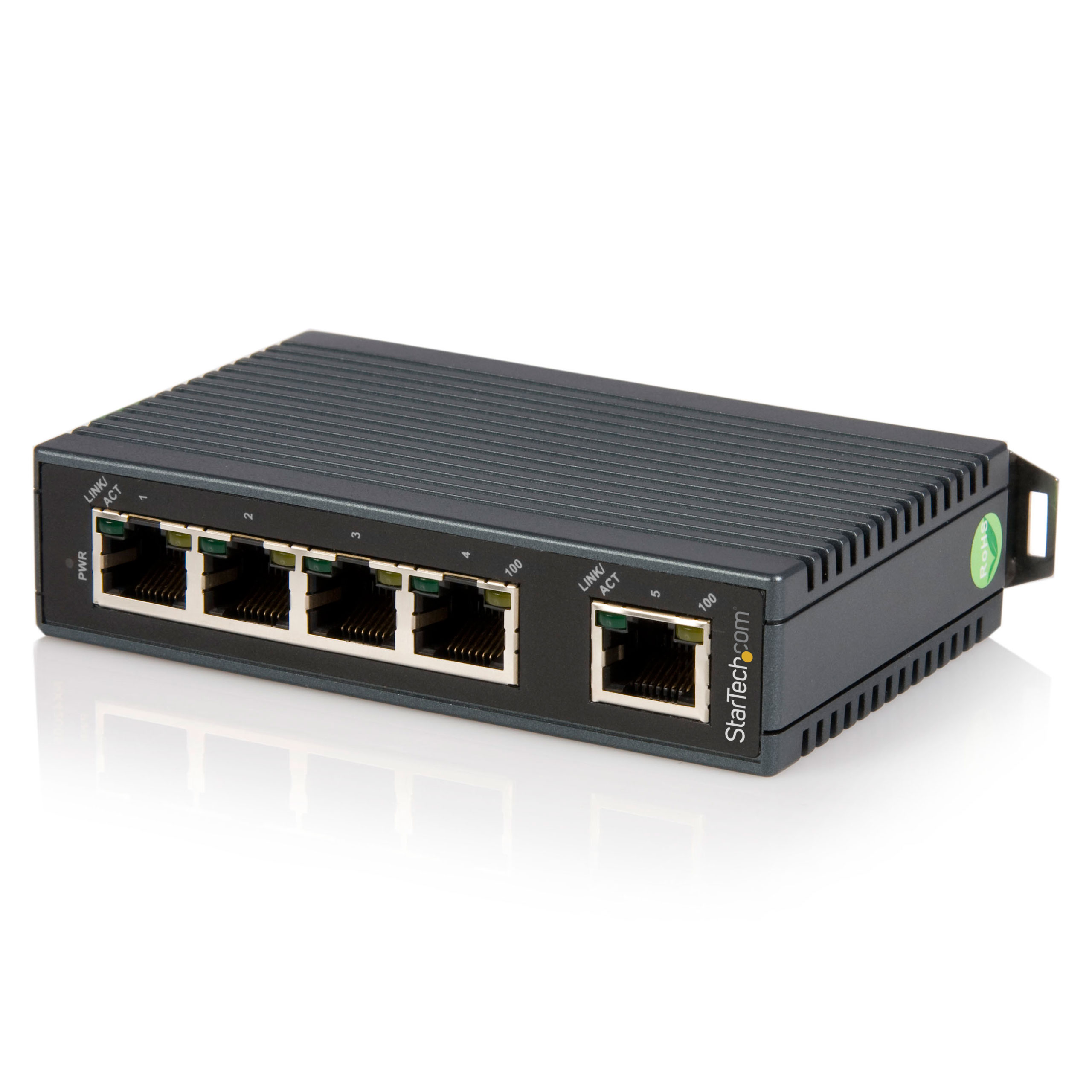

IES5102
5 Pt Unmanaged Network Switch - DIN Rail Mountable
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 5 Pt Unmanaged Network Switch - DIN Rail Mountable Product Number IES5102 UPC 065030859745 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Ultra-Short) 5Pt Ethernet Switch Product Title (Short) 5 Port Industrial 10/100 Ethernet Switch Product Title (Medium) 5 Port Industrial Ethernet Switch - DIN Rail Mountable - Fast 10/100 Switch Product Title (Standard) 5 Port Industrial Ethernet Switch, DIN Rail Mountable, TAA Product Title (Long) 5-Port Industrial Ethernet Switch - DIN Rail Mountable - TAA Product Title (AMZ) 5-Port Ethernet Switch - 10/100Mbps Industrial Networking Solution - IP30-rated Energy Efficient Internet Switch , TAA (IES5102) Title Ingram (Part 1) 5 Pt Unmanaged Network Switch - Title Ingram (Part 2) DIN Rail Mountable - IP30 rated Website Product Headline Expand your network connectivity with this rugged unmanaged 10/100Mbps switch Bullet 1 Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch Bullet 2 Wide-range 12-48V DC terminal block input Bullet 3 Easy installation with an integrated DIN rail bracket Bullet 4 IEEE 802.3az Energy-Efficient Ethernet Bullet 5 Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation Bullets (Consolidated) Expand your network connectivity with this rugged unmanaged network switch - Fast 10/100Mbps Switch - DIN rail mountable with built-in bracket - Robust IP30-rated housing - Wide range 12-48V DC terminal block input - IEEE 802.3az Energy-Efficient Ethernet - Wider range of operating temperatures and ideal for industrial environments - Store-and-forward switching mechanism - Supports IEEE 802.3x flow control and back pressure Marketing Copy Marketing Copy (No HTML) This compact 5-port 10/100Mbps switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Designed with a rugged IP30-rated housing, the 5-port fast ethernet switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. This DIN rail mount ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings with this industrial networking solution. This energy efficient ethernet switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. With lower overall power consumption, the industrial grade network switch enhances your energy efficiency, in turn helping you reduce monthly costs. The extreme 10/100 Mbps switch is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Well suited for networks in demanding industrial applications such as warehouses and factories
- A great way to enhance network connectivity, adding small workgroups to an existing network
- Install in a server rack or cabinet in a network room or test lab environment
Website Search Keyword - Ethernet switch
- fast ethernet
- industrial switch
- industrial ethernet switch
- 5 port switch
- network solutions
- network switch
- unmanaged Ethernet switch
- industrial network switch
- rugged ethernet switch
- unmanaged network switch
- rugged network switch
- din rail mount network switch
- 5 port network switch
- 5 port Ethernet switch
- 10/100 switch
- 10/100 mbps switch
- fast ethernet switch
- 5 port 10/100 switch
- Unmanaged Industrial Ethernet Switch
- IES5100
- NFI-U05A
- NFI-U05
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - M45PATCH3BL
- M45PATCH15BK
- M45PATCH50BL
- 45PATCH10BK
- RJ45PATCH100
- 45PATCH100BK
- M45PATCH100W
- C6PATCH6BL
- C6PATCH6BK
- N6PATCH50BK
- N6PATCH100BL
Related Products - IES51000
- DS51002
- IES8100POE
- DS51072
- DS81072
Input Voltage 12 ~ 48 DC Output Voltage (V) 12V DC Power Consumption (In Watts) 2.12W Max Power Source Terminal Block Color Black Humidity 5~95% RH (Non-Condensing) Material Plastic Operating Temperature -10°C to 60°C (14°F to 140°F) Primary Material Plastic Product Length (mm) 70 Product Width (mm) 25 Product Height (mm) 110 Product Weight (g) 150 Storage Temperature -25°C to 85°C (-13°F to 185°F) TAA Compliant Yes Auto MDIX Yes Auto-Negotiation Yes Buffer Size 56 KB Compatible Networks 10/100 Mbps Flow Control IEEE 802.3x Full-Duplex Full Duplex Support Yes Jumbo Frame Support No Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 200 Mbps (Full-Duplex) MTBF (hours) 1,179,133 Hours OS Compatibility OS Independent Surge Protection Switching Architecture Industry Standards - IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
- IEEE 802.3az (Energy-Efficient Ethernet)
- IEEE 802.1P Quality of Service (QoS)

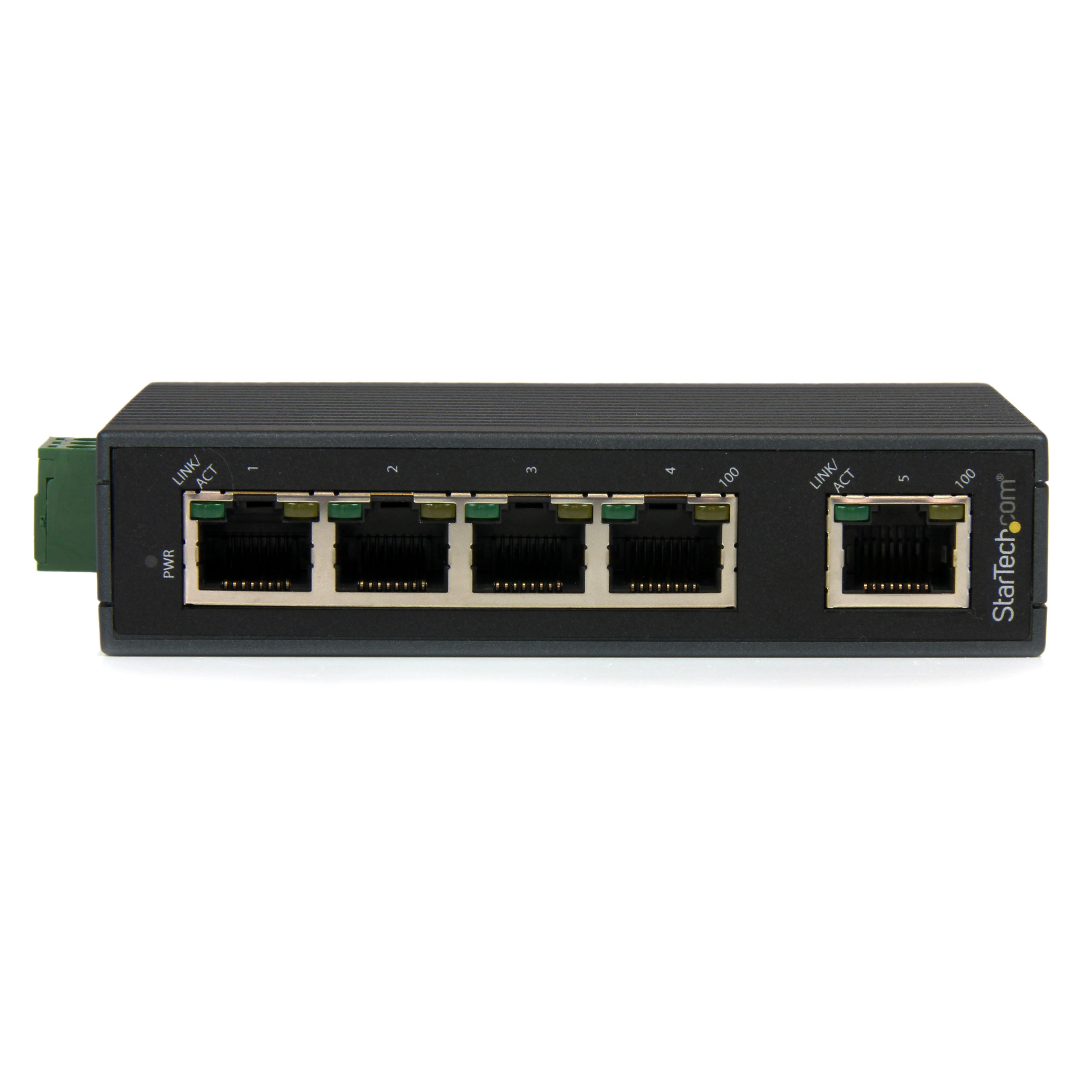

Interface/Bridge RJ45 (10/100 Ethernet) LED Indicators - 1 - Power
- 5 - Link/Activity
- 5 - Activity (100 Mbps)

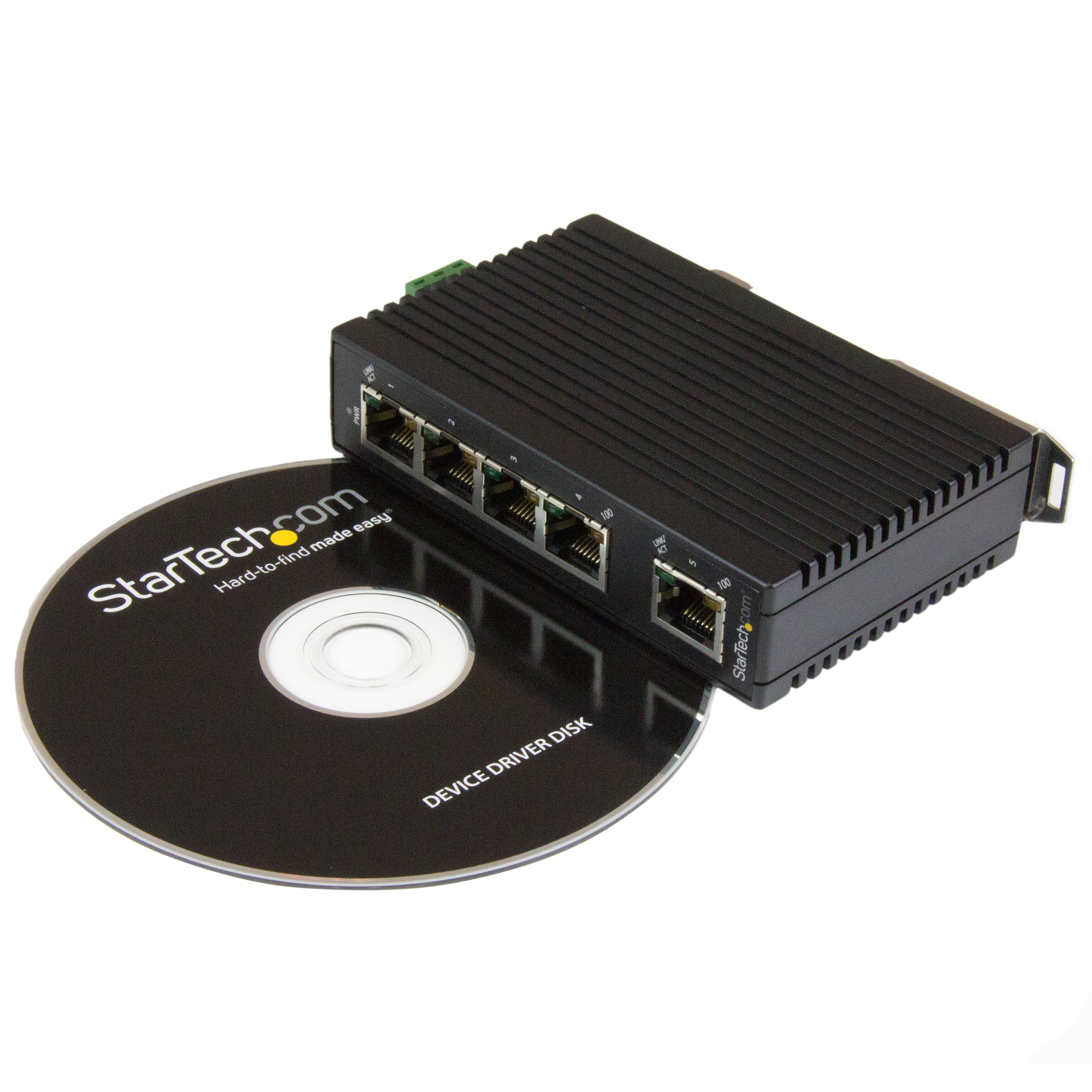

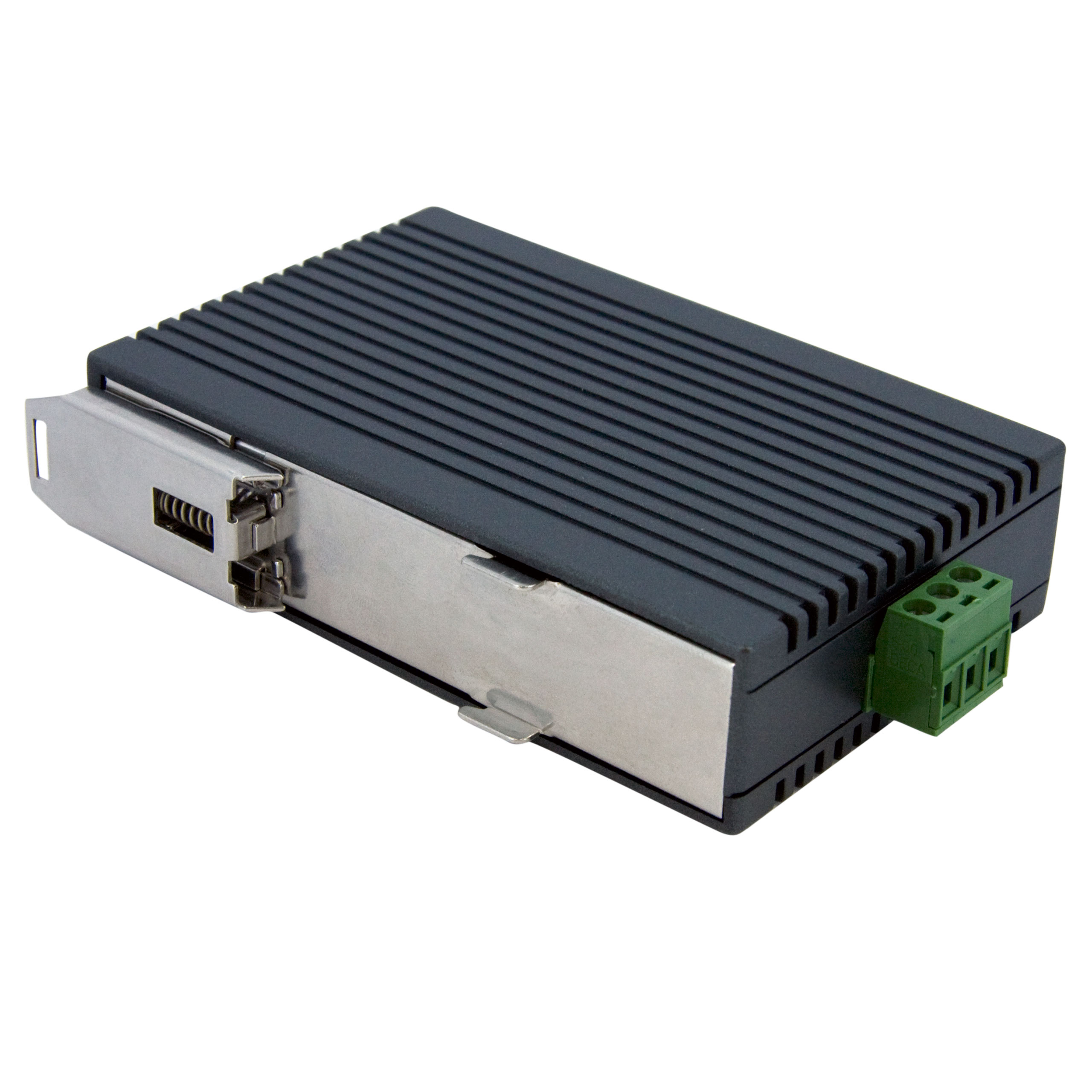

Regulatory Approvals Carton Depth (mm) 425 Carton Height (mm) 236 Carton Quantity 10 Carton Weight Gross (g) 3686 Included in Package - 1 - 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket)
- 1 - Instruction Manual CD
- 1 - Terminal Block
Included In Package for Label - 1 - Terminal Block
- 1 - Instruction Manual CD
- 1 - 5 Port Ethernet Switch (W/ Attached Din Rail Bracket)
Package Depth (mm) 177 Package Height (mm) 81 Package Width (mm) 201 Package Quantity 1 Package Weight (g) 286 Packaging Description 5 Port Unmanaged Industrial Ethernet Switch Packaging Description India 5 Port Unmanaged Industrial Ethernet Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Connector 2 Terminal Block (3 Wire) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-09-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2014-10-20 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
