IES51GPOEPD
Power over Ethernet Network Switch - PoE PD
Connect five Ethernet devices to your network, including two Power over Ethernet (802.3af) devices, even in locations without a power source
Main Image
Product Images
Product Images
BOM Image
Product Name Power over Ethernet Network Switch - PoE PD Product Number IES51GPOEPD UPC 065030861106 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) Gigabit PoE Switch Product Title (Short) 5 Port Gigabit Ethernet Switch - PoE PD Product Title (Medium) 5 Port Gigabit Ethernet Switch - PoE-Powered - 2x PSE/PoE Ports - Network Switch Product Title (Standard) 5 Port Gigabit Ethernet Switch - PoE-Powered with 2x PSE/PoE Ports - Power over Ethernet Network Switch - PoE PD Product Title (Long) 5-Port Gigabit Ethernet Switch - PoE-Powered with 2x PSE/PoE Ports Product Title (AMZ) 5 Port Gigabit Ethernet Switch - PoE-Powered with 2x PSE/PoE Ports - Power over Ethernet Network Switch - PoE PD (IES51GPOEPD) Title Ingram (Part 1) Power over Ethernet Network Title Ingram (Part 2) Switch - PoE PD w/ 2x PSE Ports Website Product Headline Connect five Ethernet devices to your network, including two Power over Ethernet (802.3af) devices, even in locations without a power source Bullet 1 Deploy almost anywhere — PoE-powered device (PD) that supports both 802.3af and 802.3at power input Bullet 2 Network and power your Gigabit PDs, with two 802.3af PSE ports offering total power output up to 15W Bullet 3 Power the switch during power dips or failures, with redundant power input using the optional power adapter (included) Bullet 4 Rugged metal enclosure provides durability in harsh environments Bullet 5 Compatible with 10/100/1000 Mbps networks, and compliant with IEEE 802.3, 802.3u, 802.3ab standards Bullets (Compact) Connect 5 Ethernet devices to your network including 2 PoE (802.3af) - Use in locations without a power source - PoE-Powered Gigabit Ethernet Switch with 2x PSE/PoE Ports - Power over Ethernet Network Switch - PoE PD with Redundant Power - PoE Switch Bullets (Consolidated) Connect five Ethernet devices to your network including two Power over Ethernet (802.3af) devices even in locations without a power source - PoE-Powered Gigabit Ethernet Switch with 2x PSE/PoE Ports - Power over Ethernet Network Switch - PoE PD with redundant power input using the optional power adapter (included)/PoE-powered device supports 802.3af and 802.3at power input - PoE switch features two PSE ports offering total power output up to 15W/Rugged metal enclosure for durability Marketing Copy Applications - Provide greater network scalability, even if the switch isn’t near a power source

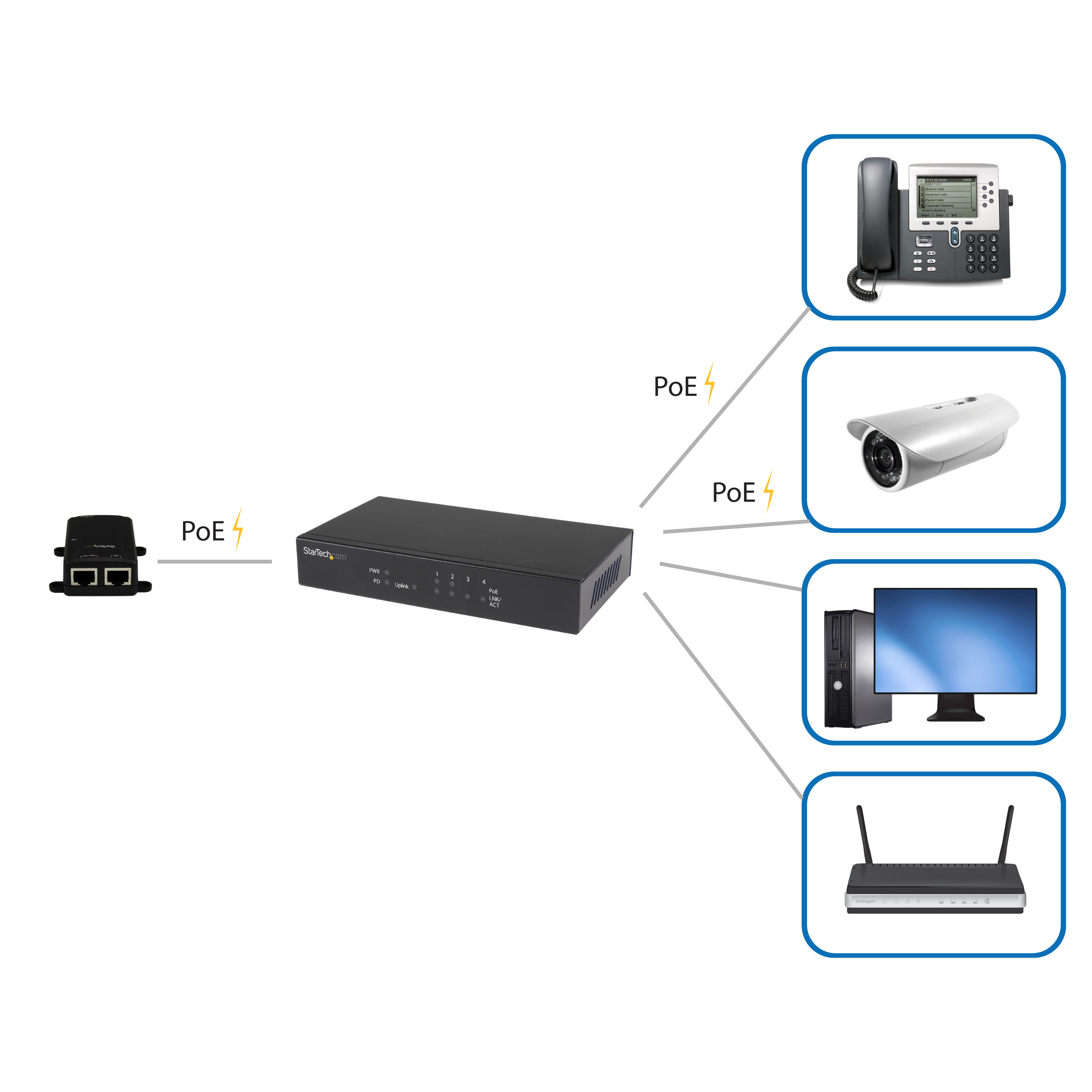

- Connect and power PoE PDs such as IP phones, surveillance cameras, Wi-Fi® access points (WAP), and kiosks where a power connection is not available
- Install in offices, schools, campuses, factories, and other large complexes
Website Search Keyword - Gigabit Ethernet Switch
- PoE switch
- network switch
- power over ethernet switch
- Gigabit Power Over Ethernet switch
- 5 Port Gigabit Ethernet Switch
- Gigabit PoE Switch
- Power over Ethernet Network Switch
- poe pd switch
- industrial ethernet switch
- 5 port ethernet switch
- 5 port poe switch
- poe ethernet switch
- 5 port gigabit poe switch
- industrial gigabit ethernet switch
- metal gigabit ethernet switch
- poe 1000 mbps switch
- 10/100/1000 poe switch
- poe gigabit ethernet switch
- power over ethernet gigabit ethernet switch
- power over ethernet gigabit switch
- power over ethernet pd
- poe powered network switch
- industrial network switch
- poe gigabit switch
- poe powered switch
- gigabit ethernet poe switch
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - If the IES51GPOEPD is used with the optional AC power adapter, it can support two ports PoE (802.3af) with 15W per port
Accessory Products - POEEXT1GAT
- POEINJ4G
- POEINJ1G
- POEINJ2GI
- NETRS2321P
- N6PATCH100YL
- N6PATCH25PL
- N6PATCH75BL
- WIRC6CMPBLU
Related Products - IES5102
- IES51000
- IES61002POE
- IES5100
- IES51000POE
- IES8100POE
Input Current 1.4 A Input Voltage 100 - 240 AC Output Current 1.25 A Output Voltage (V) 48 DC Power Consumption (In Watts) 60 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 150 Product Width (mm) 84 Product Height (mm) 26 Product Weight (g) 355 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Auto-Negotiation Yes Buffer Size 128 KB Compatible Networks 10/100/1000 Mbps Flow Control IEEE 802.3x full-duplex, Half-duplex back-pressure Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2000 Mbps (2 Gbps) - Full-Duplex MTBF (hours) 5 Years OS Compatibility OS Independent Surge Protection Switching Architecture Store-and-Forward Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- IEEE 802.3af PoE, IEEE 802.3at PoE+
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control
Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - Power
- 1 - PD (Powered Device)
- 1 - Uplink
- 4 - Link/Activity
- 2 - PoE

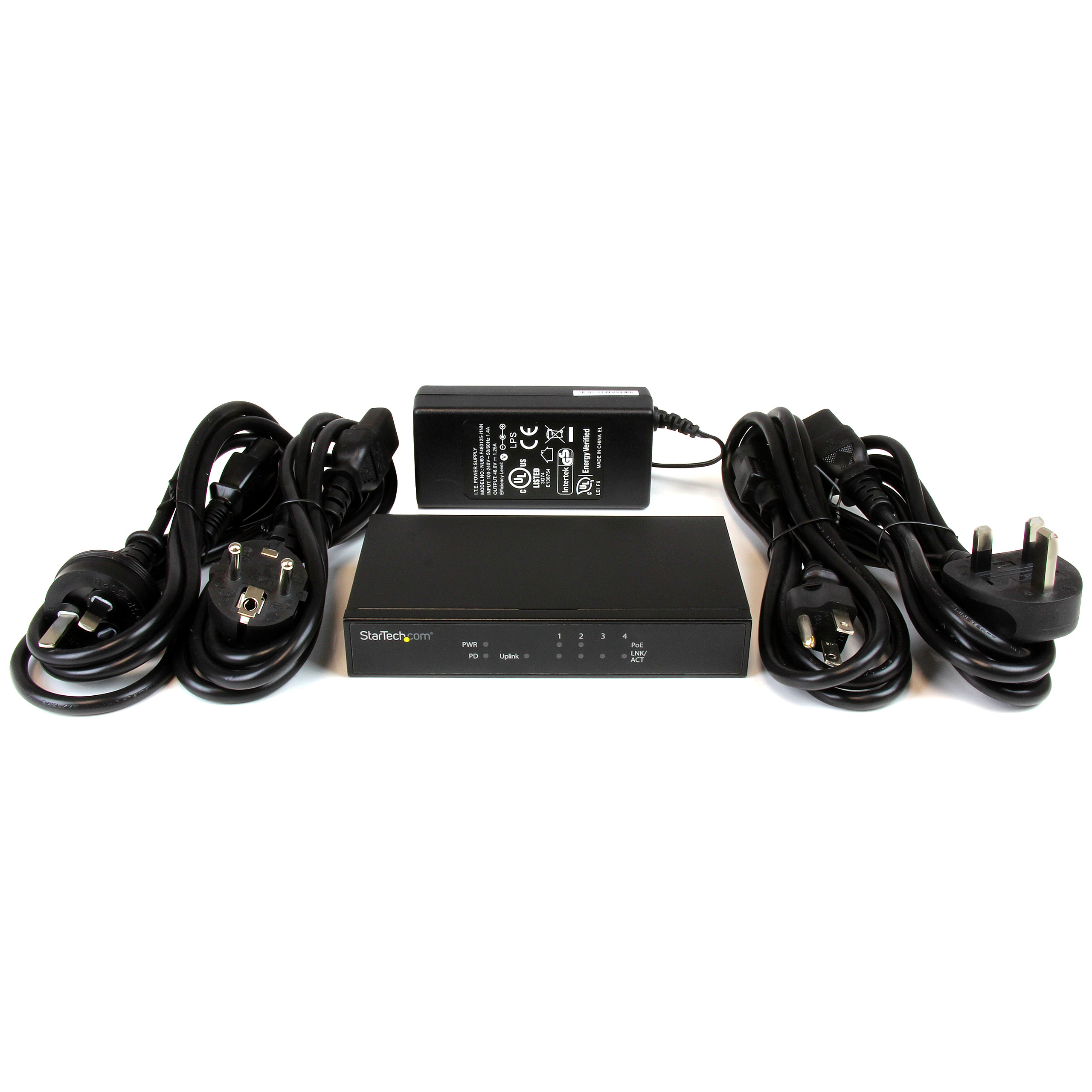

Carton Depth (mm) 330 Carton Height (mm) 340 Carton Quantity 10 Carton Weight Gross (g) 16349 Included in Package - 1 - 5-Port Gigabit Power over Ethernet switch
- 1 - universal power adapter
- 4 - power cords (NA/EU/UK/AU)
- 4 - rubber feet
Package Depth (mm) 215 Package Height (mm) 58 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 1547 Packaging Description 5-port Gigabit PoE switch - PoE-powered Packaging Description India 5-port Gigabit PoE switch - PoE-powered Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-01-20 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-03-20 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
