Main Image
IES81000POE
8 P Gigabit Ethernet Switch PoE PSE
Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output - Wall Mountable
Main Image
Product Images
Product Images
BOM Image
Product Name 8 P Gigabit Ethernet Switch PoE PSE Product Number IES81000POE UPC 065030854573 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX065X Product Title (Ultra-Short) 8 Port PoE+ Switch Product Title (Short) 8 Port Industrial Gigabit PoE+ Switch Product Title (Medium) 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/at PoE+ Product Title (Standard) 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/at PoE+ Switch - Wall Mountable Product Title (Long) 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/at PoE+ Switch - Wall Mountable - TAA Product Title (AMZ) 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/at PoE+ Switch - Wall Mountable - PoE Network Switch (IES81000POE) Title Ingram (Part 1) 8Port PoE+ Network Switch - Title Ingram (Part 2) Power over Ethernet Switch Website Product Headline Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output - Wall Mountable Bullet 1 8 PoE+/ PSE(Power + Data), 10/100/1000Mbps compliant ports Bullet 2 Fully compliant with IEEE 802.3at / 802.3af Bullet 3 Uses existing / standard Cat5 or better cabling Bullet 4 Supports up to 52V, 30 Watts max output per port Bullet 5 Supports Over Current and Circuit Shorting protection Bullets (Compact) Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output - 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/at PoE+ Switch - Wall Mountable - PoE Network Switch - 1000Mbps Gigabit PoE Switch Bullets (Consolidated) Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output - 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/802.3at PoE+ Switch - Wall Mountable - PoE Network Switch - 1000Mbps Gigabit PoE Switch - GbE PoE+ Switch Marketing Copy Applications - Power a security camera/network webcam situated in a remote area where power connection is not possible
- Perfect for powering a Wireless Access Point(WAP) in a business environment
- Great for IT administrators implementing PoE supported VoIP phones
- Power your intercom, paging or hallway speaker amplifier
- Enable remote installation of touchscreens or information kiosks
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
Accessory Products - C6PATCH6BK
- NETRS2321POE
- N6PATCH10BL
- MCM110SC2P
Related Products - IES51000POE
- IES8100POE
Constrained SKU Alternatives (Limited Stock) IESC1G80UP Input Current 2 A Input Voltage 100 - 240 AC Output Current 2.15 A Output Voltage (V) 56 DC Power Consumption (In Watts) 120 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 188.000 Product Width (mm) 119.000 Product Height (mm) 38.000 Product Weight (g) 750.000 Storage Temperature -20°C to 90°C (-4°F to 194°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 128 KB Compatible Networks 10/100/1000 Mbps Flow Control Half-duplex back-pressure and IEEE802.3x full-duplex Full Duplex Support Yes Maximum Data Transfer Rate 2 Gbps (Full-Duplex) OS Compatibility OS Independent Switching Architecture Store-and-Forward Industry Standards IEEE 802.3at/af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control LED Indicators - 1 - Power
- 8 - Activity
- 8 - 10/100 Mbps
- 8 - PoE
- 8 - 1000 Mbps

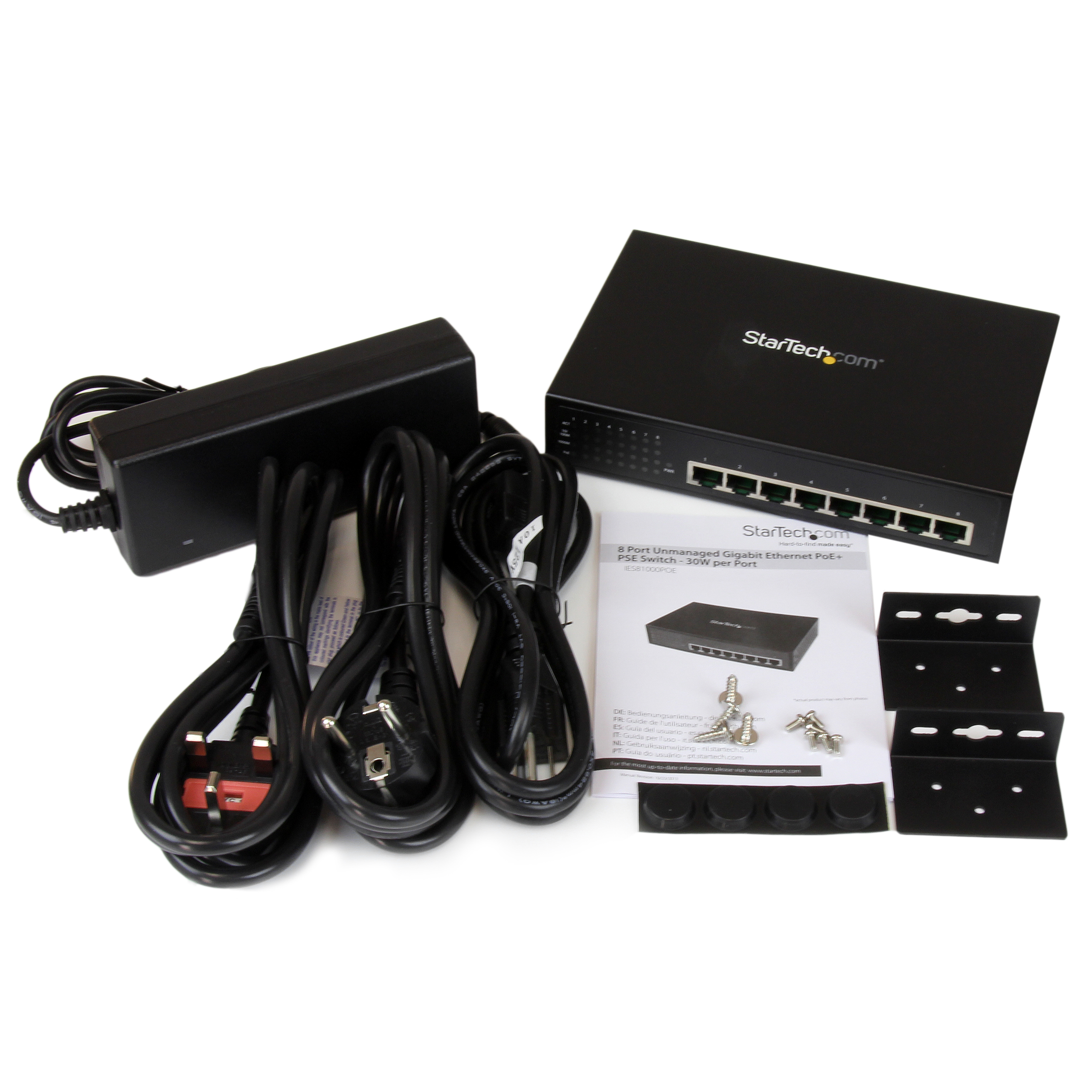

Carton Depth (mm) 401 Carton Height (mm) 396 Carton Quantity 10 Carton Weight Gross (g) 24970 Included in Package - 1 - Instruction Manual
- 1 - Set, Rubber Feet
- 1 - 8 Port Gigabit PoE Switch
- 2 - Wallmount Brackets
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
Package Depth (mm) 197 Package Height (mm) 69 Package Width (mm) 371 Package Quantity 1 Package Weight (g) 1750 Packaging Description 8 Port Gigabit Ethernet PoE+ PSE Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-03 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
