IES8100POEGB

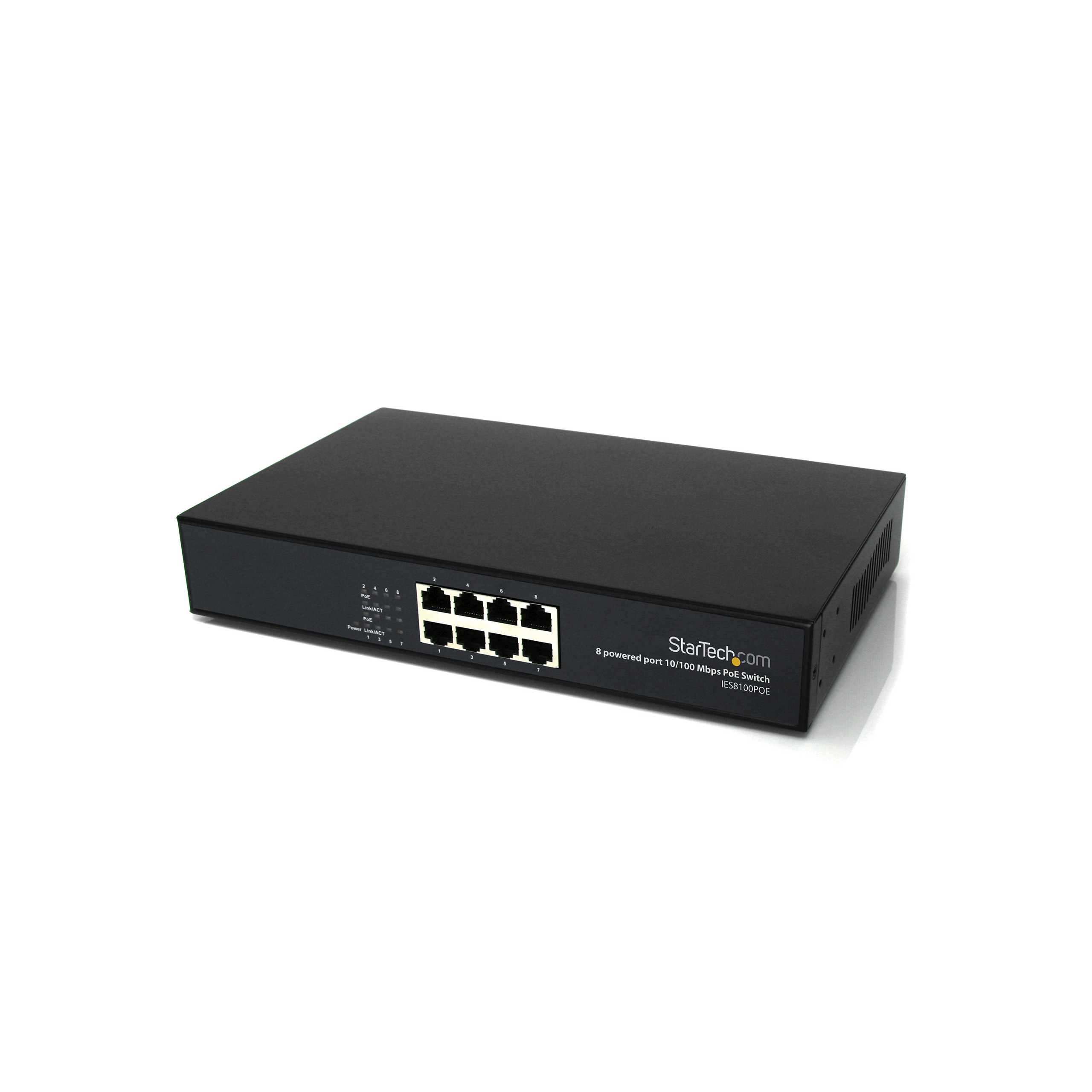

8 Port 10/100 POE Switch - Power over Ethernet
Connect Power and Data to 8 PoE-enabled Devices, with 15.4W per Port Output
Main Image
Product Images
BOM Image
Product Name 8 Port 10/100 POE Switch - Power over Ethernet Product Number IES8100POEGB UPC 065030845656 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Short) 8 Port 10/100 POE Switch All 8 Ports PoE Product Title (Standard) 8 Port 10/100 PSE Industrial Power over Ethernet Switch - All 8 Ports PoE Product Title (Long) 8 Port 10/100 PSE Industrial Power over Ethernet Switch - All 8 Ports PoE Product Title (AMZ) 8 Port 10/100MBit/s Fast Ethernet PSE Netzwerk Switch mit Power over Ethernet - 8x RJ45 (IES8100POEGB) Title Ingram (Part 1) 8 Port 10/100 PSE Power over Eth Title Ingram (Part 2) ernet Switch All 8 Ports PoE Website Product Headline Connect Power and Data to 8 PoE-enabled Devices, with 15.4W per Port Output Bullet 1 8 10/100Mbps Power over Ethernet Ports Bullet 2 Max. 15.4 W for each PSE/PoE port Bullet 3 Store-and-Forward switching Bullet 4 Auto-detect full/half-duplex, MDI/MDI-X Bullet 5 IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex Marketing Copy Applications - Perfect for powering a Wireless Access Point(WAP) in a business environment
- Power a security camera/network webcam situated in a remote area where power connection is not possible
- Retail applications such as RFID readers
- Great for IT administrators implementing PoE supported VoIP phones
- Enable remote installation of touchscreens or information kiosks
- Power your intercom, paging or hallway speaker amplifier
Website Search Keyword - power ethernet
- ethernet power
- power of ethernet
- switch with poe
- poe ethernet
- ethernet poe
- 8 port switch
- poe power ethernet
- power injector
- poe switches
- PoE injector
- PSE switch
- PSE injector
- PSE device
- 8 port injector
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - POESPLT100
- NETRS2321POE
- MCM110ST2P
- MCM110SC2P
- C6PATCH10BK
- C6PATCH10BL
- C6PATCH50BK
- C6PATCH50BL
Related Products - POEINJ100
- IES5100
- DS8107
- DS5107
Input Voltage 110V-240V AC Power Consumption (In Watts) 132 Power Source International Power Cords Color Black Humidity 10~95% RH Material Steel Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 160 Product Width (mm) 266 Product Height (mm) 44 Product Weight (g) 1400 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Compatible Networks 10/100 Mbps Flow Control Half-duplex back-pressure and IEEE802.3x full-duplex flow control OS Compatibility OS Independent Switching Architecture Store-and-Forward Industry Standards IEEE 802.3af, IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3x LED Indicators - 1 - Power
- 8 - PoE Act/Status
- 8 - Link/Act

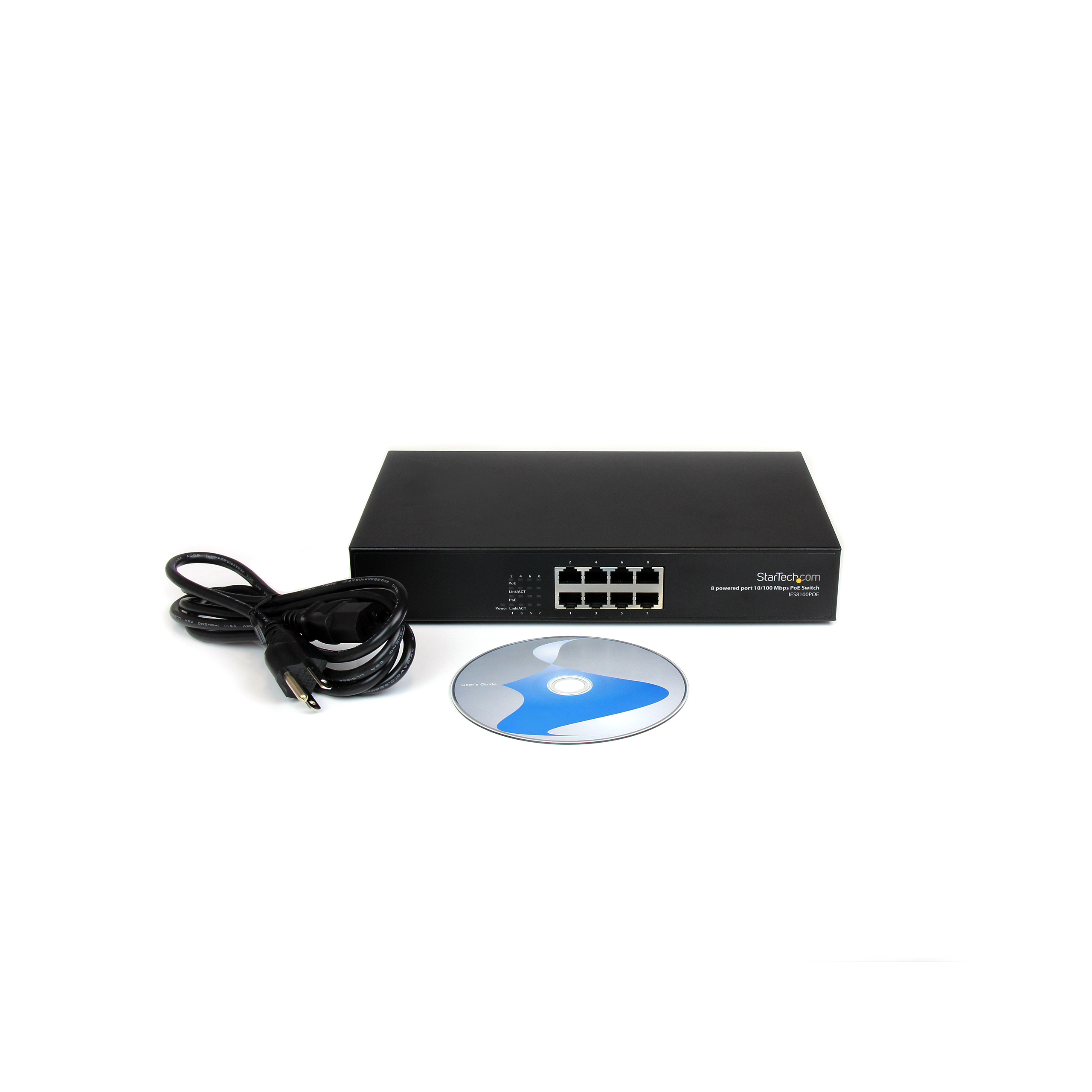

Memory 512 K Carton Depth (mm) 260 Carton Height (mm) 370 Carton Quantity 10 Carton Weight Gross (g) 18000 Included in Package - 1 - 8 Port PoE Switch
- 1 - Power Cord
- 1 - Instruction Manual
Package Depth (mm) 240 Package Height (mm) 65.4 Package Width (mm) 295 Package Quantity 1 Package Weight (g) 1800 Packaging Description 8 powered port 10/100 Mbps PoE Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
