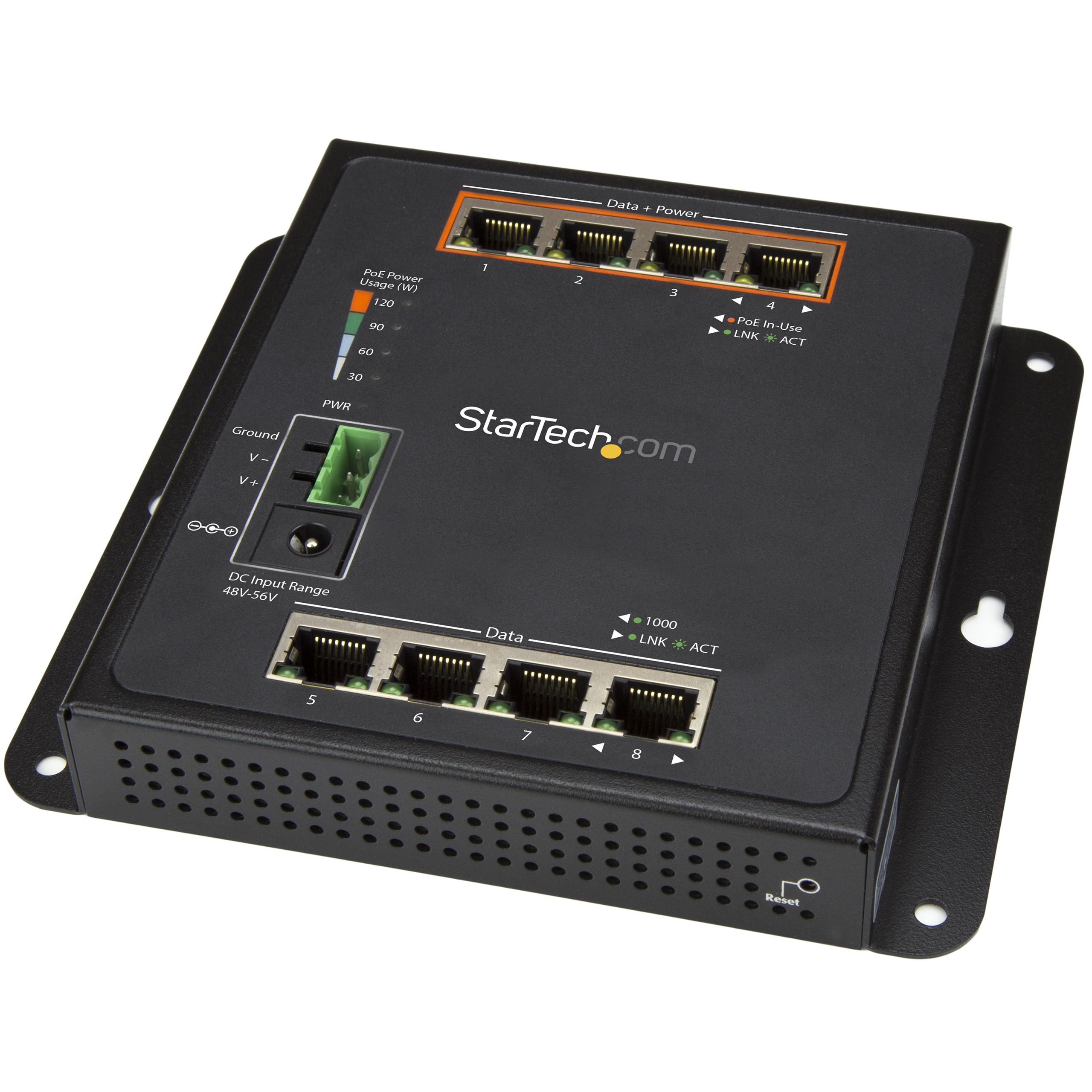

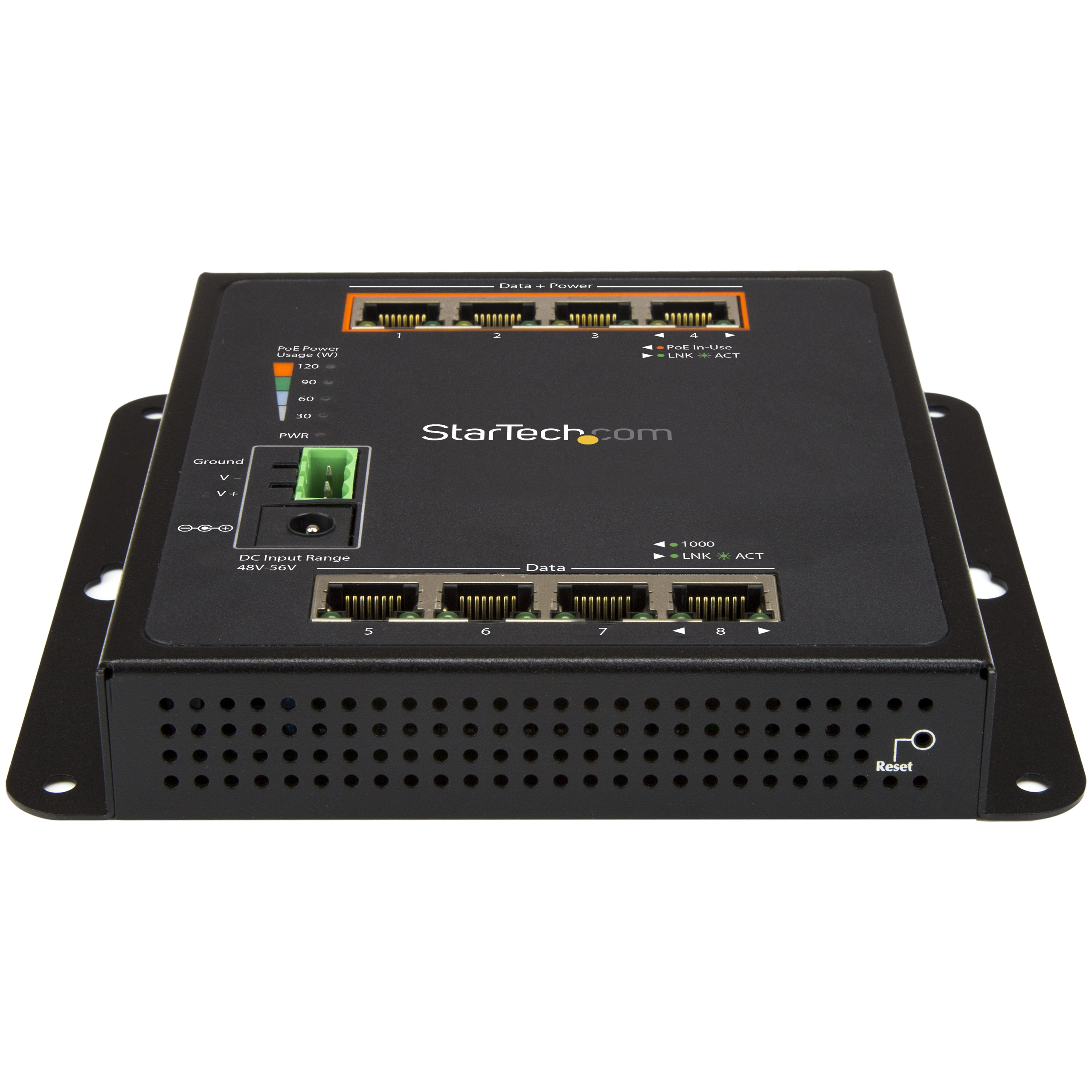

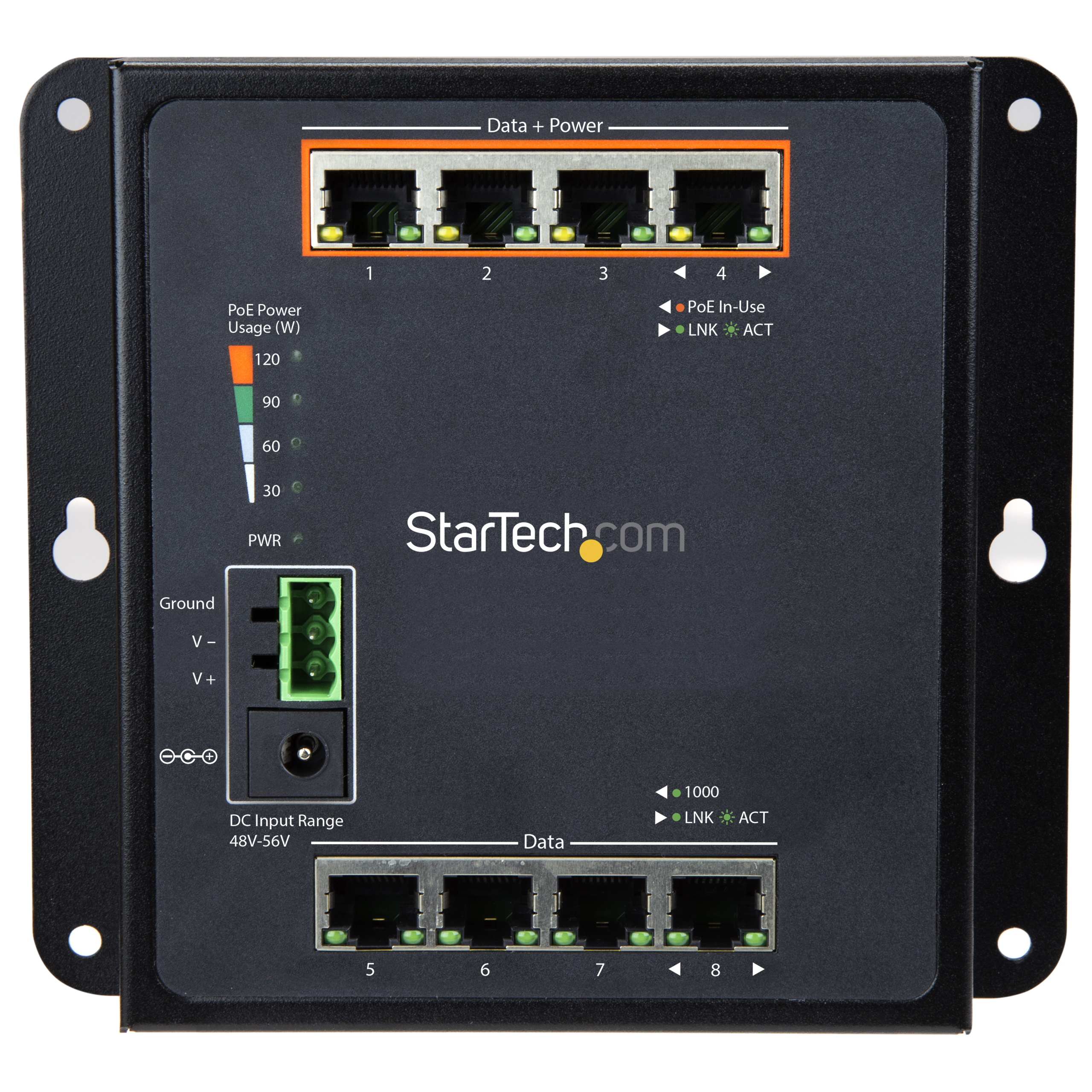

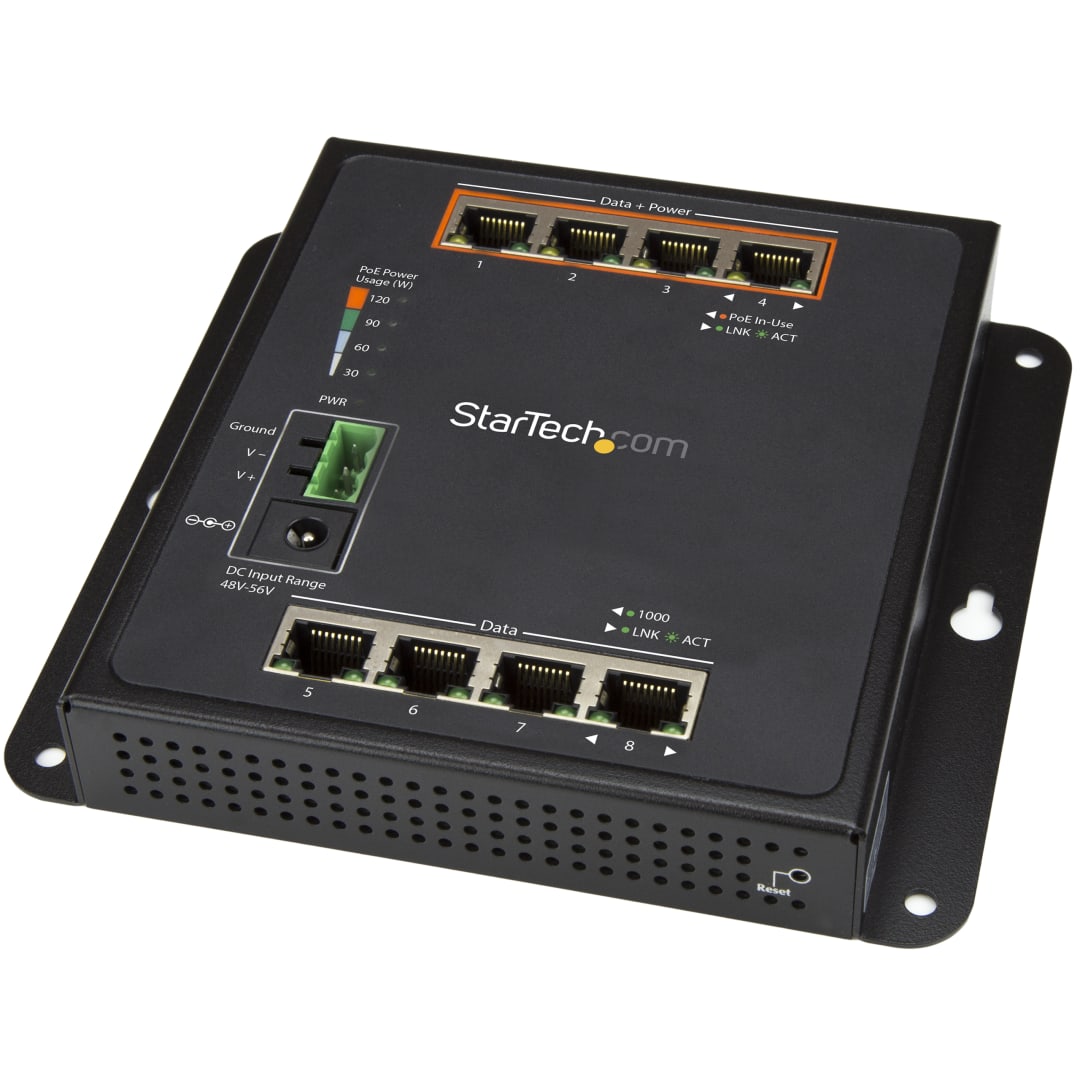

8 Port 4x PoE GbE Switch L2 Managed
Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management
Main Image
Product Images
Product Images
Product Name 8 Port 4x PoE GbE Switch L2 Managed Product Number IES81GPOEW UPC 065030871112 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) 8-Pt 4PoE GbE Switch Product Title (Short) Industrial 8 Port Gigabit PoE Switch 30W Product Title (Medium) 8-Port (4 PoE+) Gigabit Ethernet Switch - Industrial Managed Switch - Wall Mount Product Title (Standard) Industrial 8 Port Gigabit PoE Switch, 4 x PoE+ 30W, Power Over Ethernet GbE Layer/L2 Managed Network Switch -40C to +75C, TAA Product Title (Long) Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet - Hardened GbE Layer/L2 Managed Switch - Rugged High Power Gigabit Network Switch IP-30/-40C to +75C - TAA Product Title (AMZ) Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet - Hardened GbE Layer/L2 Managed Switch - Rugged High Power Gigabit Network Switch IP-30/-40C to +75C , TAA Title Ingram (Part 1) 8-Port (4x PoE +) GbE Switch - Title Ingram (Part 2) L2 Managed Switch - Wall Mount Website Product Headline Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management Bullet 1 POWER OVER ETHERNET: Industrial gigabit PoE switch up to 30W/4 PoE ports (PSE) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) for cameras sensors wi-fi APs w/Cat5e or higher cable Total power budget 120W Bullet 2 FLAT DESIGN: Compact IP-30 steel housing w/6kV ESD/Vibration/shock/free fall rating allows for front access w/easy install; DIN rail/wall mounting options w/hardware incl; -40C to 75C operating temps Bullet 3 FLEXIBLE POWER: Rugged/hardened GbE network switch can be hardwired using terminal block (48-56VDC) power or by Type-M barrel plug (48-56V); terminal block kit included Bullet 4 TECH SPECS: 8 port Gigabit switch; 4 PoE+ ports; 10/100/1000 Mbps auto negotiation; Managed Layer/L2; VLAN; MTBF 100000+ hrs @ 25°C; Web GUI/SSH/Telnet; Link Aggregation/SNMP/QoS/Spanning Tree Bullet 5 STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 8 port Gigabit switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) Industrial 8 port Gigabit PoE switch Up to 30W per 4 Power over Ethernet ports +75C to -40C temp 10/100/1000 Mbps network auto IP-30 housing MTBF 500000+hrs - Vibration/shock/free fall rated - 6kV ESD Full layer/L2 managed DIN/wall mounting 2 yr warr Bullets (Consolidated) 8-Port Industrial gigabit PoE switch up to 30W/4 PoE ports (PSE) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+); Power budget 120W - IP-30 steel housing w/6kV ESD; DIN rail/wall mounting options w/hardware incl; -40C to 75C operating temps - Can be hardwired using terminal block (48-56VDC) power or by Type-M barrel plug (48-56V) - 4 PoE+ ports; 10/100/1000 Mbps auto negotiation; Link Aggregation/SNMP/QoS/Spanning Tree - Managed Layer/L2; VLAN; MTBF 100000+ hrs @ 25 DEGC; Web GUI/SSH/Telnet Marketing Copy Marketing Copy (No HTML) Applications - Install in a server rack or cabinet, or wall mount in a convenient location
- An ideal solution for many network applications including IP surveillance, wireless LAN, building/home automation network and Internet of things (IoT)
- Add small workgroups to expand your existing network in a business or home office
- Works well in industrial, non-climate controlled environments, such as warehouses
Website Search Keyword - 8-port Gigabit Ethernet switch
- 8-port GbE switch
- Gigabit Ethernet Switch
- Network Switch
- 8 port Network Switch
- Gigabit switch
- L2 Managed Switch
- Wall Mount switch
- Wall Mount switch Front Access
- GbE switch
- 8x RJ45 ports
- 8x RJ45 switch
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - 4 ports support IEEE 802.3at Power over Ethernet Plus (PoE+) and IEEE 802.3af Power over Ethernet (PoE)
- Supports PeE Powered Device alive check, scheduled power recycling, and time-based PoE schedule
- PoE power up to 30W per PoE+ port (120W budget) and remote PoE power control
- A power adapter is not included with this switch.
Accessory Products - C6PATCH6BK
- N6PATCH10BL
Related Products - IES81GW
- IES101G2SFPW
- IES101GP2SFW
- IES81000POE
- IES8100POE
Input Current 1A minimum Input Voltage 48 ~ 56V DC Power Source Terminal Block Plug Type M Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature -40°C to 75°C (-40°F to 167°F) Primary Material Steel Product Length (mm) 134 Product Width (mm) 118 Product Height (mm) 25 Product Weight (g) 672 Storage Temperature -40°C to 90°C (-40°F to 194°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 512 KB Compatible Networks 10/100/1000 Mbps Flow Control IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2 Gbps (Full-Duplex) MTBF (hours) > 100,000 hrs @ 25 degrees C Supported Protocols IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, RFC 3810 MLD version 2, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, bIEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP Surge Protection 6kV ESD, 6kV EFT Switching Architecture Store-and-Forward Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-FX, IEEE 802.3z 1000BASE-SX,IEEE 802.3z 1000BASE-LX, 4-Port IEEE 802.3af/at Power over Ethernet end-span PSE LED Indicators - 1 - Power
Carton Depth (mm) 335 Carton Height (mm) 475 Carton Quantity 10 Carton Weight Gross (g) 10700 Included in Package - 1 - network switch
- 1 - terminal block connector
- 4 - screw anchors
- 4 - screws
- 4 - attaching pins
- 4 - locking pins
- 4 - washers
- 4 - magnets
- 1 - DIN rail
- 3 - DIN-rail screws
- 8 - RJ45 dust caps
- 1 - quick-start guide
Package Depth (mm) 308 Package Height (mm) 92 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 988 Packaging Description 8-Port (4 PoE+) GbE Switch - Managed Packaging Description India 8-Port (4 PoE+) GbE Switch - Managed Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 4 Connector 2 Terminal Block (3 Wire) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-01-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2017-04-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-12-19 Target Production Release 2017-01-13 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
