IESC1G50UP
Industrial Grade Compact Flat Switch 10 100 1000 Mbps 4 1 R
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Industrial Grade Compact Flat Switch 10 100 1000 Mbps 4 1 R Product Number IESC1G50UP UPC 065030889629 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family PoE Ethernet Switch - Industrial - PoE Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) 5 Pt PoE+ Switch 30W Product Title (Short) Industrial 5Port Gigabit PoE+ Switch 30W Product Title (Medium) Industrial 5Port Gigabit PoE+ Switch 30W Product Title (Standard) Industrial 5 Port Gigabit PoE Switch 30W, Power Over Ethernet Switch, GbE POE+ Network Switch, Unmanaged, IP-30, TAA Product Title (Long) Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C - TAA Product Title (AMZ) Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C , TAA Title Ingram (Part 1) Industrial 5 Port Gigabit Title Ingram (Part 2) PoE Switch - 30W Website Product Headline Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port Bullet 1 POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6 Bullet 2 FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included) Bullet 3 ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount Bullet 4 TECH SPECS: 5 Port GbE Switch | 4 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Redundant Power Input | Terminal Block Power | Total power budget: 120W Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) 5 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af/at |10/100/1000 Mbps |Unmanaged |Alarm Relay |DIN/Wall Mount |Redundant Power Input IP-30 /Industrial Hardened -40C to 75C temp Bullets (Consolidated) 5 Port Gigabit PoE switch provides up to 30W of PSE power per PoE port to cameras and access points w/ Cat5e/6 |Total power:200W - IEEE 802.3af/IEEE 802.3at|10/100/1000 Mbps|Unmanaged |Alarm Relay |DIN/Wall Mount |Redundant Power Input - High Power over Ethernet network/Rugged GbE switch w/ MTBF 600 000+hrs @50C|Vibration shock and free fall rated|Industrial IP-30| -40C to 75C hardened| 2kV surge protection on ports - Power w/ 48-56VDC terminal block or standard 48-56VDC TypeN wall adapter Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 120 w
- 5 port ethernet switch
- 5 port gigabit ethernet switch
- 5 port gigabit switch
- 5 port poe gigabit switch
- 5 port poe switch
- compact poe switch
- din mount
- dlink gigabit ethernet switch
- flat switch
- GbE switch
- gigabit network switch
- gigabit switch with sfp
- hardened
- hardened poe switch
- high power poe switch
- industrial
- industrial gigabit poe switch
- industrial grade poe switch
- industrial power over ethernet
- poe+ poe
- power over ethernet switch
- rugged poe switch
- unmanaged poe switch
Patents and Licenses United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br> Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- MET - Safety - Electrical - Canada / United States - cMETus Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories

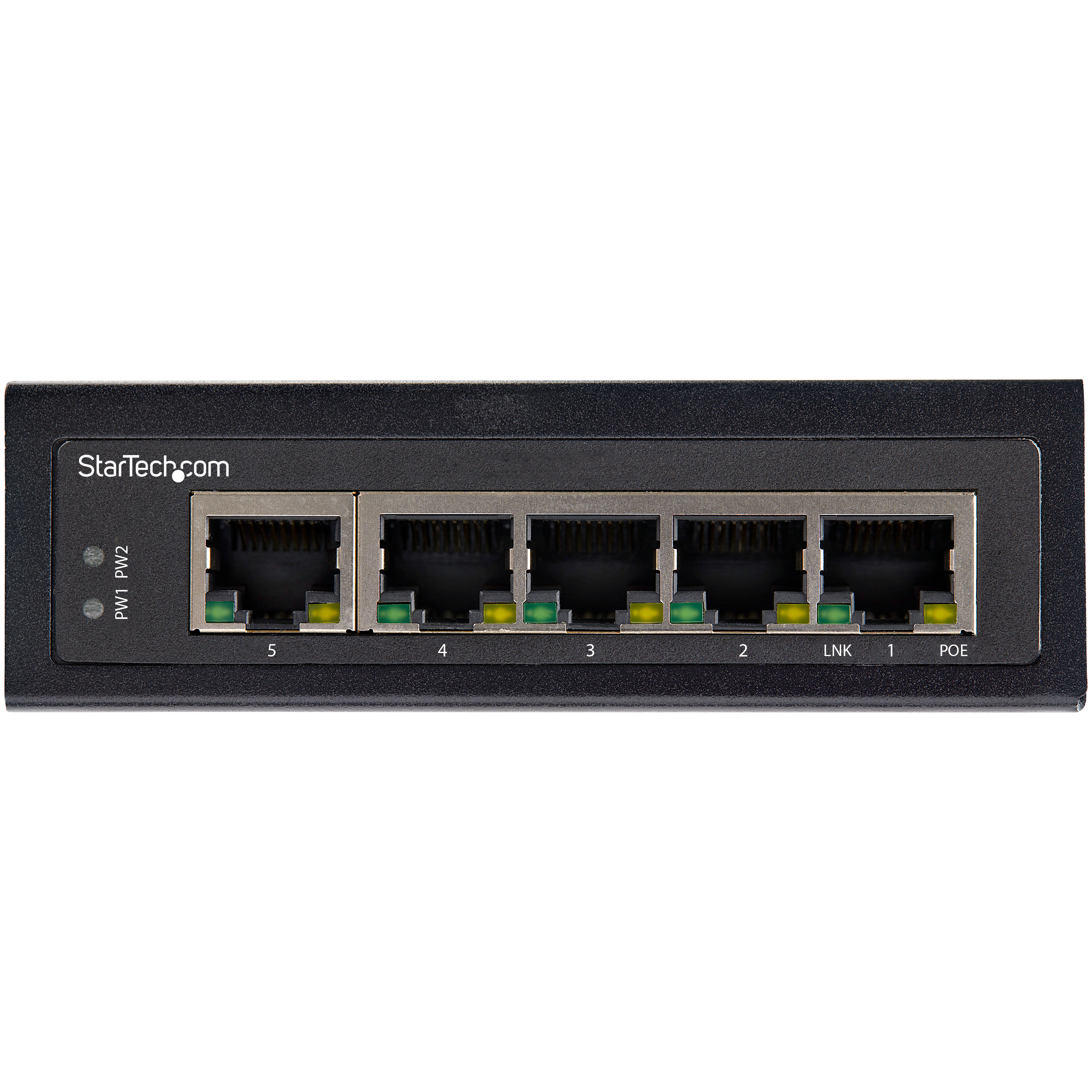

Power Consumption (In Watts) Max. 126W Color Black Humidity 5 to 95% (non-condensing) Material Steel Operating Temperature -40°C to 75°C Primary Material Steel Product Length (mm) 103.500 Product Width (mm) 81.500 Product Height (mm) 32.000 Product Weight (g) 150.600 Storage Temperature -40°C to 85°C TAA Compliant Yes Auto MDIX Yes Full Duplex Support Yes General Specifications ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Safety Standard: EN60950-1 Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 MTBF (hours) 538451 hours Surge Protection 2kV Chipset ID Realtek RTL8367</br> IC Plus IP804AR Industry Standards IEEE 802.3 10/100/1000BASE-T</br> IEEE 802.3at PoE Plus</br> CSMA/CD</br> IEEE 802.3x Flow Control and Back Pressure LED Indicators - 4 - PoE
- 5 - Link / Active

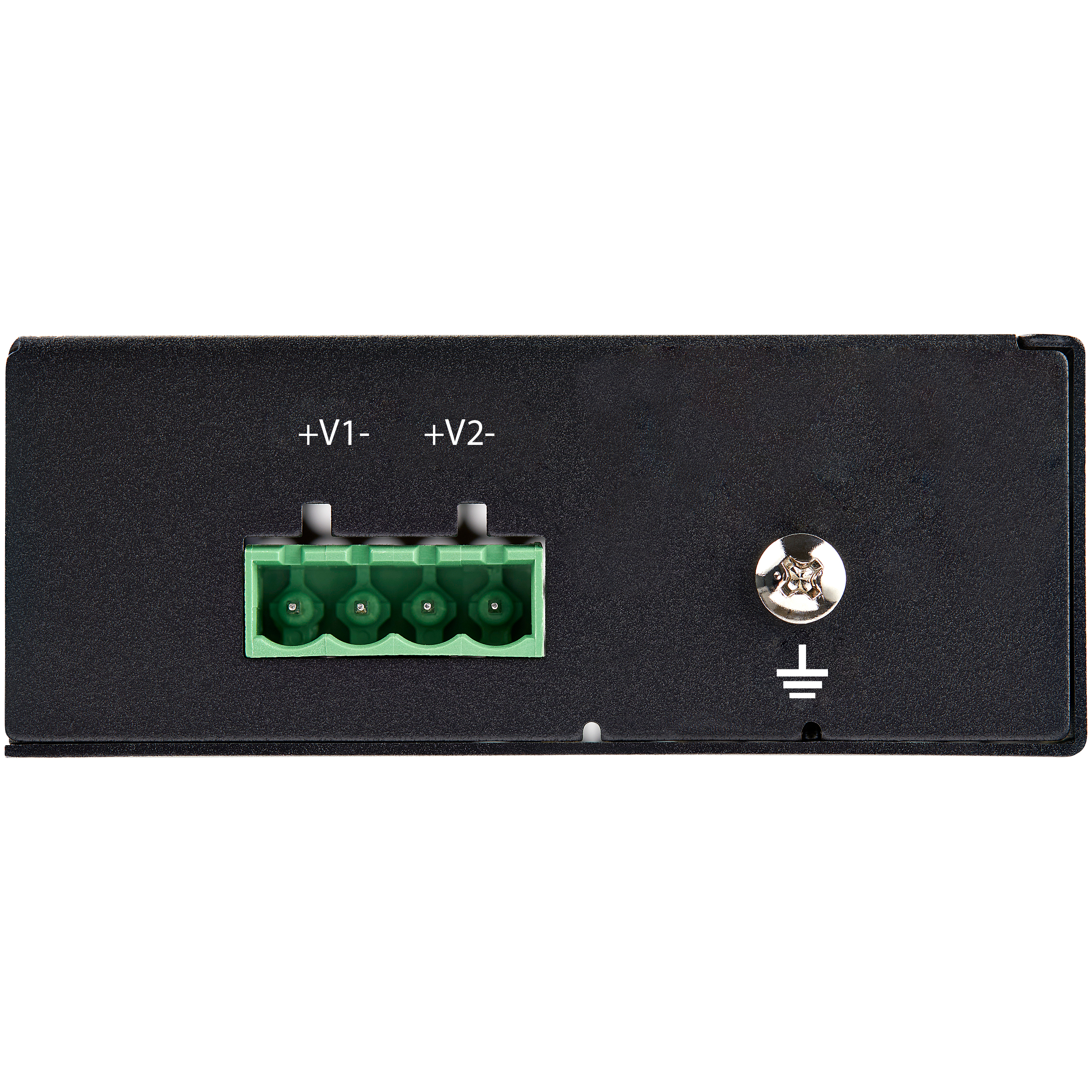

- 2 - V1, V2 Power

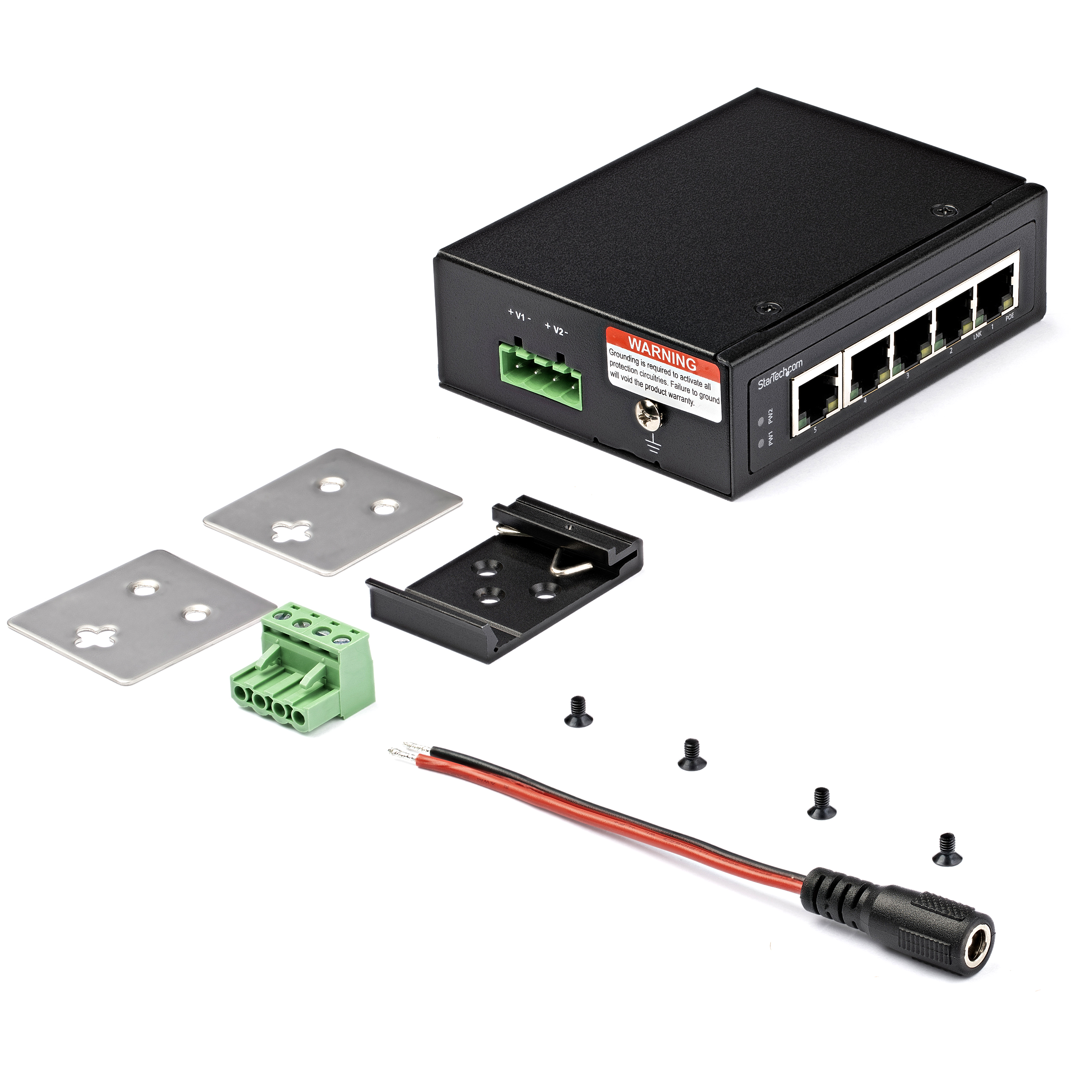

Power over Ethernet Yes Carton Depth (mm) 362 Carton Height (mm) 250 Carton Quantity 10 Carton Weight Gross (g) 4714 Included in Package - 1 - Industrial Grade Ethernet Switch
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block
Included In Package for Label - 1 - Industrial Grade Ethernet Switch
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block
Package Depth (mm) 168 Package Height (mm) 68 Package Width (mm) 214 Package Quantity 1 Package Weight (g) 388 Packaging Description 5 Port Unmanaged Industrial-Grade Switch Packaging Description India 5 Port Unmanaged Industrial-Grade Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Terminal Block (4 Wire) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 4 Connector 3 RJ-45 Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-01-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
