Main Image
IESC1G80UP
Industrial Grade Compact Flat Switch 10 100 1000 Mbps 8 RJ4
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 8 Port

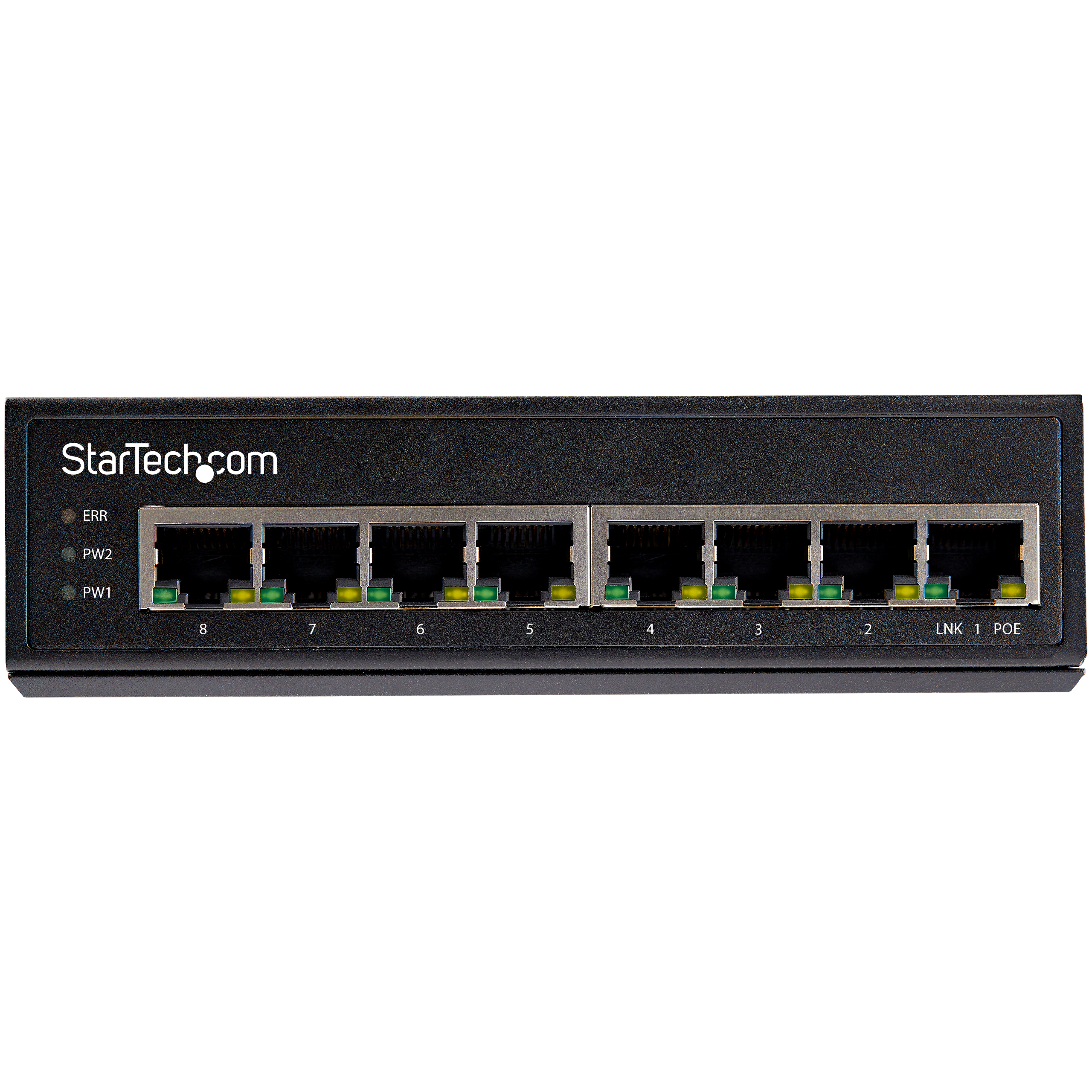

Main Image

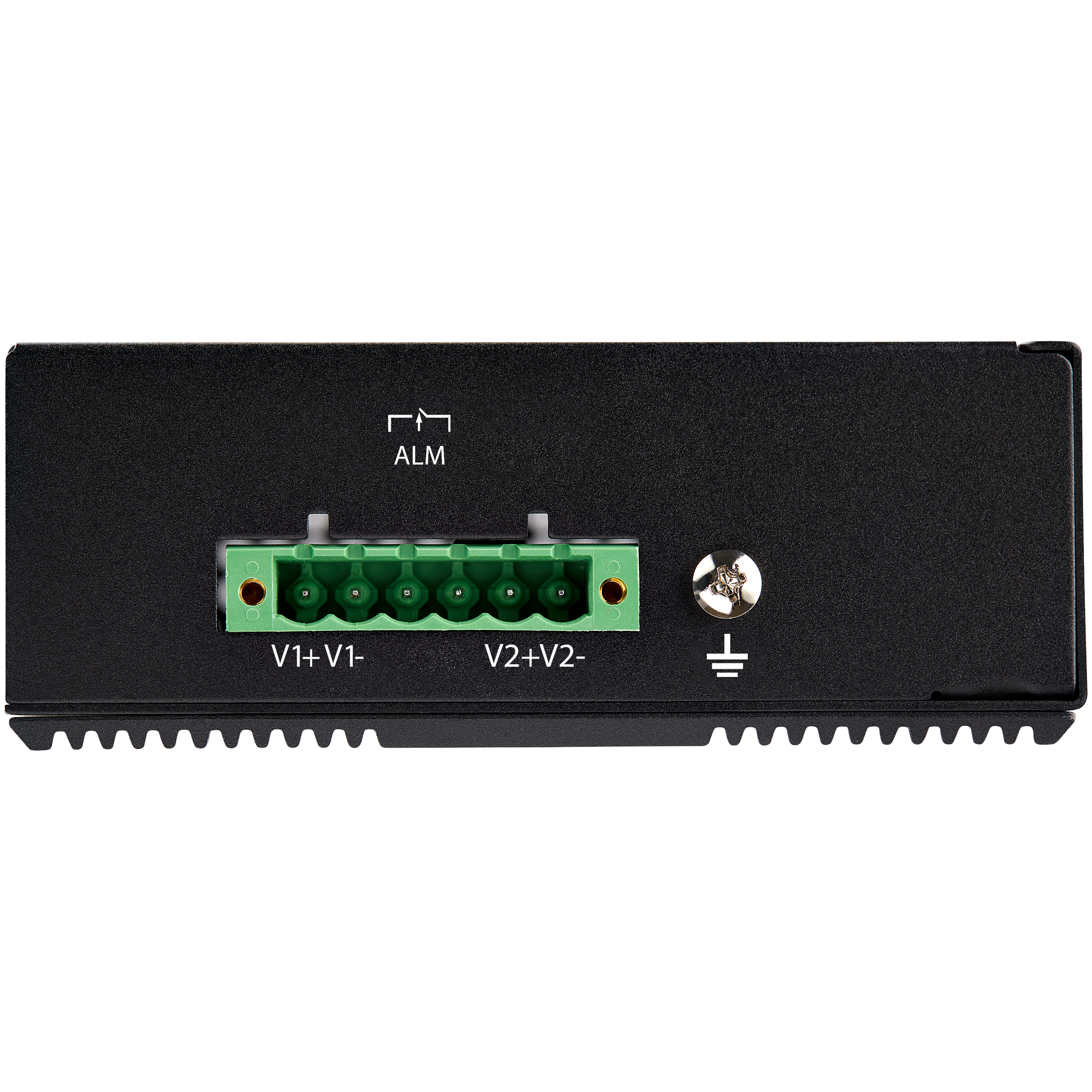

Product Images

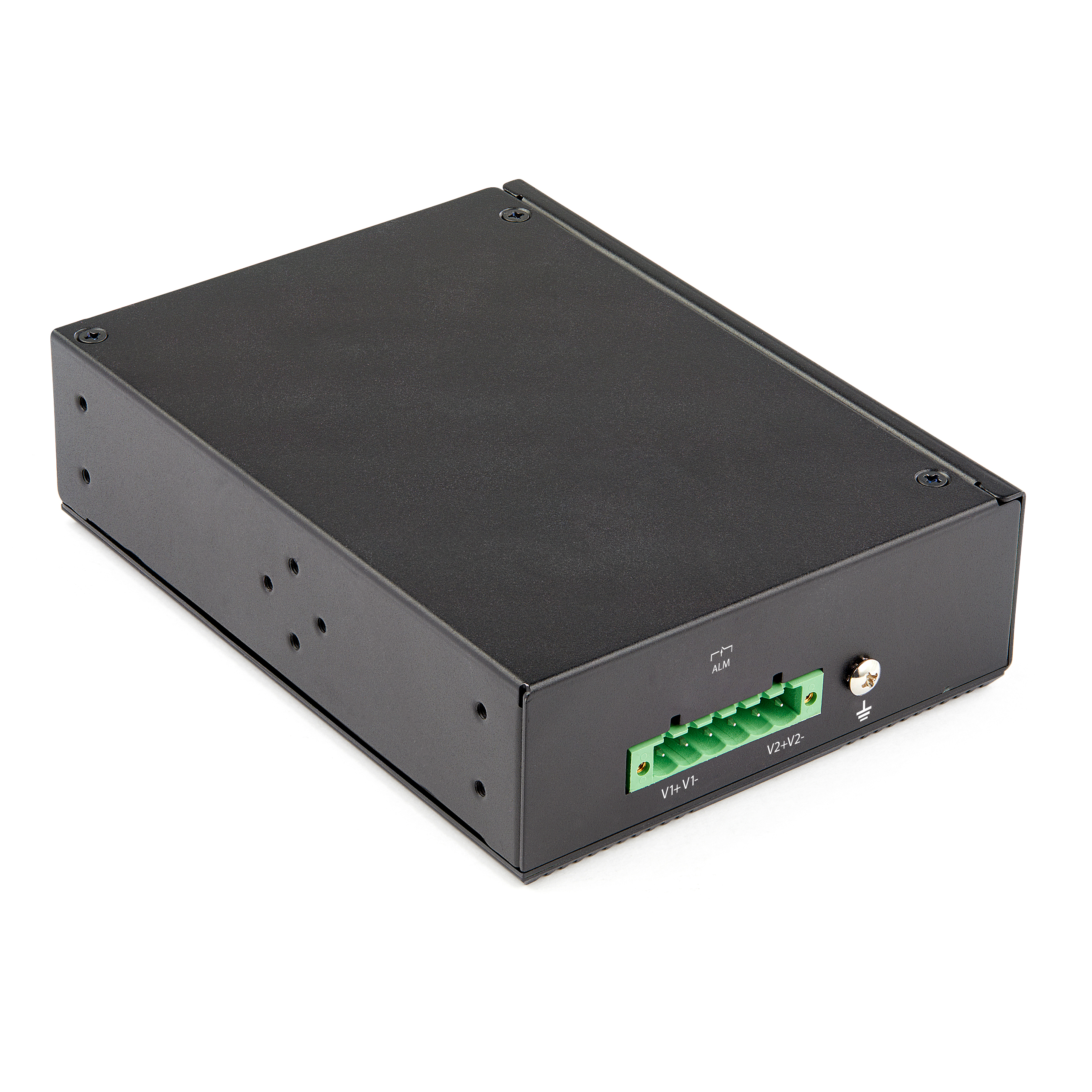

Product Images

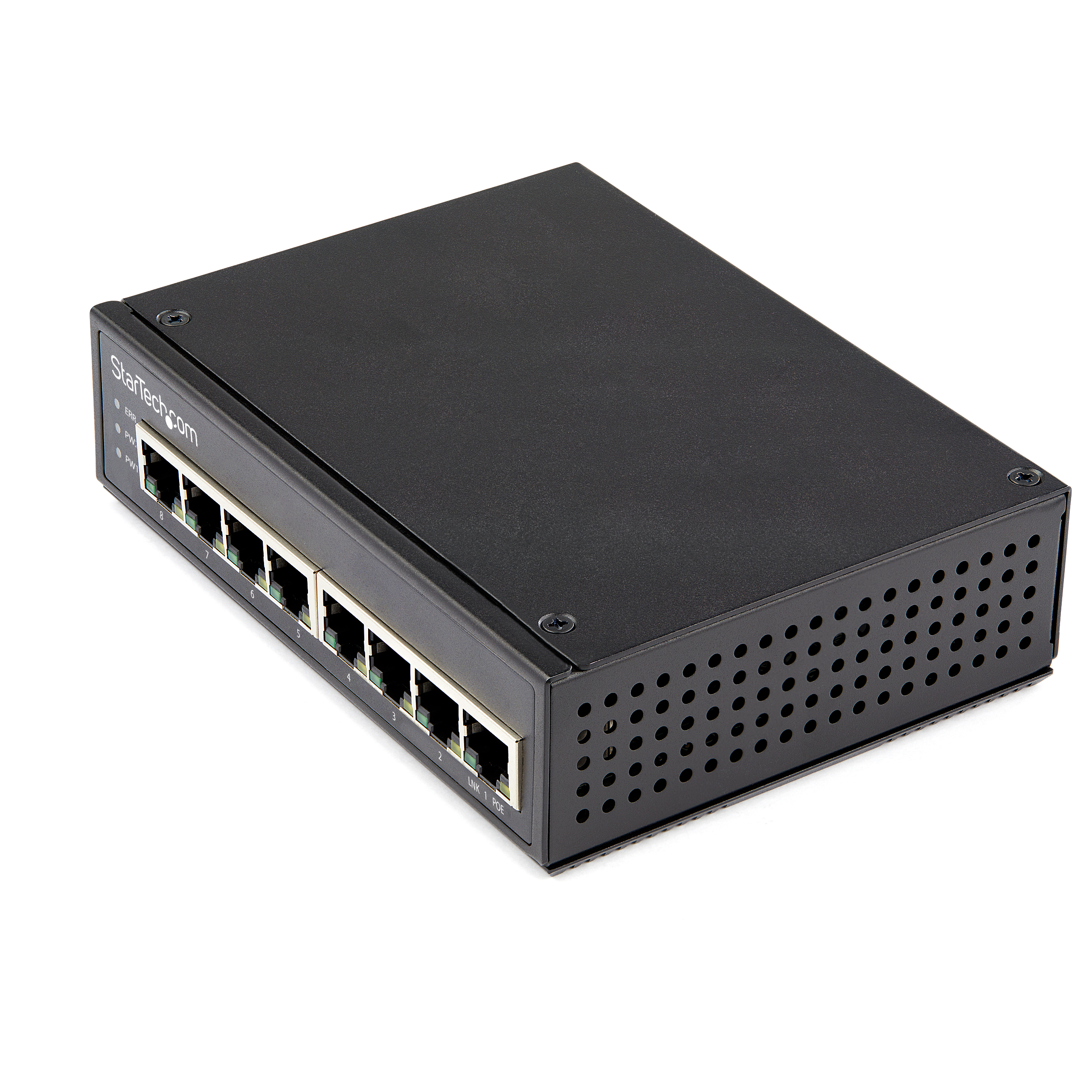

Product Images

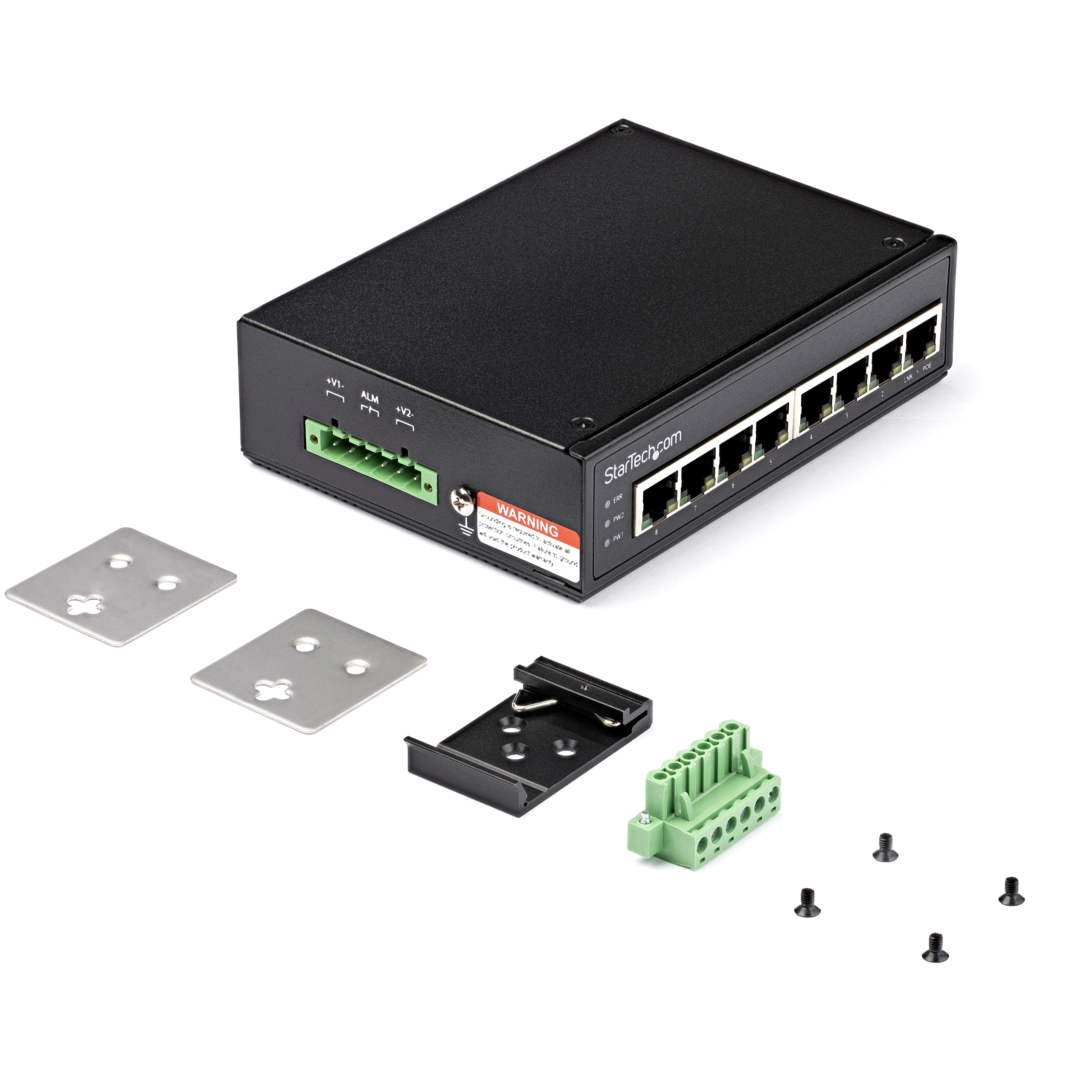

BOM Image
Quick-Start Guide
Product Name Industrial Grade Compact Flat Switch 10 100 1000 Mbps 8 RJ4 Product Number IESC1G80UP UPC 065030889605 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Family PoE Ethernet Switch - Industrial - PoE Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) PoE+ 30W Switch Product Title (Short) Industrial 8Port Gigabit PoE+ Switch 30W Product Title (Medium) Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Product Title (Standard) Industrial 8 Port Gigabit PoE Switch 30W, Power Over Ethernet Switch, GbE POE+ Network Switch, Unmanaged, IP-30, TAA Product Title (Long) Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/ -40 C - 75 C - TAA Product Title (AMZ) Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/ -40C - 75C , TAA (IESC1G80UP) Title Ingram (Part 1) Industrial 8 Port Gigabit PoE+ Title Ingram (Part 2) Switch 30W Power Over Ethernet Website Product Headline Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 8 Port Bullet 1 POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6 Bullet 2 TECH SPECS: 8 port GbE PoE switch | 8 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Error Alarm Relay | Redundant Power Input | Terminal Block Power | 200W power budget Bullet 3 ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount Bullet 4 REDUNDANT POWER: Dual terminal block power inputs (48-56VDC) provide redundancy for high-availability applications Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) 8 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af/at |10/100/1000 Mbps |Unmanaged |Alarm Relay |DIN/Wall Mount |Redundant Power Input IP-30 /Industrial Hardened -40C to 75C temp Bullets (Consolidated) 8 Port Gigabit PoE switch provides up to 30W of PSE power per PoE port to cameras and access points w/ Cat5e/6 |Total power:200W - IEEE 802.3af/IEEE 802.3at|10/100/1000 Mbps|Unmanaged |Alarm Relay |DIN/Wall Mount |Redundant Power Input - High Power over Ethernet network/Rugged GbE switch w/ MTBF 600 000+hrs @50C|Vibration shock and free fall rated|Industrial IP-30| -40C to 75C hardened| 2kV surge protection on ports - Power w/ 48-56VDC terminal block or standard 48-56VDC TypeN wall adapter Marketing Copy Website Search Keyword - 8 port ethernet switch
- 8 port gigabit ethernet switch
- 8 port gigabit switch
- 8 port poe gigabit switch
- 8 port poe switch
- compact poe switch
- dlink gigabit ethernet switch
- Flat switch
- GbE switch
- gigabit network switch
- gigabit switch with sfp
- hardened poe switch
- high power poe switch
- industrial gigabit poe switch
- industrial grade poe switch
- industrial power over ethernet
- linksys poe switch 8 port
- netgear 8 port ethernet switch
- poe 8 port gigabit switch
- power over ethernet switch
- rugged poe switch
- unmanaged poe switch
Patents and Licenses United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br> Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- MET - Safety - Electrical - Canada / United States - cMETus Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Power Consumption (In Watts) Max. 206W Cable Length (mm) 100000 Color Black Material Steel Primary Material Steel Product Length (mm) 142.000 Product Width (mm) 105.000 Product Height (mm) 39.600 Product Weight (g) 536.000 TAA Compliant Yes Auto MDIX Yes Bandwidth 2G Buffer Size 128 KB Compatible Networks 10/100/1000 Mbps Flow Control IEEE 802.3x Flow Control and Back Pressure Full Duplex Support Yes General Specifications ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Jumbo Frame Support 9K max. MTBF (hours) 693,764 hours Switching Architecture Back-plane (Switching Fabric): 16Gbps Chipset ID Realtek RTL8370</br> IC Plus IP808AR LED Indicators - 2 - PW1, PW2
- 1 - RLY
- 8 - Link / Active
- 8 - PoE
Power over Ethernet Yes Carton Depth (mm) 368 Carton Height (mm) 254 Carton Quantity 10 Carton Weight Gross (g) 8478 Included in Package - 1 - Industrial Grade Ethernet Switch
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block
Included In Package for Label - 1 - Mounting Hardware Kit
- 1 - Terminal Block
- 1 - Quick-Start Guide
- 1 - Industrial Grade Ethernet Switch
Package Depth (mm) 167 Package Height (mm) 67 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 754 Packaging Description 8 Port Unmanaged Industrial-Grade Switch Packaging Description India 8 Port Unmanaged Industrial-Grade Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 Connector 2 Terminal Block (6 Wire) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IN,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-01-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
