Main Image

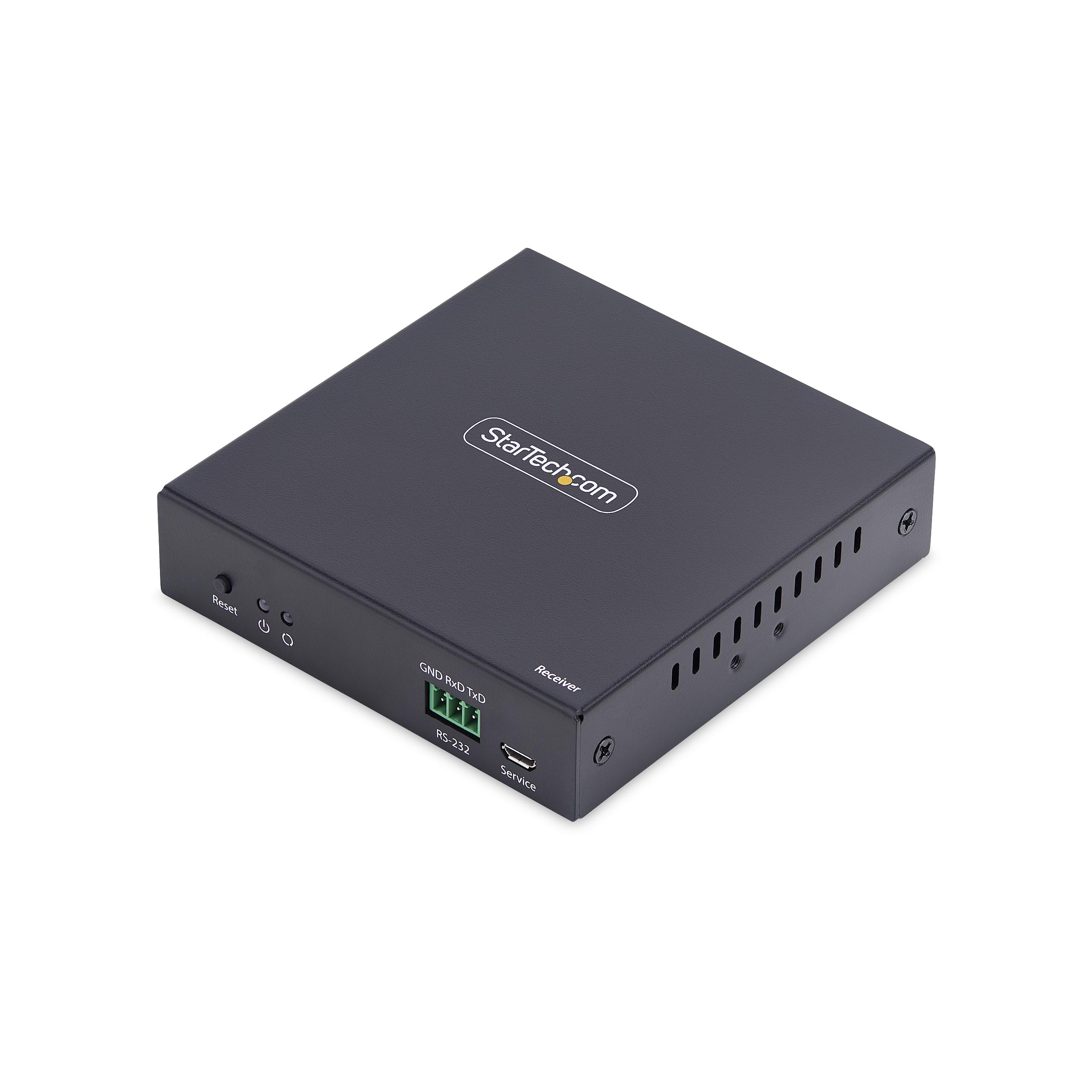

IH2006-HDMI-RX
HDMI 4K60Hz IP RX

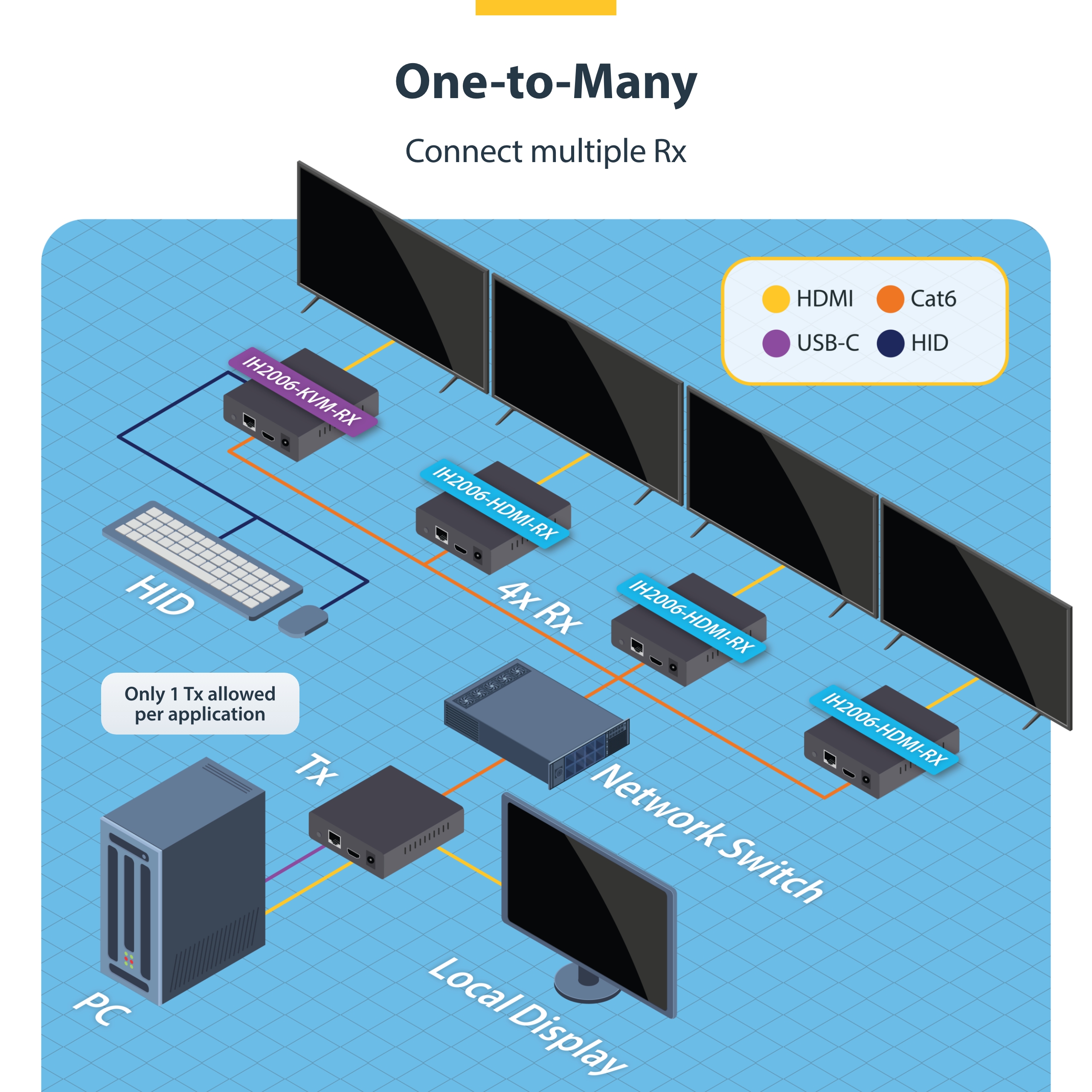

Use this receiver unit with IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
BOM Image
Video Link YouTube
Product Name HDMI 4K60Hz IP RX Product Number IH2006-HDMI-RX UPC 065030912662 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 HDMI KVM Extenders Family Pro Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX117X Product Title (Ultra-Short) IP HDMI Receiver Product Title (Short) HDMI Receiver Over IP for IH2006 Series Product Title (Medium) HDMI Receiver Over IP Network For the IH2006 Series, 4K 60Hz, Driverless Product Title (Standard) HDMI Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, AVoIP, Driverless, Receiver Only Product Title (Long) HDMI Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, Driverless, AVoIP, Includes Mounting Kit, Receiver Only Product Title (AMZ) HDMI Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, AVoIP, Driverless, Receiver Only Title Ingram (Part 1) HDMI Receiver over IP - Title Ingram (Part 2) 4K 60Hz, AVoIP, Receiver Only Website Product Headline Use this receiver unit with IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through Bullet 1 AVoIP HDMI RECEIVER: Pair with an IH2006 transmitter (sold separately) to extend a 4K 60Hz HDMI signal over a TCP/IP network to a remote display, enabling high-quality video distribution while keeping the source system secure Bullet 2 NO DRIVERS OR SOFTWARE: Requires no configuration to get it working; Compatible with any operating system including Windows, macOS and Linux, as well as all hardware platforms such as Intel, AMD, Snapdragon/ARM and Apple Silicon Bullet 3 SCALABLE SETUP: Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution Bullet 4 AUDIO & SERIAL EXTENSION: Equipped with a three-wire RS232 port for serial extension and a 3.5mm audio passthrough port, ensuring seamless transmission of audio and control signals over the network Bullet 5 SECURE & FLEXIBLE INSTALLATION: Durable metal housing with included mounting kit for wall or under-desk installation; Rubber feet prevent slipping for desktop use; Ideal for industrial and professional environments Bullets (Compact) Extend a 4K 60Hz HDMI signal over a TCP/IP network to a remote display when paired with a compatible transmitter; No Drivers/Software/Config required; Works with any OS/hardware platform; Three-wire serial and 3.5mm Audio extension Bullets (Consolidated) - Extend a 4K 60Hz HDMI signal over a TCP/IP network to a remote display when paired with a compatible transmitter - No config/drivers/software required; Works with any OS (Windows/macOS/Linux) - Compatible with all hardware platforms (Intel/AMD/ARM/Apple Silicon) - Create a one-to-many setup making it easy to scale with your business needs for a future-proof solution - Serial and 3.5mm audio passthrough; Includes mounting kit for HDMI Receiver (AVoIP) Marketing Copy Marketing Copy (No HTML) Applications - Reduce the need for physical access to a computer or server, improving security and efficiency
- Enables secure, high-performance connections between workstations and studio equipment
- Allows operators to manage critical systems from a safe or more convenient location
Website Search Keyword - KVM Extender
- IP KVM Extender
- IP Video Distribution
- AVoIP
- KVM over IP
- KVM over Network
- KVM over CAT6
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Special Notes - - Your router must support IGMP snooping and 9K jumbo frames. Please refer to your network switch or router documentation to ensure that IGMP snooping is supported and enabled.
- - Each transmitter requires its own dedicated network for itself and all connected receivers; VLANs are insufficient.
Accessory Products - IH2006-KVM-EXTENDER
- IH2006-KVM-RX
- IH2006-KVM-TX
Related Products - FD121-KVM-EXTENDER
- SV565HDIP
- SV565UTPHDU
- SV565UTPU

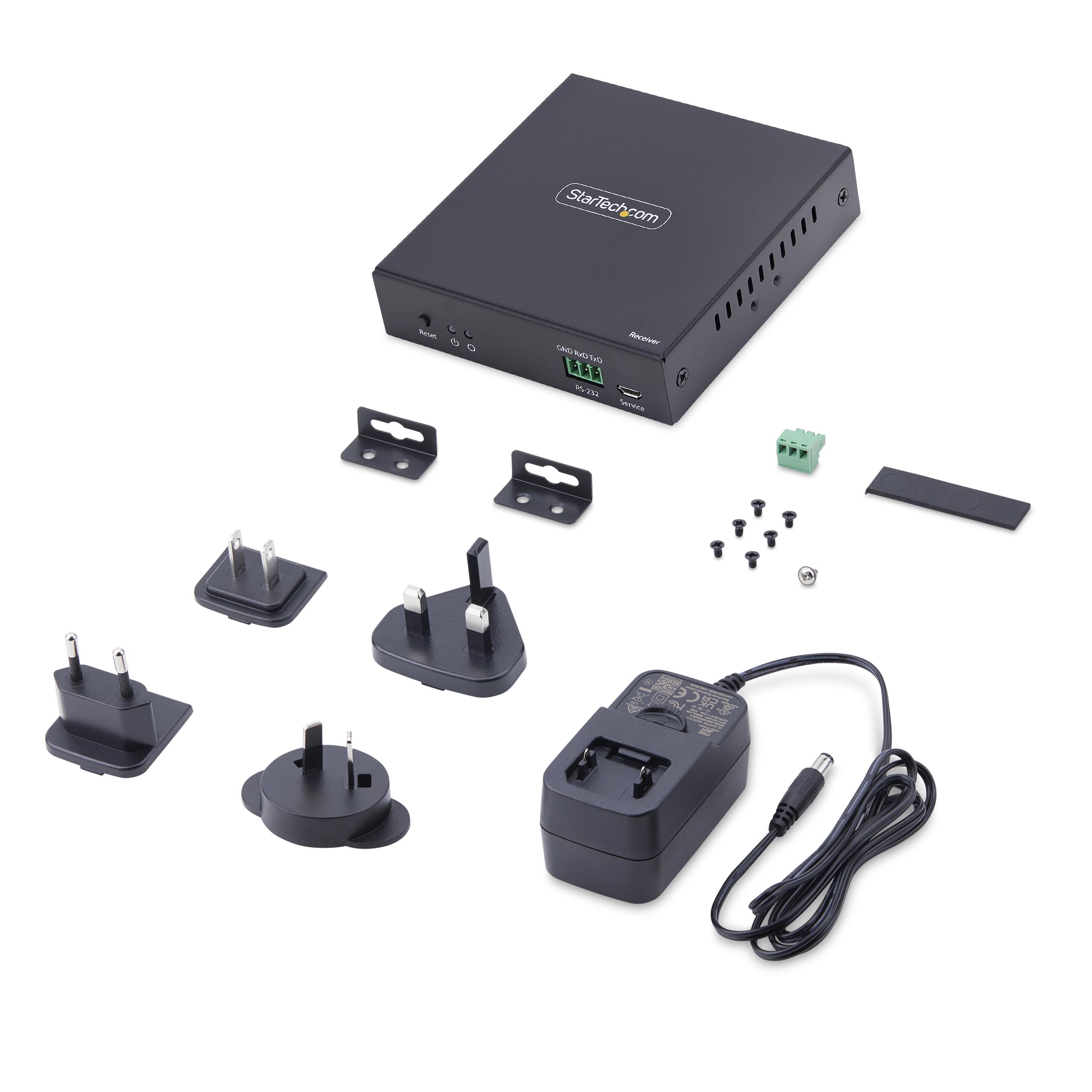

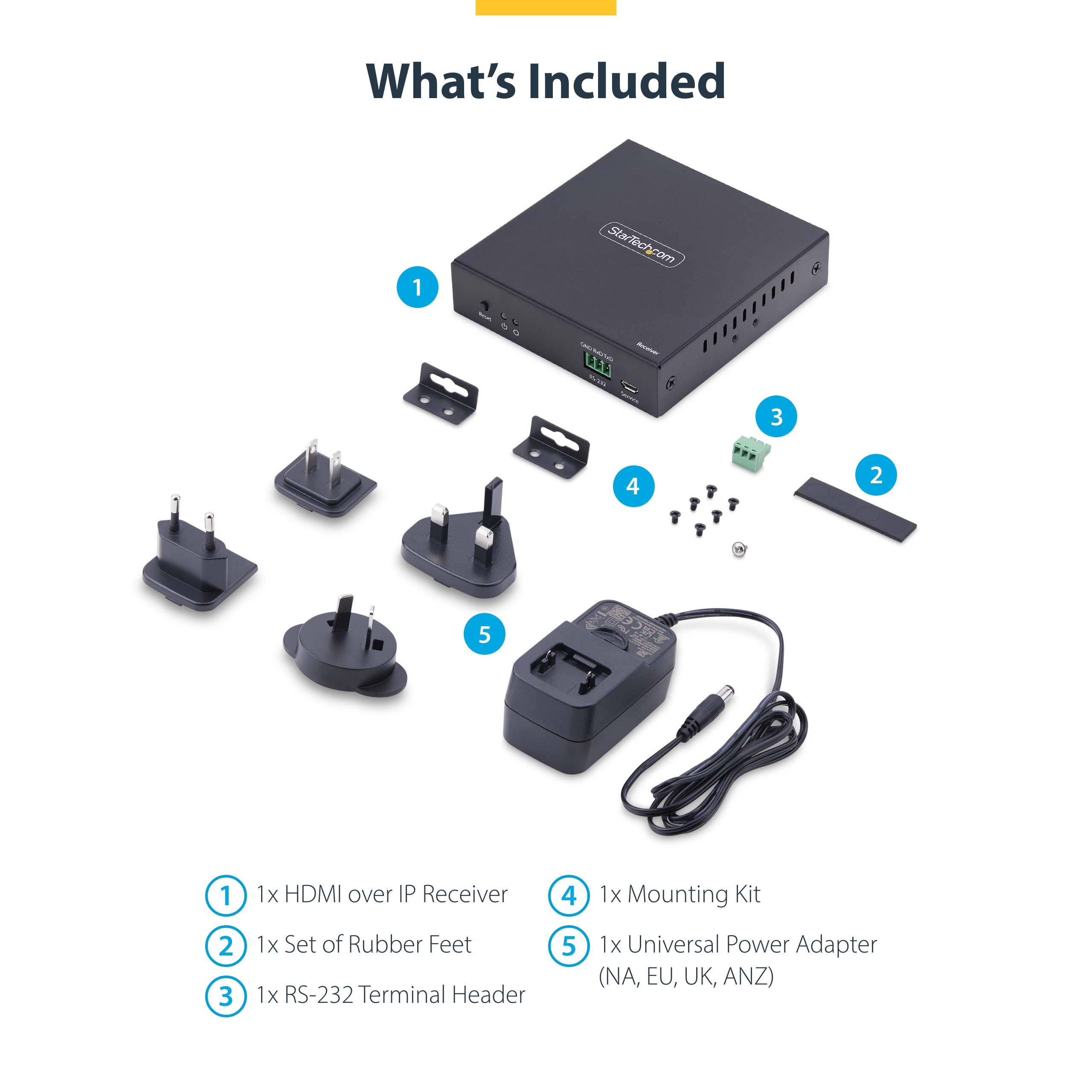

Input Current 0.3A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 90% RH (non-condensing) Material Steel Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 106 Product Width (mm) 103 Product Height (mm) 21 Product Weight (g) 307 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant No Audio Specifications HDMI - 2 Channel Audio Hot-Key Selection No KVM IP Control Yes Maximum Digital Resolutions 3840 x 2160 @ 60Hz On-Screen Display No OS Compatibility OS Independent Port Selection Support Not Applicable Audio Yes Cables Included No LED Indicators Number of KVM Ports 1 PC Video Type HDMI Rack-Mountable No Carton Depth (mm) 425 Carton Height (mm) 420 Carton Quantity 20 Carton Weight Gross (g) 10400 Included in Package - 1 - IP HDMI Receiver
- 1 - Universal Power Adapter (NA/UK/EU/ANZ)
- 1 - Set of Rubber Feet
- 1 - RS-232 Terminal Header
- 1 - Mounting Kit

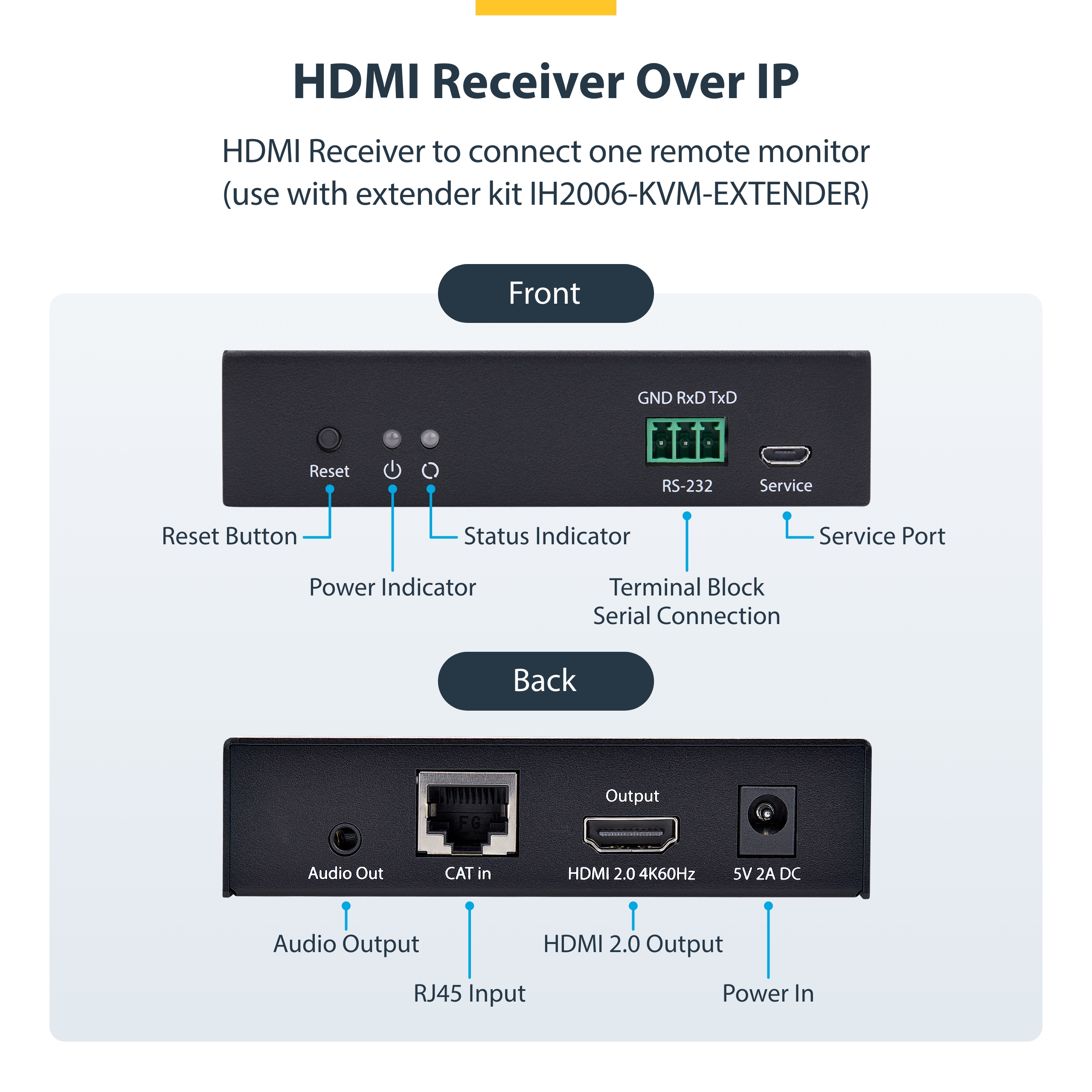

Package Depth (mm) 199 Package Height (mm) 80 Package Width (mm) 149 Package Weight (g) 490 Packaging Description HDMI Extender over IP - 4K 60Hz - Receiver Unit Packaging Description India HDMI Extender over IP - 4K 60Hz - Receiver Unit Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB Micro-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 Terminal Block (3 Wire) Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Connector 5 HDMI Connector 5 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Apple Compatibility Apple Compatible Application Photos Required Artwork Due Date 2024-10-25 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment n/a Comparable SKU 2 Comment n/a Digital Content Due Date 2025-03-25 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Graphic Design SKU Logic Naming Convention IH2006-y ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Priority New Product Medium Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-01-17 Target Production Release 2025-01-24 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
