IH2006-KVM-EXTENDER

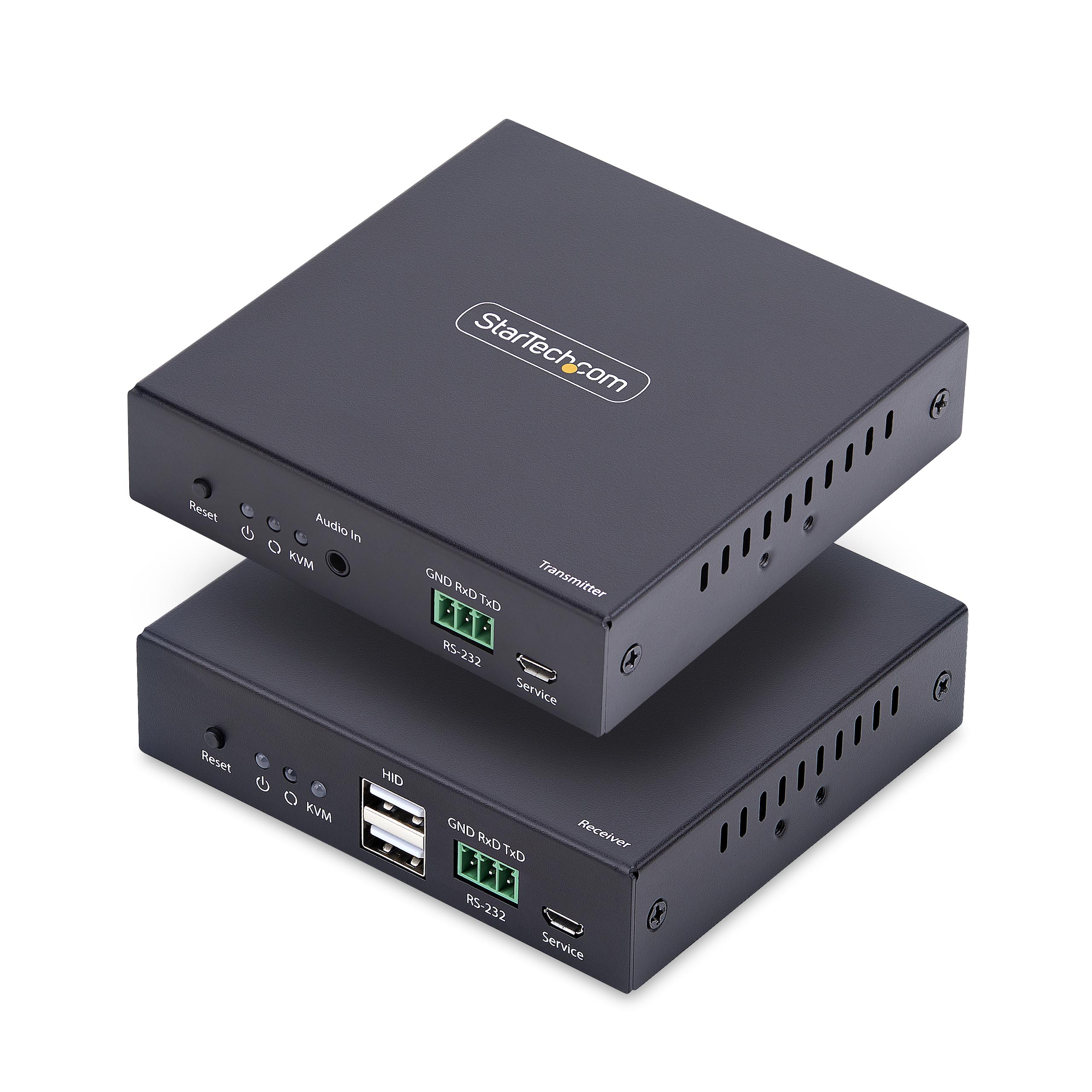

HDMI 4K60Hz IP KVM Extender - 120m
Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name HDMI 4K60Hz IP KVM Extender - 120m Product Number IH2006-KVM-EXTENDER UPC 065030911511 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 HDMI KVM Extenders Family Pro Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX117X Product Title (Ultra-Short) IP HDMI KVM Extender Product Title (Short) HDMI KVM Extender Over IP Network Product Title (Medium) HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, AVoIP Product Title (Standard) HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB Over Ethernet/CAT6, AVoIP, Transmitter/Receiver Kit Product Title (Long) HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB Over Ethernet/CAT6, AVoIP, Transmitter and Receiver Kit, Includes Mounting Kits Product Title (AMZ) HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB Over Ethernet/CAT6 (up to 330ft/100m), AVoIP, Tx/Rx Kit Title Ingram (Part 1) KVM Extender over IP - Title Ingram (Part 2) HDMI 4K 60Hz, AVoIP, Driverless Website Product Headline Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio Bullet 1 AVoIP KVM EXTENDER: Remotely access and control a computer over a TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor, while keeping the system secure from unauthorized access or physical damage Bullet 2 NO DRIVERS OR SOFTWARE: IP Video Distribution kit requires no configuration to get it working; Compatible with any operating system including Windows, macOS and Linux, as well as all hardware platforms such as Intel, AMD, Snapdragon/ARM and Apple Silicon Bullet 3 SCALABLE SETUP: Start with a point-to-point setup, then expand to a one-to-many setup by adding IP KVM receivers (sold separately), allowing your setup to grow with your business needs and ensuring a scalable, future-proof solution Bullet 4 LOCAL HDMI OUTPUT: IP KVM Transmitter features an HDMI output to connect a local display, allowing you to view the content without being at the receiver's location; Three-wire RS232 port and a 3.5mm audio passthrough port offer serial and audio extension Bullet 5 SECURE & FLEXIBLE INSTALLATION: Durable metal housing with included mounting kits for wall or under-desk installation; Rubber feet prevent slipping for desktop use; Ideal for industrial and professional environments Bullets (Compact) Control a computers keyboard/mouse/4K 60Hz HDMI monitor from a remote location over an existing IP network; Additional IP KVM receivers sold separately; No Drivers/Software; Works with any OS/hardware platform; Transmitter has a local HDMI output Bullets (Consolidated) - Control a computers keyboard/mouse/4K 60Hz HDMI monitor from a remote location over an existing IP network - No config/drivers/software required; Works with any OS (Windows/macOS/Linux) - Compatible with all hardware platforms (Intel/AMD/ARM/Apple Silicon) - AVoIP one-to-one or one-to-many setup with additional IP KVM receivers (sold separately) - Transmitter has an HDMI output for a local display; Serial and 3.5mm audio passthrough - Includes mounting kits for transmitter and receiver Marketing Copy Marketing Copy (No HTML) Applications - Reduce the need for physical access to a computer or server, improving security and efficiency
- Enables secure, high-performance connections between workstations and studio equipment
- Allows operators to manage critical systems from a safe or more convenient location
Website Search Keyword - KVM Extender
- IP KVM Extender
- IP Video Distribution
- AVoIP
- KVM over IP
- KVM over Network
- KVM over CAT6
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - - End-to-end latency: 80-90ms
- - Your router must support IGMP snooping and 9K jumbo frames. Please refer to your network switch or router documentation to ensure that IGMP snooping is supported and enabled.
- - Each transmitter requires its own dedicated network for itself and all connected receivers; VLANs are insufficient.
Accessory Products - IH2006-HDMI-RX
- IH2006-KVM-RX
- IH2006-KVM-TX
Related Products - FD121-KVM-EXTENDER
- SV565HDIP
- SV565UTPHDU
- SV565UTPU

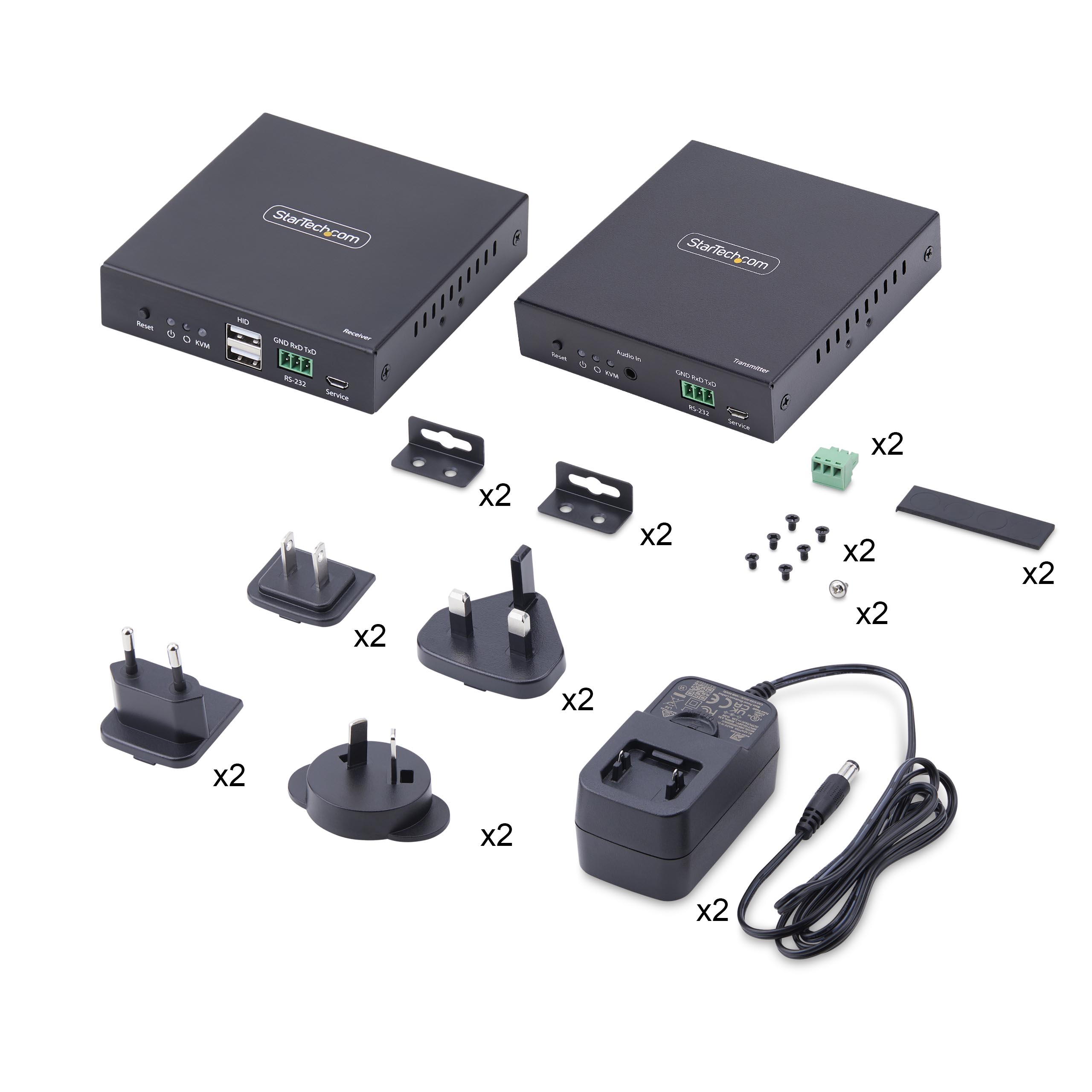

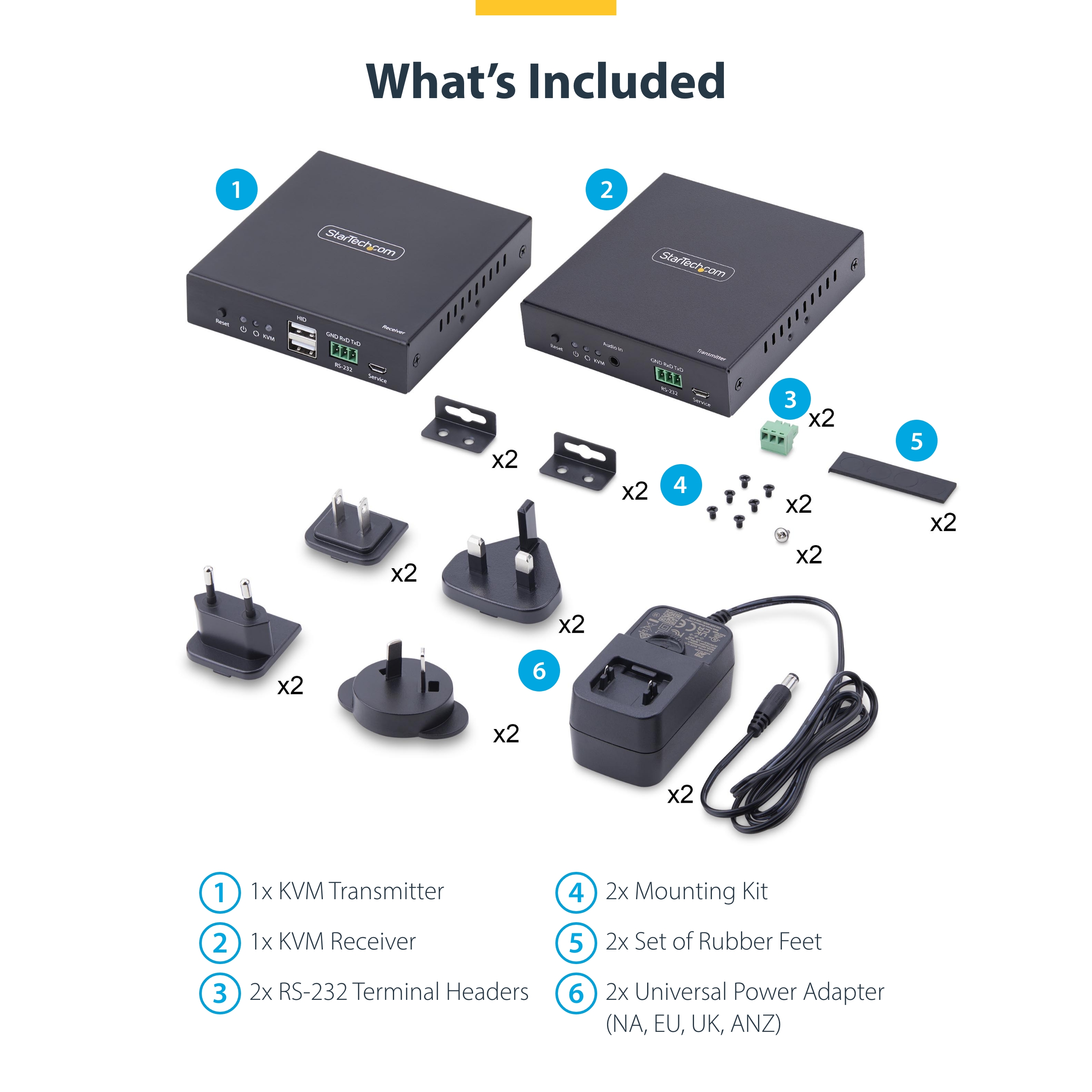

Input Current 0.3A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10W Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 90% RH (non-condensing) Material Steel Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 106 Product Width (mm) 103 Product Height (mm) 25.1 Product Weight (g) 312 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant No Audio Specifications HDMI - 2 Channel Audio Hot-Key Selection No KVM IP Control Yes Maximum Digital Resolutions 3840 x 2160 @ 60Hz MTBF (hours) 10,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Not Applicable Audio Yes Cables Included No LED Indicators Number of KVM Ports 1 PC Video Type HDMI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 380 Carton Height (mm) 420 Carton Quantity 10 Carton Weight Gross (g) 11700 Included in Package - 1 - KVM Extender Transmitter
- 1 - KVM Extender Receiver
- 2 - RS-232 Terminal Headers
- 2 - Mounting Kit
- 2 - Set of Rubber Feet
- 2 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Quick-Start Guide

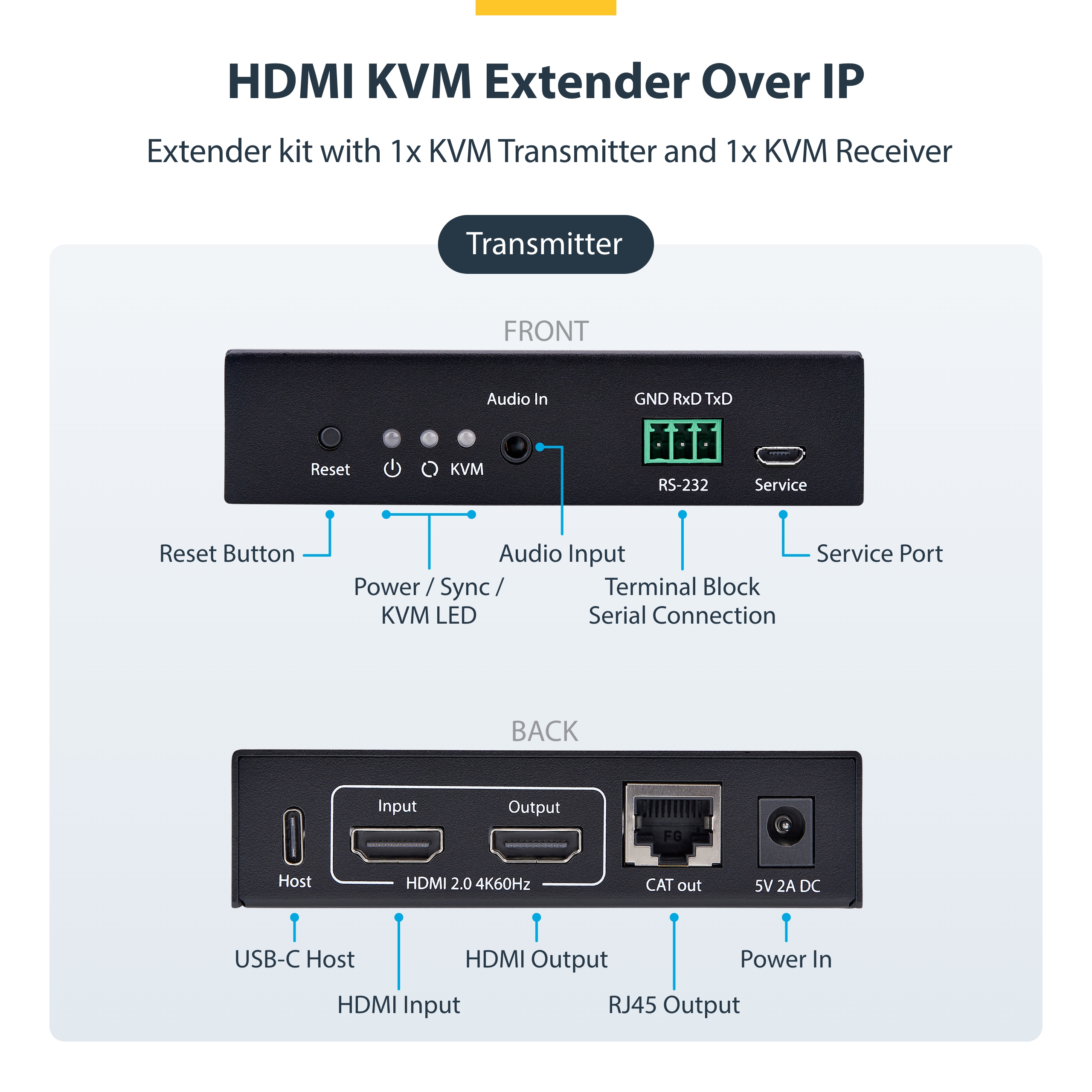

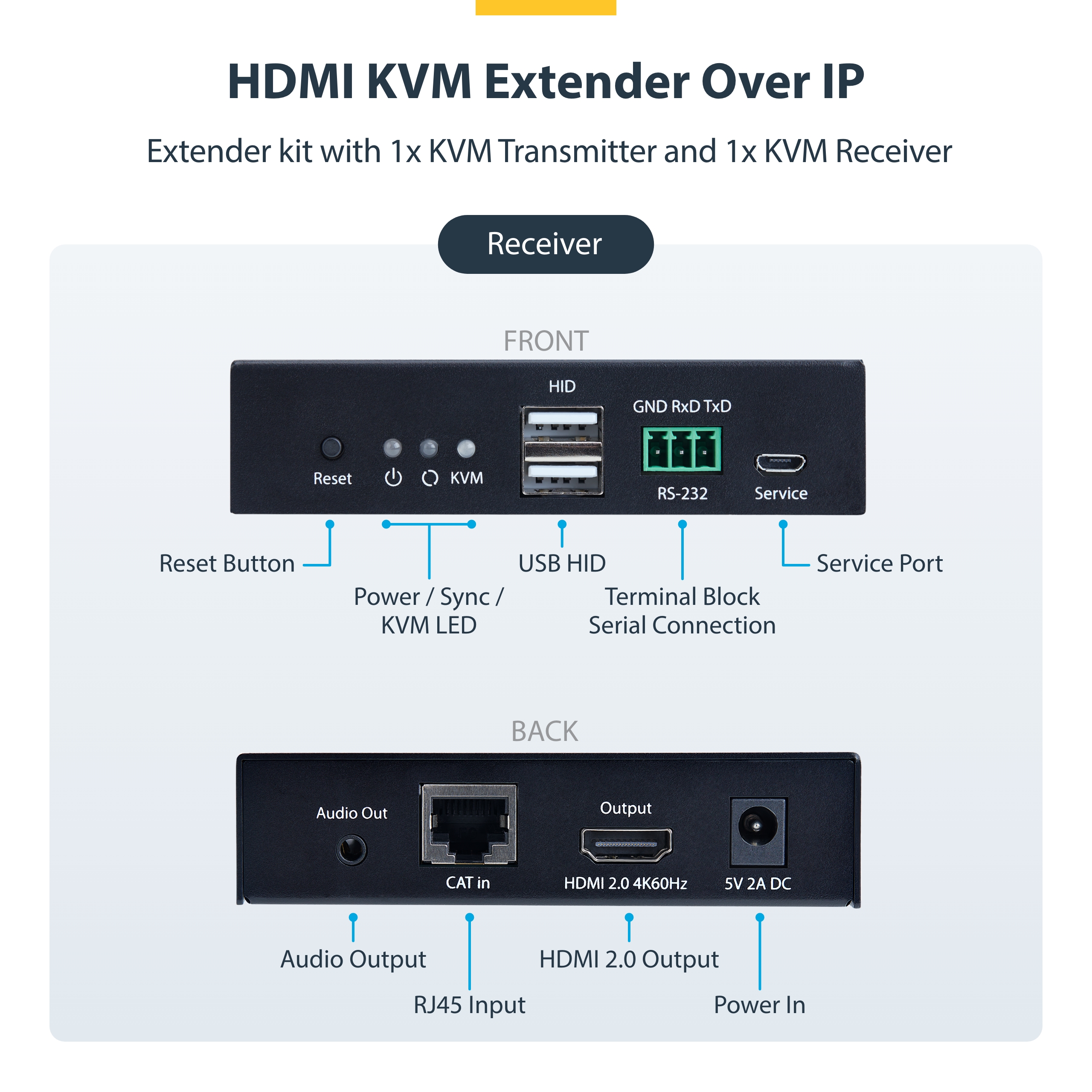

Package Depth (mm) 240 Package Height (mm) 80 Package Width (mm) 176 Package Weight (g) 1090 Packaging Description HDMI KVM Console Extender over IP - 4K 60Hz Packaging Description India HDMI KVM Console Extender over IP - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB Micro-B (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 Terminal Block (3 Wire) Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Connector 5 RJ-45 Connector 5 (Quantity) 2 Connector 6 HDMI Connector 6 (Quantity) 2 Host Connector 1 Terminal Block (3 Wire) Host Connector 1 (Quantity) 1 Host Connector 2 USB-C (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 HDMI Host Connector 3 (Quantity) 1 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Apple Compatibility Apple Compatible Application Photos Not Required Artwork Due Date 2024-10-25 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment HDMI IP KVM Extender kit supporting 4k30hz up to 100m. Comparable SKU 2 Comment n/a Digital Content Due Date 2025-03-10 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Priority New Product Medium Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-01-17 Target Production Release 2025-03-28 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
