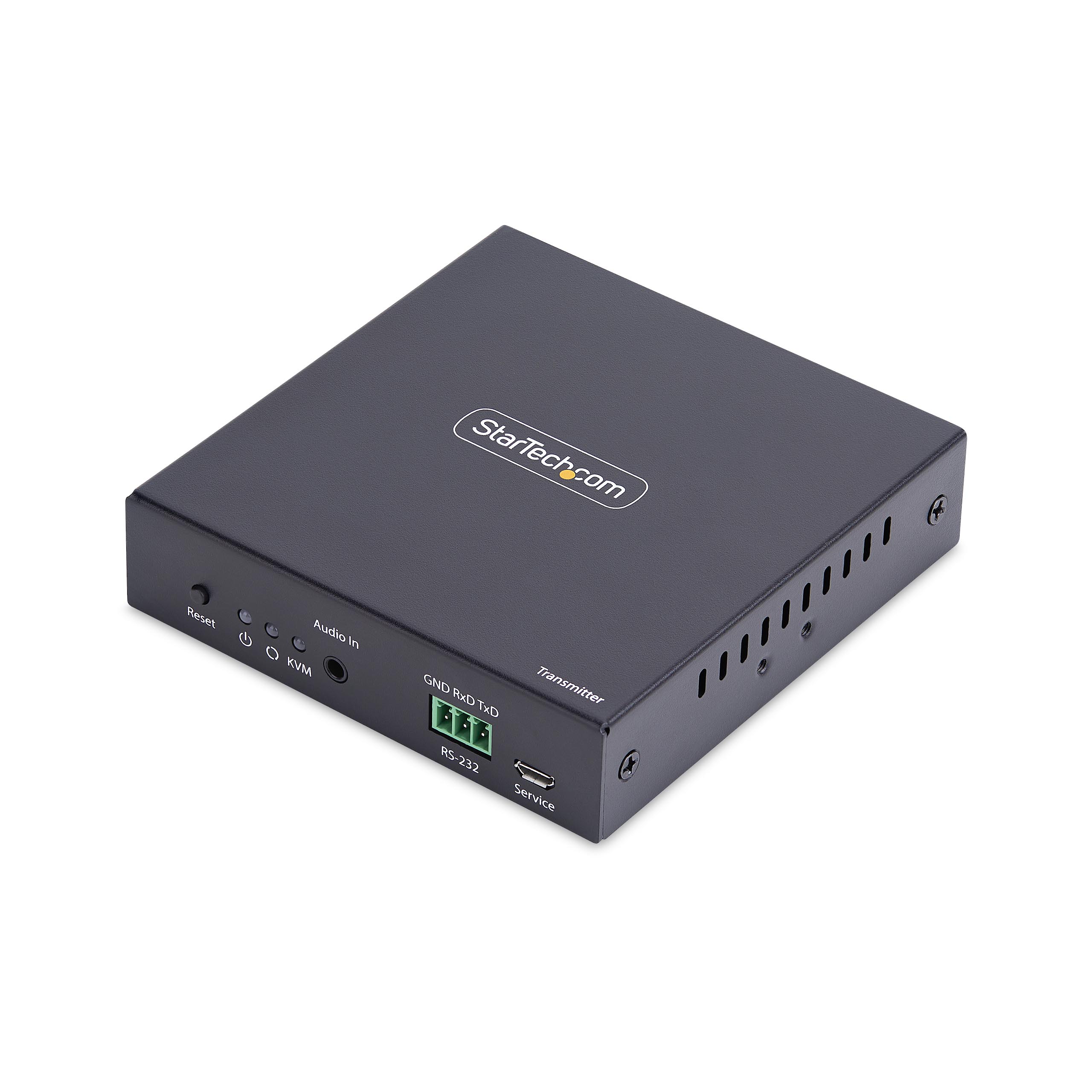

IH2006-KVM-TX
HDMI 4K60Hz IP KVM TX

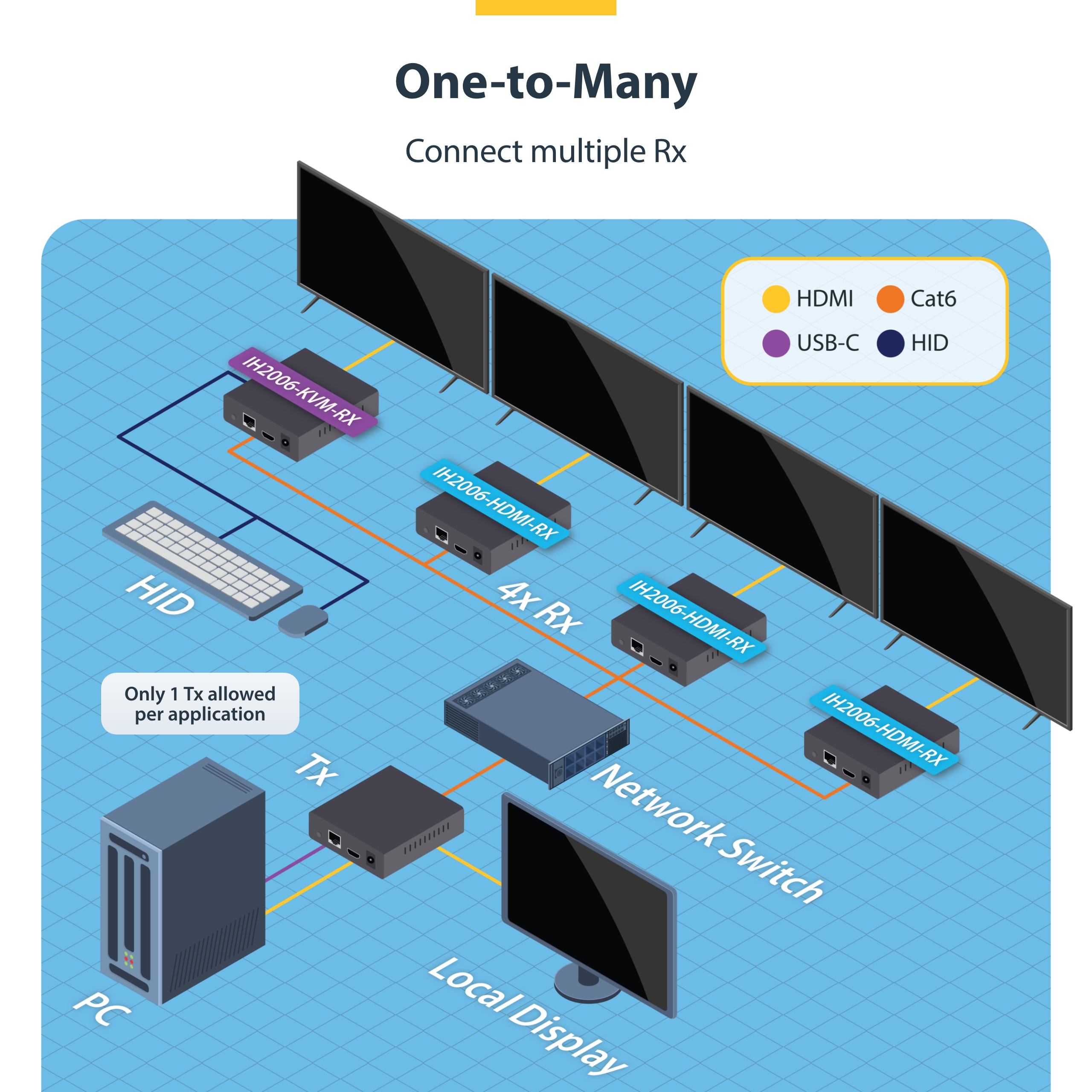

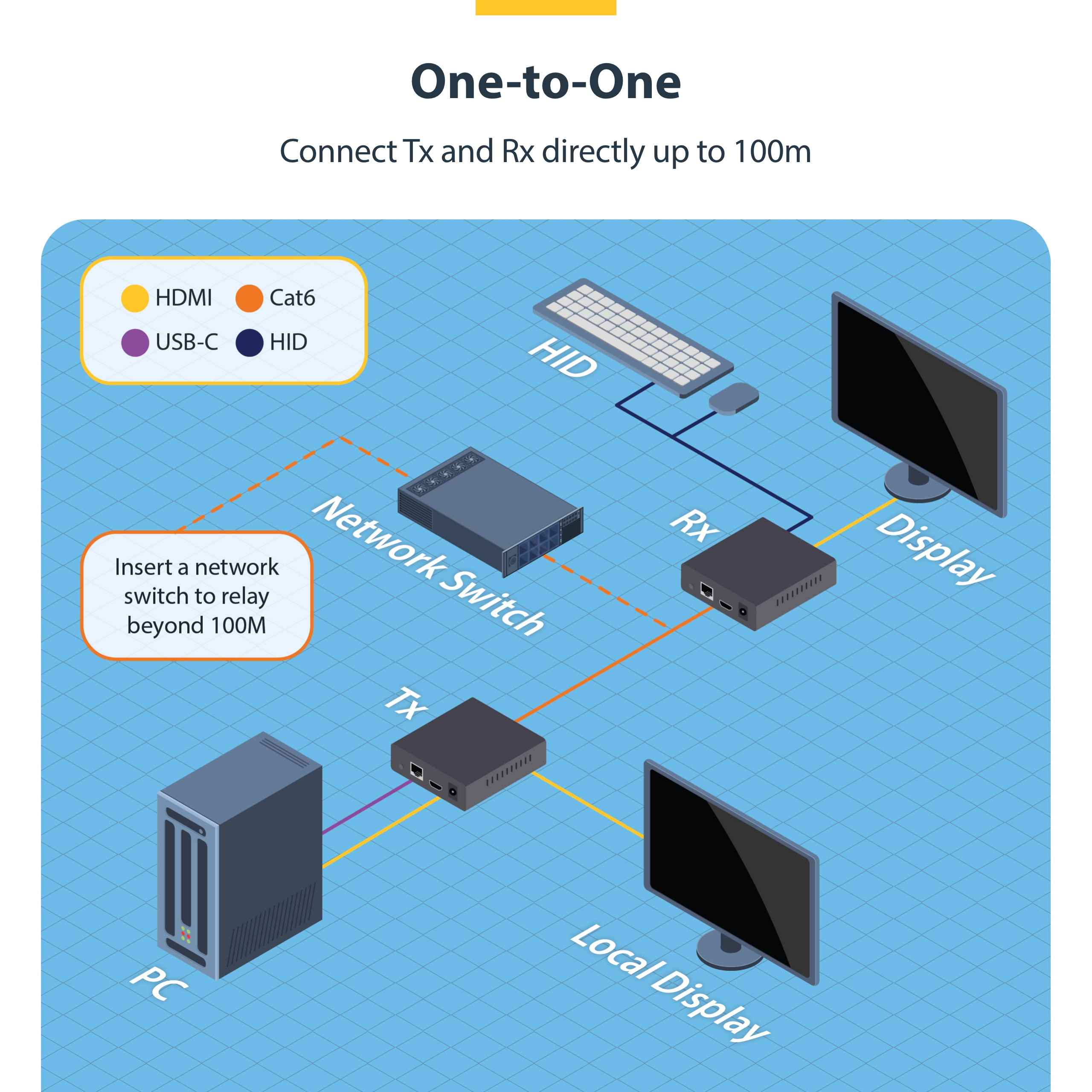

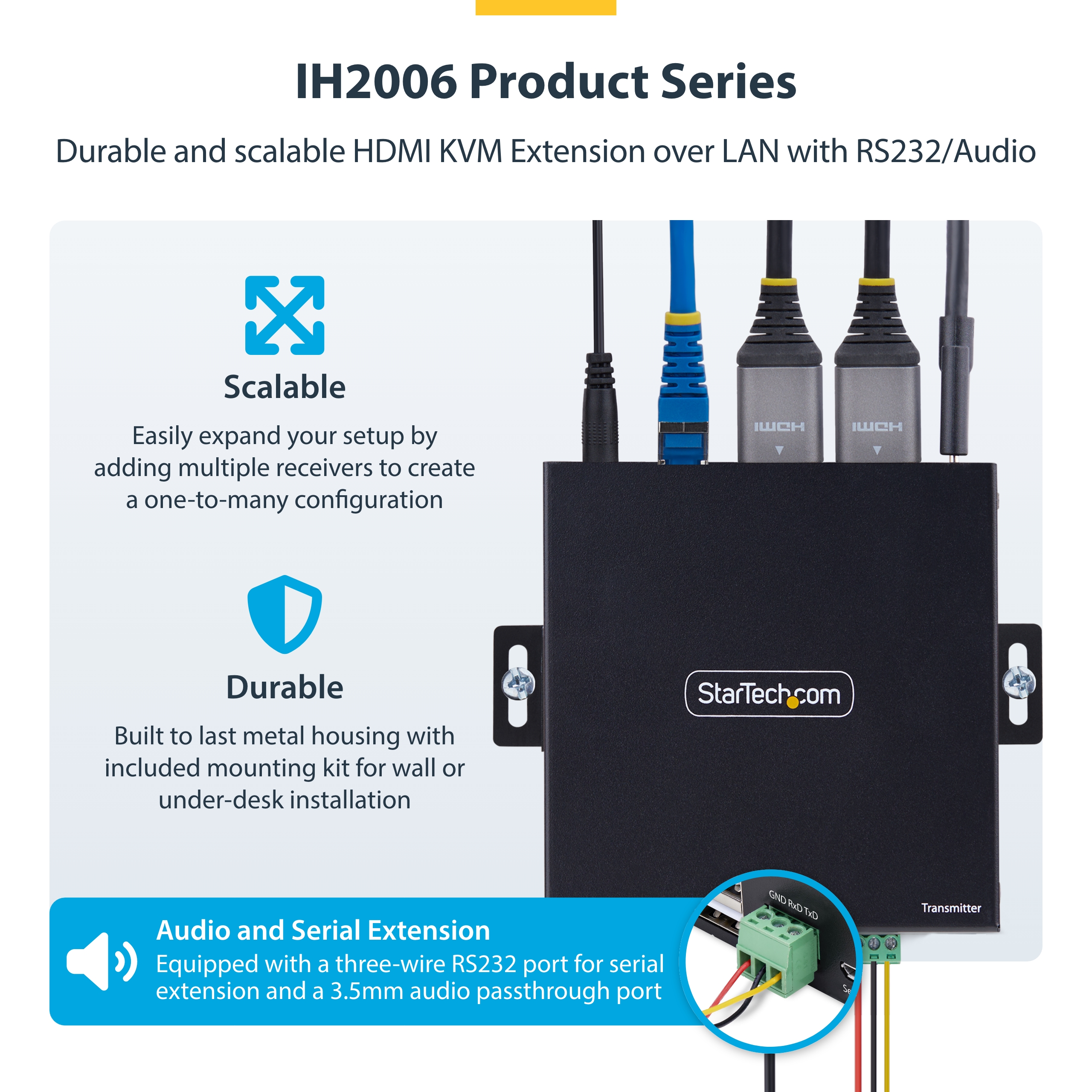

Use this Transmitter unit with IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
BOM Image
Video Link YouTube
Product Name HDMI 4K60Hz IP KVM TX Product Number IH2006-KVM-TX UPC 065030912693 Lifecycle status Discontinued Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Extenders > KVM Extenders Category Level 1 KVM Switches Category Level 2 KVM Extenders Category Level 3 HDMI KVM Extenders Family Pro Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX117X Product Title (Ultra-Short) IP KVM Transmitter Product Title (Short) HDMI KVM Transmitter Over IP Network Product Title (Medium) HDMI KVM Transmitter Over IP Network For the IH2006 Series, 4K 60Hz, Driverless Product Title (Standard) HDMI KVM Transmitter Over IP Network for the IH2006 Product Series, 4K 60Hz, Keyboard/Video/Mouse, Transmitter Only Product Title (Long) HDMI KVM Transmitter Over IP Network for the IH2006 Product Series, 4K 60Hz, Driverless, AVoIP, Includes Mounting Kit, Transmitter Only Product Title (AMZ) HDMI KVM Transmitter Over IP Network for the IH2006 Product Series, 4K 60Hz, Transmitter Only Title Ingram (Part 1) HDMI KVM Transmitter over IP - Title Ingram (Part 2) 4K 60Hz, AVoIP, Transmitter Only Website Product Headline Use this Transmitter unit with IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio Bullet 1 AVoIP KVM TRANSMITTER: Pair with an IH2006 receiver (sold separately) to extend 4K 60Hz HDMI and USB over a TCP/IP network to a remote display; Ideal as a direct replacement for an existing transmitter, ensuring performance, compatibility, and uptime Bullet 2 NO DRIVERS OR SOFTWARE: Requires no configuration to get it working; Compatible with any operating system including Windows, macOS and Linux, as well as all hardware platforms such as Intel, AMD, Snapdragon/ARM and Apple Silicon Bullet 3 REPLACEMENT-READY SOLUTION: Designed to seamlessly integrate with existing IH2006 Series Receivers, this transmitter offers a hassle-free replacement option, keeping your AV infrastructure running smoothly Bullet 4 LOCAL HDMI OUTPUT: IP KVM Transmitter features an HDMI output to connect a local display, allowing you to view the content without being at the receiver's location; Three-wire RS232 port and a 3.5mm audio passthrough port offer serial and audio extension Bullet 5 SECURE & FLEXIBLE INSTALLATION: Durable metal housing with included mounting kit for wall or under-desk installation; Rubber feet prevent slipping for desktop use; Ideal for industrial and professional environments Bullets (Compact) Extend 4K 60Hz HDMI and USB over a TCP/IP network to a remote display when paired with a compatible receiver; No Drivers/Software required; Works with any OS/hardware platform; Local HDMI Output; Replacement for existing IH2006 Series Transmitter Bullets (Consolidated) - Extend 4K 60Hz HDMI and USB over a TCP/IP network to a remote display when paired with a compatible receiver - No config/drivers/software required; Works with any OS (Windows/macOS/Linux) - Compatible with all hardware platforms (Intel/AMD/ARM/Apple Silicon) - Designed to seamlessly integrate with existing IH2006 Series Receivers - Local HDMI output port; Serial and 3.5mm audio passthrough; Includes mounting kit for the IP KVM transmitter Marketing Copy Marketing Copy (No HTML) Applications - Reduce the need for physical access to a computer or server, improving security and efficiency
- Enables secure, high-performance connections between workstations and studio equipment
- Allows operators to manage critical systems from a safe or more convenient location
Website Search Keyword - KVM Extender
- IP KVM Extender
- IP Video Distribution
- AVoIP
- KVM over IP
- KVM over Network
- KVM over CAT6
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - - Your router must support IGMP snooping and 9K jumbo frames. Please refer to your network switch or router documentation to ensure that IGMP snooping is supported and enabled.
- - Each transmitter requires its own dedicated network for itself and all connected receivers; VLANs are insufficient.
Accessory Products - IH2006-HDMI-RX
- IH2006-KVM-RX
- IH2006-KVM-EXTENDER
Related Products - FD121-KVM-EXTENDER
- SV565HDIP
- SV565UTPHDU
- SV565UTPU

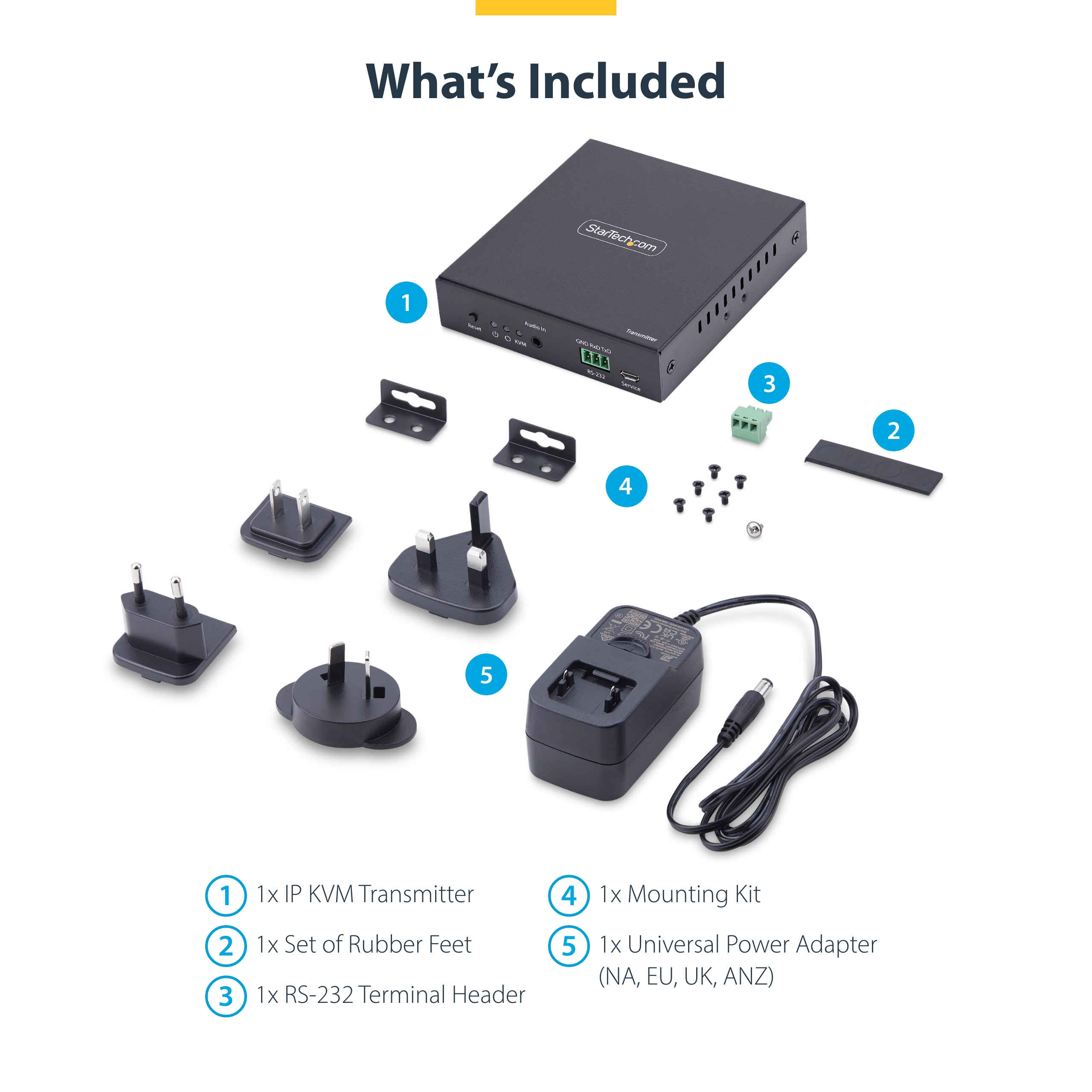

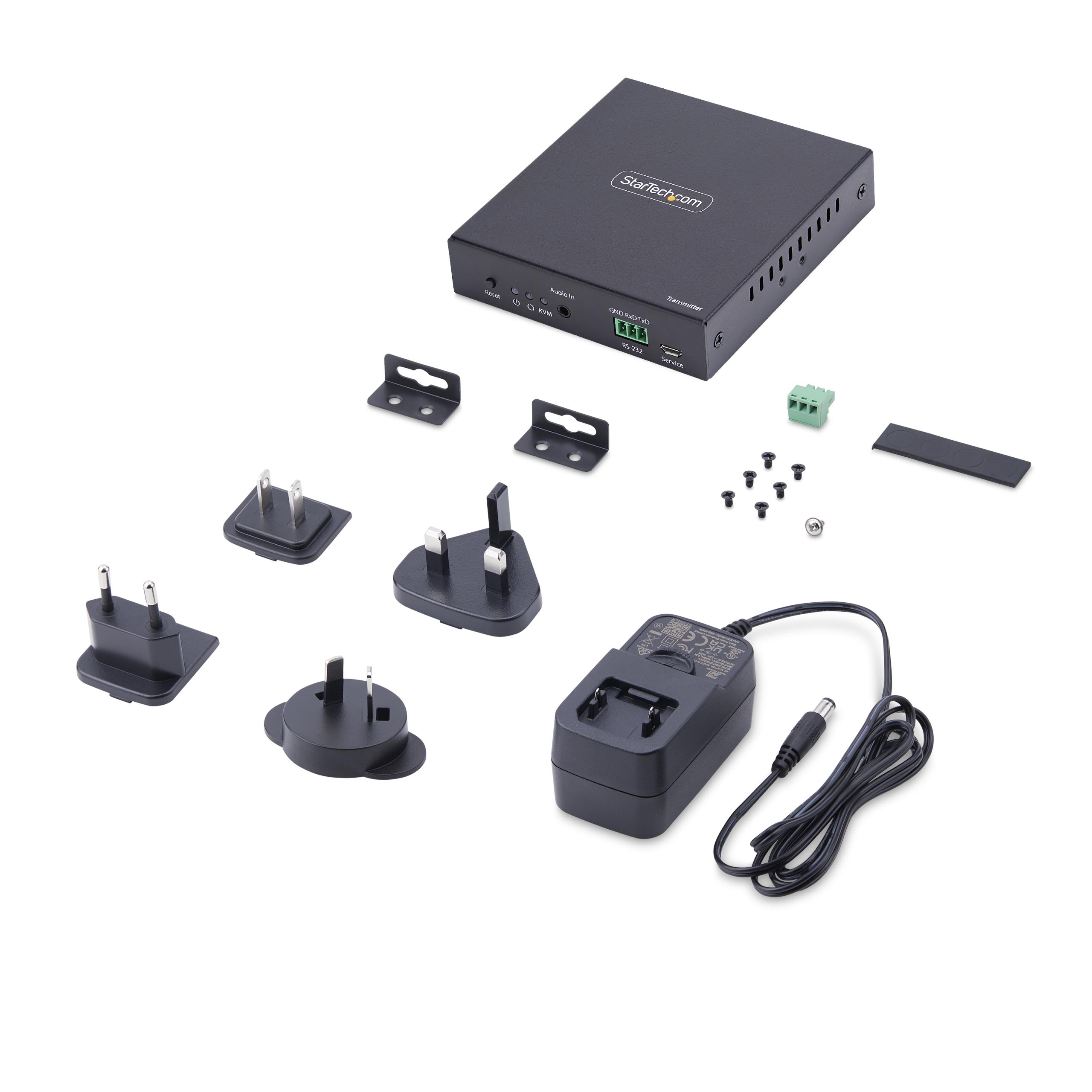

Input Current 0.3A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 90% RH (non-condensing) Material Steel Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 106 Product Width (mm) 103 Product Height (mm) 21 Product Weight (g) 307 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant No Audio Specifications HDMI - 2 Channel Audio Hot-Key Selection No KVM IP Control Yes Maximum Digital Resolutions 3840 x 2160 @ 60Hz On-Screen Display No OS Compatibility OS Independent Port Selection Support Not Applicable Audio Yes Cables Included No LED Indicators Number of KVM Ports 1 PC Video Type HDMI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 425 Carton Height (mm) 420 Carton Quantity 20 Carton Weight Gross (g) 10400 Included in Package - 1 - IP KVM Transmitter
- 1 - Universal Power Adapter (NA/UK/EU/ANZ)
- 1 - Set of Rubber Feet
- 1 - RS-232 Terminal Header
- 1 - Mounting Kit

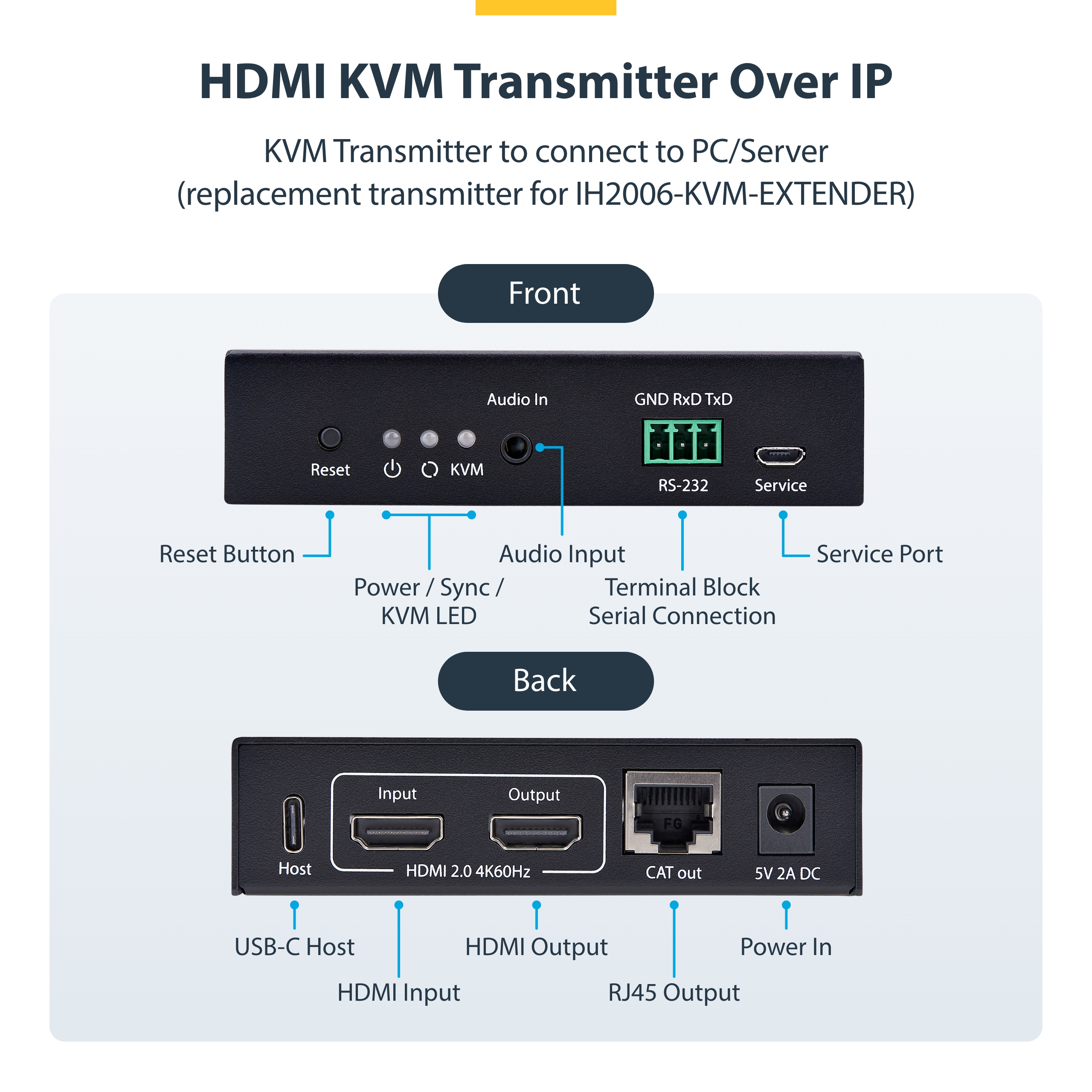

Package Depth (mm) 199 Package Height (mm) 80 Package Width (mm) 149 Package Weight (g) 490 Packaging Description HDMI KVM Console Extender over IP - 4K 60Hz - Transmitter Unit Packaging Description India HDMI KVM Console Extender over IP - 4K 60Hz - Transmitter Unit Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB Micro-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Host Connector 1 Terminal Block (3 Wire) Host Connector 1 (Quantity) 1 Host Connector 2 USB-C (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 HDMI Host Connector 3 (Quantity) 1 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Apple Compatibility Apple Compatible Application Photos Required Artwork Due Date 2024-10-25 Comparable SKU Comment N/A Comparable SKU 2 Comment N/A Digital Content Due Date 2025-03-25 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Graphic Design SKU Logic Naming Convention IH2006-y ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Priority New Product Medium Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-01-17 Target Production Release 2025-01-24 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
