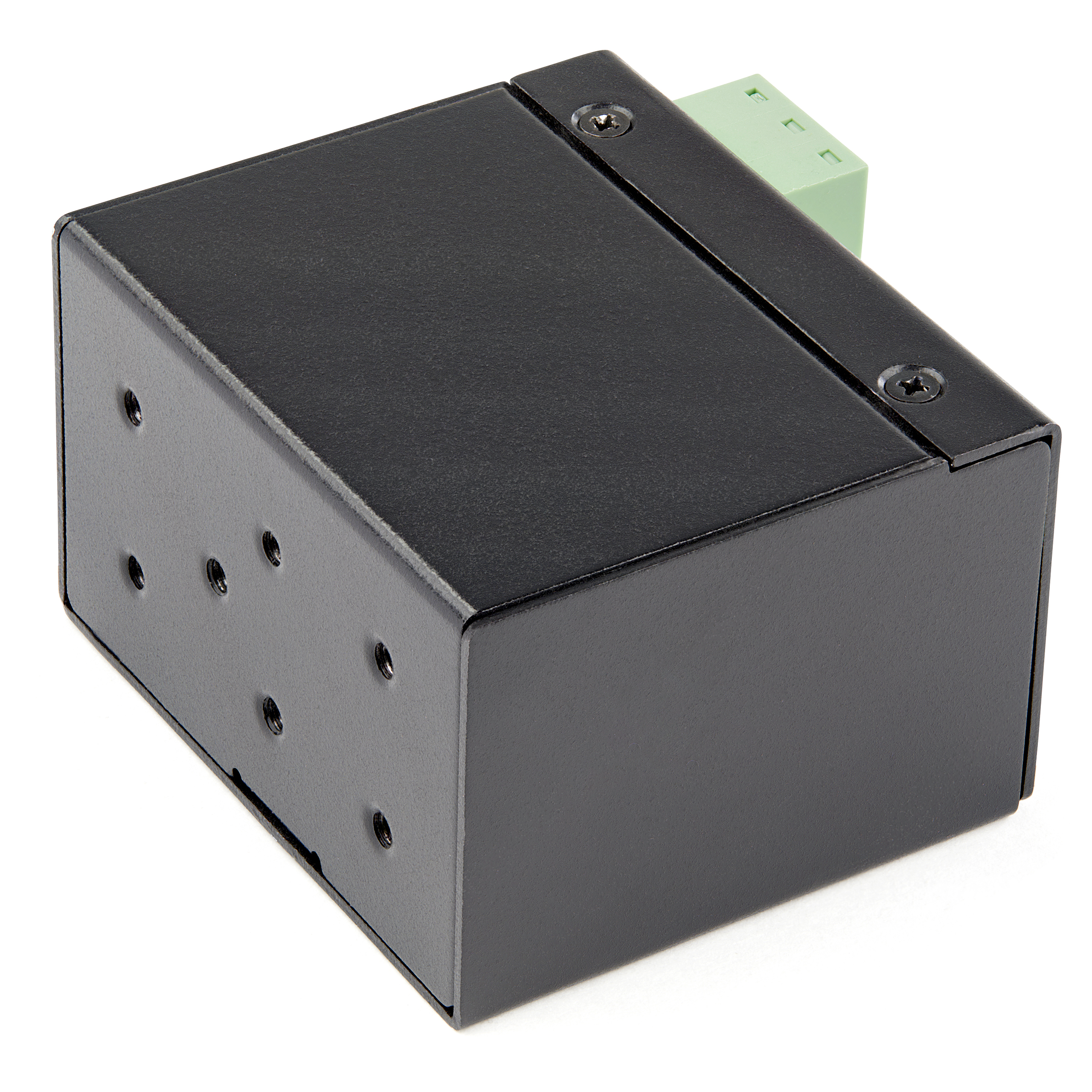

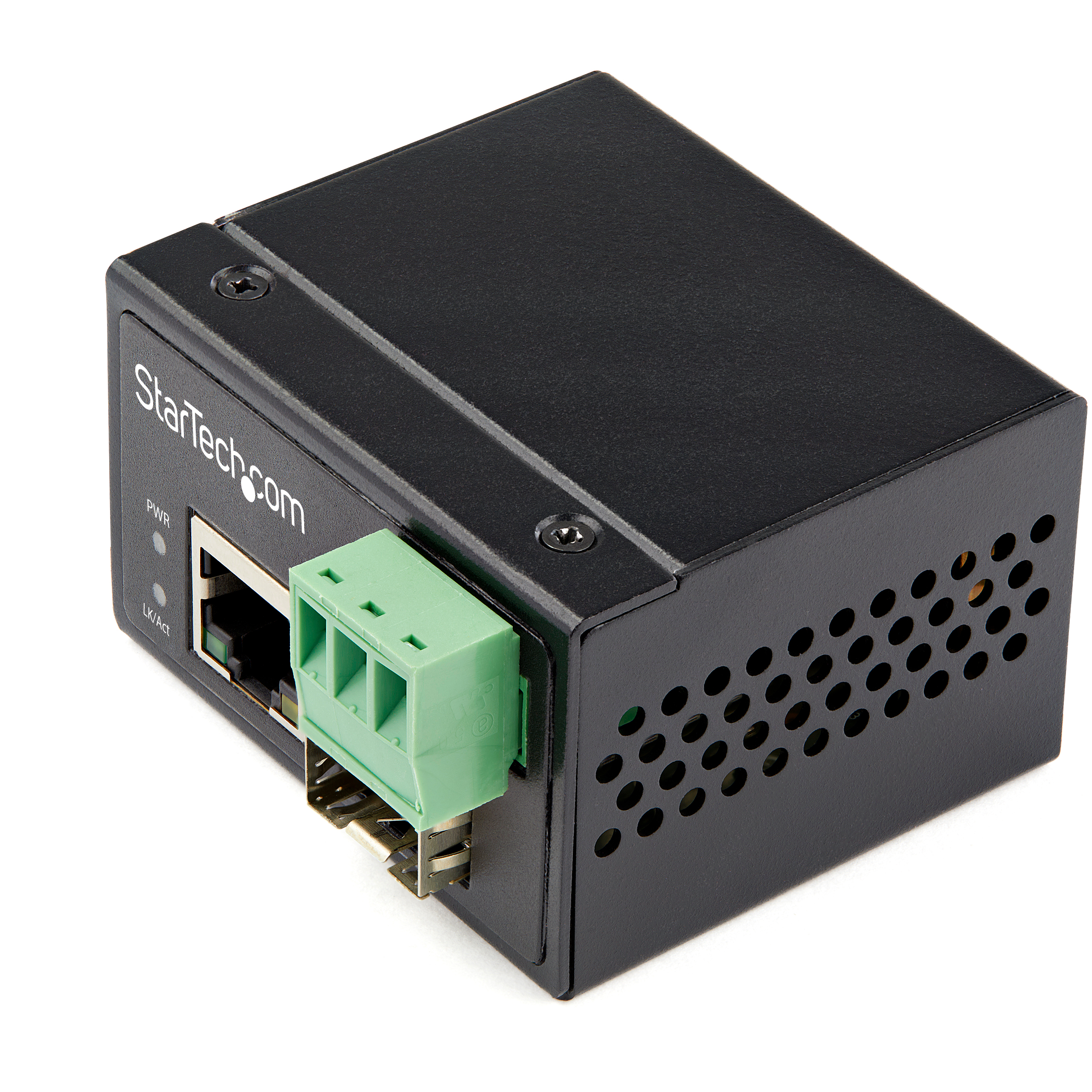

IMC100MSFP
10 100 Mbps Media Converter TX SFP
10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 10 100 Mbps Media Converter TX SFP Product Number IMC100MSFP UPC 065030889667 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Other Ethernet Media Converters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) Media Converter Product Title (Short) SFP Fiber to Ethernet Media Converter Product Title (Medium) Industrial Fiber to Ethernet Media Converter 100Mbps SFP to RJ45 SM/MMF - Copper Product Title (Standard) Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/CAT6 SM/MM, Fiber to Copper Network, IP-30 12V Input, TAA Product Title (Long) Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C - TAA Product Title (AMZ) Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C , TAA (IMC100MSFP) Title Ingram (Part 1) Industrial Fiber to Ethernet Title Ingram (Part 2) Media Converter - 100Mbps SFP to RJ45 Website Product Headline 10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing Bullet 1 COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail Bullet 2 ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C | Vibration, shock & freefall rated | Rugged IP-30 aluminum housing | Hardened operating temp -40C to 75C Bullet 3 OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types Bullet 4 TECH SPECS: 100Mbps | AC (18-36V) or DC (12-56V) | Single Mode SMF & Multi-Mode MMF Fiber | 16K Jumbo Frames | LFP | DIN/Wall Mountable | Terminal Block and/or Barrel Adapter for power flexibility Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) Fiber to Ethernet Media Converter extends networks & converts optical fiber to RJ45 Copper/CAT6 - Industrial Hardened -40 to 75C temp - 100Mbps - Open SFP - 12V-56VDC - Single Mode (SMF) or Multimode Fiber (MMF) - IP-30 Case 2 Year Warranty Bullets (Consolidated) Fiber to Ethernet Media Converter extends and converts optical fiber to RJ45 copper/CAT6 - Industrial Hardened -40C to 75C temp - Power using 48-56VDC terminal block and/or barrel adapter for power flexibility - 100Mbps|Open SFP|AC (18-36V) or DC (12-56V)|Single Mode (SMF) and Multi-mode (MMF) Fiber|16K Jumbo Frames|LFP|IP-30 Aluminum Housing |DIN or Wall Mountable |MTBF 500000 +hrs - Network media converter uses standard SFPs for multimode or single-mode fiber connections - StarTech.com 2-year warranty Marketing Copy Website Search Keyword - 10 100 media converter
- black box media converter
- cisco media converter
- copper to fiber media converter
- din rail media converter
- Ethernet fiber extender
- fast ethernet media converter
- fiber to cat6 media converter
- fibre ethernet converter
- fibre media converter
- fibre to ethernet converter
- hardened media converter
- industrial fiber media converter
- industrial grade media converter
- media converter box
- media converter device
- media converter fibre
- multimode fiber media converter
- network media converter
- optical fiber to ethernet converter
- sfp to rj45 media converter
- sm fiber media converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

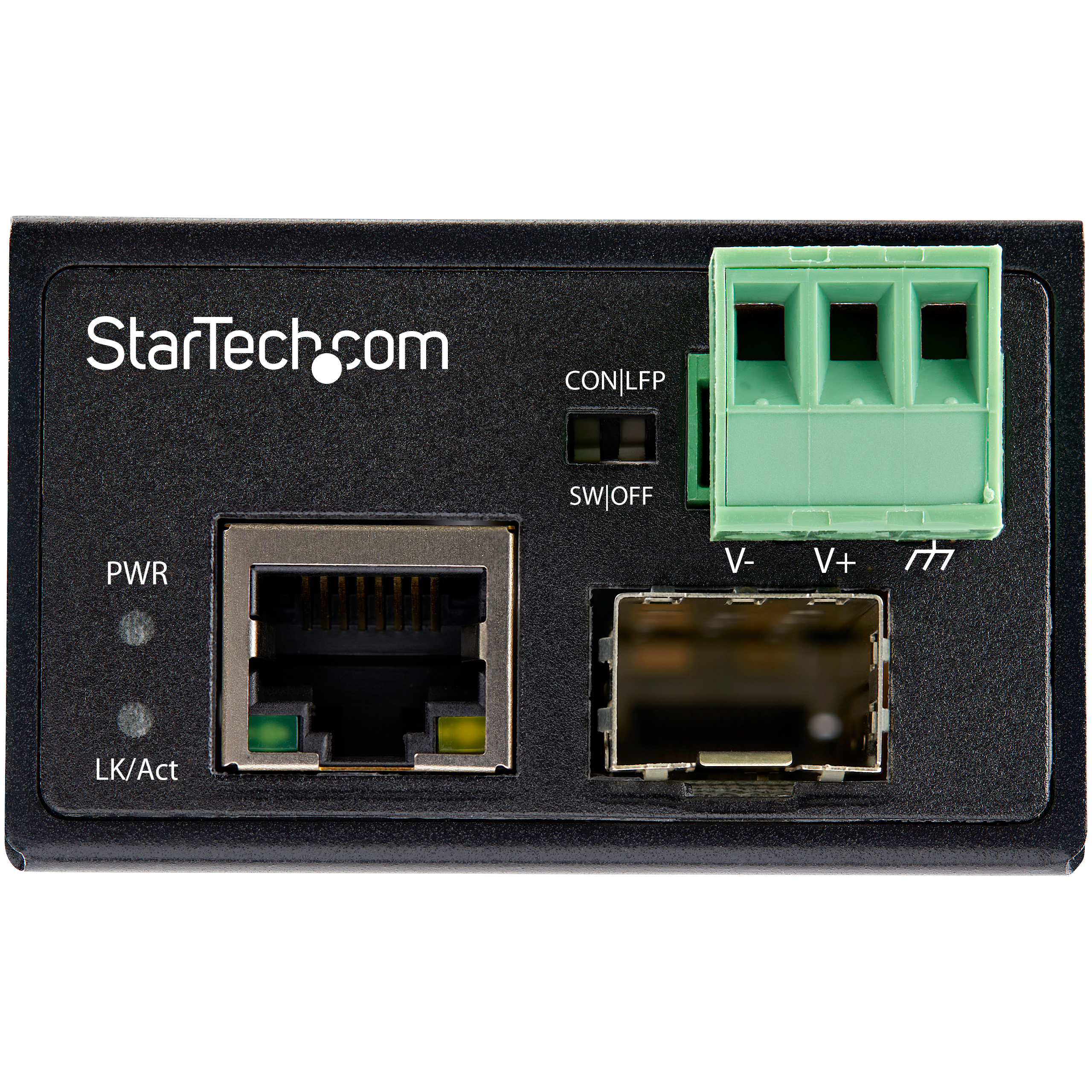

Power Consumption (In Watts) 1.92W Plug Type N Color Black Humidity 5 to 95% (non-condensing) Material Aluminum Operating Temperature -40°C to 75°C Primary Material Aluminum Product Length (mm) 59.000 Product Width (mm) 36.000 Product Height (mm) 50.000 Product Weight (g) 81.400 Storage Temperature -40°C to 85°C TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100 Mbps Fiber Type Single Mode / Multi Mode Flow Control IEEE 802.3x Flow Control and Back Pressure Full Duplex Support Yes General Specifications ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Safety Standard: EN60950-1 Jumbo Frame Support No Max Transfer Distance 100m [328ft] MTBF (hours) 534,482 hours Chipset ID IC Plus IP113B Fiber Connector Open Industry Standards IEEE 802.3 10BASE-T</br> IEEE 802.3u 100BASE-FX</br> IEEE 802.3u 100BASE-TX</br> IEEE 802.3x LED Indicators - 1 - SFP LNK/Act
- 1 - Power
- 1 - RJ45 LNK/Act
- 1 - RJ45 Link Speed

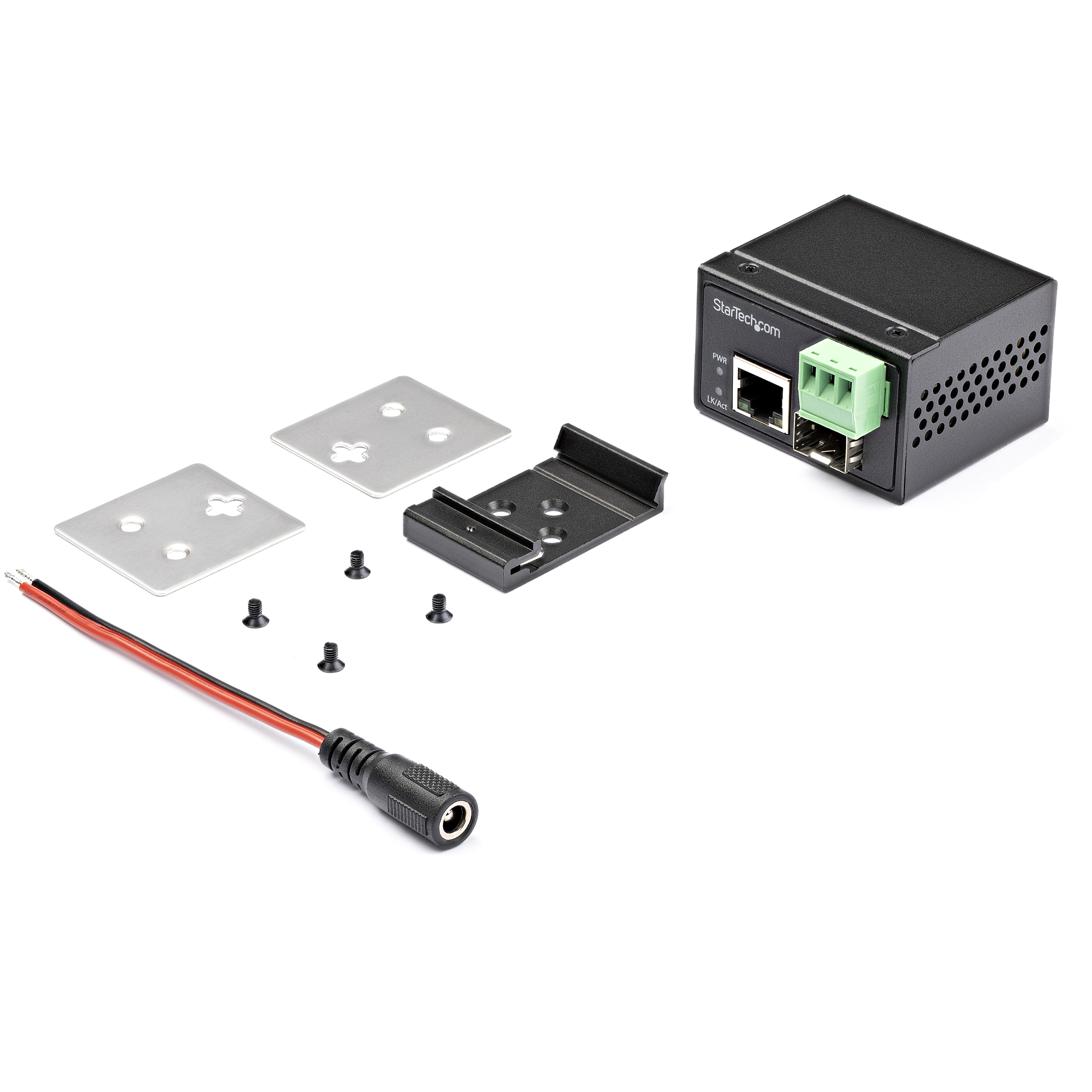

Power over Ethernet No Carton Depth (mm) 366 Carton Height (mm) 252 Carton Quantity 20 Carton Weight Gross (g) 5652 Included in Package - 1 - Media Converter
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block to Barrel Power Connector Adapter
- 1 - Terminal Block
Package Depth (mm) 106 Package Height (mm) 68 Package Width (mm) 161 Package Quantity 1 Package Weight (g) 244 Packaging Description Industrial Fast Ethernet Media Converter Packaging Description India Industrial Fast Ethernet Media Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 SFP Slot Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-01-30 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
