IMC110MMSC

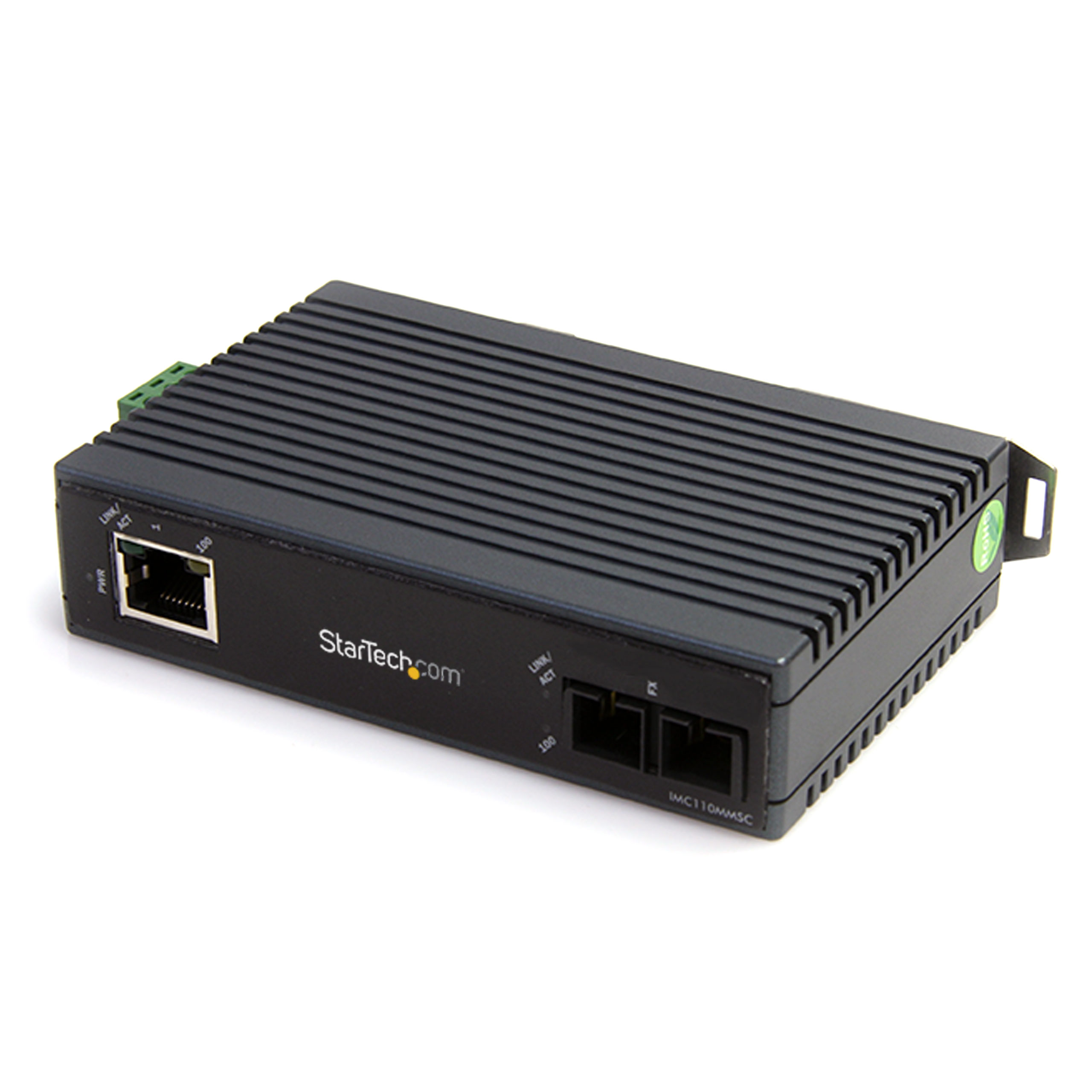

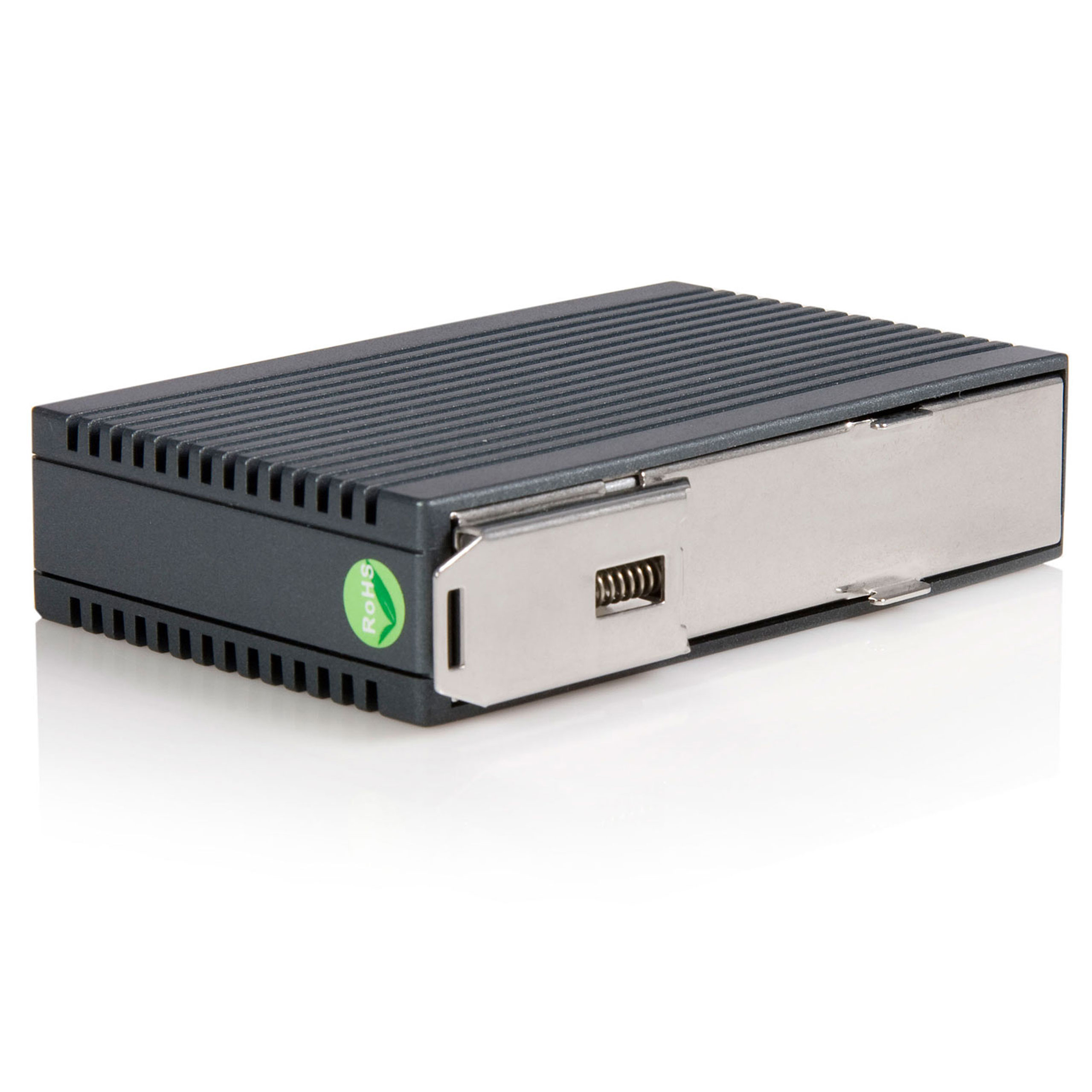

10/100 DIN-Rail Industrial Media Converter MM SC
Convert and extend 10/100 Mbps Ethernet up to 2 km over Multi Mode SC fiber – Industrial Grade
Main Image
Product Images
Product Images
BOM Image
Product Name 10/100 DIN-Rail Industrial Media Converter MM SC Product Number IMC110MMSC UPC 065030832663 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Short) 10/100 Fiber Industrial Media Converter Product Title (Standard) 10/100 MM Fiber SC Industrial Media Converter Product Title (Long) 10/100 Multi Mode Fiber Ethernet Industrial Media Converter SC 2 km Title Ingram (Part 1) 10/100 MM Fiber Ethernet Industr Title Ingram (Part 2) ial Media Converter SC 2 km Website Product Headline Convert and extend 10/100 Mbps Ethernet up to 2 km over Multi Mode SC fiber – Industrial Grade Bullet 1 Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards Bullet 2 Extends your RJ45 signal over Fiber Ethernet Bullet 3 Din-Rail mounting Bullet 4 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX Bullet 5 Supports 2048 Mac addresses Marketing Copy Applications Designed for large, higher speed bandwidth for demanding workgroups that require expansion of fast Ethernet Network in and industrial environment over long distances Website Search Keyword - fiber media converter
- media converter
- multimode
- 10/100
- din rail
- din
- Din
- DIN rail
- fiber media
- 2km
Special Notes This product is IP30 rated Accessory Products - FIBSCSC10
- FIBSCSC15
- FIBSCSC5
- SCFIBLBTEST
Related Products - MCM110SC
- MCM110ST
- ET90110SC
- ET90110ST

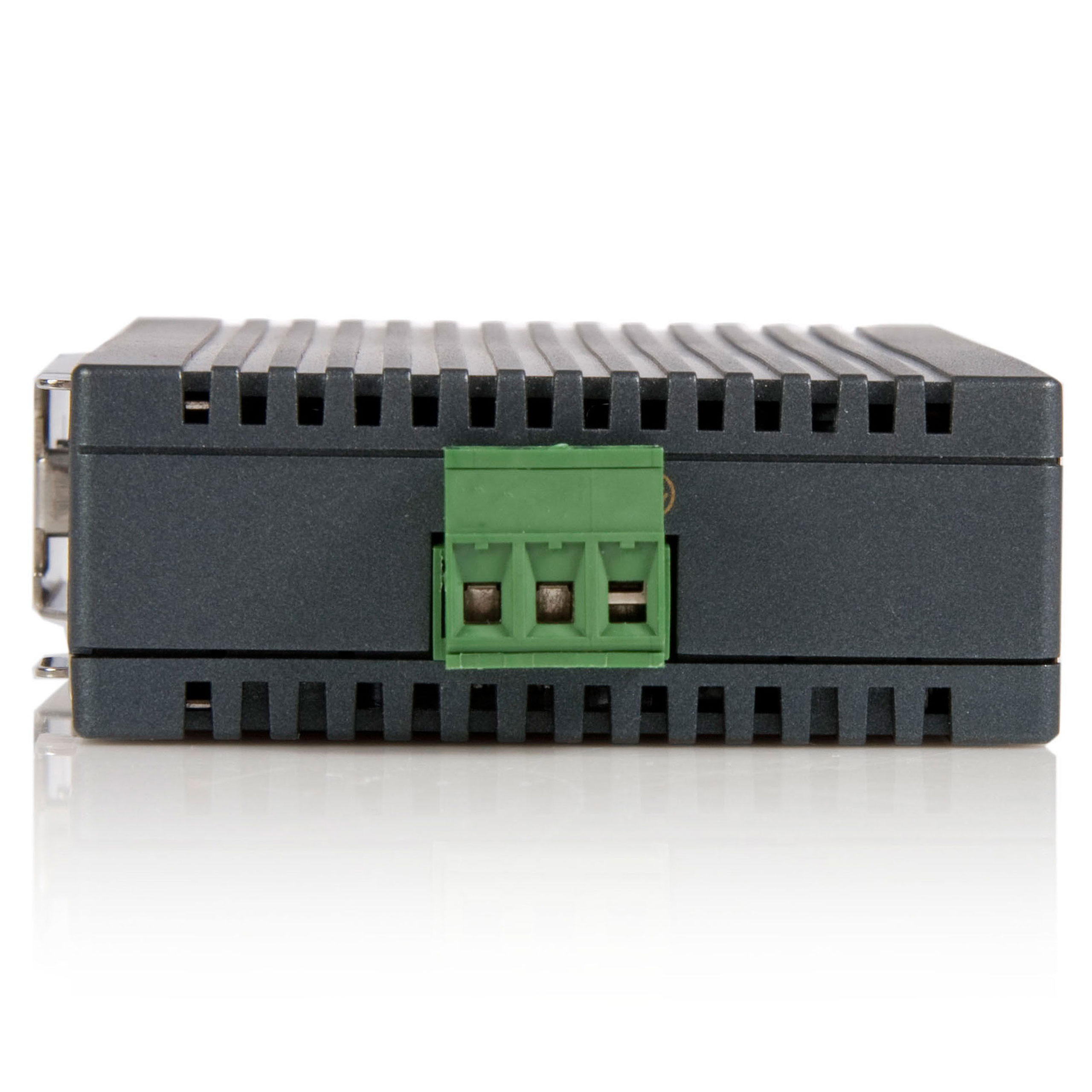

Input Current 1.5A Input Voltage 12 ~ 24 DC Color Black Humidity 5% to 95% (non-condensing) Material Plastic Operating Temperature -10°C to 60°C (14°F to 140°F) Product Length (mm) 70 Product Width (mm) 26 Product Height (mm) 110 Product Weight (g) 200 Storage Temperature -25°C to 85°C (-13°F to 185°F) TAA Compliant No Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 2 km (1.2 mi) Wavelength 850nm Fiber Connector SC Industry Standards - IEEE 802.3 10BASE-T
- IEEE 802.3x
- IEEE 802.3u 100BASE-TX
- IEEE 802.3u 100BASE-FX
LED Indicators - 1 - Power indicator
- 2 - Per port - Link/Act indicator, speed indicator

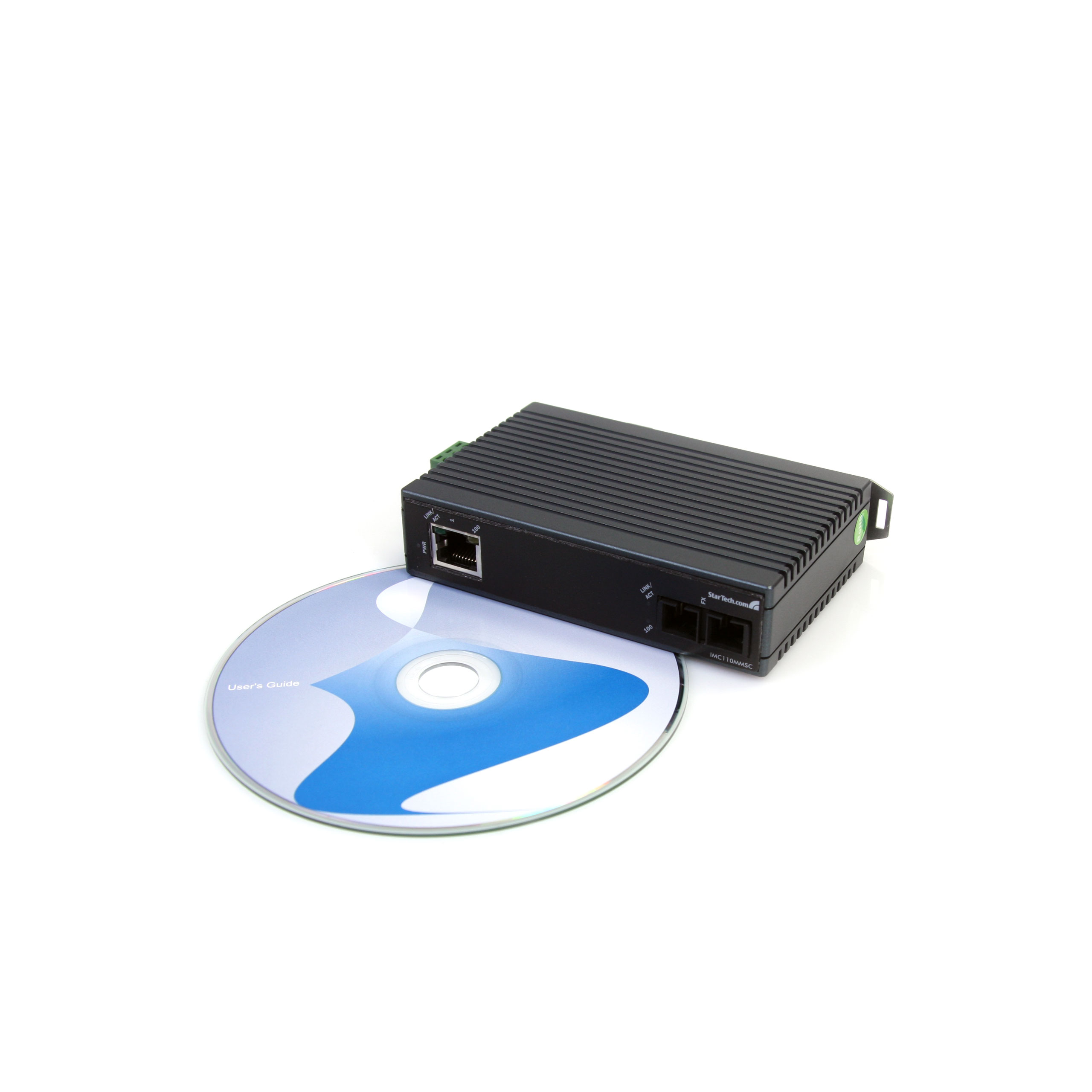

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 420 Carton Height (mm) 226 Carton Quantity 10 Carton Weight Gross (g) 4600 Included in Package - 1 - RJ45 to Fiber Converter
- 1 - Instruction Manual (CD)
Package Depth (mm) 82 Package Height (mm) 178 Package Width (mm) 198 Package Weight (g) 340 Packaging Description 10/100 Industrial SC Fiber Media Converter 2 km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
