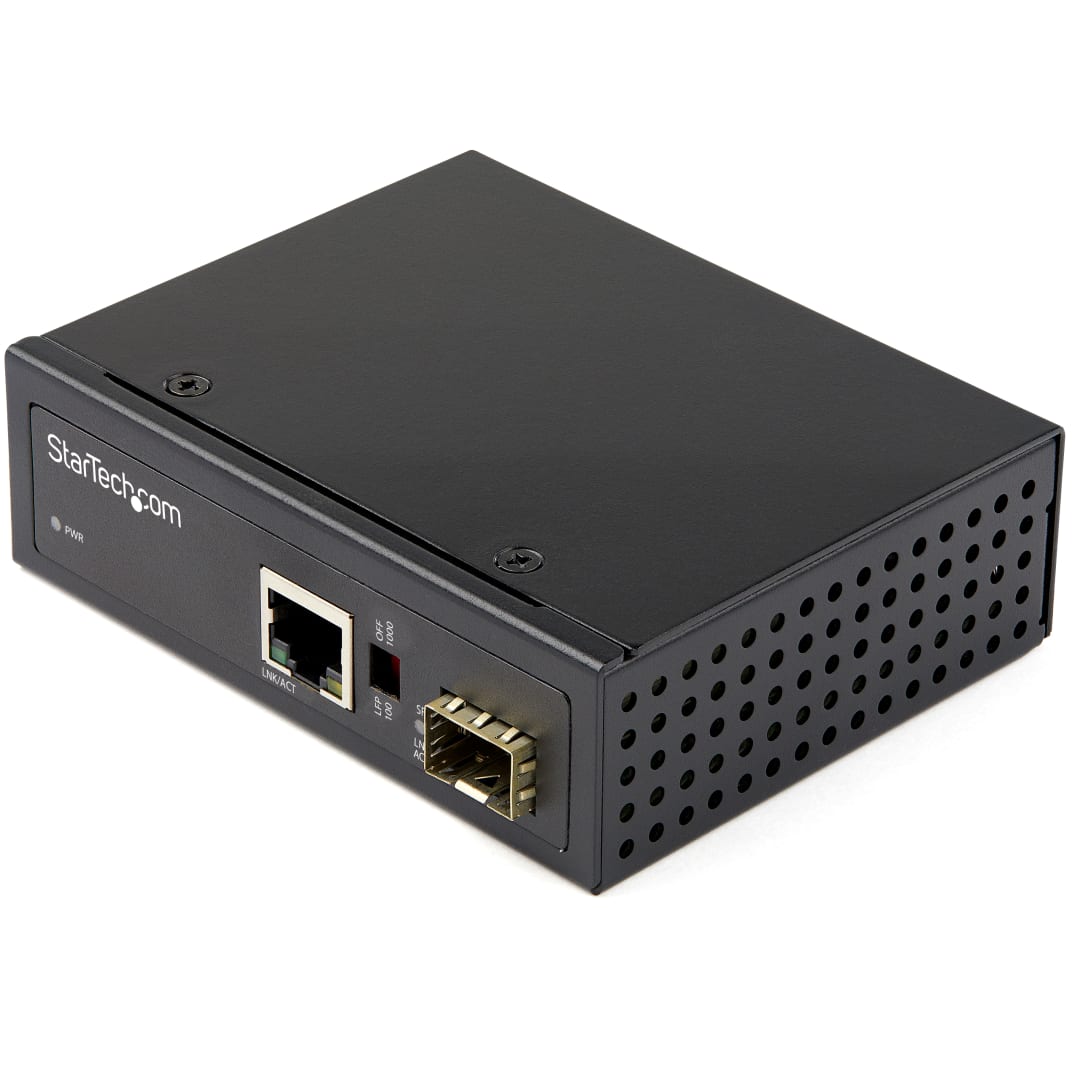

IMC1GSFP
Gigabit Media Converter TX SFP
Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50°C | 12V-56VDC | Works with 100 Mbps SFPs
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Gigabit Media Converter TX SFP Product Number IMC1GSFP UPC 065030889612 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Other Ethernet Media Converters Family Industrial Media Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) Media Converter Product Title (Short) SFP Fiber to Ethernet Media Converter Product Title (Medium) Industrial Fiber to Ethernet Media Converter 1Gbps SFP to RJ45 SM/MMF to Copper Product Title (Standard) Industrial Fiber to Ethernet Media Converter, 1Gbps SFP to RJ45/CAT6, SM/MM Fiber to Copper Gigabit Network, 12V Input, TAA Product Title (Long) Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C - TAA Product Title (AMZ) Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C , TAA Title Ingram (Part 1) Industrial Fiber to Ethernet Title Ingram (Part 2) Media Converter 1Gbps SFP to RJ45 Website Product Headline Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50°C | 12V-56VDC | Works with 100 Mbps SFPs Bullet 1 INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail Bullet 2 OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types Bullet 3 ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing Bullet 4 TECH SPECS: 10/100/1000 Mbps | 12V-56VDC | Single Mode SMF & Multi-Mode MMF Fiber | 16K Jumbo Frames | LFP | IP-30 Housing | DIN or Wall Mountable | Terminal Block and/or Barrel Adapter for power redundancy Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) Fiber to Ethernet Media Converter extends networks & converts optical fiber to RJ45 Copper/CAT6 - Industrial Hardened -40 to 75C temp - 1Gbps (Gigabit) - Open SFP - 12V-56VDC - Single Mode (SMF) or Multimode Fiber (MMF) - IP-30 Case 2 Year Warranty Bullets (Consolidated) Fiber to Ethernet Media Converter extends and converts optical fiber to RJ45 copper/ CAT6 - Industrial Hardened -40C to 75C temp - Power using a terminal block or barrel adapter for flexibility - 1Gbps | Open SFP | 12V-56VDC | Single Mode (SMF) and Multi-mode (MMF) Fiber | 16K Jumbo Frames | LFP | IP-30 Aluminum Housing | DIN or Wall Mountable | MTBF 500000 +hrs - Gigabit network media converter uses standard SFPs for multimode or single-mode fiber connections Marketing Copy Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Input Voltage 12 ~ 56 DC Power Consumption (In Watts) 3 Watts @ 48V DC, full load Plug Type N Color Black Humidity 5 to 95% (non-condensing) Material Aluminum Operating Temperature -40°C to 75°C Primary Material Aluminum Product Length (mm) 103.500 Product Width (mm) 81.500 Product Height (mm) 32.000 Product Weight (g) 144.000 Storage Temperature -40°C to 85°C TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Fiber Type Single Mode / Multi Mode Full Duplex Support Yes General Specifications ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Safety Standard: EN60950-1 Jumbo Frame Support 9K max. MTBF (hours) 569,265 hours Surge Protection 2KV Chipset ID IC Plus IP1103A Fiber Connector Open Industry Standards - IEEE 802.3 10/100/1000BASE-T</br> IEEE 802.3x
- IEEE 802.3

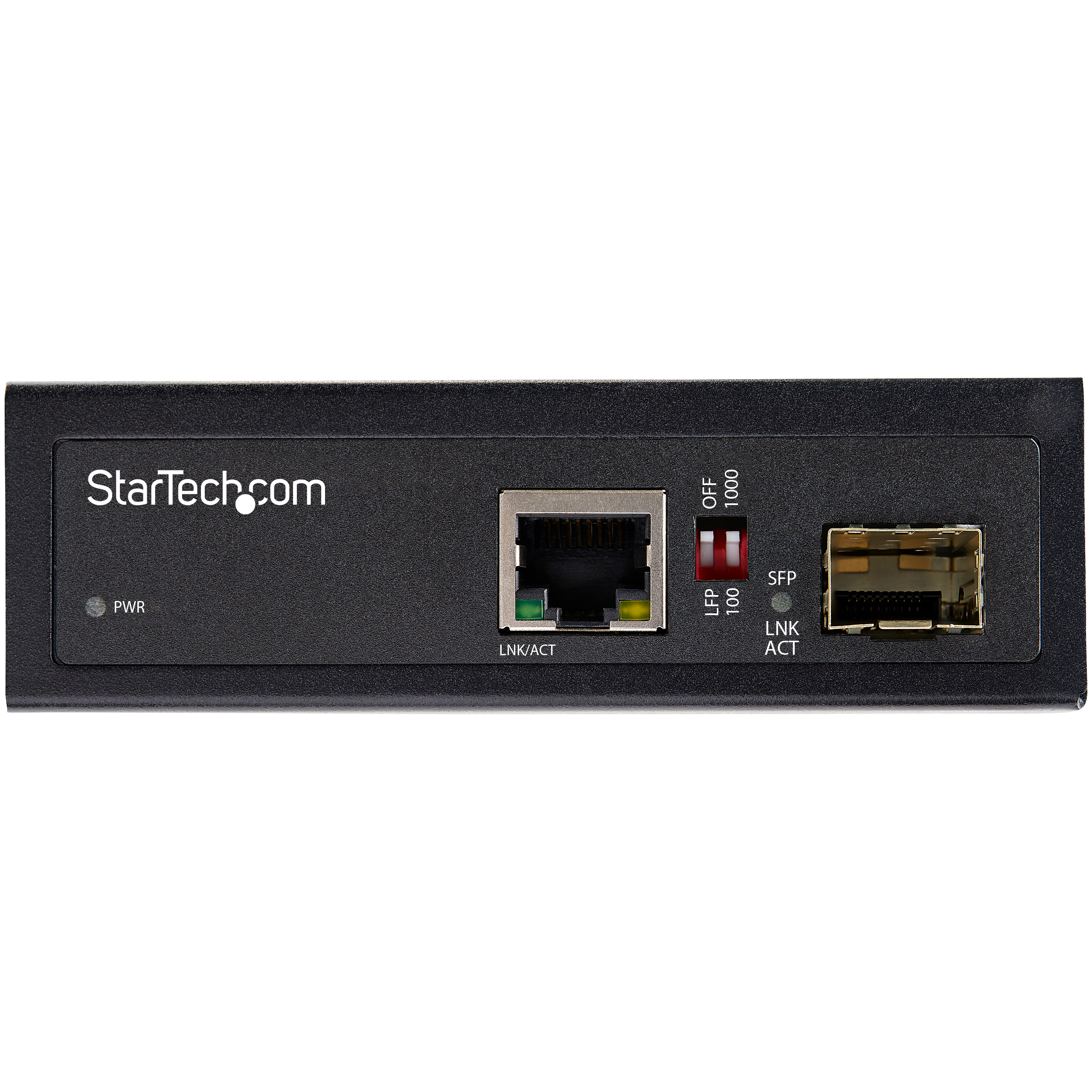

LED Indicators - 1 - Power
- 1 - SFP
- 1 - LNK/Act

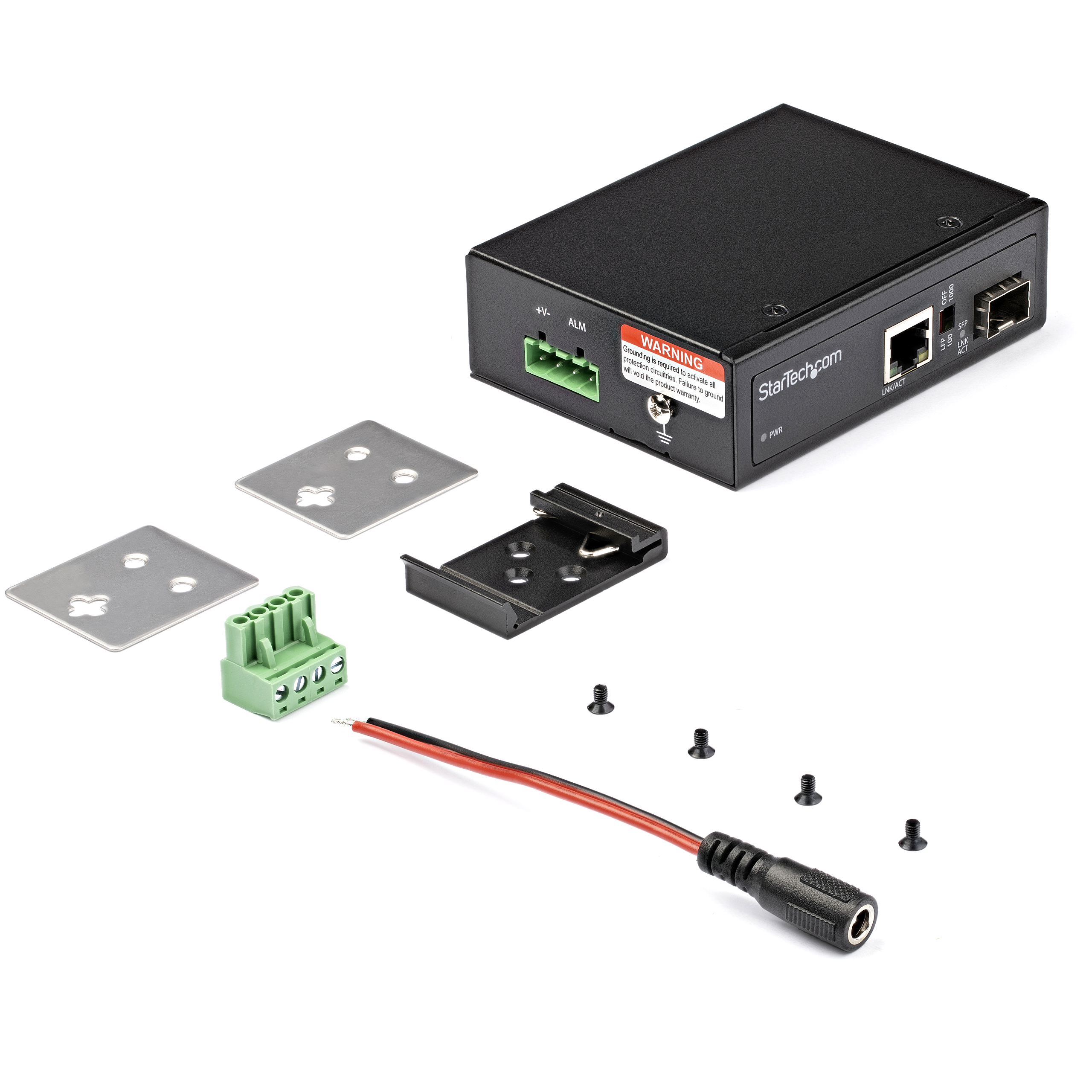

Power over Ethernet No Carton Depth (mm) 366 Carton Height (mm) 255 Carton Quantity 10 Carton Weight Gross (g) 4496 Included in Package - 1 - Media Converter
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block to Barrel Power Connector Adapter
- 1 - Terminal Block
Package Depth (mm) 168 Package Height (mm) 67 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 362 Packaging Description Industrial RJ45 to Open SFP Media Converter - (1G) Packaging Description India Industrial RJ45 to Open SFP Media Converter - (1G) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFP Slot Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Terminal Block (4 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-01-30 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
