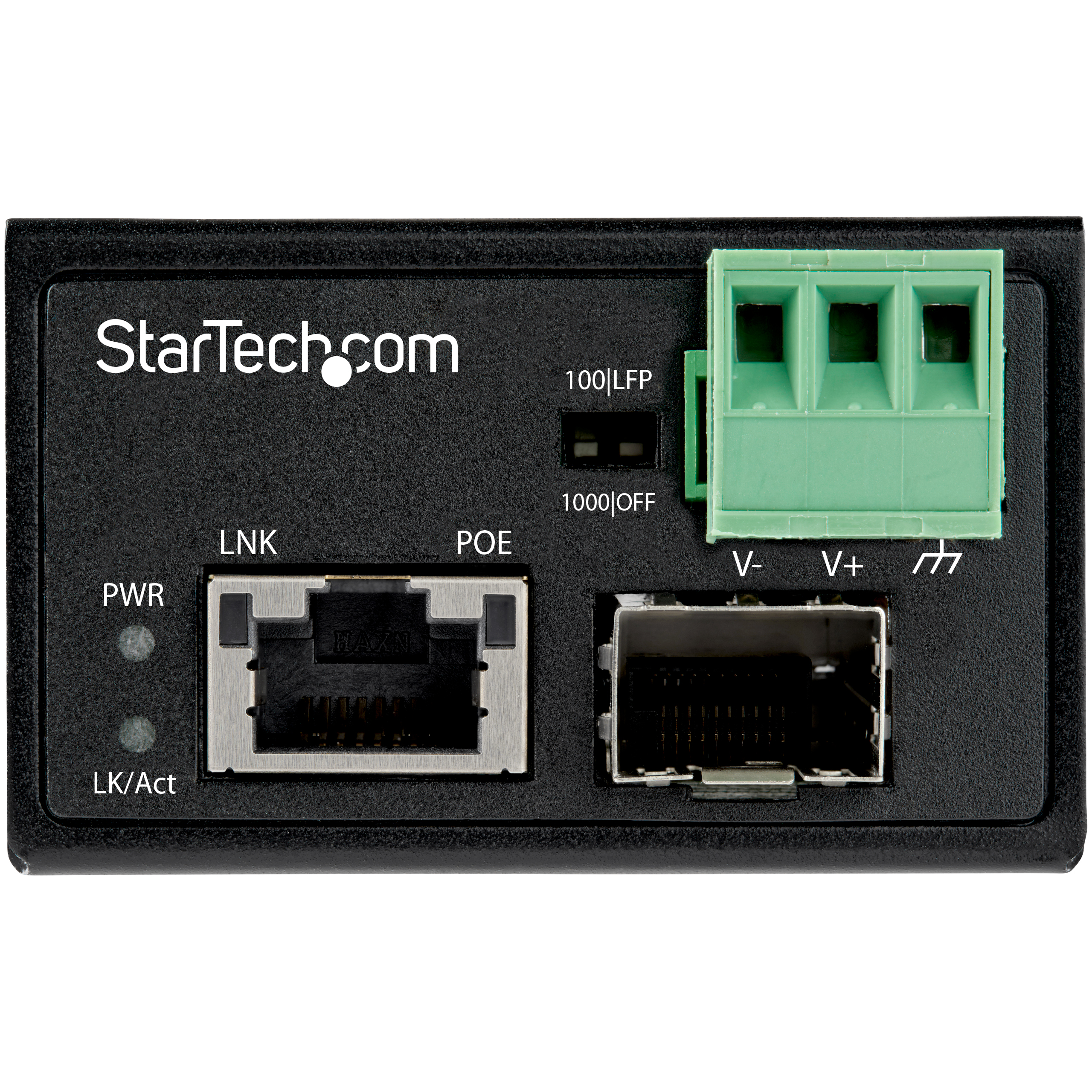

Main Image
IMC1GSFP30W
Mini PoE Media Converter 30W TX SFP
Industrial PoE Media Converter | 10/100/1000 Mbps | 30 Watts | Open SFP | DIN Rail Mountable
Main Image

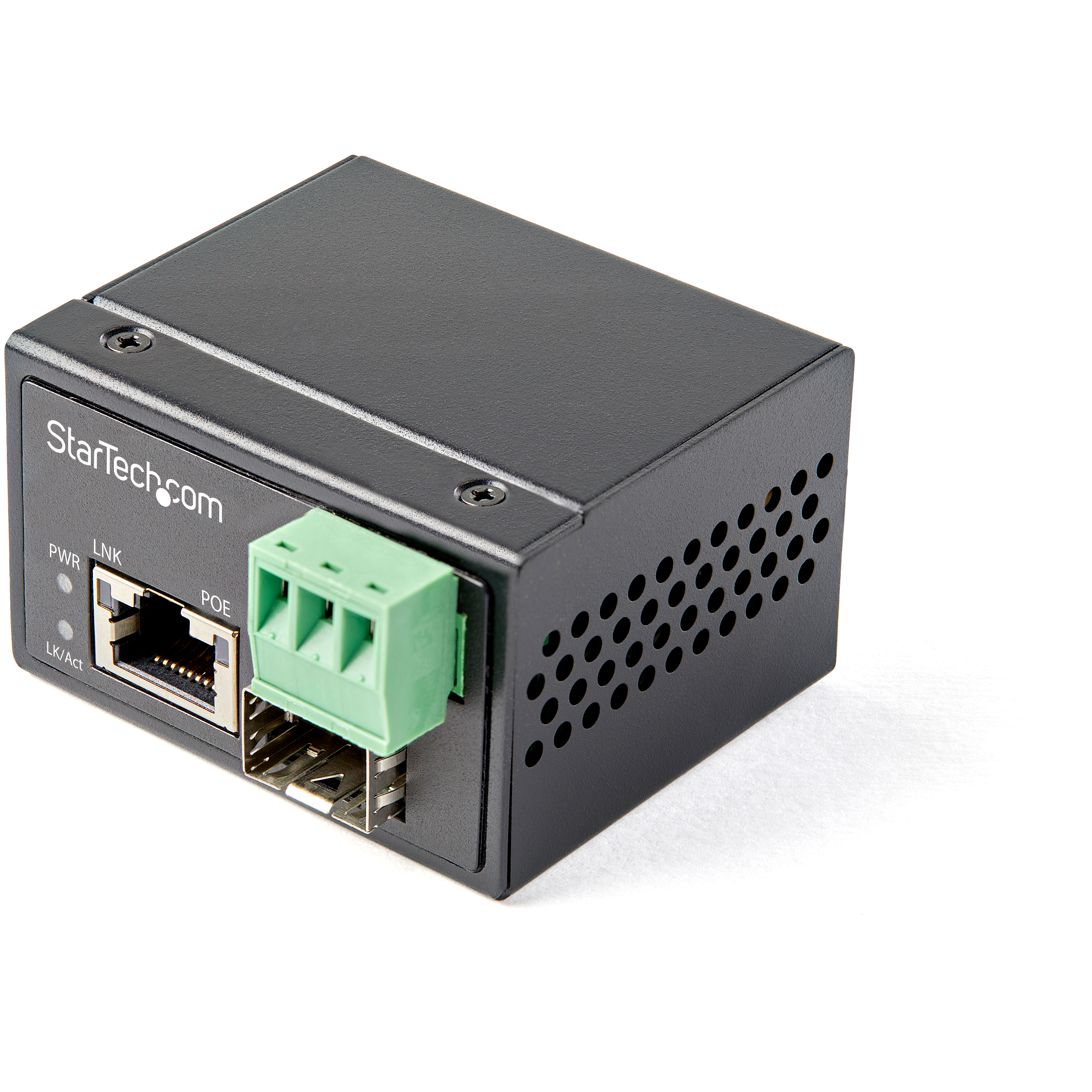

Product Images

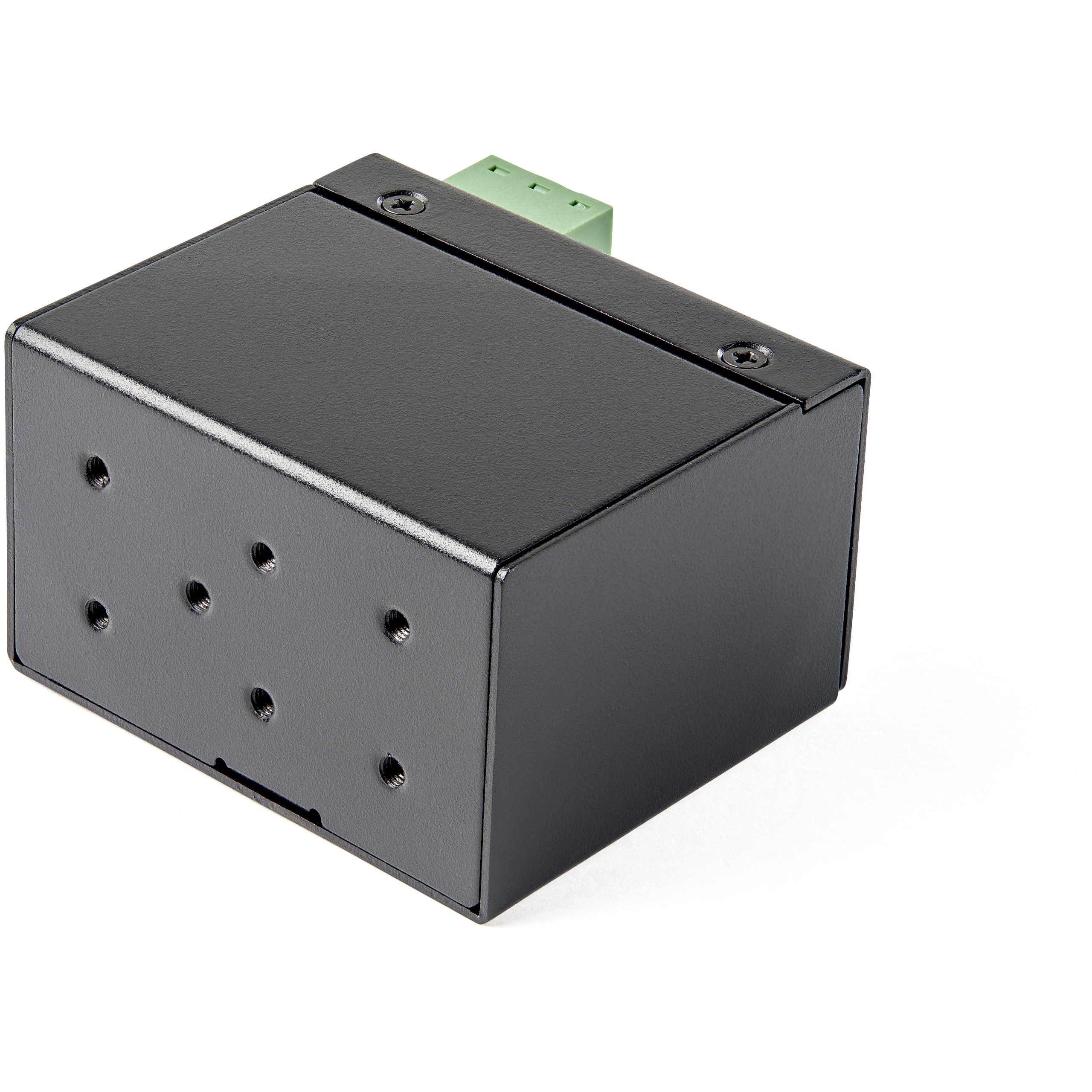

Product Images
Product Images
Quick-Start Guide
Product Name Mini PoE Media Converter 30W TX SFP Product Number IMC1GSFP30W UPC 065030889575 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Other Ethernet Media Converters Family Industrial Media Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) PoE+ Fiber to Ethern Product Title (Short) PoE+ Fiber to Ethernet Media Converter Product Title (Medium) 30W PoE+ Fiber to Ethernet Media Converter Product Title (Standard) PoE+ Industrial Fiber to Ethernet Media Converter 30W, SFP to RJ45, SM/MM Fiber to Gigabit Copper Mini Size IP-30, TAA Product Title (Long) PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Mini/Compact Size - IP-30/ -40 to +75C - TAA Product Title (AMZ) PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Mini/Compact Size - IP-30/ -40 to +75C , TAA (IMC1GSFP30W) Title Ingram (Part 1) 30W PoE+ Fiber to Ethernet Title Ingram (Part 2) Media Converter Website Product Headline Industrial PoE Media Converter | 10/100/1000 Mbps | 30 Watts | Open SFP | DIN Rail Mountable Bullet 1 COMPACT SIZE + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors Bullet 2 TECH SPECS: 1 Gbps | 1 x Open SFP (MSA Compliant) | 1x RJ45 | 48V-56VDC | IEEE 802.3af / IEEE 802.3at (30W) | 10/100/1000Mbps | LFP | 16K Jumbo Frames | DIN or Wall Mount Hardware Included Bullet 3 ROBUST DESIGN: Industrial Gigabit Mini Media Converter w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp -40C to 75C | 2 yr warr Bullet 4 OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types Bullet 5 FLEXIBLE POWER INPUT: Can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included) Bullets (Compact) Fiber to Ethernet media converter extends networks & converts fiber to copper - PSE source for 30W power to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) PD devices - 1 Gbps (Gigabit)| 1 x SFP | 1x RJ45 | Industrial IP-30 Aluminum| 10/100/1000Mbps |Mini Bullets (Consolidated) Fiber to Ethernet Media Converter extends networks and converts SM/MM fiber to RJ-45 Copper - Mini Gigabit Ethernet media converter is PSE source for up to 30W power to PD devices - 1 Gbps| SFP (MSA Compliant) | RJ45 | 48V-56VDC | IEEE 802.3af (PoE)/IEEE 802.3at (PoE+) (30W) | 10/100/1000Mbps | Auto-Negotiation | LFP | 16K Jumbo Frames | IP-30 Aluminum | w/DIN/Wall Mount Hardware - Industrial Hardened -40C to 75C temp - Power w/48-56VDC terminal block or standard 48-56VDC Type N wall adapter Marketing Copy Marketing Copy (No HTML) Patents and Licenses United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br> Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Input Voltage 48 ~ 56V DC Power Consumption (In Watts) Max. 30W Plug Type - N
- Terminal Block (3 Wire)
Cable Length (mm) 100000 Color Black Humidity 5% to 95% (non-condensing) Material Aluminum Operating Temperature -40°C to 75°C Primary Material Aluminum Product Length (mm) 59.000 Product Width (mm) 36.000 Product Height (mm) 49.000 Product Weight (g) 80.000 Storage Temperature -40°C to 85°C TAA Compliant Yes Auto MDIX Yes Bandwidth 2G (Maximum per port) Buffer Size 512 KB Compatible Networks 10/100/1000 Mbps Fiber Type Single Mode / Multi Mode Flow Control IEEE 802.3x Flow Control and Back Pressure Full Duplex Support Yes General Specifications ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration: EN 60068-2-6</br> Shock: EN 60068-2-27</br> Free-fall: EN 60068-2-32</br> Housing: IP-30</br> Safety: EN60950-1 Jumbo Frame Support 16K max. Maximum Cable Length (mm) 100000 MTBF (hours) 561556 hours Surge Protection IEC 61000-4-5: Power: 2KV Switching Architecture Back-plane (Switching Fabric): 4Gbps Chipset ID - IC Plus: IP1103A
- Microsemi: PD69101ILQ-TR
Fiber Connector Open Industry Standards - ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV
- EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-fall: EN 60068-2-32
- Housing: IP-30
- IEEE 802.3u 100BASE-TX
- IEEE 802.3x
- IEEE 802.3 10BASE-T
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at PoE Plus
- IEEE 802.3 1000BASE-T
- IEEE 802.3z 1000BASE-TX
LED Indicators - 1 - Power
- 1 - Activity
- 1 - Link
- 1 - PoE

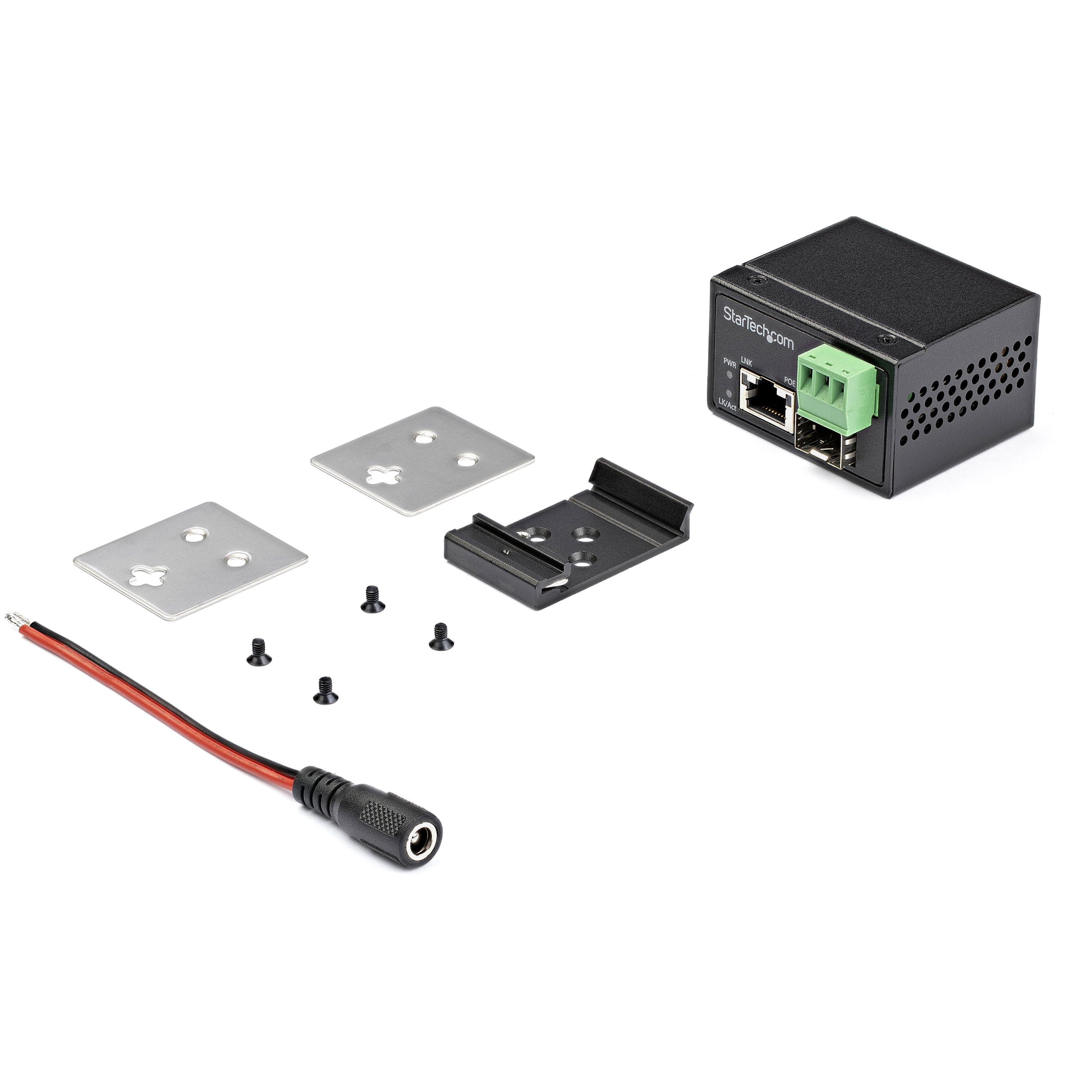

Power over Ethernet Yes Carton Depth (mm) 364 Carton Height (mm) 250 Carton Quantity 20 Carton Weight Gross (g) 5694 Included in Package - 1 - Mini PoE Media Converter
- 1 - Terminal Block to Type N Barrel Power Connector Adapter
- 1 - Quick-Start Guide
- 1 - Mounting Hardware
- 1 - Terminal Block
Package Depth (mm) 161 Package Height (mm) 66 Package Width (mm) 108 Package Quantity 1 Package Weight (g) 194 Packaging Description Industrial RJ45 to Open SFP Mini PoE Media Converter Packaging Description India Industrial RJ45 to Open SFP Mini PoE Media Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Terminal Block (3 Wire) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 SFP Slot Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-09 Target Production Release 2020-01-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
