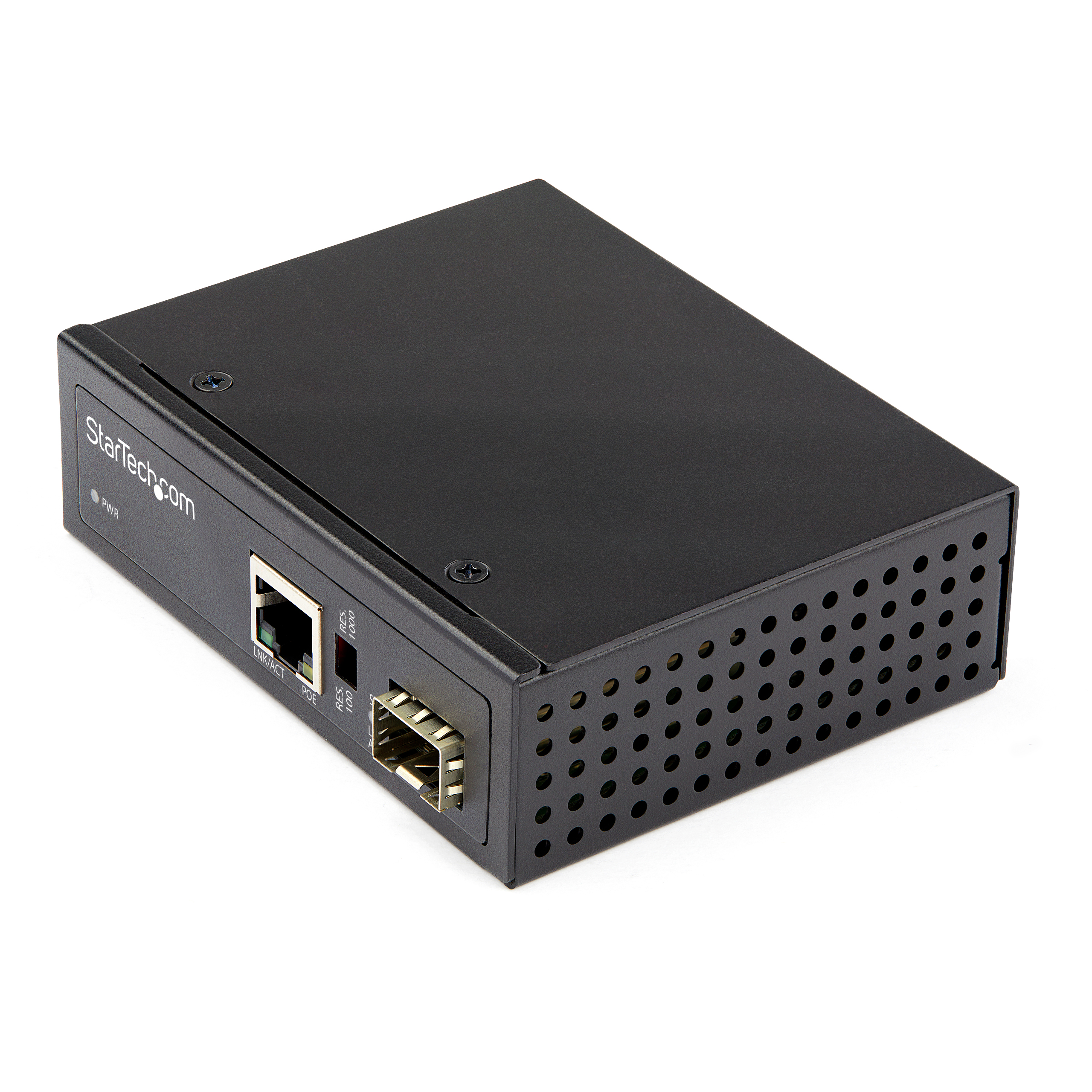

IMC1GSFP60W

PoE Media Converter 60W TX SFP

Industrial PoE Media Converter | 10/100/1000 Mbps | 60 Watts | Open SFP | DIN Rail Mountable

Main Image

Product Images

Product Images

Product Images

BOM Image

Quick-Start Guide

Product Name	PoE Media Converter 60W TX SFP
Product Number	IMC1GSFP60W
UPC	065030889636
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Networking > Ethernet Media Converters
Category Level 1	Networking
Category Level 2	Ethernet Media Converters
Category Level 3	Other Ethernet Media Converters
Family	Industrial Media Converters
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX106X

Quick-Start Guide https://images.salsify.com/image/upload/s--rbW1ONAo--/78c1764bc9d2a6102abfda50e97a0ab6d88048fd.pdf

Product Title (Ultra-Short)	Media Converter
Product Title (Short)	PoE+ Fiber to Ethernet Media Converter
Product Title (Medium)	60W PoE+ Fiber to Ethernet Media Converter
Product Title (Standard)	PoE+ Industrial Fiber to Ethernet Media Converter 60W, SFP to RJ45, SM/MM Fiber to Gigabit Copper IP-30, TAA
Product Title (Long)	PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C - TAA
Product Title (AMZ)	PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C , TAA (IMC1GSFP60W)
Title Ingram (Part 1)	60 Watt PoE+ Fiber to
Title Ingram (Part 2)	Ethernet Media Converter
Website Product Headline	Industrial PoE Media Converter \| 10/100/1000 Mbps \| 60 Watts \| Open SFP \| DIN Rail Mountable
Bullet 1	EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
Bullet 2	TECH SPECS: 1 Gbps \| 1 x Open SFP (MSA Compliant) \| 1x RJ45 \| 48V-56VDC \| IEEE 802.3af / IEEE 802.3at (60W) \| 10/100/1000Mbps \| LFP \| 16K Jumbo Frames \| DIN or Wall Mount Hardware Included \| 2 yr warr
Bullet 3	ROBUST DESIGN: Industrial Gigabit Media Converter w/MTBF 500,000+hrs @ 50C \| Vibration, shock & free fall rated \| Rugged IP-30 aluminum housing \| Hardened operating temp -40C to 75C
Bullet 4	OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
Bullet 5	FLEXIBLE POWER: Can be hardwired using terminal block (48-56VDC) power or powered using a standard Type-N barrel wall adapter (not included)
Bullets (Compact)	Fiber to Ethernet media converter extends networks & converts fiber to copper - PSE source for 60W power to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) PD devices - 1 Gbps (Gigabit)\| 1 x SFP \| 1x RJ45 \| Industrial IP-30 Aluminum\| 10/100/1000Mbps
Bullets (Consolidated)	Fiber to Ethernet Media Converter extends networks and converts SM/MM fiber to RJ-45 Copper - Gigabit Ethernet media converter is PSE source for up to 60W power to PD devices - 1 Gbps\| 1 x SFP (MSA Compliant) \| 1x RJ45 \| 48V-56VDC \| IEEE 802.3af (PoE)/IEEE 802.3at (PoE+) (60W) \| 10/100/1000Mbps Auto-Negotiation \| LFP \| 16K Jumbo Frames \| IP-30 Aluminum \| w/DIN/Wall Mount Hardware - Industrial -40C to 75C temp - Power w/48-56VDC terminal block or standard 48-56VDC Type N wall adapter
Marketing Copy
Marketing Copy (No HTML)
Website Search Keyword	cat6 to fiber media converter cat6 to fiber optic converter din rail media converter ethernet media converter fast ethernet media converter fiber converter fiber converter multimode fiber ethernet media converter fiber media converter fiber optic converter fiber optic to cat6 converter fiber to cat6 converter fiber to cat6 media converter fiber to copper converter fiber to copper media converter fiber to copper media converter with poe fiber to ethernet converter fiber to ethernet converter gigabit fiber to ethernet converter with poe fiber to ethernet media converter fiber to poe converter gigabit ethernet fiber media converter gigabit ethernet media converter gigabit ethernet to fiber converter gigabit fiber media converter gigabit media converter gigabit poe media converter industrial ethernet to fiber media converter industrial fiber media converter industrial media converter industrial media converter fiber optic industrial poe media converter media converter media converter 1000mbps media converter fiber to ethernet media converter multimode media converter poe media converter sfp ethernet multimode fiber to ethernet media converter multimode media converter netgear media converter poe fiber converter poe fiber media converter poe media converter poe powered fiber converter poe+ media converter power over ethernet media converter rugged media converter sfp converter to ethernet sfp fiber to ethernet sfp media converter sfp to ethernet sfp to gigabit ethernet converter sfp to rj45 sfp to rj45 converter sfp to rj45 media converter single mode fiber to ethernet media converter tp link fiber media converter tp link gigabit media converter

Patents and Licenses

United States Patent No. 5,406,260 (expired) United States Patent No. 6,650,622 United States Patent No. 7,457,250 United States Patent No. 8,155,012 United States Patent No. 8,902,760 United States Patent No. 8,942,107 United States Patent No. 9,019,838 United States Patent No. 9,049,019 United States Patent Application No. 14/695,456 United States Patent Application No. 14/726,940

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
MET - Safety - Electrical - Canada / United States - cMETus Mark
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

Special Notes The IMC1GSFP60W can provide power beyond the 802.3at 30W limit up to a maximum of 60W for legacy PD devices. The IMC1GSFP60W does not support the 802.3bt standard.
Input Voltage 48 ~ 56V DC
Power Consumption (In Watts) Max 60W
Plug Type N

Cable Length (mm)	100000
Color	Black
Humidity	5% to 95% (non-condensing)
Material	Aluminum
Operating Temperature	-40°C to 75°C
Primary Material	Aluminum
Product Length (mm)	103.500
Product Width (mm)	81.500
Product Height (mm)	32.000
Product Weight (g)	153.000
Storage Temperature	-40°C to 85°C
TAA Compliant	Yes

Auto MDIX	Yes
Bandwidth	2G (Maximum per port and backplane)
Buffer Size	512 KB
Compatible Networks	10/100/1000 Mbps
Fiber Type	Single Mode / Multi Mode
Flow Control	IEEE 802.3x Flow Control and Back Pressure
Full Duplex Support	Yes
General Specifications	ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration: EN 60068-2-6</br> Shock: EN 60068-2-27</br> Free-fall: EN 60068-2-32</br> Housing: IP-30</br> Safety: EN60950-1</br> Safety: MET (UL) 60950-1</br>
Jumbo Frame Support	16K max.
Maximum Cable Length (mm)	100000
MTBF (hours)	561556 hours
Surge Protection	IEC 61000-4-5: Power: 2KV
Switching Architecture	Back-plane (Switching Fabric): 4Gbps

Chipset ID	IC Plus: IP1103A Microsemi: PD69101ILQ-TR
Fiber Connector	Open
Industry Standards	ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-fall: EN 60068-2-32 Housing: IP-30 IEEE 802.3z 1000BASE-TX IEEE 802.3 1000BASE-T IEEE 802.3at PoE Plus IEEE 802.3af Power over Ethernet IEEE 802.3 10BASE-T IEEE 802.3x IEEE 802.3u 100BASE-TX
Power over Ethernet	Yes

Carton Depth (mm)	368
Carton Height (mm)	250
Carton Quantity	10
Carton Weight Gross (g)	4652

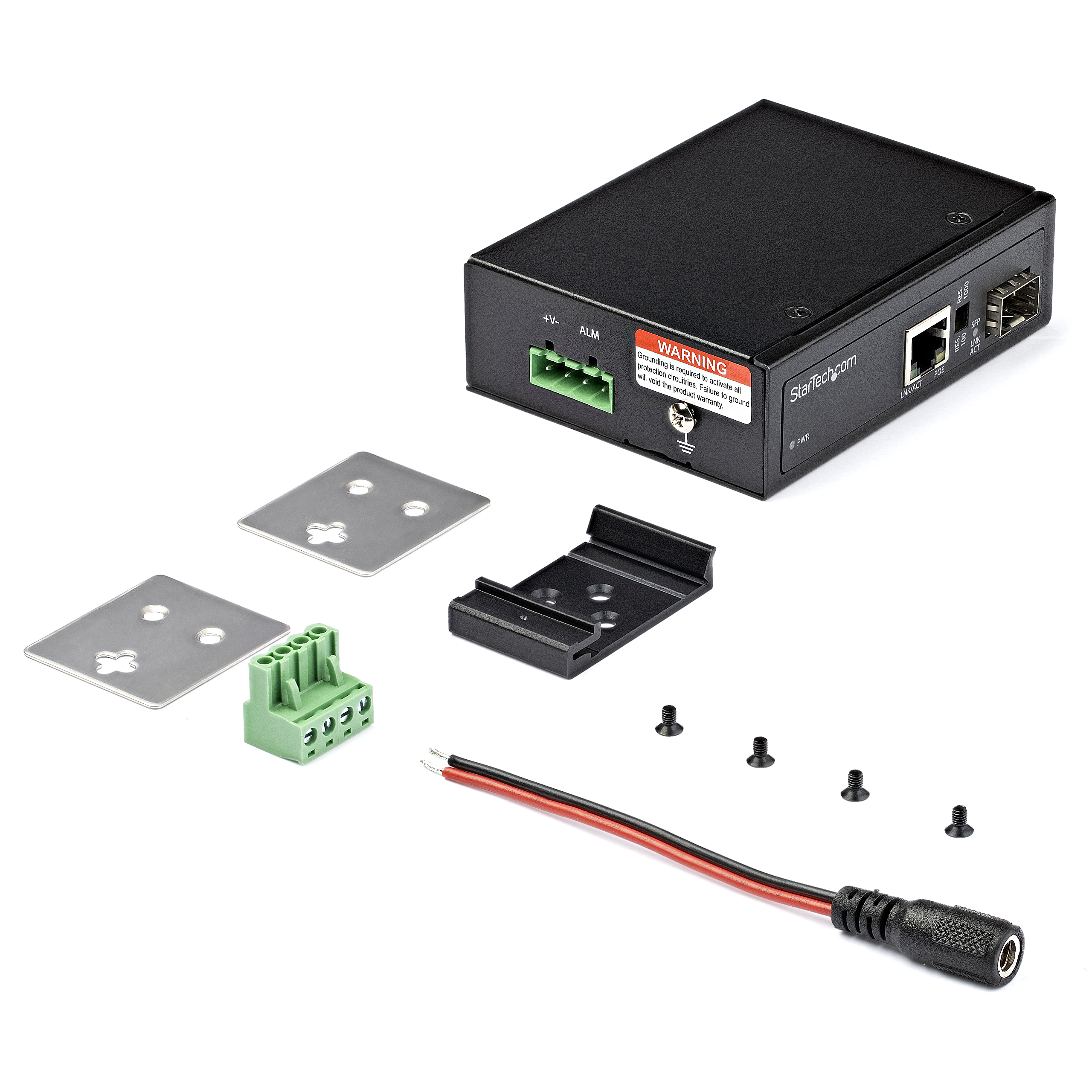

Included in Package	1 - Media Converter 1 - Mounting Hardware Kit 1 - Quick-Start Guide 1 - Terminal Block to Barrel Power Connector Adapter 1 - Terminal Block
Package Depth (mm)	167
Package Height (mm)	67
Package Width (mm)	213
Package Quantity	1
Package Weight (g)	372
Packaging Description	Industrial RJ45 to Open SFP PoE Media Converter
Packaging Description India	Industrial RJ45 to Open SFP PoE Media Converter
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

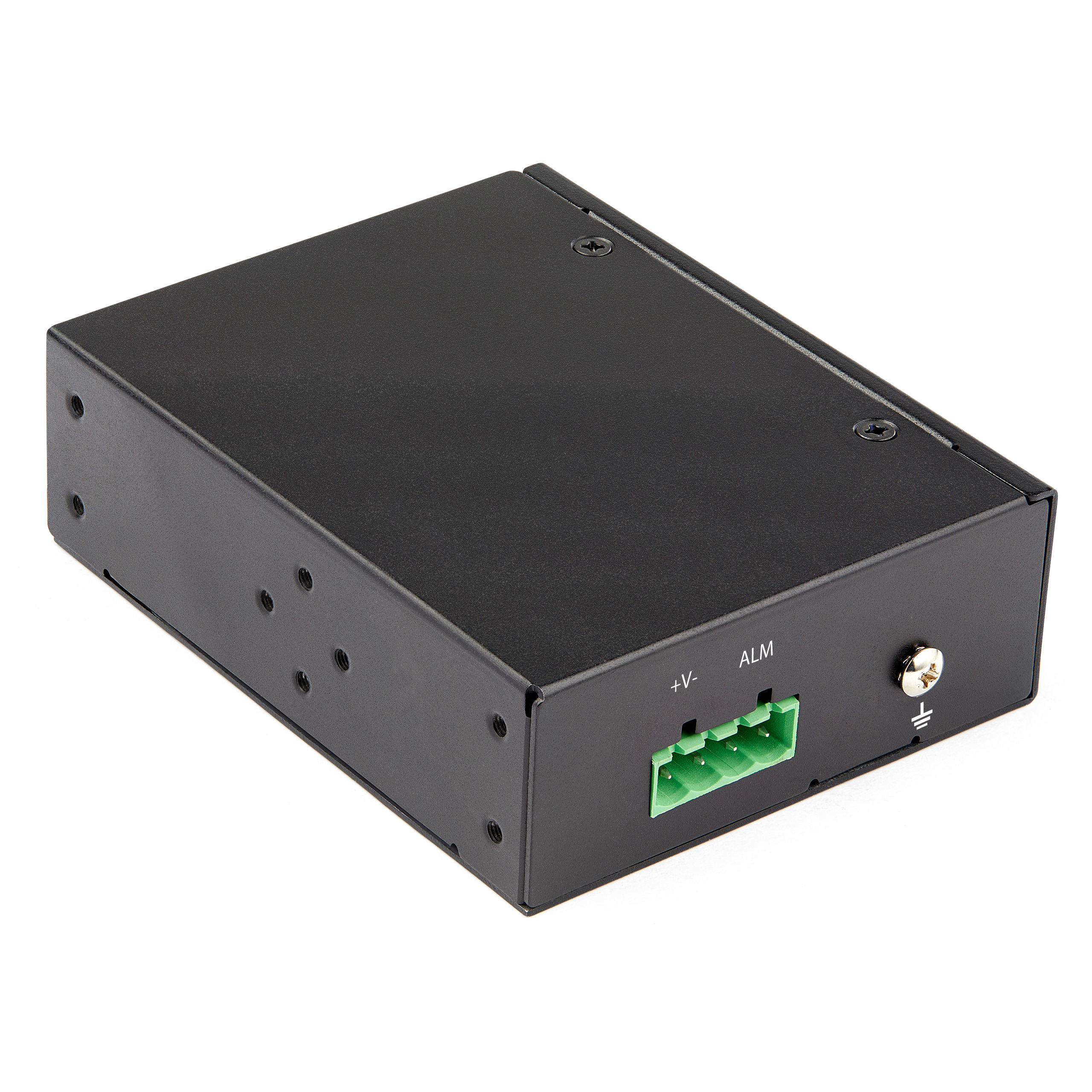

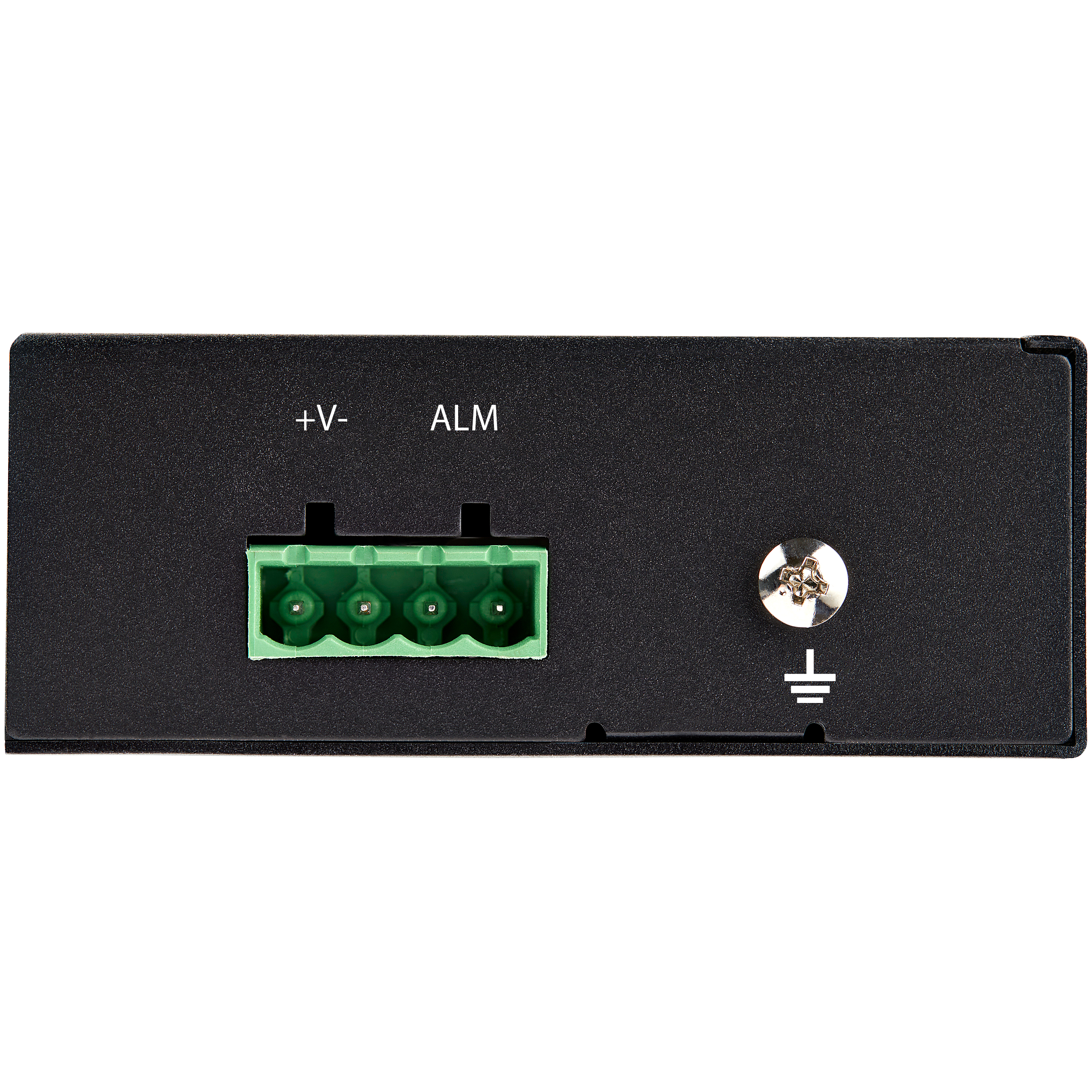

Connector 1 Terminal Block (3 Wire)
Connector 1 (Quantity) 1

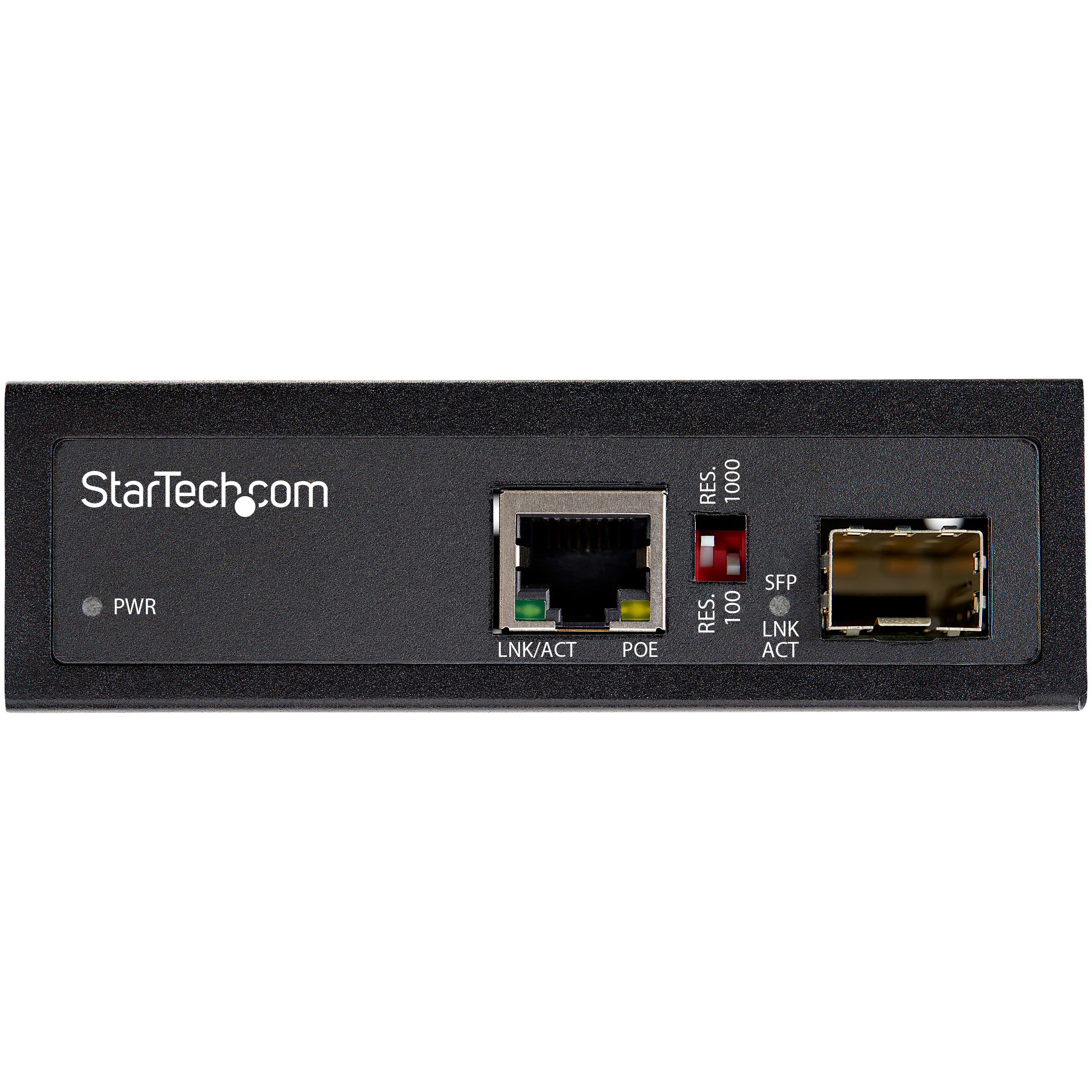

Connector 2 RJ-45
Connector 2 (Quantity) 1
Connector 3 SFP Slot
Connector 3 (Quantity) 1
