Main Image
IN-CAT6A-COUPLER-S1

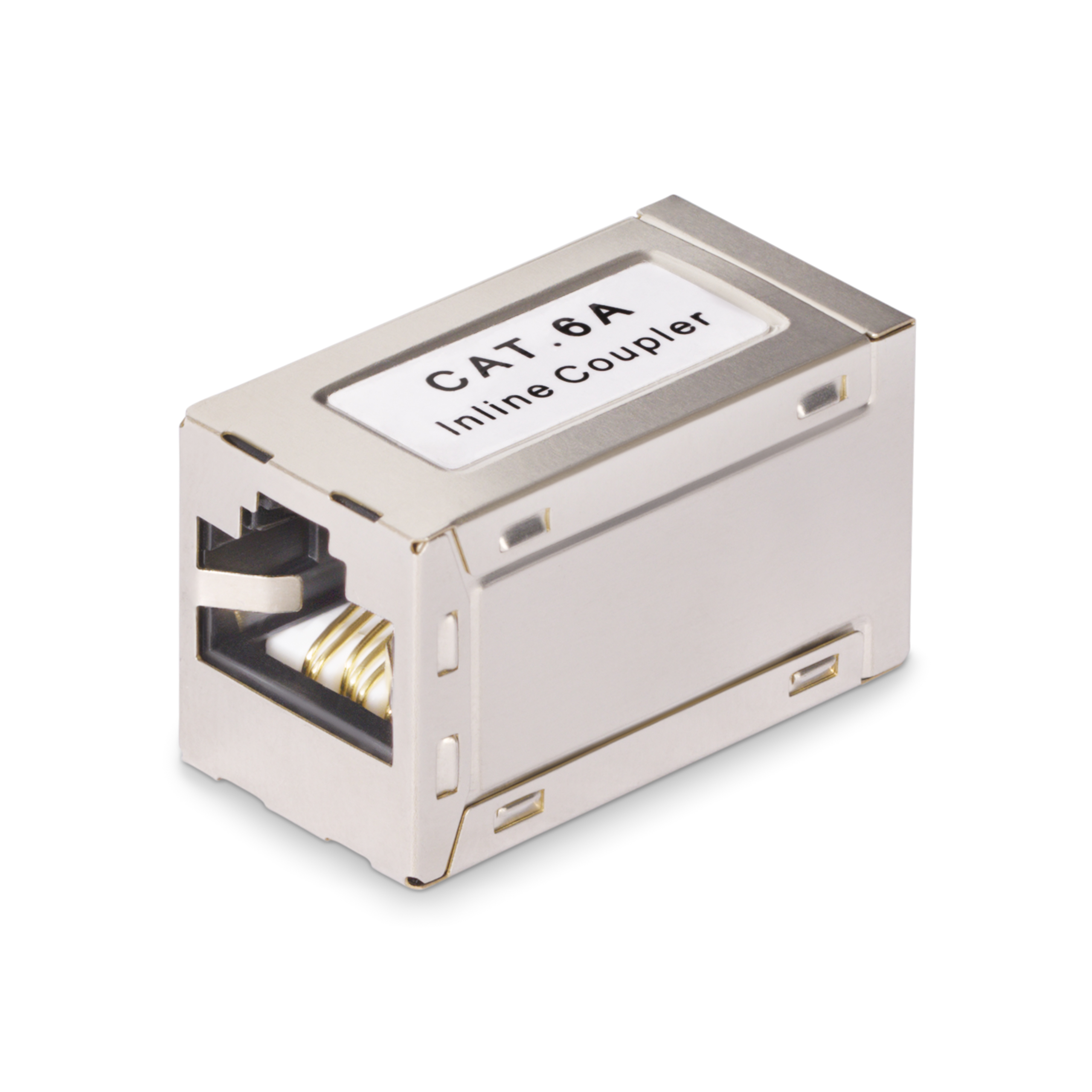

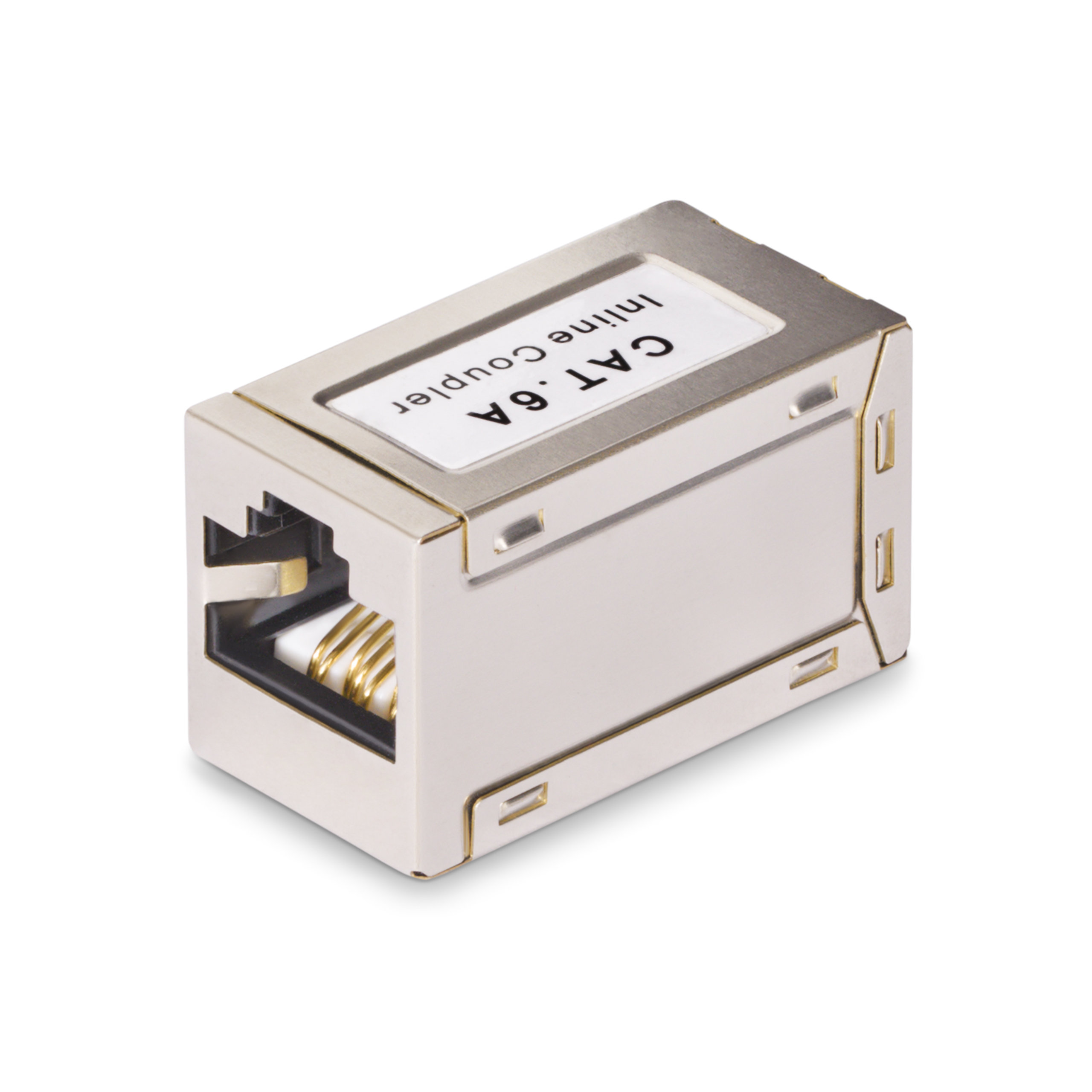

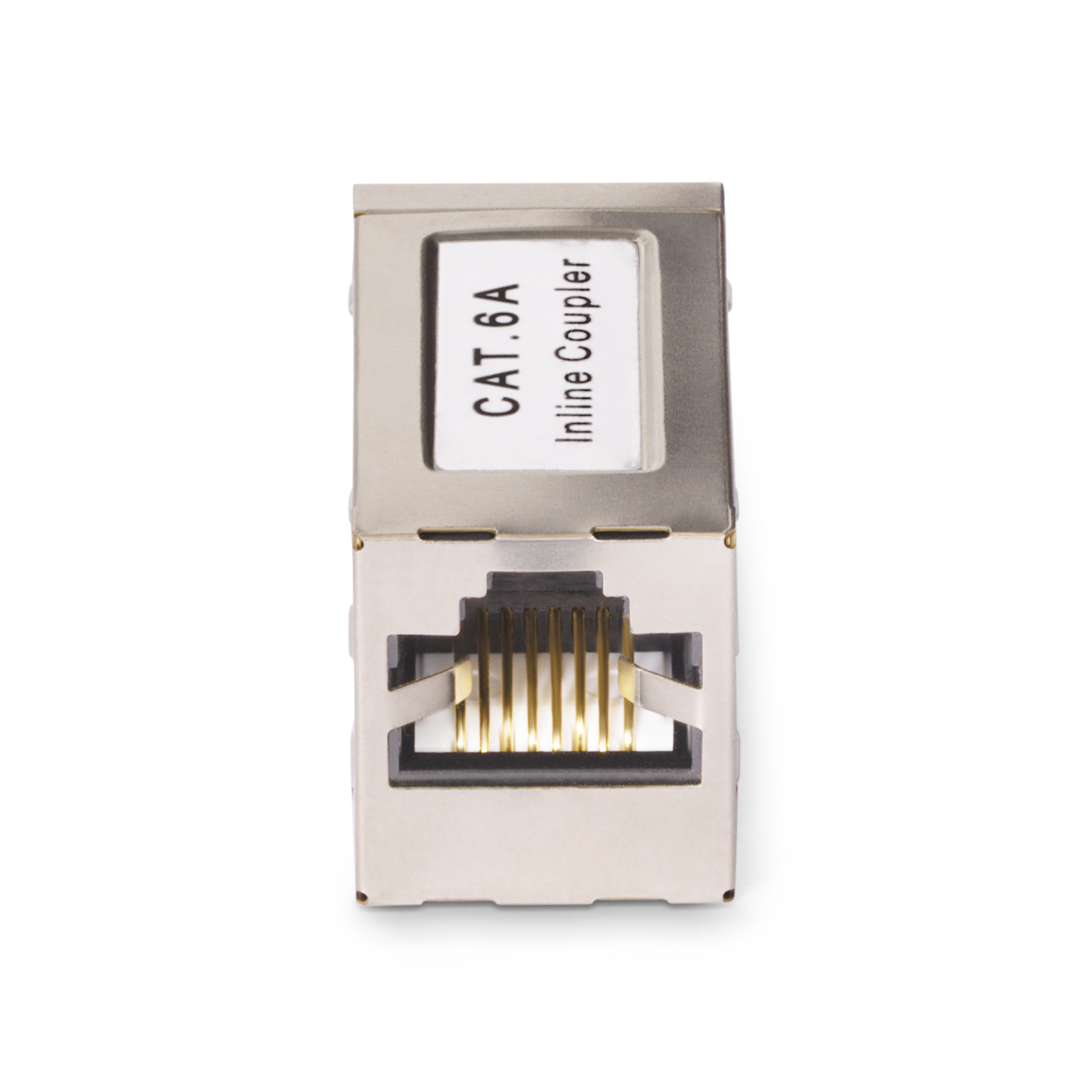

Cat6a RJ45 Shielded Modular Inline Coupler

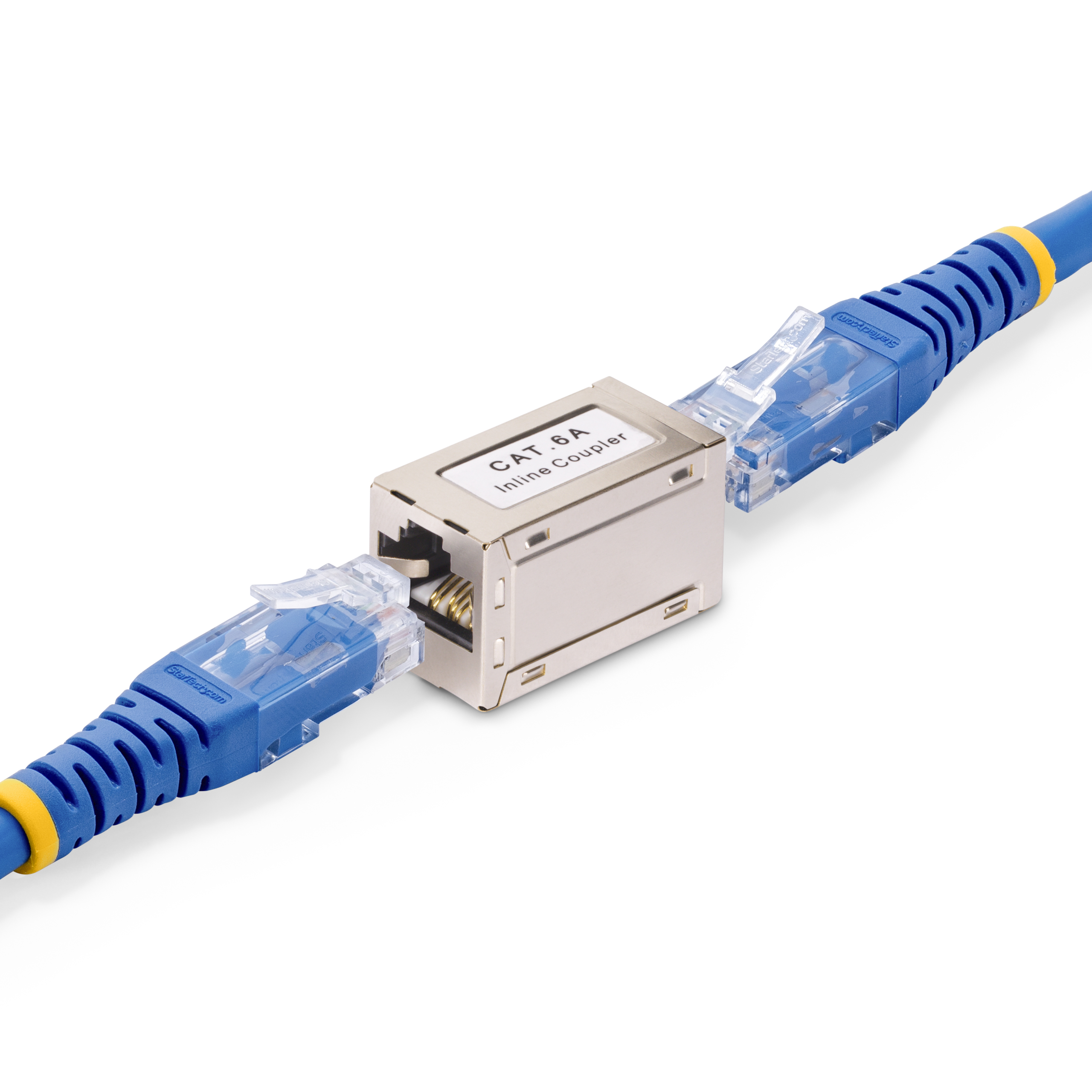

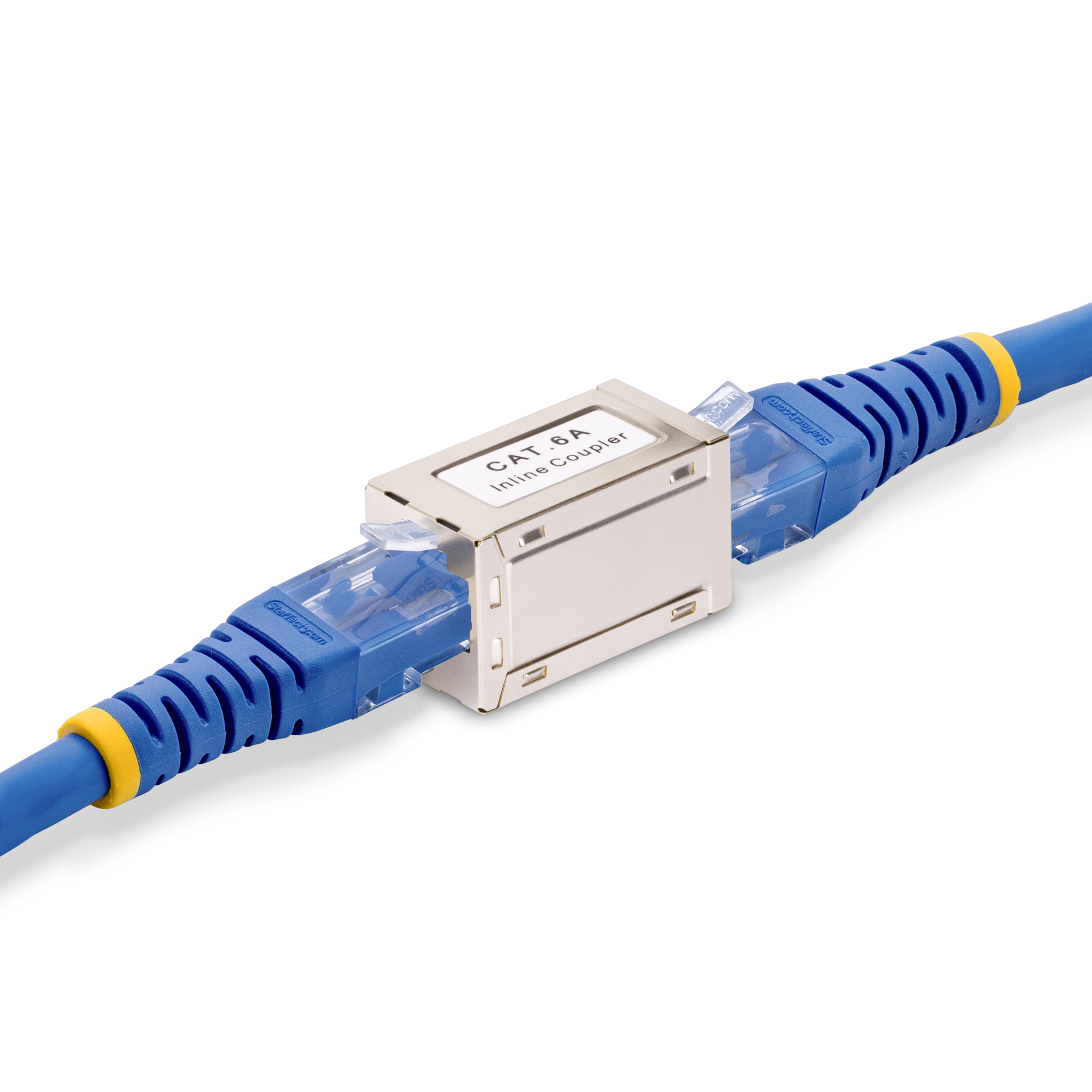

Join two shielded RJ45 Cat6a cables using this Inline Coupler
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name Cat6a RJ45 Shielded Modular Inline Coupler Product Number IN-CAT6A-COUPLER-S1 UPC 065030906135 Lifecycle status Active Warranty Lifetime Weighted Opportunity 40260 Taxonomy Product > Other > Unclassifiables Category Level 1 Network Cables Category Level 2 Network Cable Accessories Category Level 3 Jacks and Outlets Family Couplers Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX123X Product Title (Ultra-Short) RJ45 Coupler, Cat6a Product Title (Short) Shielded RJ45 Coupler, Cat6a Coupler F/F Product Title (Medium) Shielded RJ45 Coupler, Inline Cat6a Coupler, Cat6a Cable Extension, F/F Product Title (Standard) Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension Product Title (Long) Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension Product Title (AMZ) Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension Title Ingram (Part 1) Shielded RJ45 Coupler, Cat6a Title Ingram (Part 2) Ethernet Coupler F/F Website Product Headline Join two shielded RJ45 Cat6a cables using this Inline Coupler Bullet 1 SHIELDED CAT6A COUPLER: Shielded RJ45 Coupler features a compact design with straight-through TIA/EIA-T568B pinouts; Connect two Cat6a or Cat6 Ethernet cables seamlessly in tight spaces; Ideal for office use, server setups, and home networks Bullet 2 ROBUST CONSTRUCTION: Cat6a Ethernet Coupler features a durable metal outer shell with ABS inner housing for enhanced EMI and wear protection; Female RJ45 contacts made from gold-plated phosphor bronze for optimal conductivity and corrosion resistance Bullet 3 RELIABLE DATA AND POWER: Facilitates Power over Ethernet (PoE) output to networking devices and peripherals; Supports 10Gbps, 1Gbps, and 10/100 speeds for versatile and reliable transfer rates between devices Bullet 4 COMPATIBILITY: Compatible with Cat 6/6a and Cat 5/5e cables; Support 2.5G/5G/10G and 10/100/1000 networks; Extend a PoE connection to a network camera, access point, or switch; Cat6a performance is compliant with ANSI/TIA/EIA-568-C standards Bullet 5 QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; No additional software or configuration required Bullets (Compact) Shielded RJ45 Coupler supports 2.5G/5G/10G and 10/100/1000 networks w/PoE; Compatible w/Cat 6/6a and Cat 5/5e cables; Durable metal and ABS housing for optimal EMI protection; Compliant w/ANSI/TIA/EIA-568-C standards; Ideal for office/home networking Bullets (Consolidated) - Shielded RJ45 Coupler features a compact design with straight-through TIA/EIA-T568B pinouts - Durable metal and ABS housing protects from EMI; Gold-plated RJ45 contacts for optimal conductivity and corrosion resistance - Compatible with Cat 6/6a and Cat 5/5e cables; Supports 10/100/1000 and 2.5G/5G/10G networks with PoE (Power over Ethernet) - Extend a PoE connection to network cameras/access points/routers; The shielded RJ45 Cat6a coupler is compliant with ANSI/TIA/EIA-568-C standards Marketing Copy Marketing Copy (No HTML) Applications - Join two shielded Cat6a cables to extend a network connection
- Extend a PoE connection to a network device or peripheral
Website Search Keyword - Cat6 Coupler
- Cat6a Coupler
- RJ45 Coupler
- Inline Cat6 coupler
- Ethernet Cable Extension
- Cat6 extension
- Network coupler
- RJ45 female coupler
- Female to Female Ethernet Coupler
- Shielded Ethernet Coupler
- Shielded Cat6 Coupler
- STP Coupler
- Shielded RJ45 Coupler
- Cat6a Cable Extension
- Shielded RJ45 Extension
- Shielded Cat6a coupler
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- Prop 65 - Environmental - United States - Proposition 65 Warning Label
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
Related Products - IN-CAT6-COUPLER-U1
- IN-CAT6-COUPLER-U5
- RJ45COUPLER
- C6KEYCOUPLWH
- RJ45COUP10PK
Color Silver Connector Style Straight Humidity 30-70% Installation Type Toolless Material - ABS
- Metal
Operating Temperature -20°C to 65°C (-4°F to 149°F) Product Length (mm) 30.850 Product Width (mm) 16.000 Product Height (mm) 19.850 Product Weight (g) 6 Product Type RJ45 Couplers and Adapters Storage Temperature -25°C to 75°C (-13°F to 167°F) TAA Compliant No Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 10 Gbps MTBF (hours) Tested to 750 connector mating cycles Active or Passive Adapter Passive Connection Type Cat 6a Connector Plating Gold Number of Conductors 8P8C Wiring Standard TIA/EIA-T568B Carton Depth (mm) 355 Carton Height (mm) 270 Carton Quantity 500 Carton Weight Gross (g) 7150 Included in Package 1 - RJ45 Shielded Modular Inline Coupler - Cat6a Included In Package for Label 1 - RJ45 Shielded Modular Inline Coupler - Cat6a Number of Sub-Cartons 50 Package Depth (mm) 90 Package Height (mm) 26 Package Width (mm) 57 Package Weight (g) 10 Packaging Description Cat6a RJ45 Shielded Modular Inline Coupler Packaging Description India Cat6a RJ45 Shielded Modular Inline Coupler Sub-Carton Depth (mm) 98 Sub-Carton Height (mm) 62 Sub-Carton Width (mm) 143 Sub-Carton Quantity 10 Sub-Carton Weight (g) 128 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-11-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment It is Cat5e coupler, not shielded. The one we are developing is Cat6a and shielded. Comparable SKU 2 Comment This is 10pk Cat5e coupler, we are developing Cat6a. Digital Content Due Date 2024-02-07 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2023-07-28 Target Production Release 2023-11-30 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
