INTEBOX8
Main Image

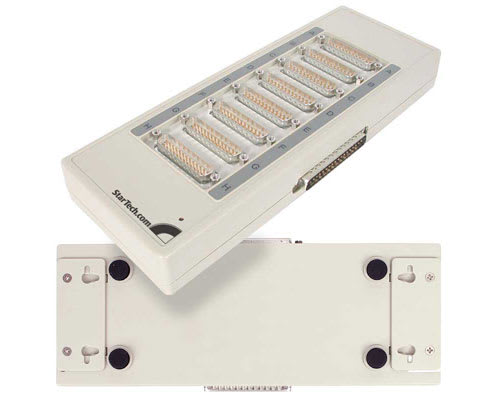

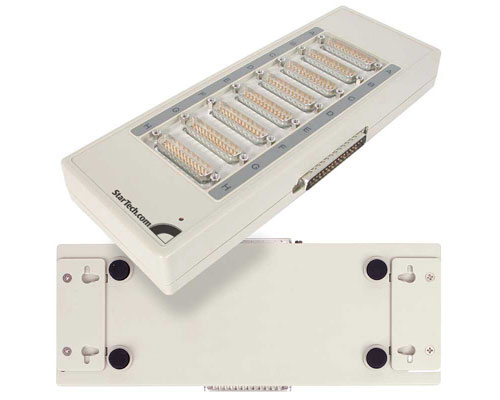

Product Name 8 Port RS232 Connector Box for PCI232INTE Product Number INTEBOX8 UPC 065030804394 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 8 Port RS-232 Serial Connector Box Hub for the PCI232INTE Intelligent Serial Card Bullet 1 Compatible with all RS-232C interface devices Bullet 2 Works in both 3.3 volt and 5 volt server slots Marketing Copy Applications - Ideal for commercial and industrial applications such as POS networks, ATMs, and bank teller stations
- Also used in environments using serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Industrial process control
- Factory/Office automation
- Remote serial device control
Accessory Products - PCI232INTE
- AT925MFCABLE
- AT925SMF
- SCNM925MF
- AT925MF
Humidity 5~85% RH Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 210 Product Width (mm) 81 Storage Temperature 0°C to 65°C (32°F to 149°F) TAA Compliant No FIFO 512 Bytes General Specifications - Serial Interface: RS-232
- Power Consumption: 5V @ 300mA, +12V @ 100mA & -12V @ 100mA
- Expansion Capability: Up to 64 ports using 8 daisy-chained INTEBOX8 units.
- OS compatibility: Windows 2000/NT/XP, Linux & Unix SCO Open Server
- Flow Control: Xon/Xoff control or CTS/RTS control
Max Baud Rate 230.4 Kbps Supported Serial Protocol RS-232 Industry Standards RS-232 IO Card Port Style External Hub Carton Depth (mm) 382 Carton Height (mm) 288 Carton Quantity 20 Carton Weight Gross (g) 13000 Package Depth (mm) 58 Package Height (mm) 160 Package Width (mm) 312 Package Weight (g) 590 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-37 Connector 1 (Quantity) 1 Connector 2 DB-37 Connector 2 (Quantity) 1 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 8 en-US Content Approved Yes Product Manager Rafal Gwozdz
