Main Image
IP2DVI
Ethernet DVI External Multi Monitor Video Adapter

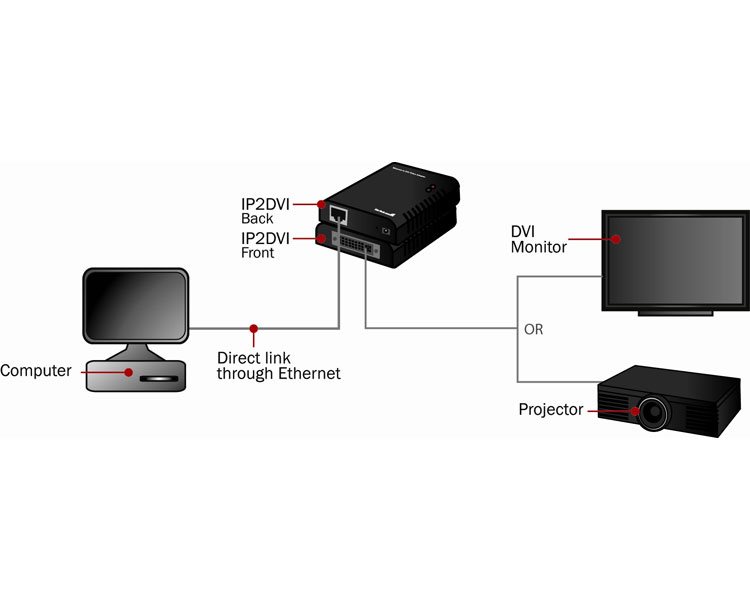

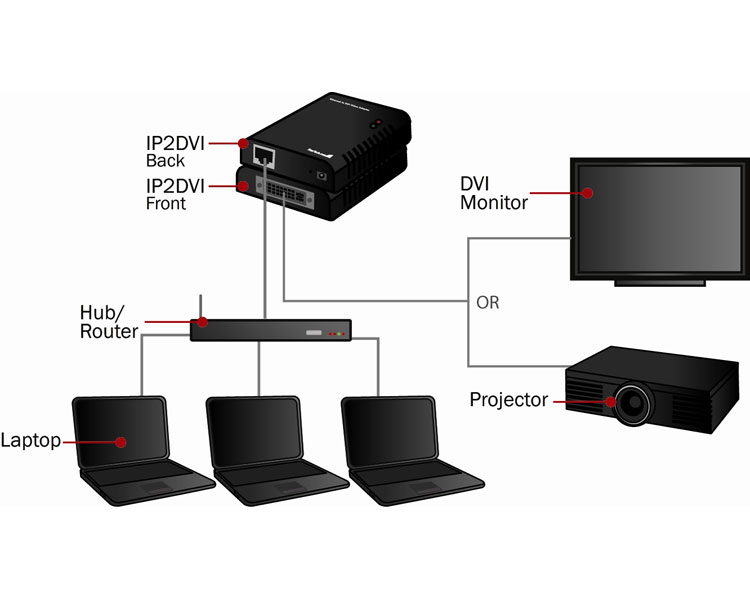

Connect your PC to your display or projector through an existing office or home network
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Ethernet DVI External Multi Monitor Video Adapter Product Number IP2DVI UPC 065030834971 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) Ethernet to DVI Video Adapter over IP Product Title (Standard) StarTech.com Ethernet to DVI Video Adapter over IP - Single Link - RJ45 (F) - DVI-I (F) - External Video Card - Networking Product Title (Long) Ethernet to DVI Video Adapter over IP Title Ingram (Part 1) Ethernet to DVI Video Adapter ov Title Ingram (Part 2) er IP Website Product Headline Connect your PC to your display or projector through an existing office or home network Bullet 1 Add an additional display using your network. Installation is quick and easy with automatic detection software (included). Bullet 2 Run video up to 100m / 300ft at 1280x1024 using Cat 5 cabling. Bullet 3 The IP2DVI acts as an external DVI Video card and a video extender. Marketing Copy Applications Turn your projector / display into an IP projector / display Website Search Keyword - Ethernet
- DVI
- Video
- IP
- Adpater
- Ethernet to DVI
- Display
- Monitor
- DoIP
- Display over IP
- Display over Ethernet Adapter
- Network
System and Cable Requirements - One available ethernet port on PC or Router/Hub
- PC running Windows XP 32-bit or Windows Vista 32-bit
- A DVI-D capable display
Accessory Products - DVIMM6
- DVIDSMM10
- DVIDSMM15
- DVIVGAMF
Related Products - USB2VGAE
- USB2VGA
- USB2VGA2
- USB2DVIE
- USB2DVI
Input Current 500mA Input Voltage 115V-230V AC Output Current 2.5A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Gray Material Plastic Operating Temperature 10 to 40 degrees C Product Length (mm) 97 Product Width (mm) 69.8 Product Height (mm) 20.8 Product Weight (g) 83 Storage Temperature -10 to 80 degrees C TAA Compliant No General Specifications - Maximum Resolution: 1280x1024
- Maximum Bit Rate: 16 or 32 bits
Max Distance 100m [328ft] OS Compatibility - Windows XP
- Windows Vista
- Windows 7

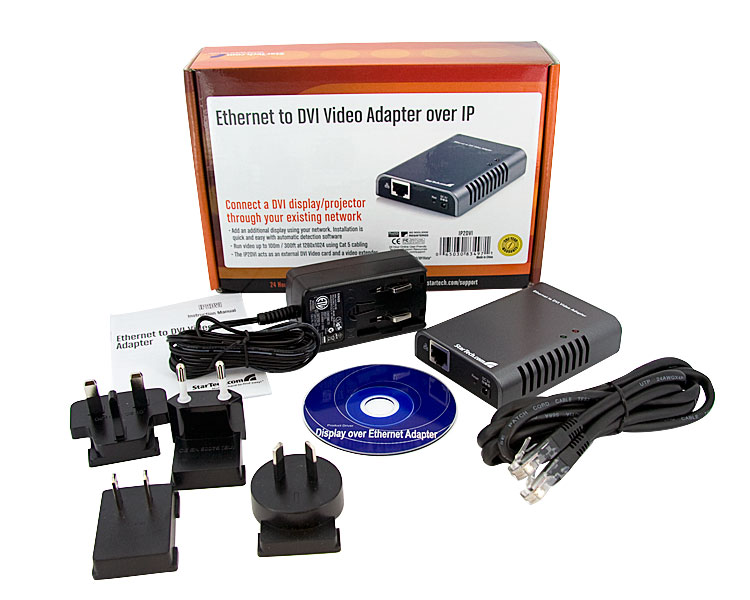

Cabling Cat 5 UTP Carton Depth (mm) 454 Carton Height (mm) 297 Carton Quantity 20 Carton Weight Gross (g) 10200 Included in Package - 1 - Ethernet DVI Video over IP Adapter
- 1 - Power Adapter
- 1 - Driver and Software CD
- 1 - Instruction Manual
Package Depth (mm) 58 Package Height (mm) 100 Package Width (mm) 249 Package Weight (g) 450 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 DVI-D Dual-Link (25-Pin) Connector 2 (Quantity) 0 en-US Content Approved Yes Product Manager Eric Roth
