IPUSB2HD2
Ethernet to HDMI over IP Converter
Connect to, and share an HDMI® display or projector over an IP network
Main Image
Product Images
Product Images
BOM Image
Product Name Ethernet to HDMI over IP Converter Product Number IPUSB2HD2 UPC 065030844383 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI over IP Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) HDMI over IP Extender with Audio Product Title (Standard) HDMI over IP Extender with Audio Product Title (Long) HDMI over IP Extender with Audio Product Title (AMZ) HDMI over IP Extender with Audio - HDMI over IP - HDMI over Cat6 - HDMI over Ethernet (IPUSB2HD2) Title Ingram (Part 1) HDMI over IP Extender with Audio Website Product Headline Connect to, and share an HDMI® display or projector over an IP network Bullet 1 Supports Windows Aero themes Bullet 2 2 USB ports for peripheral connection on the display side Bullet 3 Extend or mirror your primary desktop / display Bullet 4 Easy to use software and IP configuration utility Bullet 5 Supports resolutions up to 1920x1080 (1080p) Bullets (Consolidated) Connect to - and share an HDMI display or projector over an IP network - HDMI over IP - Video over IP - HDMI over Ethernet - HDMI over Cat5 - HDMI over Cat6 Marketing Copy Applications - Home theater and media center applications include streaming movies, photos, and Internet browsing to your HDTV
- With the HDMI® over IP option, distance is no longer an issue for delivering high definition video and audio content to your target audience, in retail and digital signage applications
- Connect multiple PCs to one display/projector on a Local Area Network and toggle between computers for presentations in your business
- Control your PC from a remote location by connecting a keyboard or mouse to the integrated USB ports
- Use in educational settings for students to connect and display their work on a central display or projector screen for all to see
Website Product Alert This product is no longer supported on Windows 8.1, 10 or 11 Website Search Keyword - HDMI
- Video
- External
- HDMI over IP
- IP to HDMI
- Ethernet to HDMI
- RJ45 to HDMI
- USB to HDMI
- USB to HDMI Video Converter External Adapter
- Ethernet to HDMI Video Converter External Adapter
- HDMI External Video Card
- USB or IP to HDMI External Video Converter
- HDMI over Ethernet
- Network IP Video
- IP video
Microsoft WHQL Certified Yes Accessory Products - M45CROSS100B
- M45CROSS50BL
- USB2HAB6
- USB2HABM6
- HDMIMM10
- HDMIMM6
- SVA5M3NEUA
Related Products - IP2DVI
- USB2DVI
- USB2DVIMM6
- USB2VGAMM6
- USB2VGAE2
- IPUSB2HDMI
Replacement Product IPUSB2HD3 Input Current 0.3A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 10~80% RH Material Plastic Operating Temperature 0°C ~ 70°C (32°F ~ 158°F) Product Length (mm) 132 Product Width (mm) 71 Product Height (mm) 28 Product Weight (g) 134 Storage Temperature 0°C ~ 85°C (32°F ~ 185°F) TAA Compliant No General Specifications This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. Max Distance 100m [328ft] Maximum Data Transfer Rate Maximum Digital Resolutions 1080p / 1920x1080 OS Compatibility - Windows 7
- Windows XP
- Windows Vista
- Windows 8
Wide Screen Supported Yes Audio Yes AV Input - USB 2.0
- Ethernet

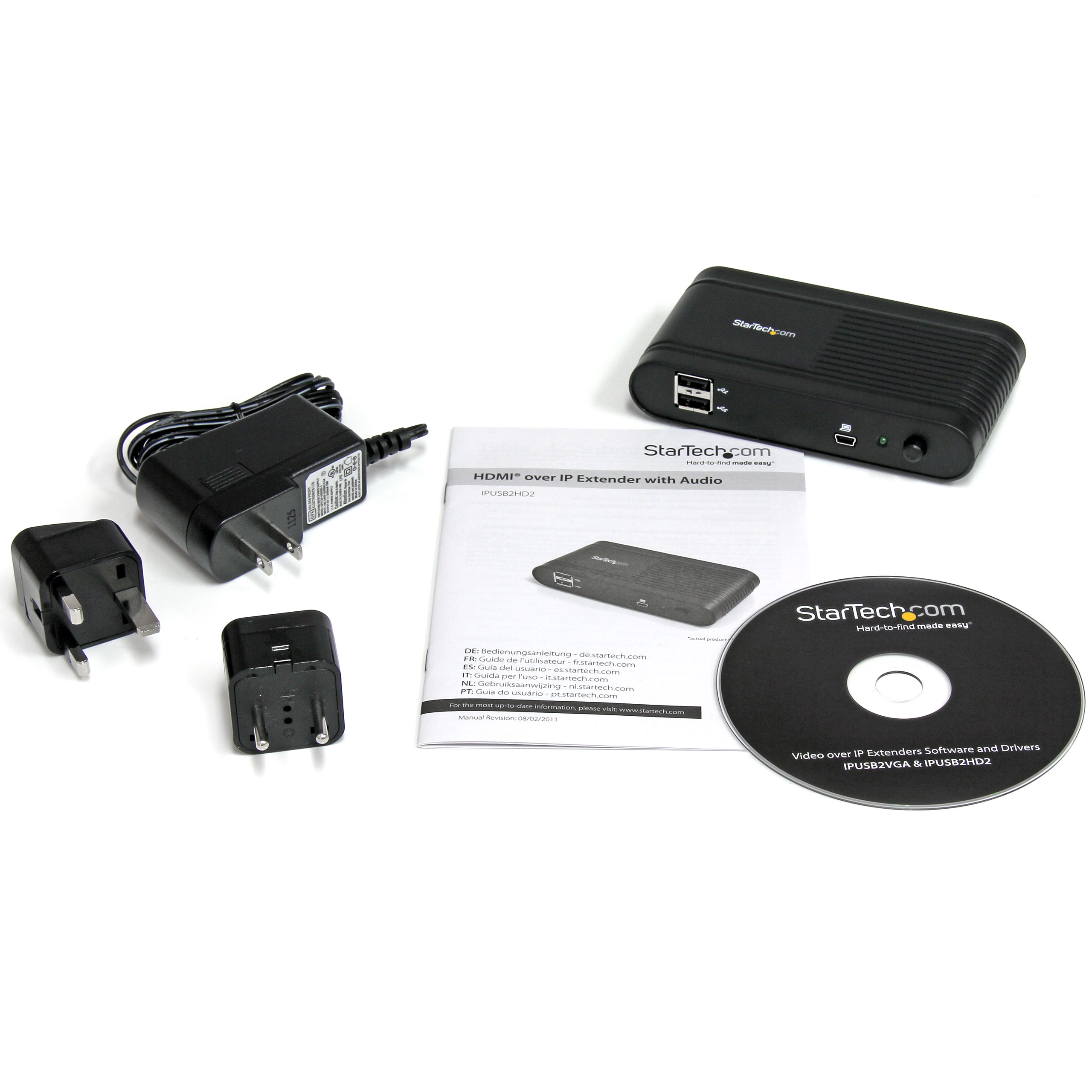

AV Output HDMI Cabling Cat 5 UTP or better Cascadable No Chipset ID DisplayLink - DL-165 Carton Depth (mm) 350 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 10200 Included in Package - 1 - IP or USB to HDMI Converter
- 1 - Driver and Software CD
- 1 - Instruction Manual
- 1 - Universal Power Adapter (US/UK/EU/AUS)
Package Depth (mm) 150 Package Height (mm) 60 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 460 Packaging Description HDMI® over IP Extender with Audio Packaging Description India HDMI® over IP Extender with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 USB Mini-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,ES,FR,IE,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
