IPUSB2HD3
Ethernet - HDMI over IP Converter
Broadcast your computer screen to a remote display over your network, with remote USB console control
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Ethernet - HDMI over IP Converter Product Number IPUSB2HD3 UPC 065030864534 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI over IP Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI IP Extender Product Title (Short) HDMI Over IP Extender with USB - 1080p Product Title (Medium) HDMI Over IP Extender with 2-port USB Hub - Video-Over-LAN Extender - 1080p Product Title (Standard) HDMI Over IP Extender with 2-port USB Hub - Video-Over-LAN Extender - 1080p Product Title (Long) HDMI Over IP Extender - 1080p Product Title (AMZ) 330 ft. (100 m) HDMI Over IP Extender - HDMI Over IP Extender - Up To 1080p - USB & Audio Support - HDMI Video Extender (IPUSB2HD3) Title Ingram (Part 1) HDMI Over LAN Extender - 1080p Title Ingram (Part 2) - IP Video with 2-port USB Hub Website Product Headline Broadcast your computer screen to a remote display over your network, with remote USB console control Bullet 1 Collaborate with co-workers by using your network to easily switch between devices shown on a shared display Bullet 2 Control the video-over-IP adapter, using the included software Bullet 3 Share video with a wireless or wired LAN connection using any Windows computer on your network Bullet 4 Supports resolutions up to 1080p Bullet 5 Built-in 2-port USB hub Bullets (Compact) Broadcast video from your computer to a remote HDMI display over your LAN, w/ remote USB console control - Turns your HDMI monitor, television or projector into an IP display - HDMI over IP extender - Video over IP converter - Network display adapter Bullets (Consolidated) Broadcast video from your computer to a remote HDMI display over your LAN with remote USB console control - Works with HDMI monitors televisions and projectors and any Windows computer connected to your network - Supports wired or wireless computers - Resolutions up to 1080p - Turns your HDMI monitor television or projector into an IP display - HDMI over IP extender/Video over IP converter/Network display adapter - Collaborate with co-workers by using your network to share your display Marketing Copy Marketing Copy (No HTML) Applications - Enable your employees or co-workers to share each other’s screens on a boardroom display
- Share information with clients at doctors offices and hospitals, while keeping the computer in a remote, secure location
Website Product Alert This product is no longer supported on Windows 8.1, 10 or 11 Website Search Keyword - Network display adapter
- Display to IP
- Display to LAN
- PC video to IP
- PC video to LAN
- Projector to IP
- Projector to LAN
- HDMI over IP
- HDMI over IP converter
- HDMI over IP extender
- HDMI over LAN
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - HDMM6
- HDMM10
- HDMM15
- USB2HAB6
- USB2HAB10
- USB2HAB15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
Related Products IPUSB2VGA2 Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Aluminum Product Length (mm) 102.000 Product Width (mm) 74.000 Product Height (mm) 24.000 Product Weight (g) 304.000 TAA Compliant Yes General Specifications This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. Max Distance 100m [328ft] Maximum Data Transfer Rate Maximum Digital Resolutions 1920x1080 OS Compatibility - Windows 7
- Windows 8

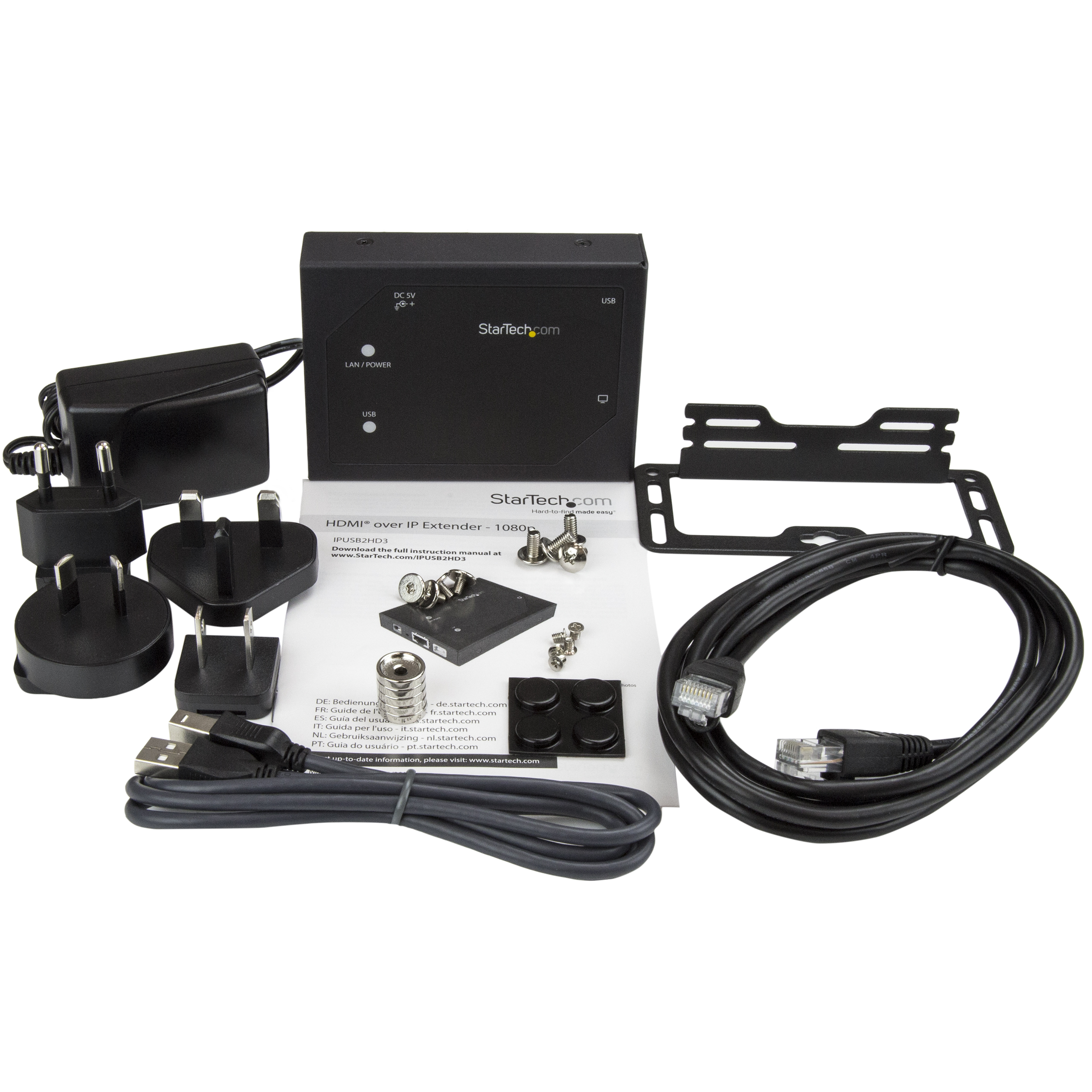

Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable No Chipset ID DisplayLink - DL-195 Carton Depth (mm) 315 Carton Height (mm) 215 Carton Quantity 12 Carton Weight Gross (g) 9010 Included in Package - 1 - HDMI over IP extender
- 1 - rubber foot set
- 1 - quick start guide
- 1 - mounting bracket
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - mounting screw kit
- 1 - USB cable
- 1 - CAT5 cable
Package Depth (mm) 170 Package Height (mm) 66 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 702 Packaging Description HDMI® over IP Extender - 1080p Packaging Description India HDMI® over IP Extender - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 USB-B (480Mbps, 2.5W) Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-12-07 Digital Content Due Date 2016-07-04 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-02-05 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
