IPUSB2HDMI

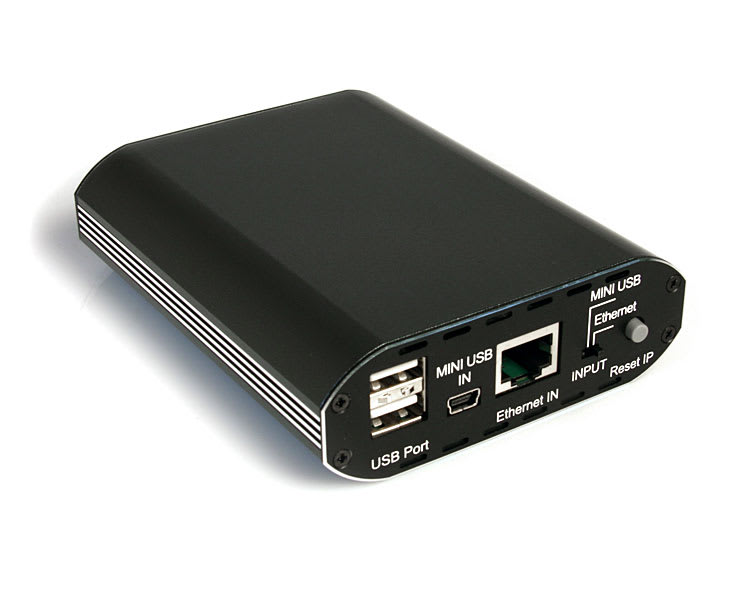

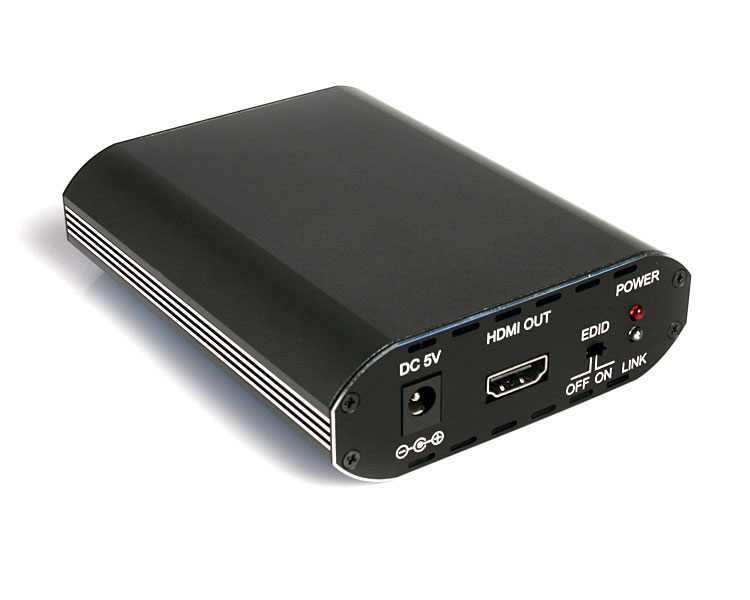

IP RJ45 Ethernet or USB to HDMI Video Converter

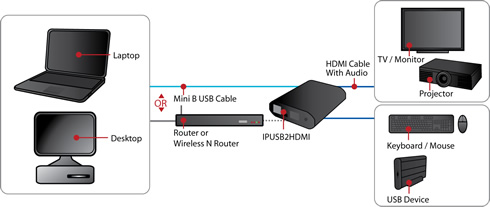

Connect an HDMI® display to a PC or router through USB or network connection
Main Image
Product Images
Product Images
Product Images
Product Name IP RJ45 Ethernet or USB to HDMI Video Converter Product Number IPUSB2HDMI UPC 065030837774 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) USB to HDMI or HDMI over IP Converter Product Title (Standard) USB to HDMI or HDMI over IP Converter Product Title (Long) USB to HDMI or HDMI over IP Converter Title Ingram (Part 1) USB to HDMI or HDMI over IP Conv Title Ingram (Part 2) erter Website Product Headline Connect an HDMI® display to a PC or router through USB or network connection Bullet 1 Supports Windows Aero theme and Mac OS X (USB to HDMI only) Bullet 2 Two USB ports allow for connection of devices on the display side Bullet 3 Extend or mirror your primary desktop / display Bullet 4 Toggle between multiple PC's to one display when connected on local area network (LAN) Bullet 5 Easy to use software and IP configuration utility Marketing Copy Applications - Home theater and media center applications include streaming movies, photos, and online browsing to your HDTV
- With the HDMI® over IP option, distance is no longer an issue for delivering HD content to your target audience in retail and digital signage applications
- Connect multiple PC's to one display / projector on a local area network and toggle between computers for presentations in your business
- Control your PC from a remote location by connecting a keyboard or mouse to the integrated USB ports
Website Search Keyword - USB
- IP
- Ethernet
- HDMI
- Video
- Converter
- Adapter
- External
- Card
- HDMI over IP
- IP to HDMI
- Ethernet to HDMI
- RJ45 to HDMI
- USB to HDMI
- USB to HDMI Video Converter External Adapter
- Ethernet to HDMI Video Converter External Adapter
- HDMI External Video Card
- USB or IP to HDMI External Video Converter
Special Notes HDMI over Ethernet (LAN, TCP/IP) is not supported by the Mac OS Accessory Products - M45CROSS100B
- M45CROSS50BL
- USB2HAB6
- USB2HABM6
- HDMIMM10
- HDMIMM6
Related Products - IP2DVI
- USB2DVI
- USB2DVIMM6
- USB2VGAMM6
- USB2VGAE2
Replacement Product IPUSB2HD3 Input Current 2.6 A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~90% RH (no condensation) Material Aluminum Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Product Length (mm) 112 Product Width (mm) 91 Product Height (mm) 31 Product Weight (g) 220 Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) TAA Compliant No Max Distance 100m [328ft] Maximum Data Transfer Rate Maximum Digital Resolutions 1680 x 1050 Wide Screen Supported Yes AV Input - USB 2.0
- Ethernet

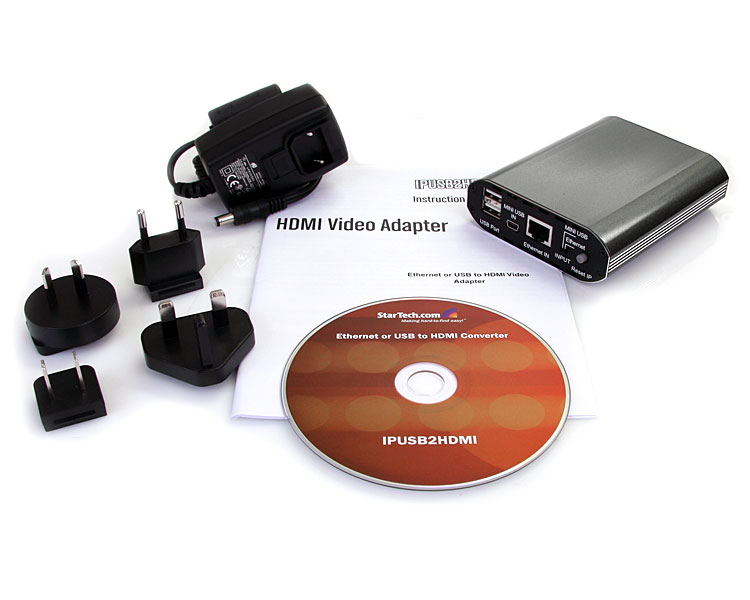

AV Output HDMI Cabling HDMI Carton Depth (mm) 652 Carton Height (mm) 343 Carton Quantity 20 Carton Weight Gross (g) 14600 Included in Package - 1 - IP or USB to HDMI Converter
- 1 - Driver and Software CD
- 1 - Instruction Manual
- 1 - Universal Power Adapter (US/UK/EU)
Package Depth (mm) 63 Package Height (mm) 164 Package Width (mm) 266 Package Weight (g) 670 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 USB Mini-B (480Mbps, 2.5W) Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
