Main Image
IPUSB2VGA
Ethernet or USB to VGA Converter
Connect to, and share a VGA display or projector over an IP network
Main Image
Product Images
Product Images
BOM Image
Product Name Ethernet or USB to VGA Converter Product Number IPUSB2VGA UPC 065030840293 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA over IP Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) Ethernet to VGA Product Title (Short) Ethernet to VGA over IP Converter Product Title (Standard) Ethernet to VGA over IP Converter Product Title (Long) Ethernet to VGA over IP Converter Product Title (AMZ) Ethernet to VGA over IP Converter (IPUSB2VGA) Title Ingram (Part 1) Ethernet to VGA over IP Converte Title Ingram (Part 2) r Website Product Headline Connect to, and share a VGA display or projector over an IP network Bullet 1 Audio supported when using USB to VGA or Ethernet to VGA conversion Bullet 2 Easy to use software and IP configuration utility Bullet 3 Extend or mirror your primary desktop/display Bullet 4 Supports resolutions up to 1920x1080 Bullet 5 Two USB ports allow for connection of devices (i.e. keyboard, mouse) on the display side. Bullets (Consolidated) Connect to, and share a VGA display or projector over an IP network - Compatible with VGA-equipped projectors, televisions or monitors and Windows computers - Supports resolutions up to 1920x1200 - Supports USB to VGA - VGA to LAN Extender/VGA to Ethernet Extender/VGA to IP Extender/VGA over IP - Install the software on your office PC's and quickly swap computers on a boardroom display or projector for presentations - Select between USB or IP to VGA depending on distance or video bandwidth Marketing Copy Applications - Install the software on office PC's for a LAN / IP docking station and quickly swap computers on the network - Ideal for boardroom presentations
- Digital Signage or POS marketing - with the VGA over IP distance no longer being an issue for delivering HD content to your target audience
- Home theater and media center applications for streaming movies, photos, and online browsing
Website Search Keyword - Adapter
- Converter
- Ethernet
- Ethernet to VGA
- Ethernet to VGA Video Converter External Adapter
- External
- VGA External Video Card
- VGA over IP
- IP to VGA
- USB or IP to VGA External Video Converter
- USB to VGA
- USB to VGA Video Converter External Adapter
Microsoft WHQL Certified Yes Special Notes VGA over Ethernet (LAN, TCP/IP) is not supported by the Mac OS Accessory Products - M45CROSS100B
- M45CROSS50BL
- USB2HAB6
- USB2HABM6
- MXT101MMHQ
- MXT101MMHQ10
- SVA5M3NEUA
Related Products - USB2DVI
- USB2DVIMM6
- USB2VGAE2
- USB2VGAMM6
Replacement Product IPUSB2VGA2 Equivalent Part Number in the EU IPUSB2VGAUE Equivalent Part Number in the UK IPUSB2VGAUE Input Current 0.4A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~90% RH (no condensation) Material Plastic Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Product Length (mm) 133 Product Width (mm) 71 Product Height (mm) 27 Product Weight (g) 142 Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) TAA Compliant No General Specifications This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. Max Distance 100m [328ft] Maximum Analog Resolutions 1920x1080 Maximum Data Transfer Rate OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Windows 11

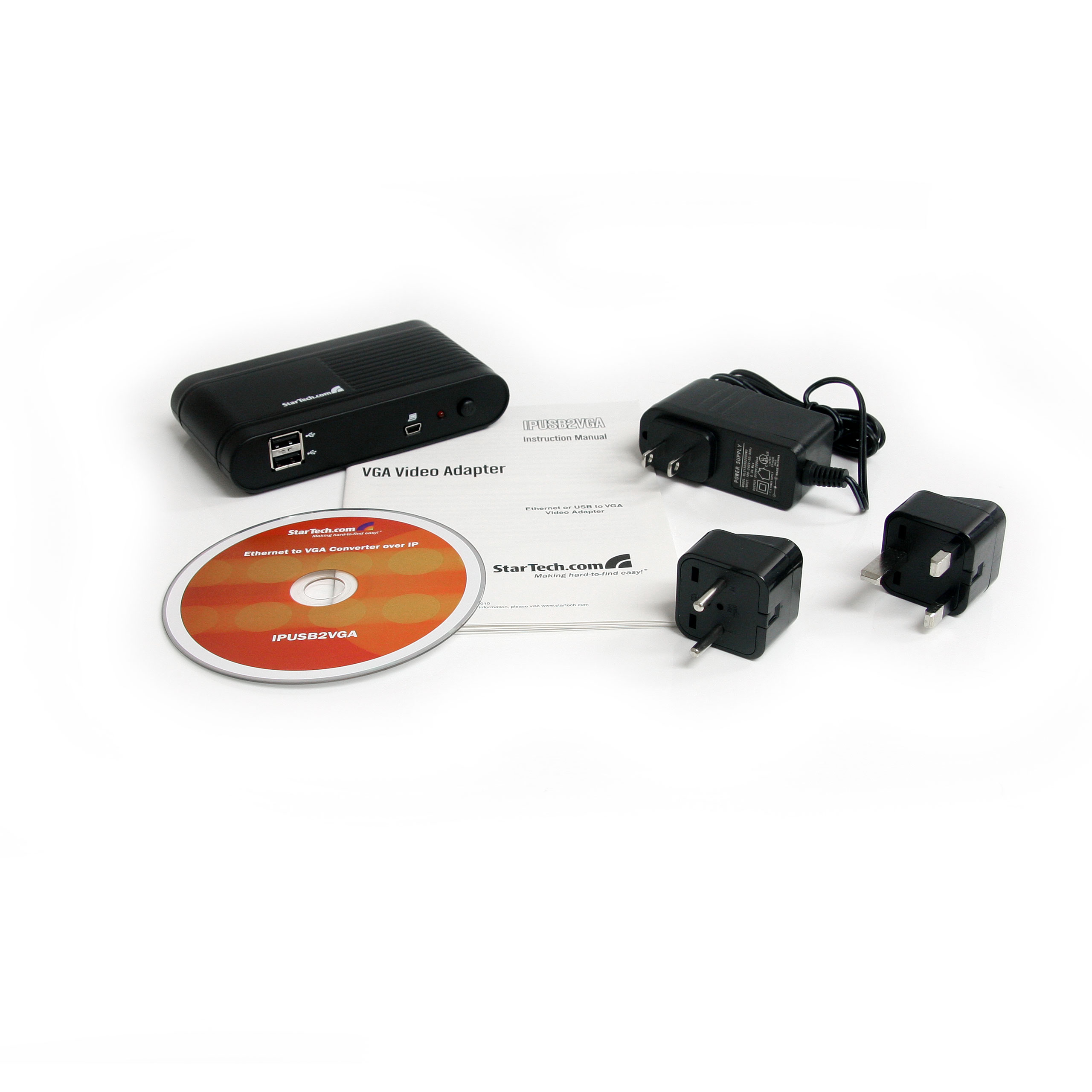

Wide Screen Supported Yes Audio Yes Cascadable No Chipset ID DisplayLink - DL-165 LED Indicators 1 - Power indicator Carton Depth (mm) 340 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 10400 Included in Package - 1 - Driver and Software CD
- 1 - Instruction Manual
- 1 - IP or USB to VGA Video Converter
- 1 - Mini USB to USB Cable
- 1 - Universal Power Adapter
Package Depth (mm) 150 Package Height (mm) 60 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 460 Packaging Description VGA over IP Extender with Audio Packaging Description India VGA over IP Extender with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 USB-A (480Mbps, 2.5W) Host Connector 3 (Quantity) 2 Host Connector 4 RJ-45 Host Connector 4 (Quantity) 1 Host Connector 5 3.5mm (3 Conductors, TRS) Host Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
