Main Image
IPUSB2VGA2
Ethernet/USB to VGA Converter
Broadcast your computer screen to a remote display over your network, with remote USB console control
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Ethernet/USB to VGA Converter Product Number IPUSB2VGA2 UPC 065030864541 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA over IP Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) VGA-Over-IP Extender Product Title (Short) VGA Over IP Extender - 1920 x 1200 Product Title (Medium) VGA Over IP Extender with 2-port USB Hub - Video-Over-LAN Extender - 1920 x 1200 Product Title (Standard) VGA-Over-IP Extender with 2-port USB Hub - Video-Over-LAN Extender - 1920 x 1200 Product Title (Long) VGA-Over-IP Extender - 1920 x 1200 - TAA Product Title (AMZ) VGA-Over-IP Extender with 2-port USB Hub - Video-Over-LAN Extender - 1920 x 1200 (IPUSB2VGA2) Title Ingram (Part 1) VGA-Over-LAN Extender - IP Title Ingram (Part 2) Video w/ 2-port USB - 1920x1200 Website Product Headline Broadcast your computer screen to a remote display over your network, with remote USB console control Bullet 1 Collaborate with co-workers by using your network to easily switch between devices shown on a shared display Bullet 2 Share video with a wireless or wired LAN connection using any Windows computer on your network Bullet 3 Control the video-over-IP adapter, using the included software Bullet 4 Supports resolutions up to 1920x1200 Bullet 5 Built-in 2-port USB hub and 3.5 mm peripheral set Bullets (Compact) Broadcast video from your computer to a remote VGA display over your LAN, with remote USB console control - Turns your VGA monitor, television or projector into an IP display - VGA over IP extender converter - Works with wired or wireless computers Bullets (Consolidated) Broadcast video from your computer to a remote VGA display over your LAN with remote USB console control - Works with VGA monitors televisions and projectors and any Windows computer connected to your network - Supports wired or wireless computers - Resolutions up to 1920 x 1200 - Turns your VGA monitor television or projector into an IP display - VGA over IP extender/Video over IP converter/Network display adapter - Collaborate with co-workers by using your network to share your display Marketing Copy Marketing Copy (No HTML) Applications - Create a remote KVM console that you can use to control your server from a remote location
- Install in your office boardroom, to enable your employees or co-workers to share each other's screens on a larger display
- Share information with clients at doctors offices and hospitals, while keeping the computer in a remote, secure location
Website Product Alert This product is no longer supported on Windows 8.1, 10 or 11 Website Search Keyword - Display to IP
- Display to LAN
- PC video to IP
- PC video to LAN
- Projector to IP
- Projector to LAN
- VGA over IP
- VGA over IP converter
- VGA over IP extender
- VGA over LAN
- Network display adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- USB2HAB6
- USB2HAB10
- USB2HAB15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- MXT105HQ
Related Products IPUSB2HD3 Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Humidity 0-80% RH Material Steel Operating Temperature 0°C - 40°C (32°F ~ 104°F) Primary Material Steel Product Length (mm) 101.000 Product Width (mm) 73.000 Product Height (mm) 23.000 Product Weight (g) 304.000 Storage Temperature -10°C - 60°C (14°F - 140°F) TAA Compliant Yes General Specifications This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. Max Distance 100m [328ft] Maximum Analog Resolutions 1920x1200 Maximum Data Transfer Rate OS Compatibility - Windows 7
- Windows 8

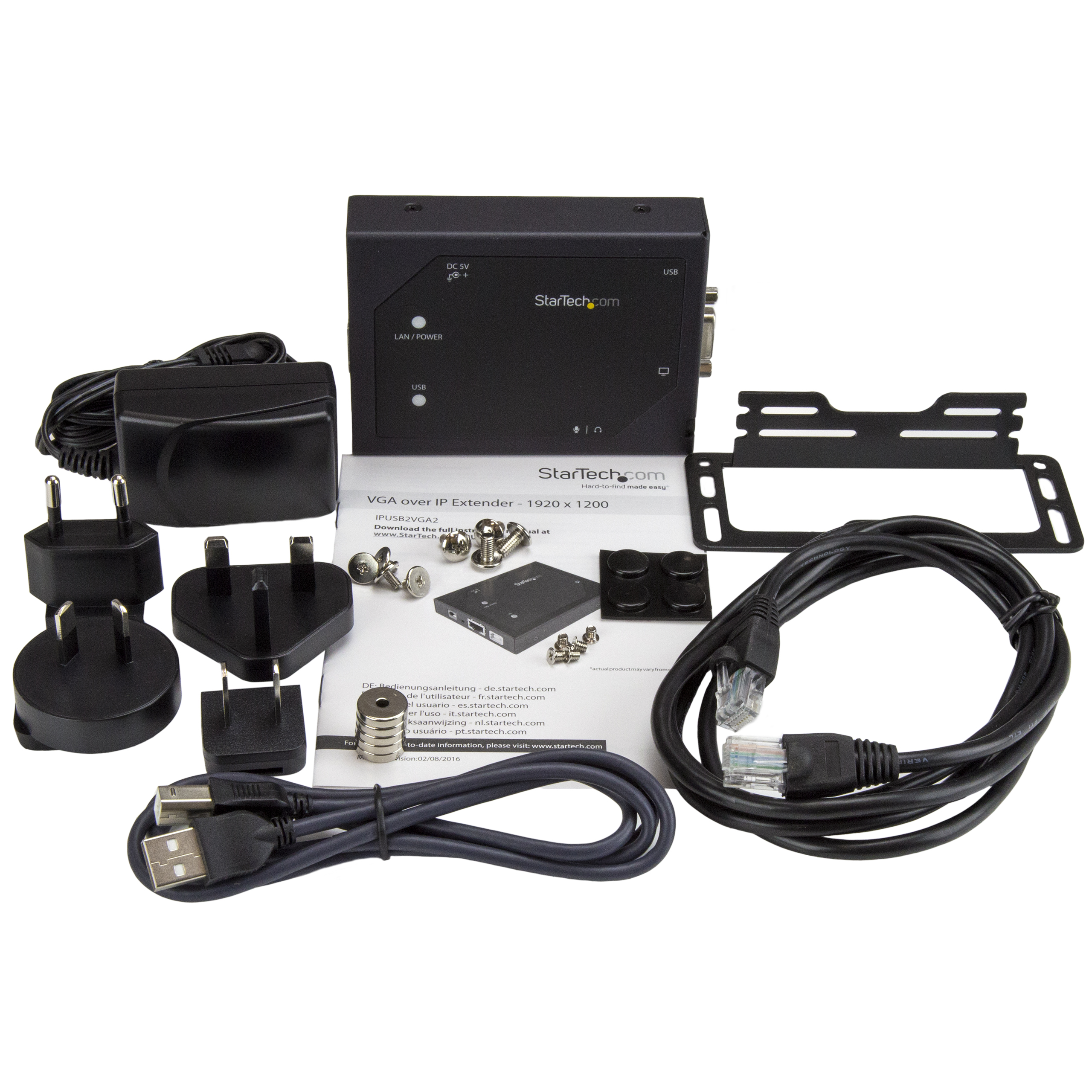

Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP or better Cascadable No Chipset ID DisplayLink - DL-195 Carton Depth (mm) 312 Carton Height (mm) 211 Carton Quantity 12 Carton Weight Gross (g) 9070 Included in Package - 1 - VGA over IP extender
- 1 - screw kit
- 1 - footpad set
- 1 - mounting bracket
- 1 - 3 ft [1 m] USB cable
- 1 - 5 ft [1.5 m] CAT5 cable
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - quick install guide

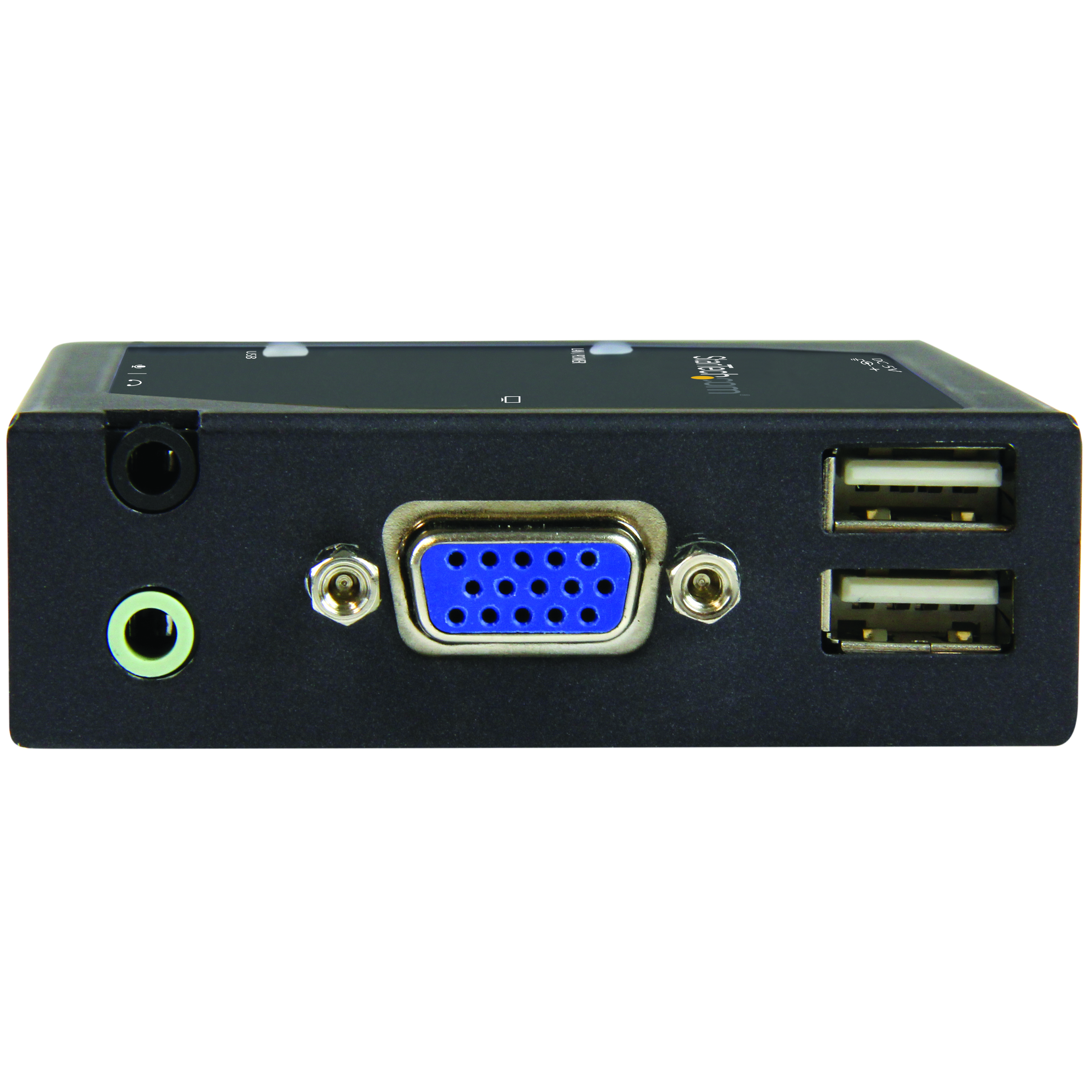

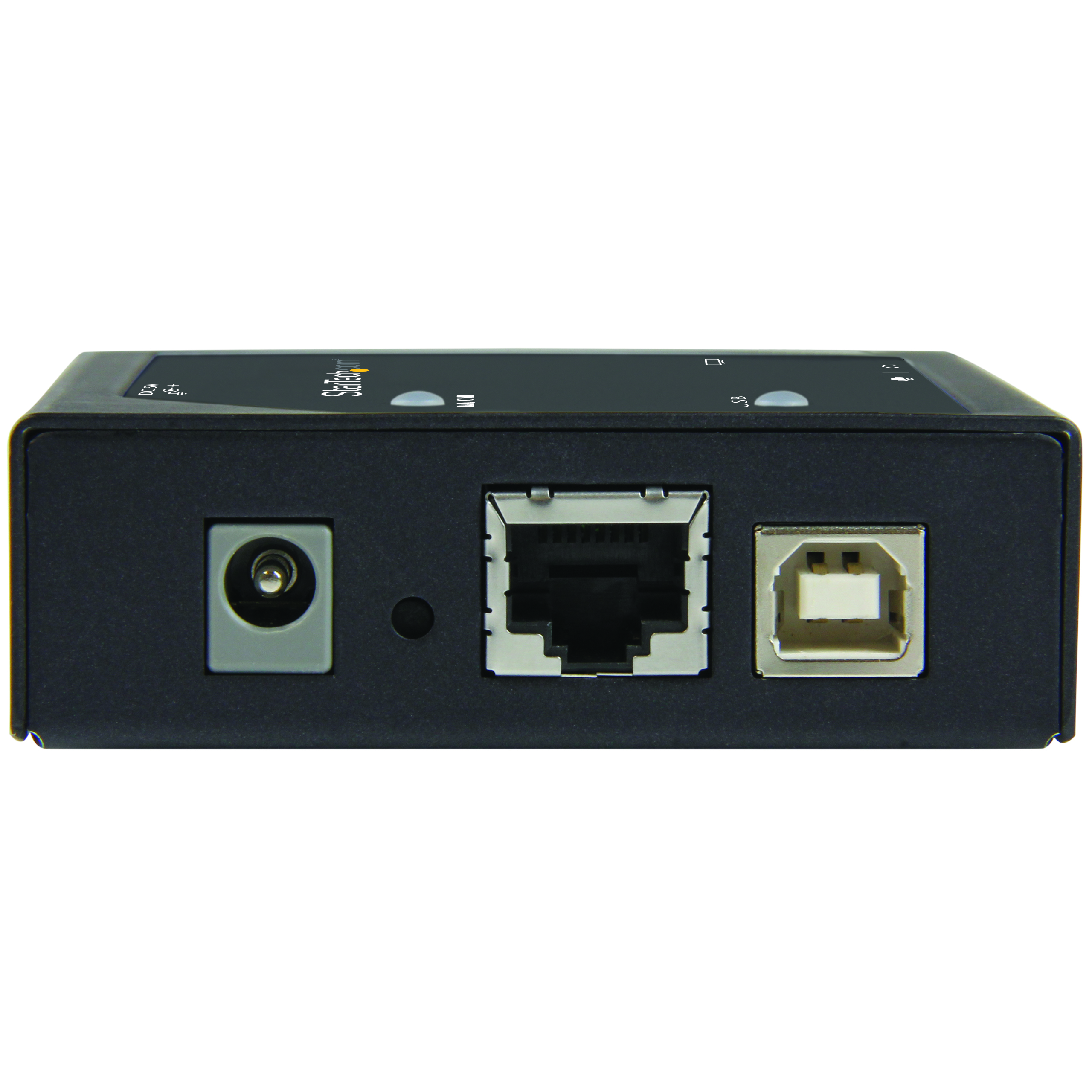

Package Depth (mm) 142 Package Height (mm) 68 Package Width (mm) 167 Package Quantity 1 Package Weight (g) 690 Packaging Description VGA over IP Extender - 1920x1200 Packaging Description India VGA over IP Extender - 1920x1200 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 USB-B (480Mbps, 2.5W) Connector 4 (Quantity) 1 Connector 5 RJ-45 Connector 5 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 USB-A (480Mbps, 2.5W) Host Connector 3 (Quantity) 2 Host Connector 4 RJ-45 Host Connector 4 (Quantity) 1 Host Connector 5 3.5mm (3 Conductors, TRS) Host Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-12-17 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-06-20 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-02-05 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None
