ISA1S550
1 Port 16550 ISA Serial Card
Add an RS232 port to legacy computer systems through an ISA slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port 16550 ISA Serial Card Product Number ISA1S550 UPC 065030781756 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port ISA Serial Adapter Card Product Title (Standard) StarTech.com 1 Port ISA RS232 Serial Adapter Card with 16550 UART - Serial adapter - ISA - serial Product Title (Long) 1 Port ISA RS232 Serial Adapter Card with 16550 UART Product Title (AMZ) 1 Port ISA RS232 Serial Adapter Card with 16550 UART (ISA1S550) Title Ingram (Part 1) 1 Port ISA RS232 Serial Adapter Title Ingram (Part 2) Card with 16550 UART Website Product Headline Add an RS232 port to legacy computer systems through an ISA slot Bullet 1 Includes drivers for Windows® 3.1, 95, 98, NT4, NT5 Bullet 2 Supports the RS-232 interface Bullet 3 Full jumper set to ensure compatibility with almost any PC system Marketing Copy Applications Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products ISA2S550 Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 128 Product Height (mm) 70 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No FIFO 16 Bytes General Specifications COM Settings: COM1 to COM7 Max Baud Rate 460.8 Kbps Maximum Data Transfer Rate 460.8 Kbps OS Compatibility - Windows 3.1
- Windows 95
- Windows 98
- Windows 98SE
- Windows NT

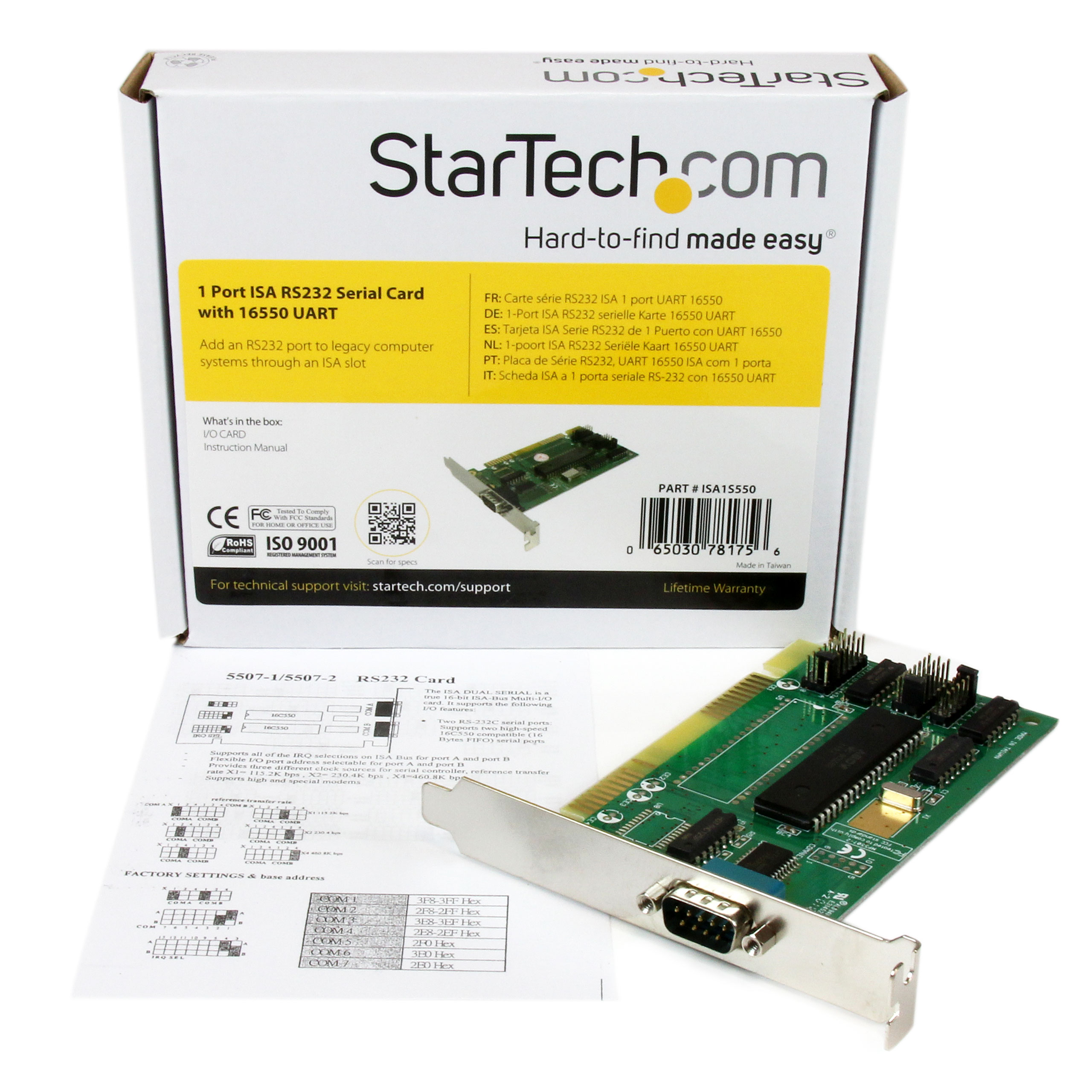

Supported Serial Protocol RS-232 Bus Type ISA Card Type Standard Profile Chipset ID National Semiconductor - NS16550AFN Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 750 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 7200 Included in Package - 1 - I/O CARD
- 1 - Instruction Sheet
Package Depth (mm) 22 Package Height (mm) 138 Package Width (mm) 150 Package Weight (g) 120 Packaging Description 1 Port ISA RS232 Serial Card 16550 UART Packaging Description India 1 Port ISA RS232 Serial Card 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ISA Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
