ISA1S650
Main Image

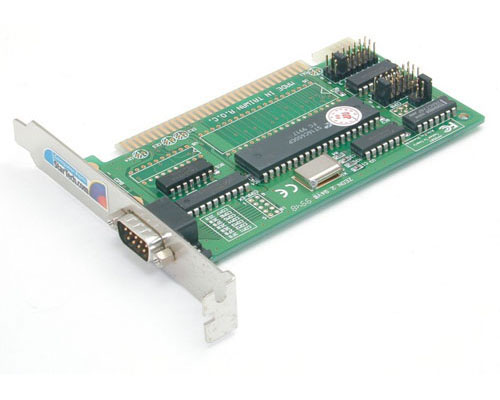

Product Name *D*1 PORT ISA 16C650 SERIAL ACCELERATOR Product Number ISA1S650 UPC 065030785556 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Long) *D*1 Port 16650 ISA Serial Card Bullet 1 One high speed 9-pin serial port Bullet 2 Full jumper set to ensure compatibility with almost any PC system Marketing Copy The StarTech.com Single-Port ISA Serial Card is a high performance serial add-in card that provides PC workstations with an additional COM port for connecting an external serial peripheral such as an ISDN TA, modem, mouse, digitizer, and more. The serial port can be configured up to 460.8 Kbps for ultra-fast data transfer. Jumpers on the card provide easy configuration and complete compatibility as a basic COM port for any operating system. TAA Compliant No General Specifications - Bus Interface: ISA
- Connector: DB9 Male
- Serial Port: 16C650
- COM settings: COM1 to COM7
- IRQ settings: IRQ 3,4,5,9,10,11,12,15 for each port
- Clock settings: x1 115.2 Kbps, x2 230.4 Kbps, x4 460.9 Kbps
Bus Type ISA Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - I/O CARD
- 1 - DRIVER DISK
Package Depth (mm) 24 Package Height (mm) 140 Package Width (mm) 154 Package Weight (g) 130 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Carey Cline
