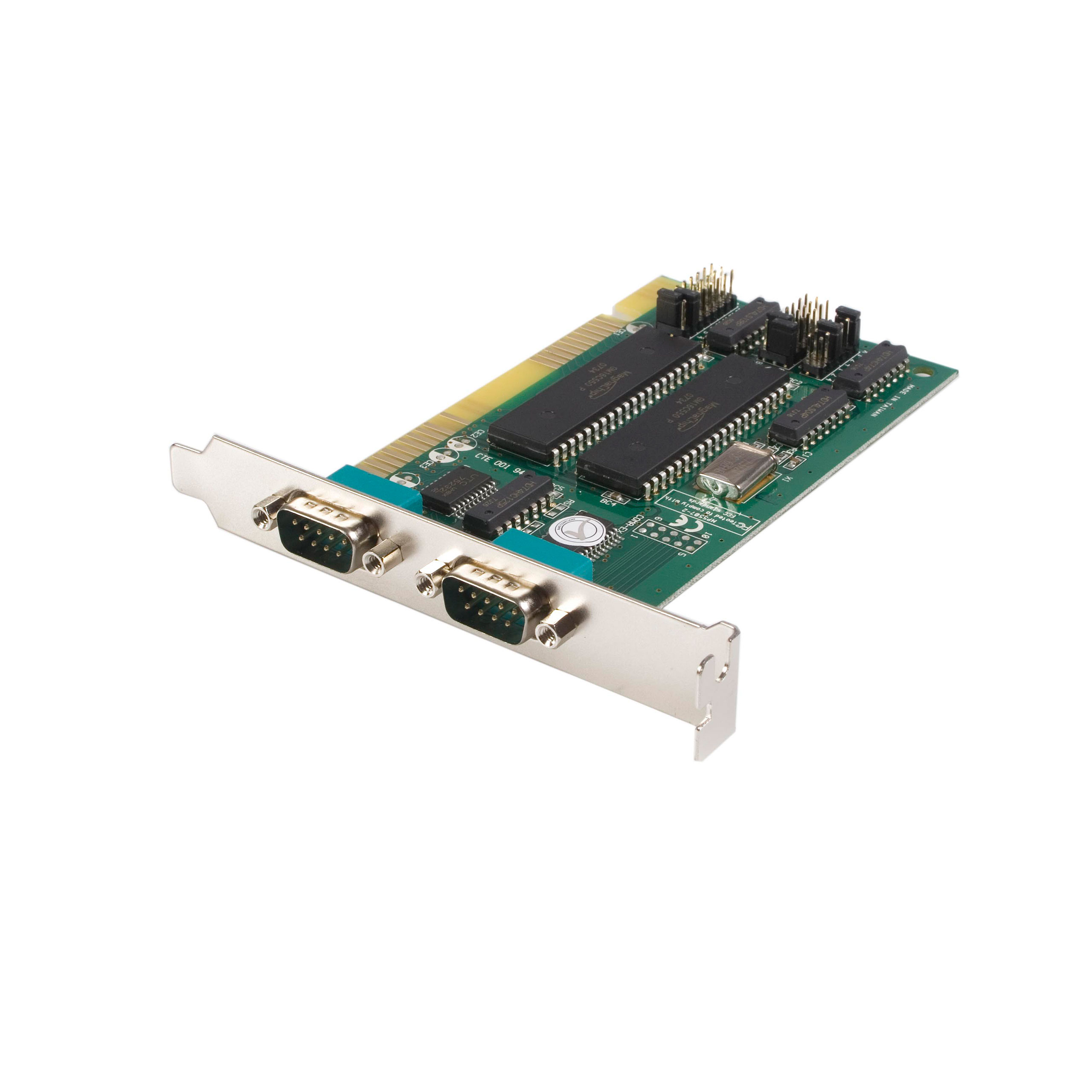

Main Image
ISA2S550
2 Port 16550 ISA Serial Card
Add 2 RS232 ports to legacy computer systems through an ISA slot
Main Image

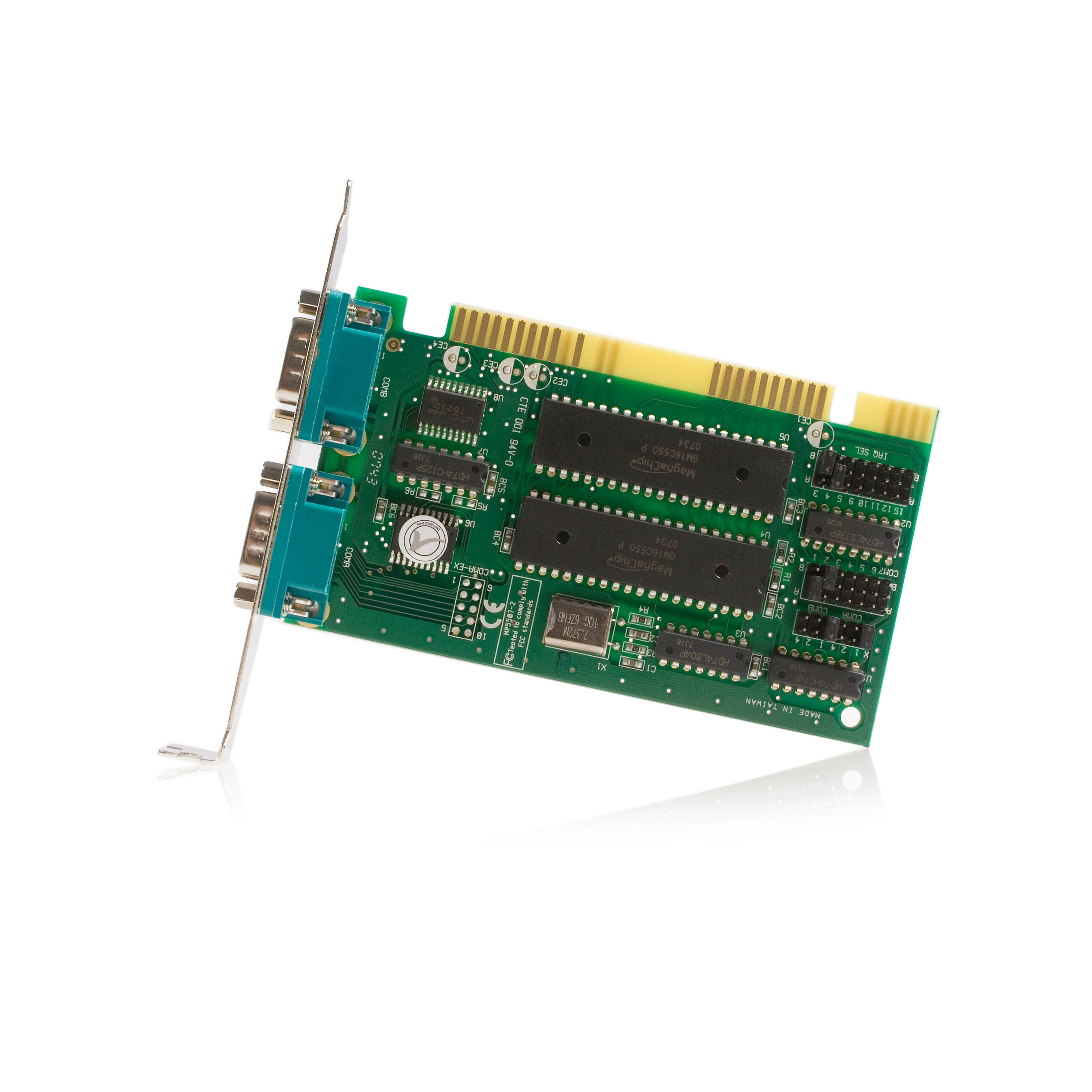

Product Images

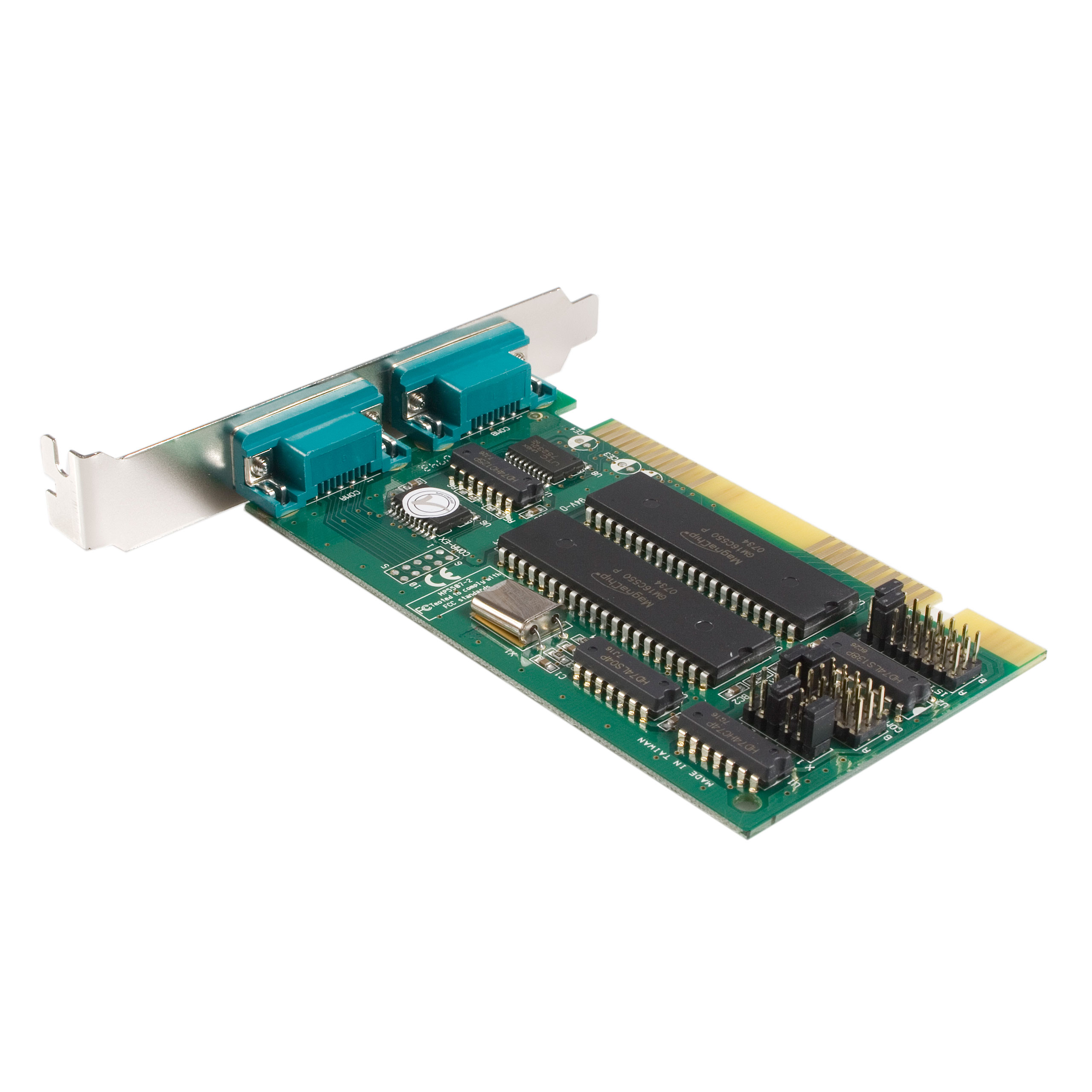

Product Images

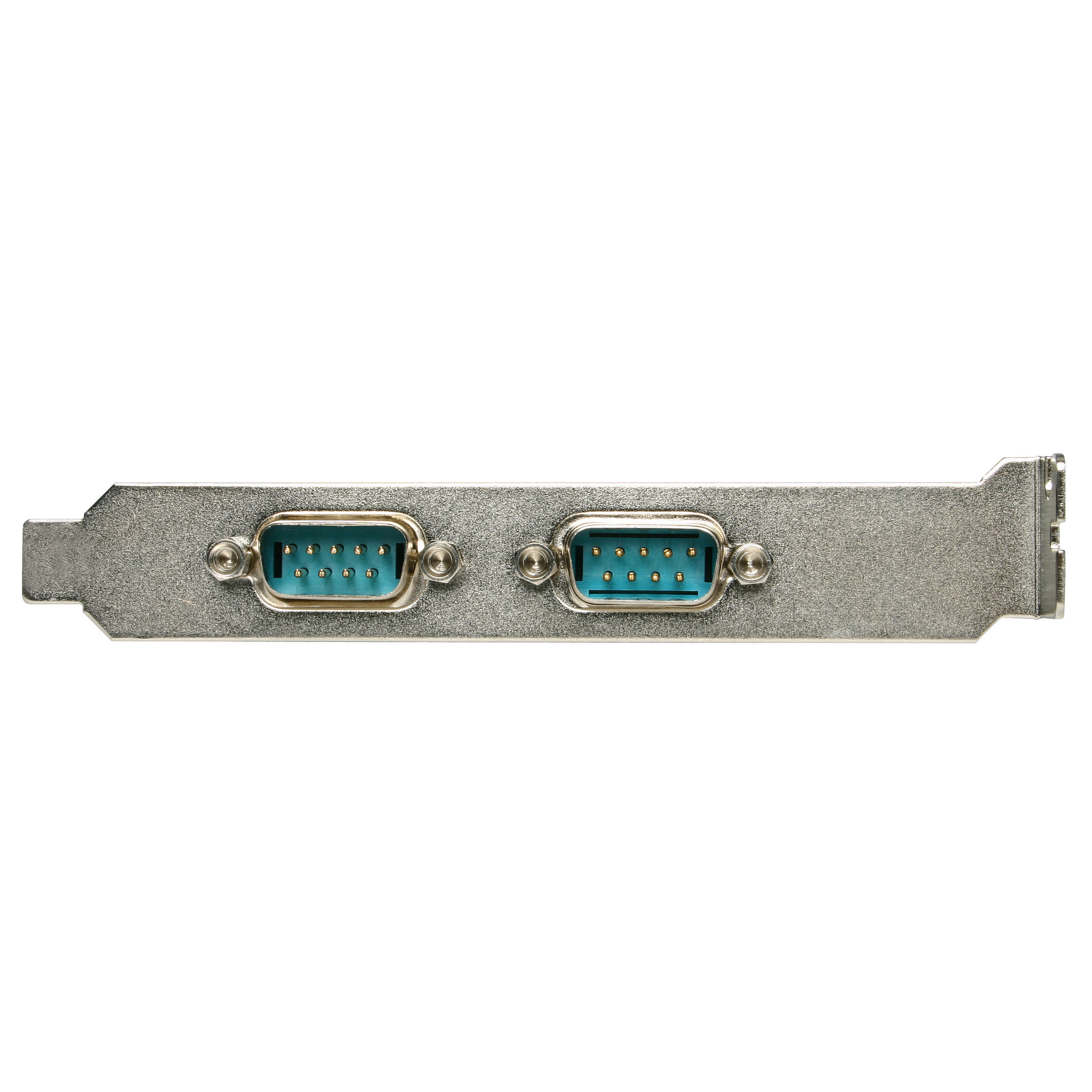

Product Images

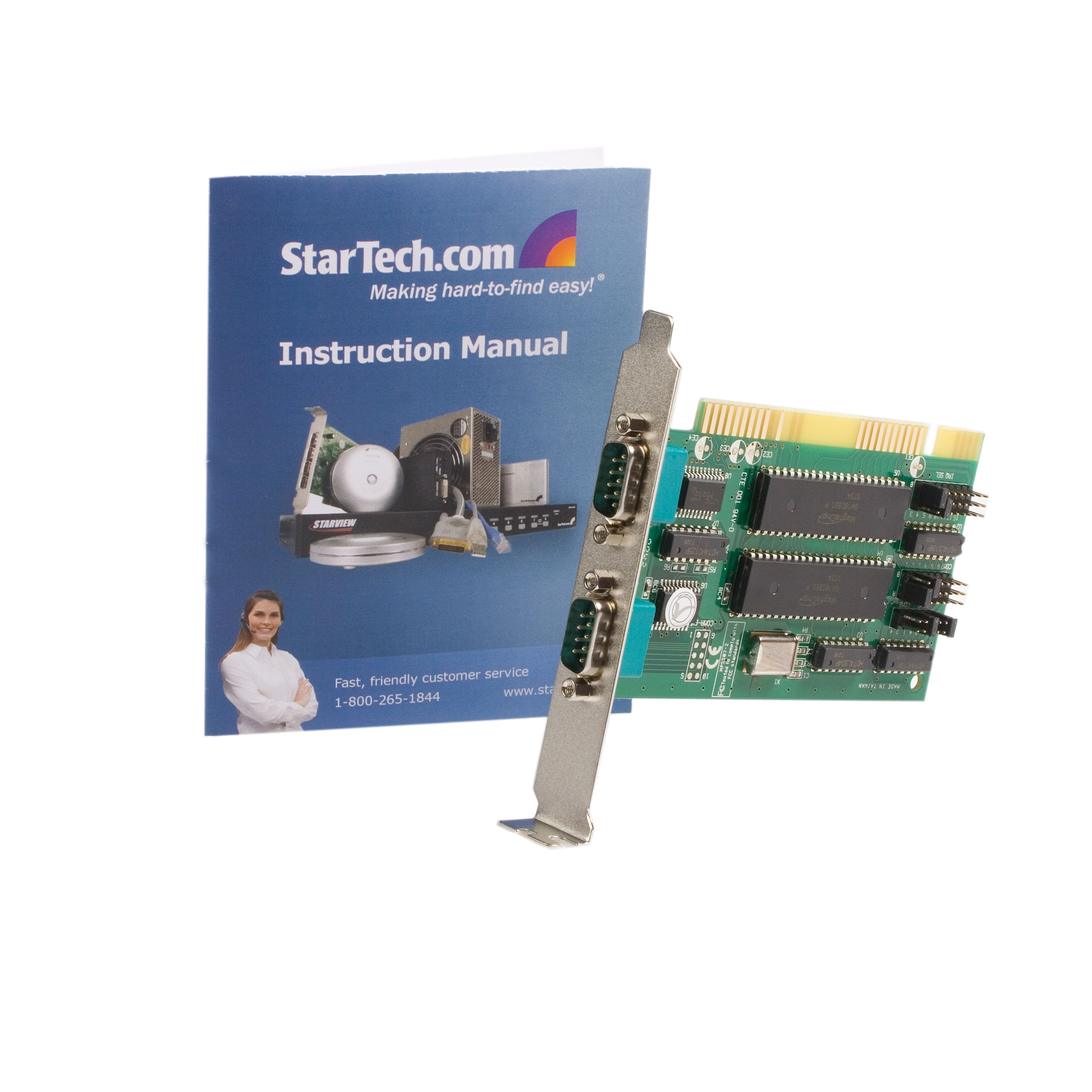

BOM Image
Product Name 2 Port 16550 ISA Serial Card Product Number ISA2S550 UPC 065030785372 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port ISA Serial Adapter Card Product Title (Standard) StarTech.com 2 Port ISA RS232 Serial Adapter Card with 16550 UART - Serial adapter - ISA - serial Product Title (Long) 2 Port ISA RS232 Serial Adapter Card with 16550 UART Product Title (AMZ) 2 Port ISA RS232 Serial Adapter Card with 16550 UART - Up to 460.8Kbps (ISA2S550) Title Ingram (Part 1) 2 Port ISA RS232 Serial Adapter Title Ingram (Part 2) Card with 16550 UART Website Product Headline Add 2 RS232 ports to legacy computer systems through an ISA slot Bullet 1 Full jumper set to ensure compatibility with almost any PC system Bullet 2 Supports the RS-232 interface Bullet 3 Supports COM1-COM7 and IRQ 3,4,5,9,10,11,12,15 settings for each port Bullets (Consolidated) Serial adapter - ISA - RS-232 x 2 Marketing Copy Marketing Copy (No HTML) StarTech.com's ISA-based RS232 Serial Card (16550 UART) can be installed in an ISA motherboard slot to add two RS232 serial COM ports, with support for data transfer rates of up to 460.8Kbps for peak serial device performance. The ISA Serial Adapter Card includes drivers for DOS, Windows and LInux, and offers a full built-in jumper set to ensure easy configuration and broad compatibility. A cost-effective solution for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, to a system, the ISA serial card is backed by StarTech.com's Lifetime Warranty and free lifetime technical support. Applications Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products ISA1S550 Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 0.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 0.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 16 Bytes Max Baud Rate 460.8 Kbps OS Compatibility Linux Supported Serial Protocol RS-232 Bus Type ISA Card Type Standard Profile Chipset ID ASIX - MCS9820CV Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 750 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 7700 Included in Package - 1 - I/O CARD
- 1 - Instruction Sheet
Package Depth (mm) 24 Package Height (mm) 140 Package Width (mm) 152 Package Quantity 1 Package Weight (g) 130 Packaging Description 2 Port ISA RS232 Serial Card Packaging Description India 2 Port ISA RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ISA Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
