ISAS88701

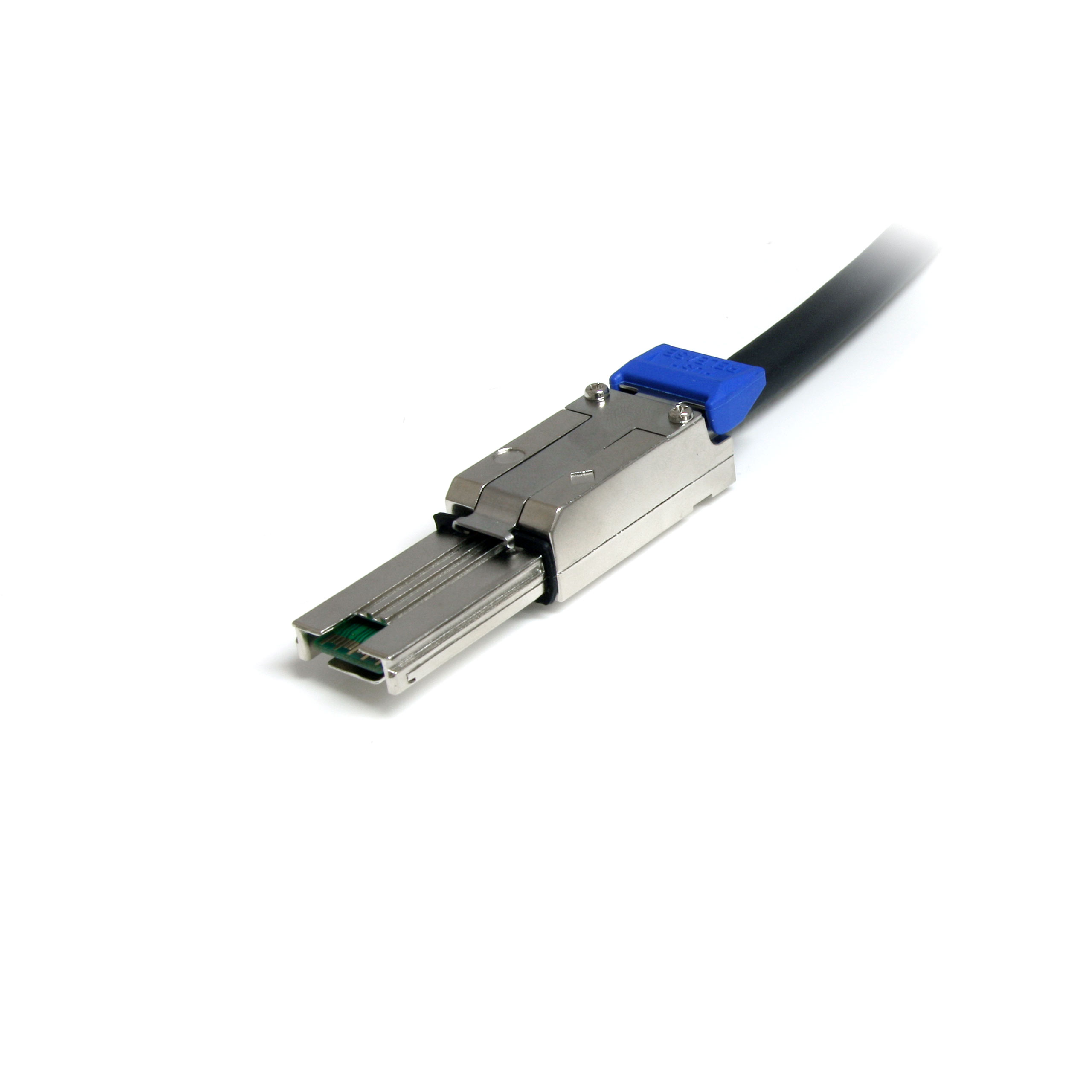

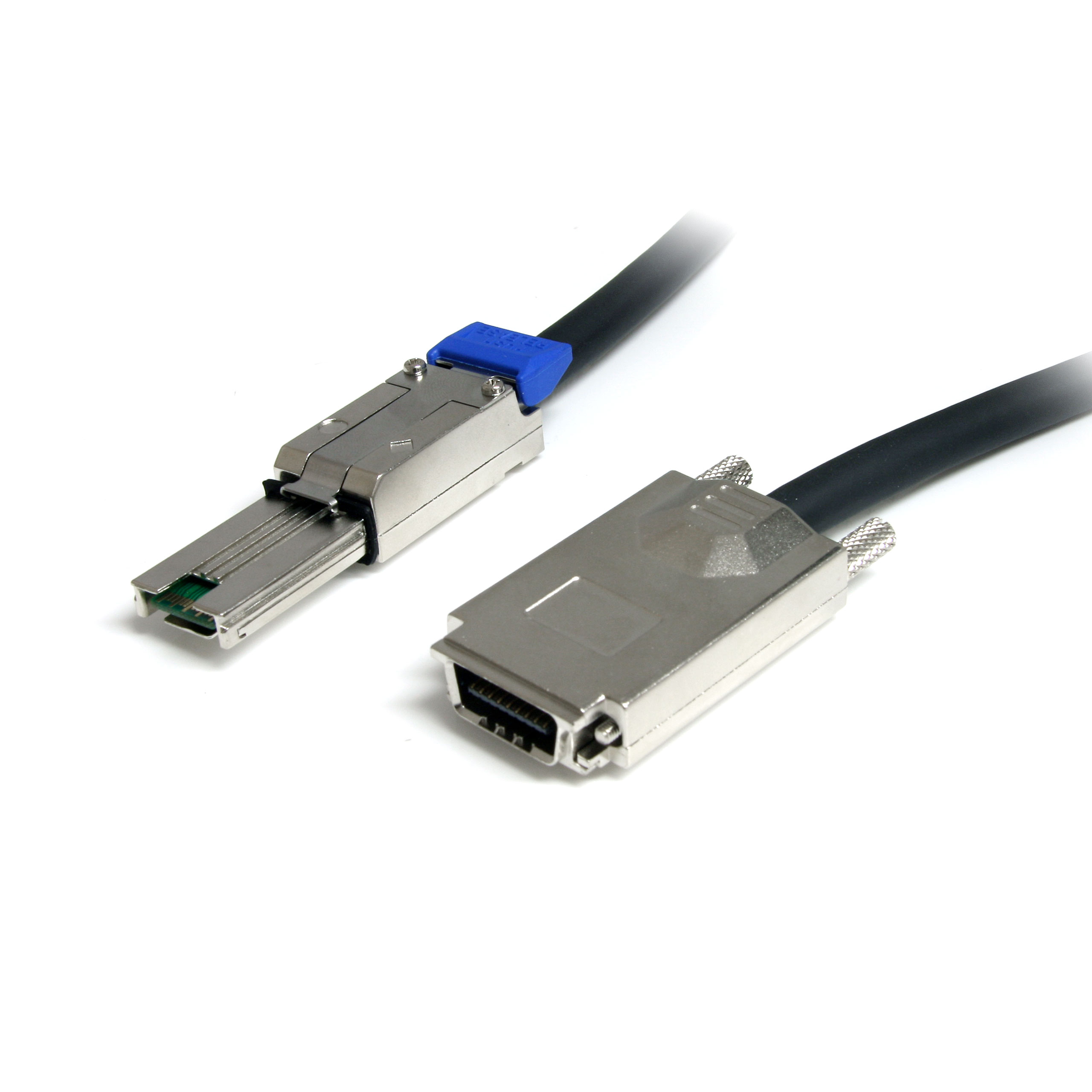

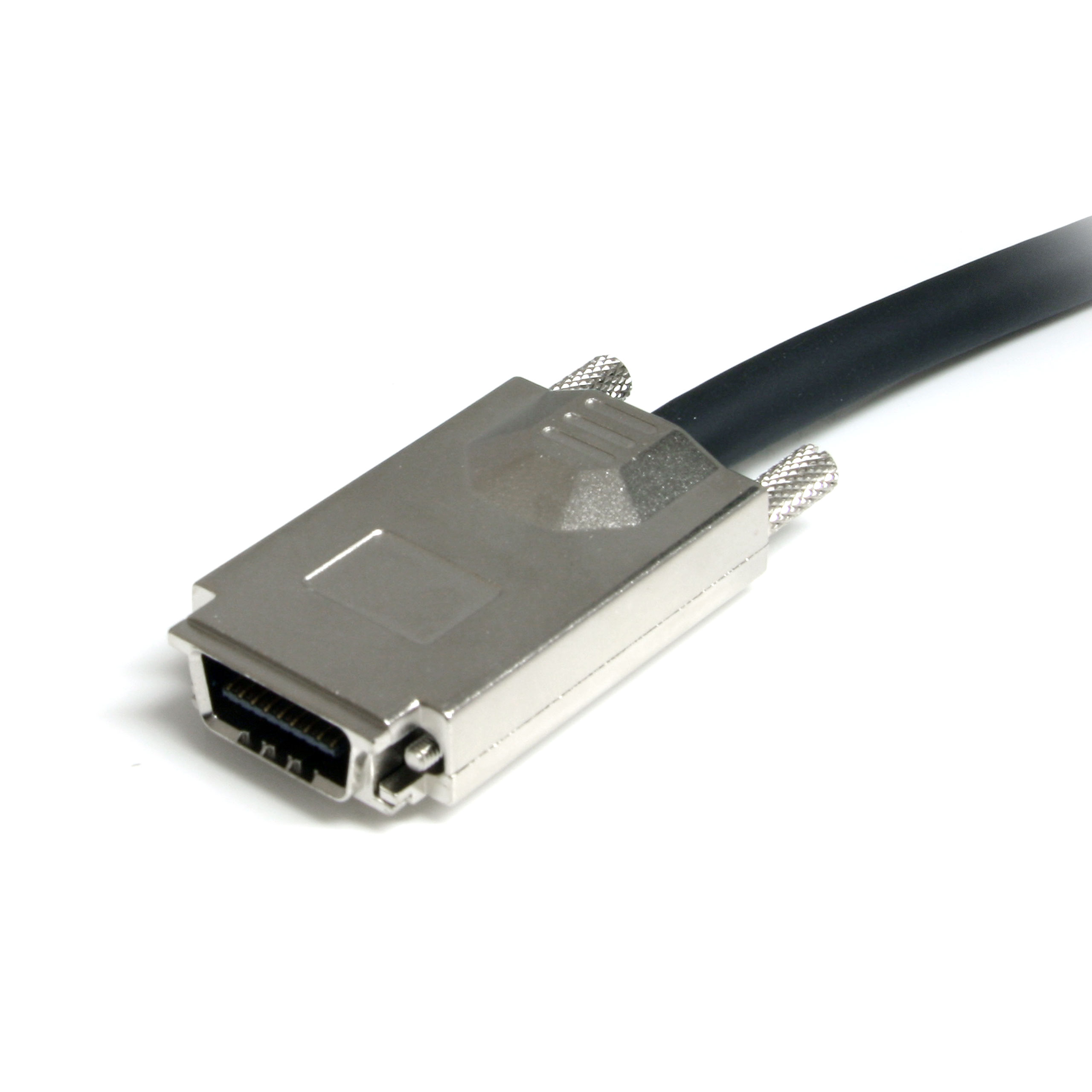

1m SFF-8470 to SFF-8088 External SAS Cable
Connect External SAS Devices including Servers, Workstations and Desktops
Main Image
Product Images
Product Images
Product Name 1m SFF-8470 to SFF-8088 External SAS Cable Product Number ISAS88701 UPC 065030843782 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Cables - Other Category Level 2 Drive Cables Category Level 3 SAS Cables Family Mini SAS 8470 to 8088 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX084X Product Title (Short) 1m SAS Cable - SFF-8470 to SFF-8088 Product Title (Standard) 1m External Serial Attached SCSI SAS Cable - SFF-8470 to SFF-8088 Product Title (Long) 1m External Serial Attached SCSI SAS Cable - SFF-8470 to SFF-8088 Product Title (AMZ) 1m External Serial Attached SCSI SAS Cable - SFF-8470 to SFF-8088 Cable (ISAS88701) Title Ingram (Part 1) 1m Serial Attached SCSI SAS Cabl Title Ingram (Part 2) e SFF-8470 to SFF-8088 Website Product Headline Connect External SAS Devices including Servers, Workstations and Desktops Bullet 1 Compatible with many servers, including: IBM MegaRAID 8480 / IBM System Storage EXP3000 / IBM x3850 (8864) / IBM x3800 (8866) / IBM x3655 (7985) / IBM x3455 (7984,7986) / IBM x3250 (4364,4365) Bullet 2 Durable metal connectors Bullet 3 Supports data transfer rates up to 6 Gbps Bullet 4 Infiniband plug with thumbscrews for secure connections Marketing Copy Marketing Copy (No HTML) The ISAS88701 1-meter Serial Attached SCSI Cable is designed for high-performance networks, servers, workstations and desktops, featuring one SFF-8470 (Infiniband®) connector and one SFF-8088 (external mini-SAS) connector with support for data transfer rates up to 6 Gbps. This SFF-8470 to SFF-8088 SAS cable is constructed of high quality materials and is backed by StarTech.com's Lifetime Warranty. Applications - Connect SAS Controllers to SAS Backplanes
- For use in Storage Area Networks, to connect SAS Expander enabled controllers and enclosures
Website Search Keyword - SAS
- ISAS
- miniSAS
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - ISAS88702
- ISAS88881
- ISAS88882
- ISAS88704
Cable Length (mm) 1000 Cable OD 8.763 Color Black Primary Material Plastic Product Length (mm) 1000.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 190.000 TAA Compliant Yes Wire Gauge 26 AWG (0.404 mm) Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-polyester foil with tinned copper braid Number of Conductors 8 Twisted Pair Carton Depth (mm) 348 Carton Height (mm) 274 Carton Quantity 50 Carton Weight Gross (g) 26200 Included in Package 1 - 1m External Serial Attached SCSI SAS Cable - SFF-8470 to SFF-8088 Number of Sub-Cartons 5 Package Depth (mm) 255 Package Height (mm) 14 Package Width (mm) 330 Package Quantity 1 Package Weight (g) 193 Packaging Description External Serial Attached SAS Cable 8470/8088 Packaging Description India External Serial Attached SAS Cable 8470/8088 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 SFF-8470 (32-Pin, SAS) Connector 1 (Quantity) 1 Connector 2 SFF-8088 (26-Pin, Mini SAS) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
