J9151E-ST

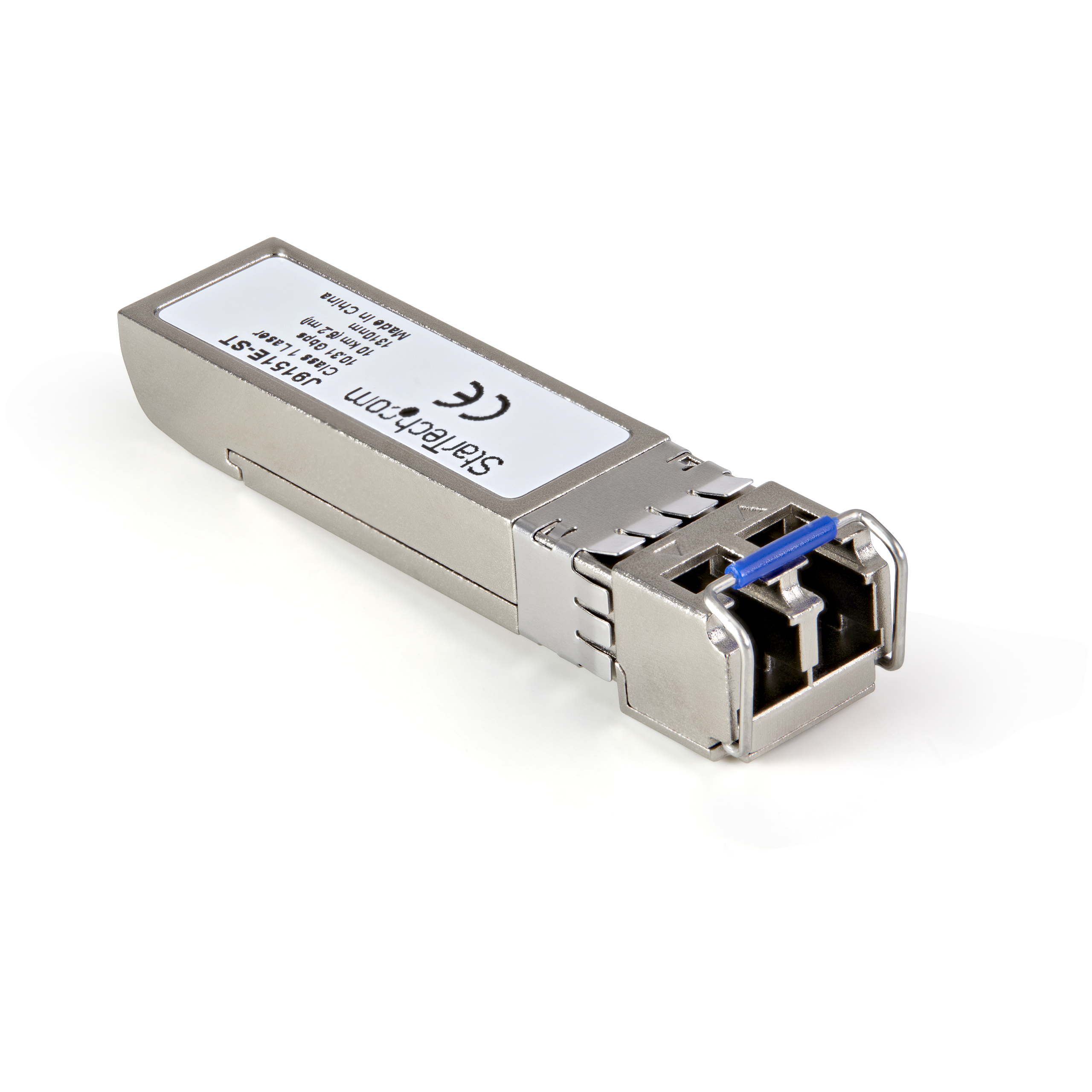

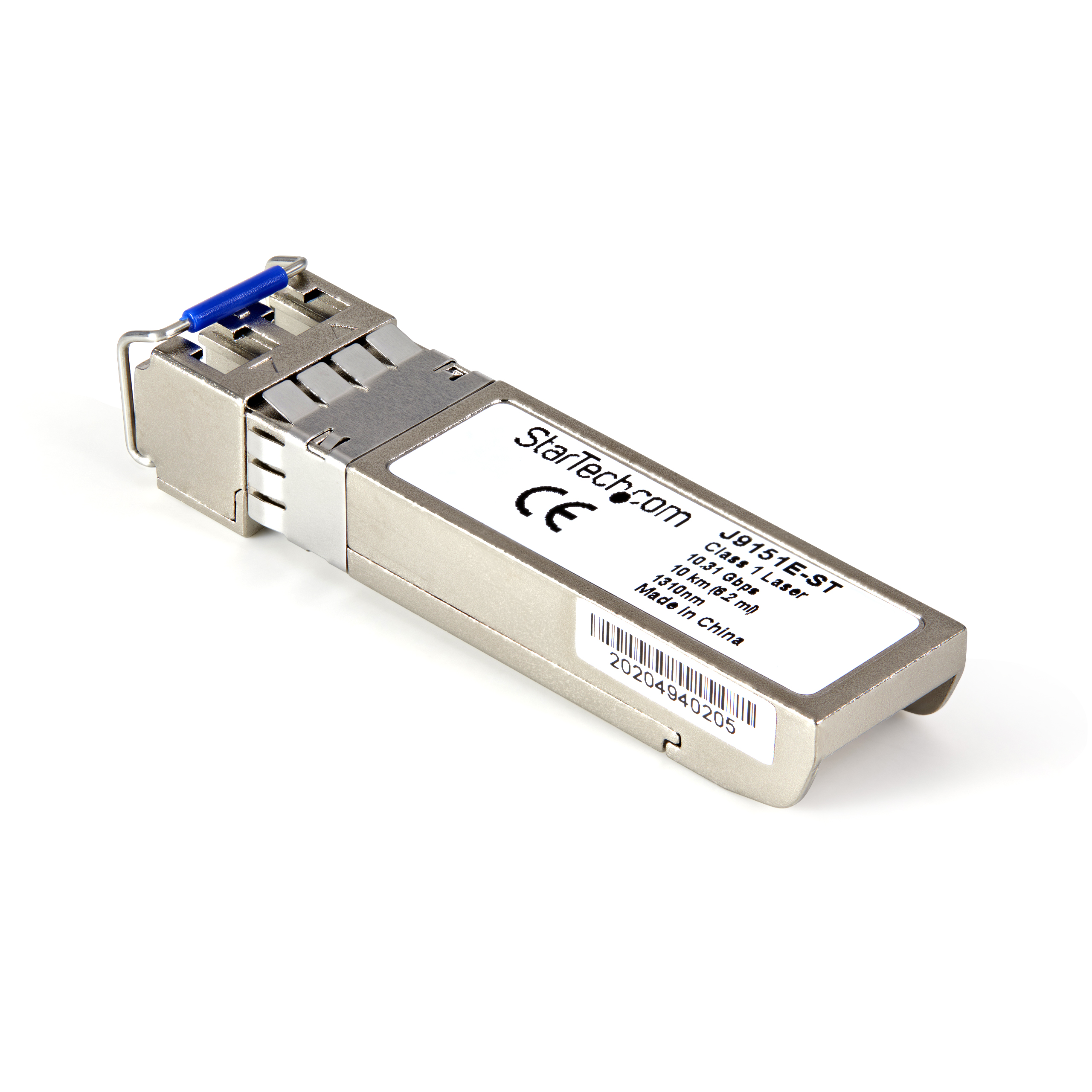

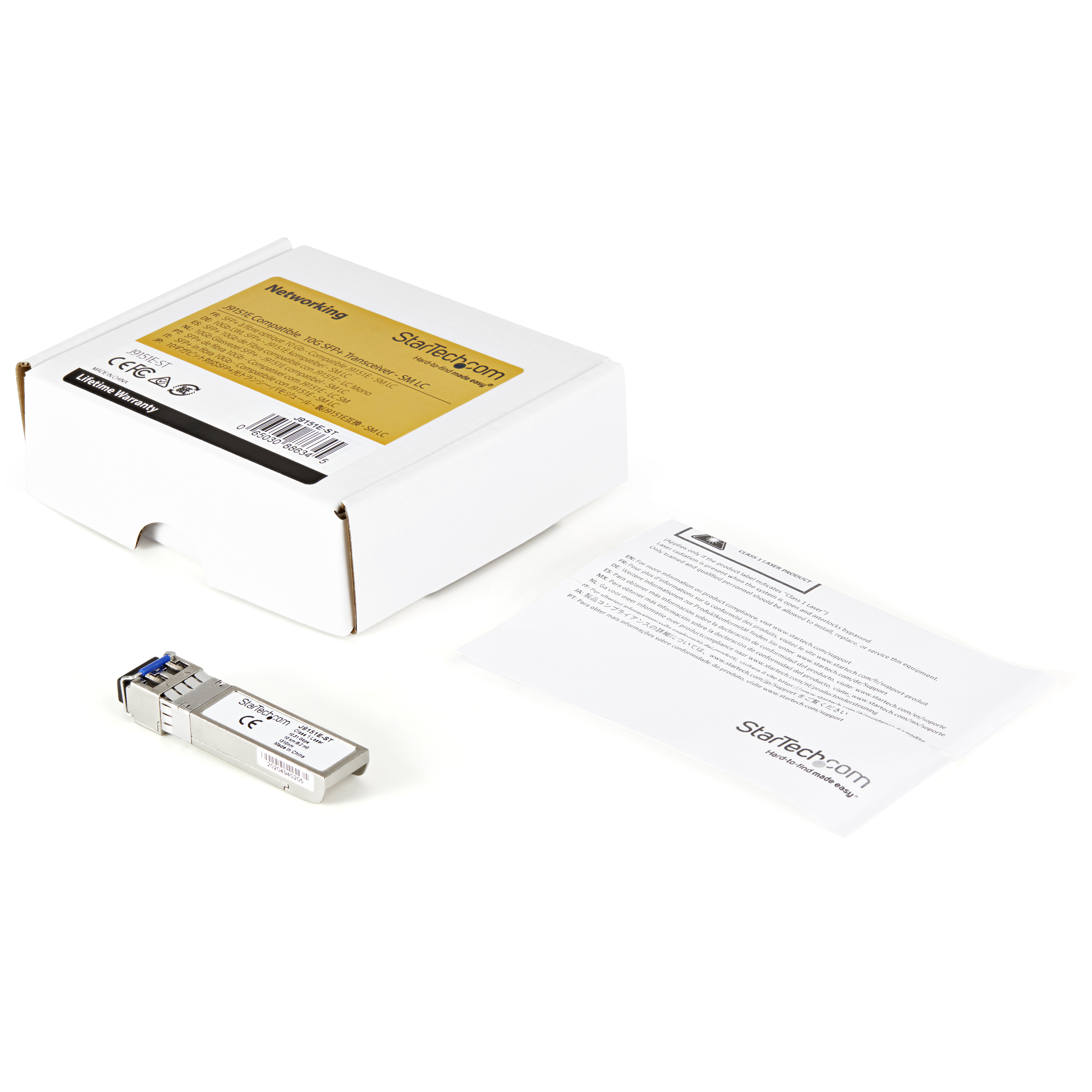

HP J9151E Compatible 10GBase LR SFP Transceiver SMF 1310n
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
Main Image
Product Images
BOM Image
Product Name HP J9151E Compatible 10GBase LR SFP Transceiver SMF 1310n Product Number J9151E-ST UPC 065030886345 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 HP Compatible Family HP Compatible - 10G SFP+ Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) J9151E Comp Product Title (Short) HPE J9151E Compatible SFP+ - 10GbE DDM Product Title (Medium) HP J9151E Compatible SFP+ SM Module - 10GBase-LR - Lifetime Warranty Product Title (Standard) HPE J9151E Compatible SFP+ Module - 10GBASE-LR - 10GE Gigabit Ethernet SFP+ 10GbE Single Mode Fiber Optic Transceiver - 10km Product Title (Long) HPE J9151E Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 2930F, 8325, 3810M Product Title (AMZ) HPE J9151E Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode (SMF) Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 2930F, 8325, 3810M (J9151E-ST) Title Ingram (Part 1) HP J9151E Comp - Title Ingram (Part 2) SFP+ Module - SM Transceiver Website Product Headline 10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty Bullet 1 100% HPE J9151E COMPATIBLE: Works with HPE switches like 2930F, 8325, 3810M, 5400zl, 5400R and others Bullet 2 TECHNICAL SPECS: 10GBASE-LR | 10Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi) Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullets (Compact) HPE J9151E Compatible SFP+ - 10GBASE-LR 10Gbps - 10GbE Module - 10GE Gigabit Ethernet SFP+ 1310nm Single Mode (SMF) Transceiver - 10km (6.2mi) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) HPE J9151E Compatible SFP+ 10GBASE-LR (10Gbps) Gigabit Ethernet - 1310nm Single Mode (SMF) - Up to 10km (6.2mi) - LC Connector DDM - For HPE switches like: 2930F 8325 3810M 5400zl 5400R 6120 6200yl 8200zl - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 10 gigabit sfp+
- 10 gigabit transceiver
- 10G ethernet sfp+
- 10G module
- 10G sfp+
- 10g sfp+ lr
- 10g sfp+ transceiver
- 10gbase ethernet
- 10gbase lr
- 10gbase lr sfp+
- 10gbe sfp+
- 10ge sfp+
- fiber optic transceiver
- fiber optic transceiver module
- fiber sfp+
- fiber transceiver module
- HP 10g sfp+
- HP J9151E
- HP sfp+
- HP sfp+ module
- HPE sfp+
- J9151E
- lr module
- sfp+
- sfp+ 10ge lr
- sfp+ 1310nm
- sfp+ fiber module
- sfp+ fiber transceiver
- sfp+ module
- sfp+ optical transceiver
- sfp+ transceiver
- sfp+ transceiver module
- single mode fiber module
- single mode fiber transceiver
- single mode module
- single mode sfp+
- single mode transceiver
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Output Voltage (V) 3.3V DC Power Consumption (In Watts) < 1.3W Humidity 0% to 85% Material Steel Operating Temperature 0ºC to 70ºC (32°F to 158°F) Primary Material Steel Product Length (mm) 13.900 Product Width (mm) 58.4 Product Height (mm) 13.7 Product Weight (g) 21 Storage Temperature -40ºC to 85ºC (-40°F to 185°F) TAA Compliant No Compatible Networks 10 Gbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 10.00 Gbps Max Transfer Distance 10 km (6.2 mi) MTBF (hours) 1,386,624,697 hours Wavelength 1310nm Fiber Connector LC Industry Standards IEEE 802.3ae 10GBASE-LR OEM Part Number J9151E SFP Compatible Brand HPE Carton Depth (mm) 90 Carton Height (mm) 31 Carton Quantity 1 Carton Weight Gross (g) 50 Included in Package 1 - SFP+ Transceiver Included In Package for Label 1 - SFP+ Transceiver Package Depth (mm) 93 Package Height (mm) 34 Package Width (mm) 114 Package Quantity 1 Package Weight (g) 52 Packaging Description 10Gb Fiber SFP+ - J9151E Compatible - SM LC Packaging Description India 10Gb Fiber SFP+ - J9151E Compatible - SM LC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFP Slot Connector 1 (Quantity) 1 Connector 2 LC Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-07-19 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-08-02 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-06-28 Target Production Release 2019-07-19 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
