KITBXAVHDPEU

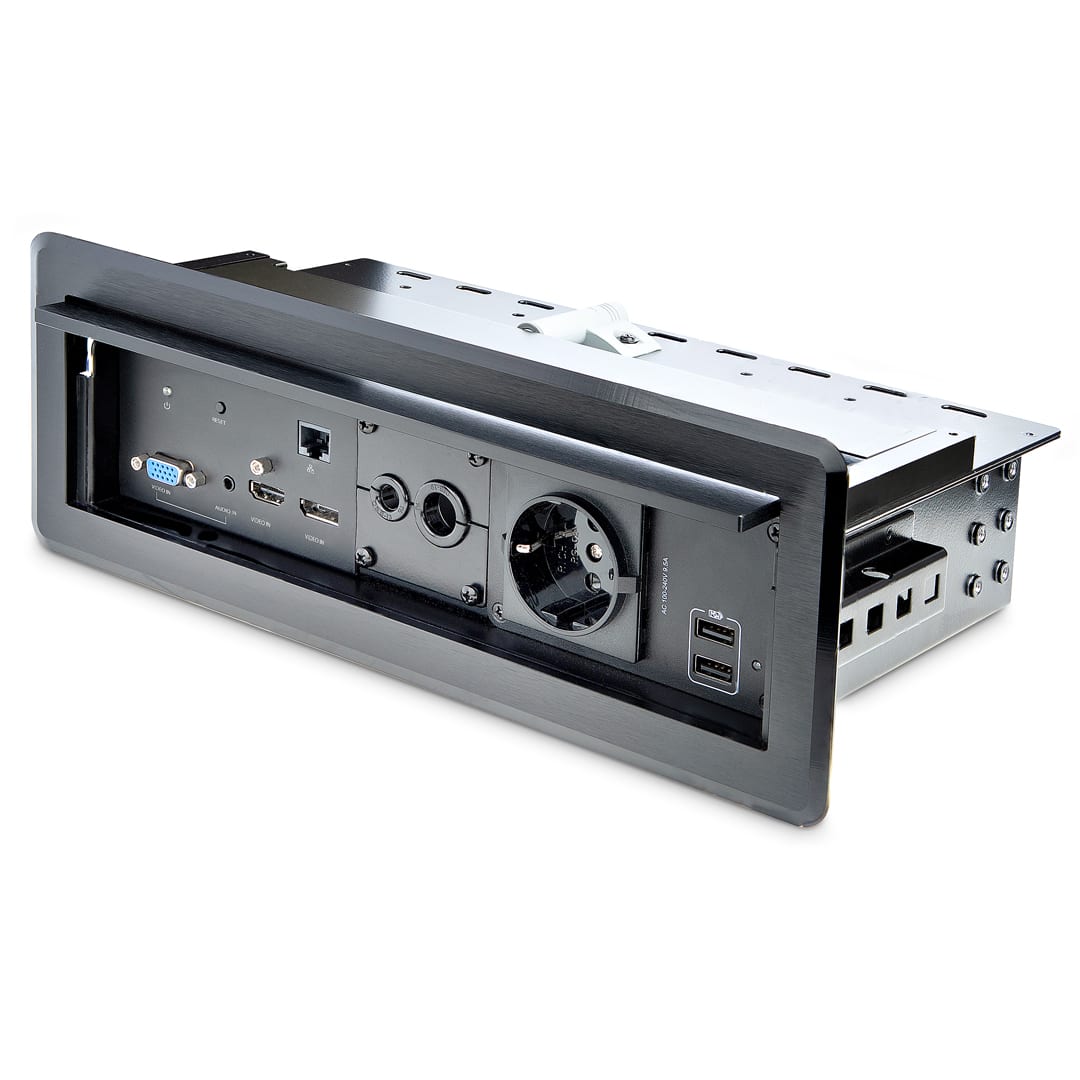

Kit for BOX4MODULE MOD4AVHD MOD4POWEREU

Architectural Connectivity | 4K | HDMI®, DisplayPort™ and VGA | 1x AC and 2x USB-A

Main Image

Product Images

Product Images

Product Images

Product Images

Product Images

Product Images

Product Images

Product Images

BOM Image

Video Link YouTube

Product Name	Kit for BOX4MODULE MOD4AVHD MOD4POWEREU
Product Number	KITBXAVHDPEU
UPC	065030891202
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Video Display Connectivity
Category Level 2	Table Panel Boxes
Category Level 3	Conversion Boxes
Family	Modular Table Box Kit
Country of Origin Europe & Japan	China
Country of Origin North America	China

Product Title (Ultra-Short)	Table Box A/V Power
Product Title (Short)	Conference Table Box for AV Connectivity
Product Title (Medium)	Conference Table Connectivity Box with A/V and Power Modules and Cable Organizer
Product Title (Standard)	Conference Table Box for AV Connectivity & Charging, 4K HDMI/DP or VGA, GbE, Audio, Power Center w/ 2x USB & 1x EU Plug
Product Title (Long)	Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A & 1x CE Certified EU Plug
Product Title (AMZ)	Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A & 1x CE Certified EU Plug (KITBXAVHDPEU)
Title Ingram (Part 1)	Conference Table Connectivity
Title Ingram (Part 2)	Box with AV & Power Modules
Website Product Headline	Architectural Connectivity \| 4K \| HDMI®, DisplayPort™ and VGA \| 1x AC and 2x USB-A

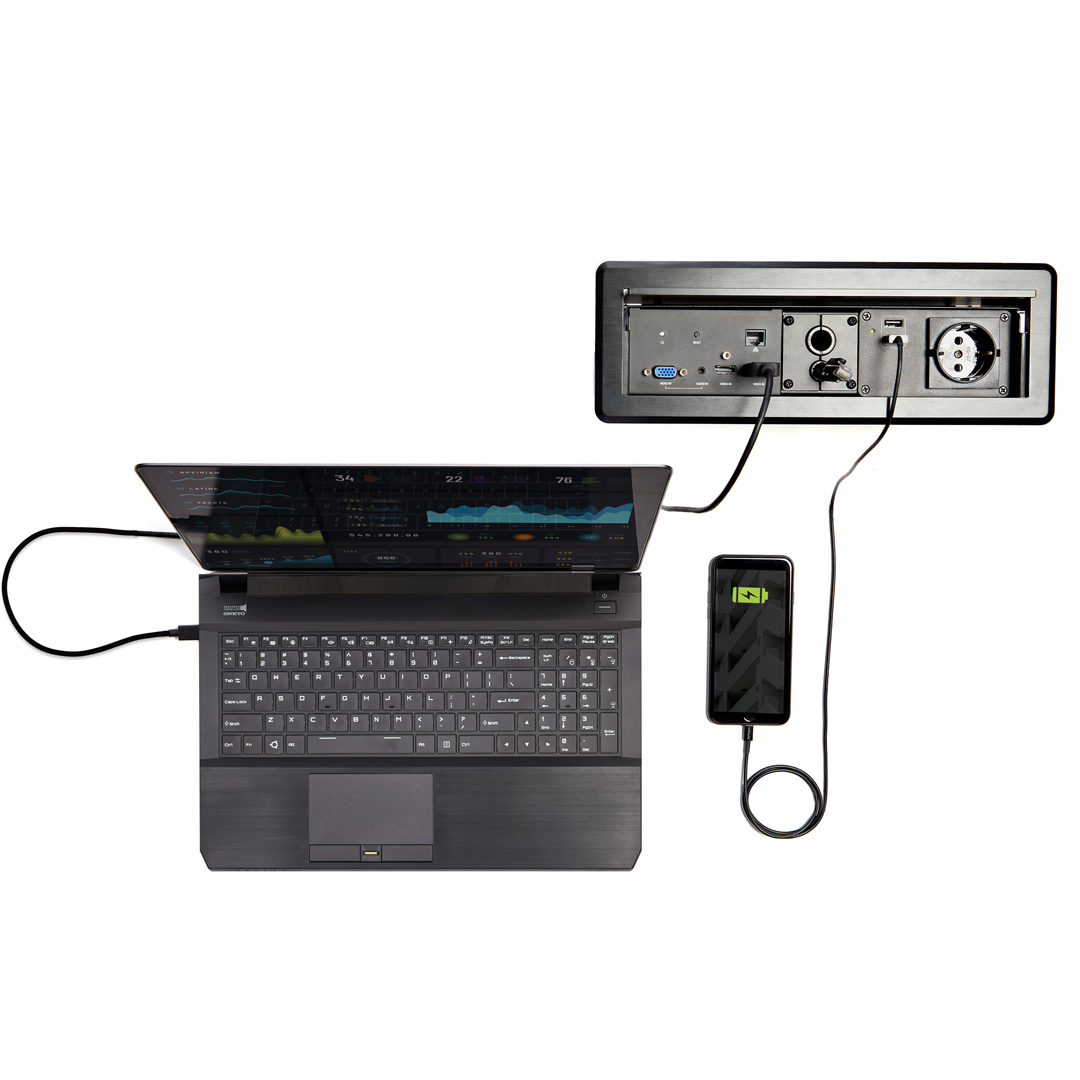

Bullet 1	IN-TABLE AV DOCKING SOLUTION: Setup an in-desk or in-table AV station offering connectivity for HDMI/DisplayPort/VGA laptops to diplays with HDMI/DP inputs; Supports up to 4K at 30Hz \| GbE \| 3.5mm mic input and 3.5mm stereo audio output

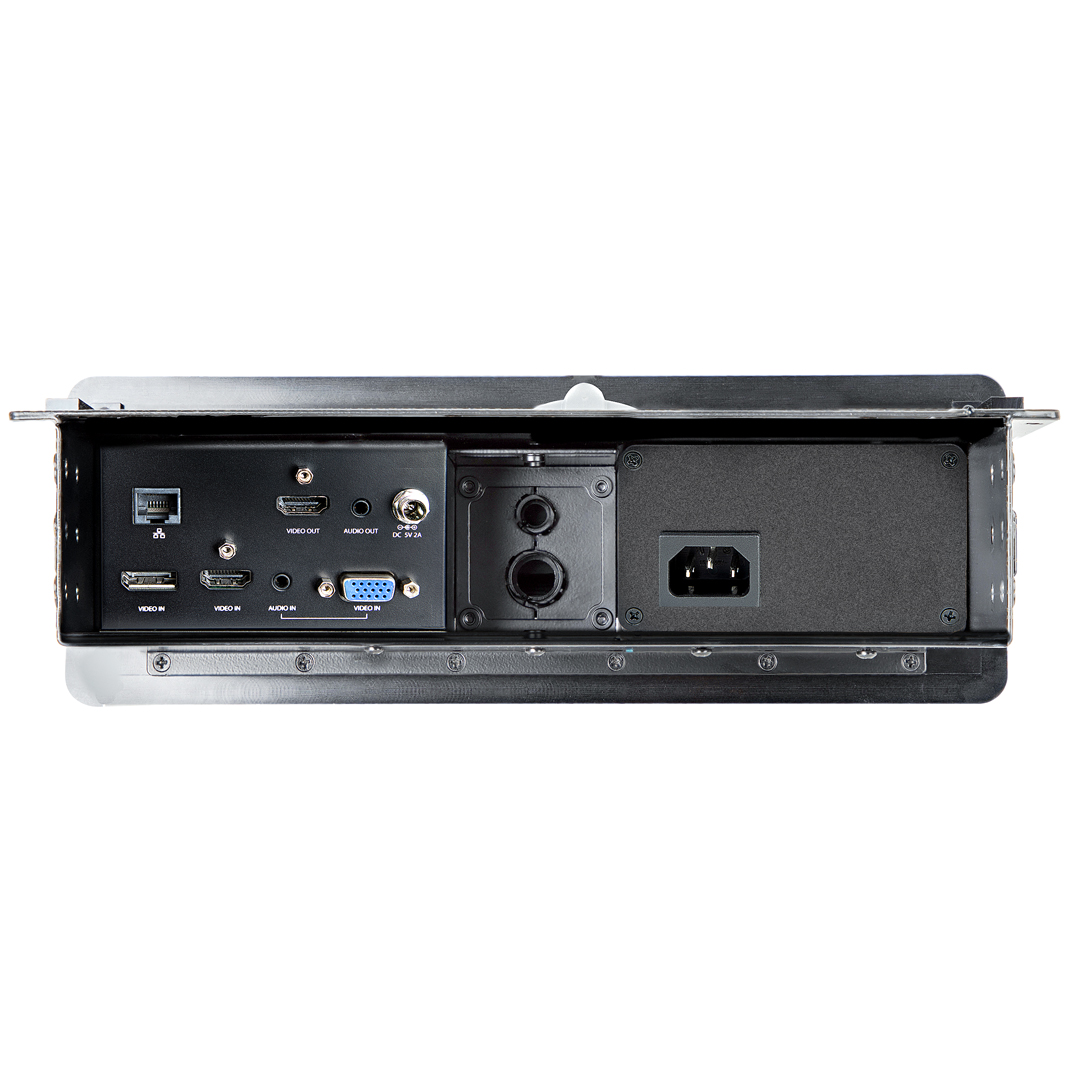

Bullet 2	AUTOMATIC INPUT SWITCHING: Automatically detects devices and switches to the most recent video source for single HDMI setup; Second set of inputs at the bottom of unit for permanent in-room setup
Bullet 3	FLEXIBLE POWER AND CHARGING: AC outlet is positioned for use w/ larger power adapters; USB fast charge ports allow you to power & charge your phones, tablets & high-powered USB devices w/ up to 2.4A per port; EMC 2014/30/EU and CE LVD 2014/35/EU compliant
Bullet 4	COMPATIBILITY: This AV docking station is compatible with conferencing apps like MS Teams/Zoom/SKYPE/Google Meet/others; Compatible with Windows (7+)/macOS (v10.8+)/Linux (v4.15+)/iPadOS/ChromeOS (v55+)

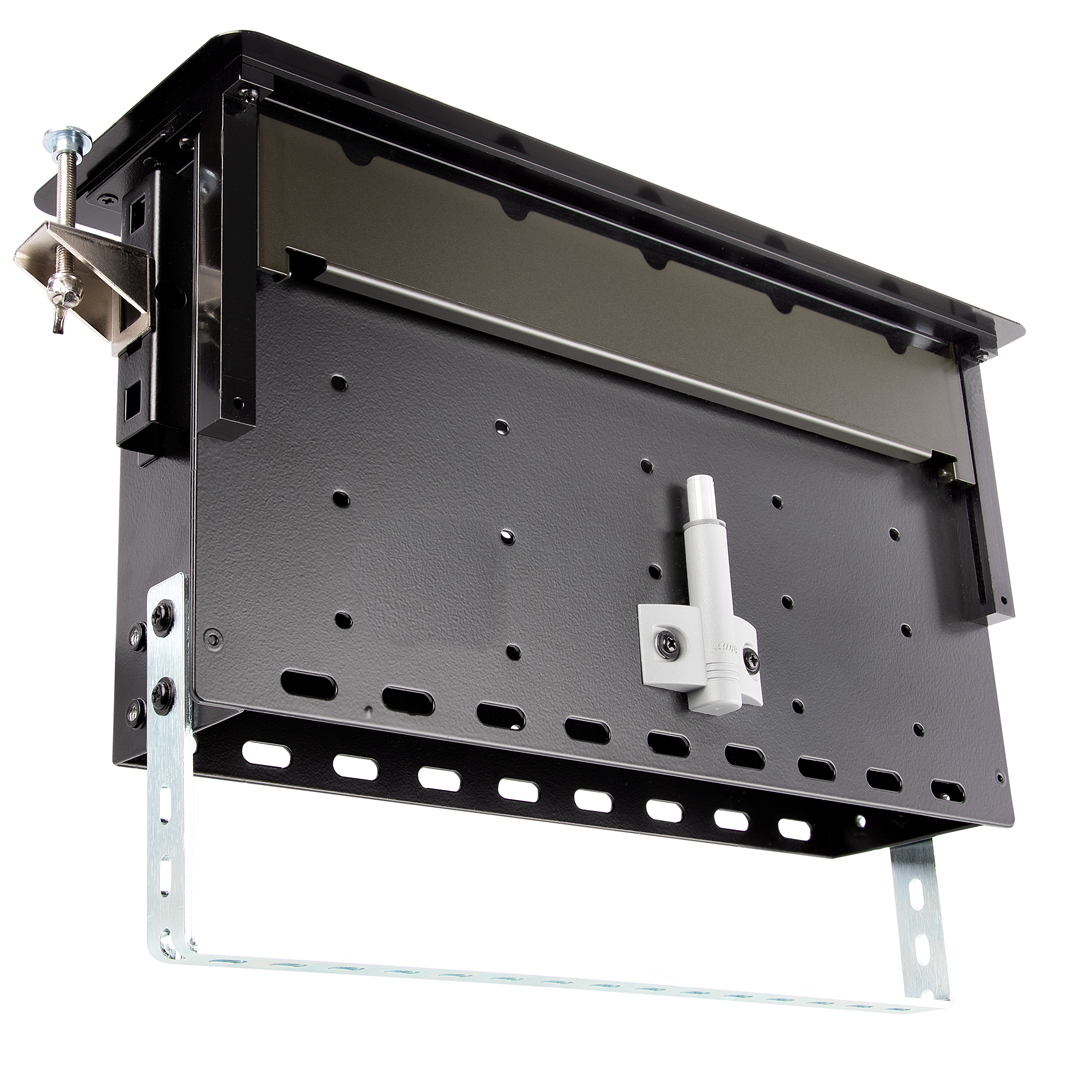

Bullet 5	EASE OF INSTALLATION: Includes manual, cut-out template, and all hardware needed to install in or under work surface; Variable depth mounting to work w/ several table top thicknesses; Route cables under the desk for a clean setup; Black aluminum finish
Bullets (Compact)	In-desk AV station for HDMI/DisplayPort/VGA laptops to displays w/ HDMI/DP inputs; 4K 30Hz and GbE - Auto input switching - 1x AC outlet; 2x USB-A fast charge ports (up to 2.4A/port) - Works w/ MS Teams/Zoom/SKYPE/Google Meet/others
Bullets (Consolidated)	In-desk or in-table AV station for HDMI/DisplayPort/VGA laptops to diplays w/ HDMI/DP inputs; 4K 30Hz \| GbE \| 3.5mm Audio in/out - Auto-switch to recently connected video source; 2nd set of inputs for permanent setup - 1x AC outlet to charge your laptop; 2x USB Type A fast charge ports w/ up to 2.4A per port - Mounting hardware incl. - Ideal for boardroom/workstation conferencing hardware/apps like MS Teams/Zoom/SKYPE/Google Meet/others - Windows/macOS/Linux/iPadOS/ChromeOS
Marketing Copy
Marketing Copy (No HTML)

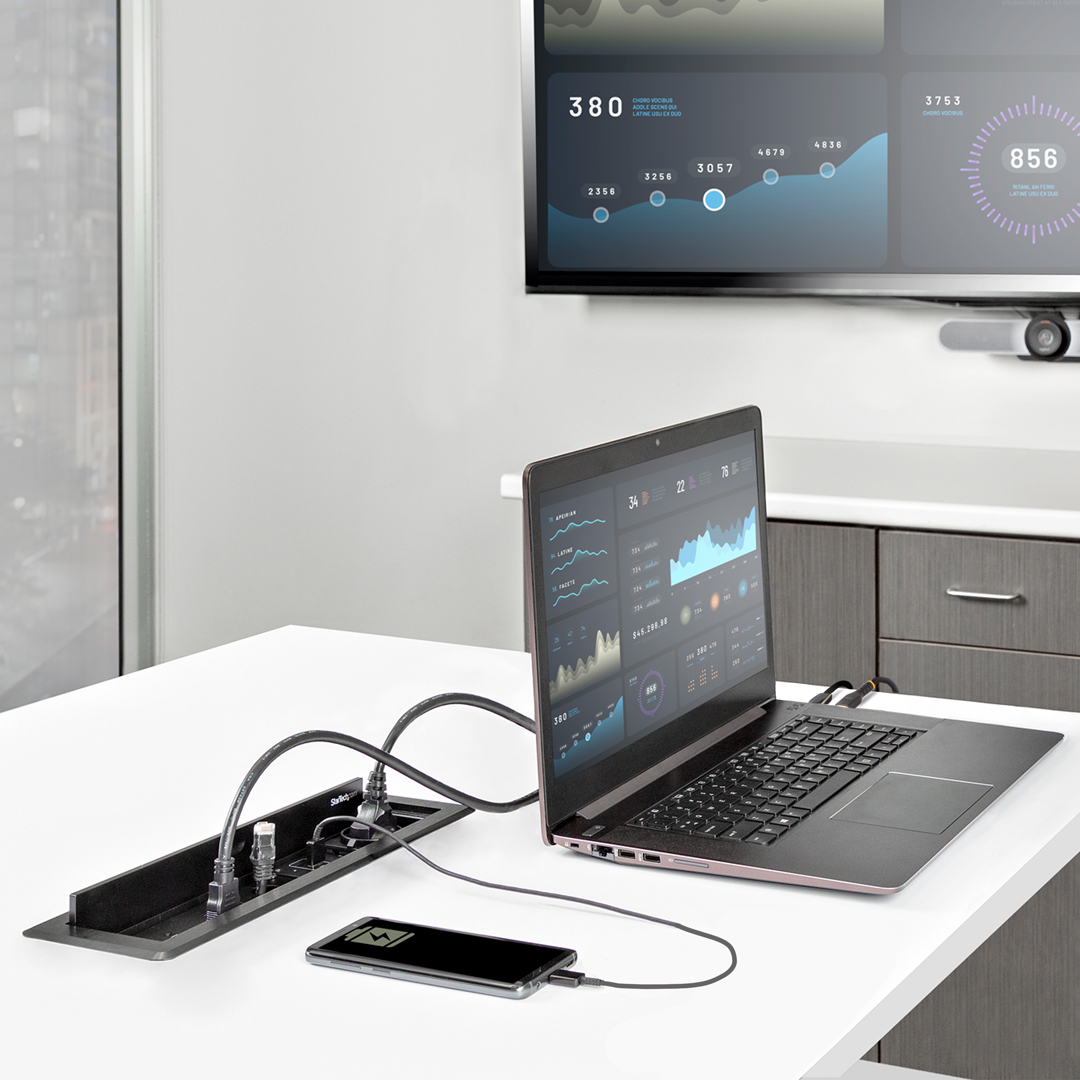

Applications	Provide additional power and charging outlets Simplify connectivity between your laptop and a large display Ideal for meeting rooms, classrooms, and huddle spaces
Website Search Keyword	AC Power Module AMX Table box Architectural Connectivity architectural connectivity box architectural power connectivity Boardroom cable management Boardroom Connectivity Kit Boardroom Docking Station Boardroom Table Kit Boardroom Video Connectivity Cable Cubby cable management table box cable organizer Cable Well Charging Station Conference Room AV Box conference room connection box Conference Room Connectivity Panel Conference Room Table Box Conference room table outlet conference table cable box conference table connection box Conference Table Connectivity conference table connectivity box Conference table data ports hdmi Conference Table HDMI Insert conference table inserts Conference table ports hdmi conference table power hub conference table room inserts conference table with power connectivity architecture Crestron Table box Desktop Electrical Outlet Desktop Outlet Desktop Power Outlet direct connect architecture DisplayPort Module DisplayPort to HDMI extron cable cubby furniture electrical outlet HDMI Module in desk usb In-Desk video module Kramer table box Modular Conference Room Table Box Modular Power Supply Power and USB outlet for Table Box Power Hub Table AC Power and USB Charging Table Box Table Cable Management Table Connectivity Box Table Mounted Power Station table power outlet table power outlets table top box Table video converter Tabletop Power Table-Top Power Tabletop Power Hub tabletop power outlet Universal architectural connectivity usb charging module USB Charging Station USB Tabletop power VGA Module VGA to HDMI

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

Special Notes	VGA (Input) to HDMI (Output) - HDMI Output Port is Active DisplayPort (Input) to HDMI (Output) - HDMI Output Port is Active HDMI (Input) to HDMI (Output) - HDMI Output Port is Passive Cables with ferrites may impact cable maneuverability within the cable hole. If ferrites are required, we recommend using cables with ferrites that are positioned as close to the connector as possible

Accessory Products	HDMM1MP HDMM2MP HDMM3MP HDMM5MP MXT101MMHQ MXT101MMHQ10 MXT105MMHQ UUSBHAUB50CM UUSBHAUB6 DISPLPORT3L UUSBHAUB3M DISPLPORT6L DISPLPORT10L UUSBHAUB10 DISPLPORT15L UUSBHAUB1 MU6MMS MU10MMS MU15MMS UUSBHAUB3 USB2HABM3 USB2HABM6 USB2HABM10 USBLT1MW USBLT2MW USBLT3MW RJ45PATCH10 RJ45PATCH25 PXT101EUR
Related Products	BEZ4MOD MOD4CABLEH MOD4DOCKACPD KITBXDOCKPEU BOX4HDECP2 BOX4CABLE BOX4HDECP
Equivalent Part Number in the UK	KITBXAVHDPUK

Power Source AC Adapter Included

Color	Black
Humidity
Material	Aluminum, Steel and Plastic
Operating Temperature
Product Length (mm)	165.000
Product Width (mm)	318.000
Product Height (mm)	110.000
Product Weight (g)	3144.000
Storage Temperature
TAA Compliant	No

General Specifications	(MOD4AVHD) Center Tip Polarity: Positive (MOD4AVHD) Input Voltage: 100 ~ 240 AC (MOD4AVHD) Output Current: 2 A (MOD4AVHD) Output Voltage: 5 DC (MOD4AVHD) Plug Type: M (MOD4AVHD) Power Consumption (In Watts): 10 (MOD4AVHD) Power Source: AC Adapter Included (MOD4POWEREU) Input Voltage: 110 ~ 240 AC (MOD4POWEREU) Nominal Input Voltage: 110V ~ 240V (MOD4POWEREU) Nominal Output Voltage: 110V ~ 240V (MOD4POWEREU) Number of AC Power Outlets: 1 (MOD4POWEREU) Number of USB Power Ports : 2 (MOD4POWEREU) Output Current: 10 A (MOD4POWEREU) Output Voltage: 5 DC (MOD4POWEREU) Power Source: EU Power Cord Included
Maximum Analog Resolutions	1920 x 1080 60Hz
Maximum Digital Resolutions
OS Compatibility	OS Independent
Supported Resolutions
Wide Screen Supported	Yes

Active or Passive Adapter	Active Passive
Aspect Ratio	16:9
Audio	Yes

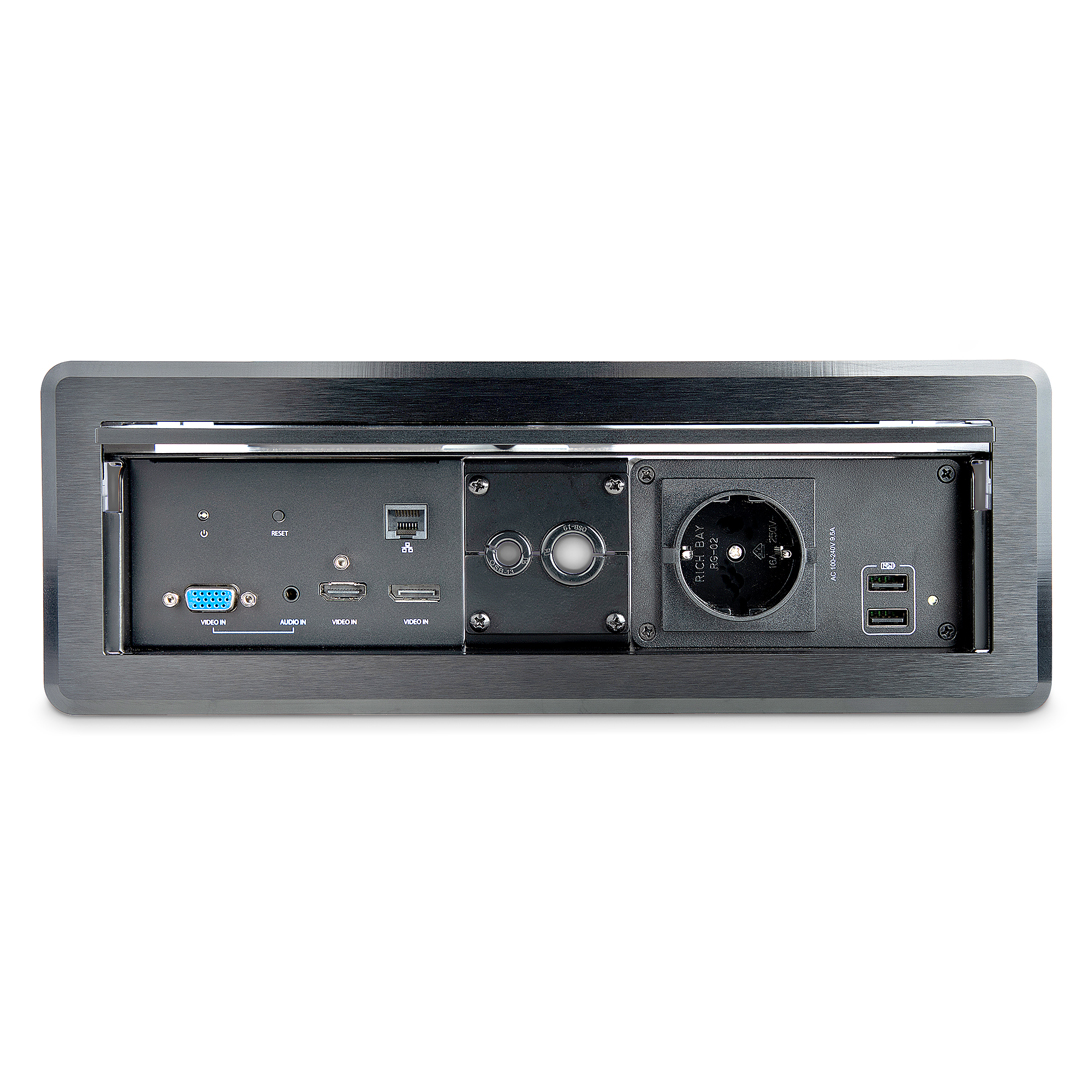

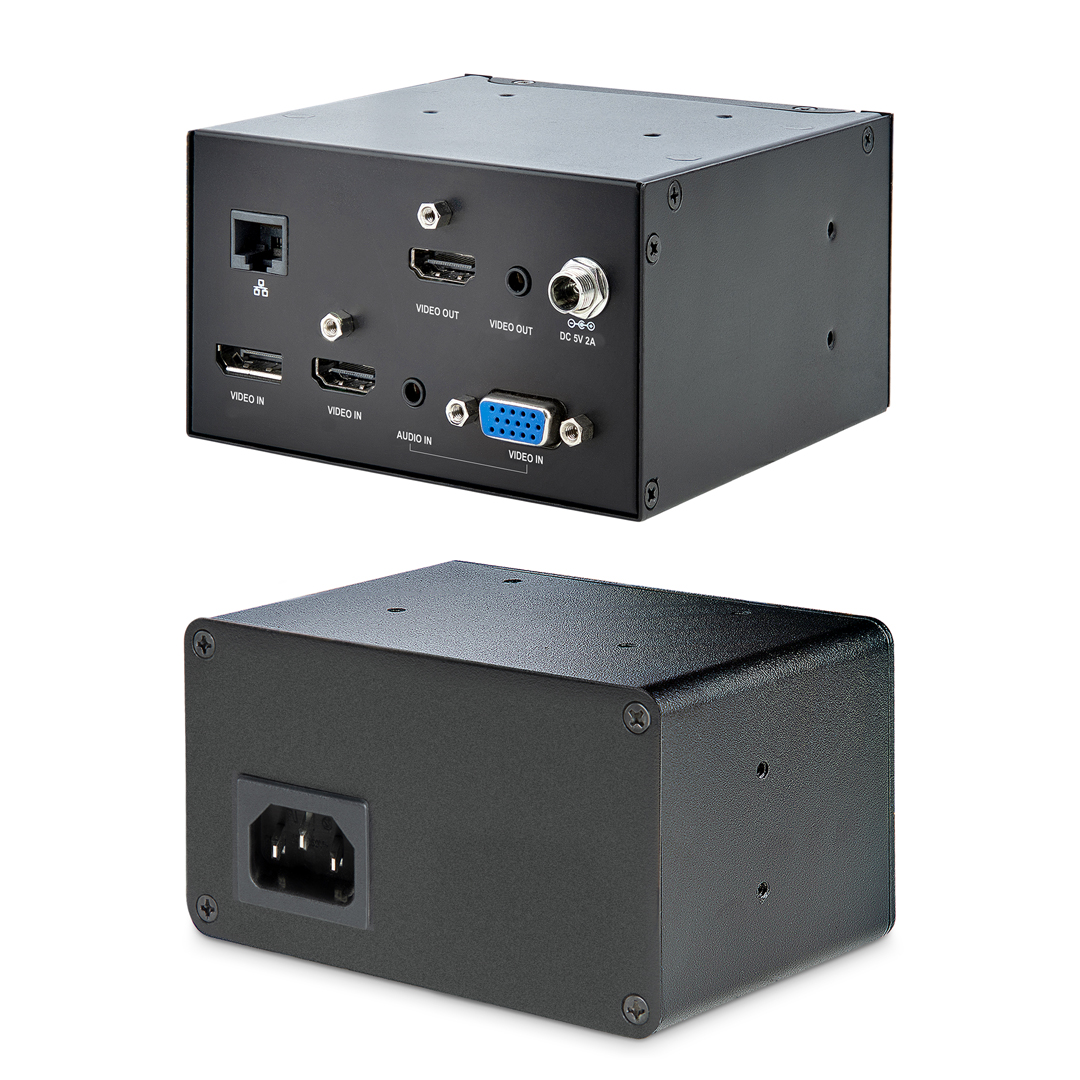

AV Input	VGA 3.5 mm Audio HDMI DisplayPort
AV Output	HDMI
Chipset ID
Converter Type	Presentation Adapters
LED Indicators	2 - Power (1 - MOD4POWEREU, 1 - MOD4AVHD)
Matrix Video Switch (Filter)	No
USB Pass-Through	No

Carton Depth (mm)	360
Carton Height (mm)	240
Carton Quantity	1
Carton Weight Gross (g)	5562

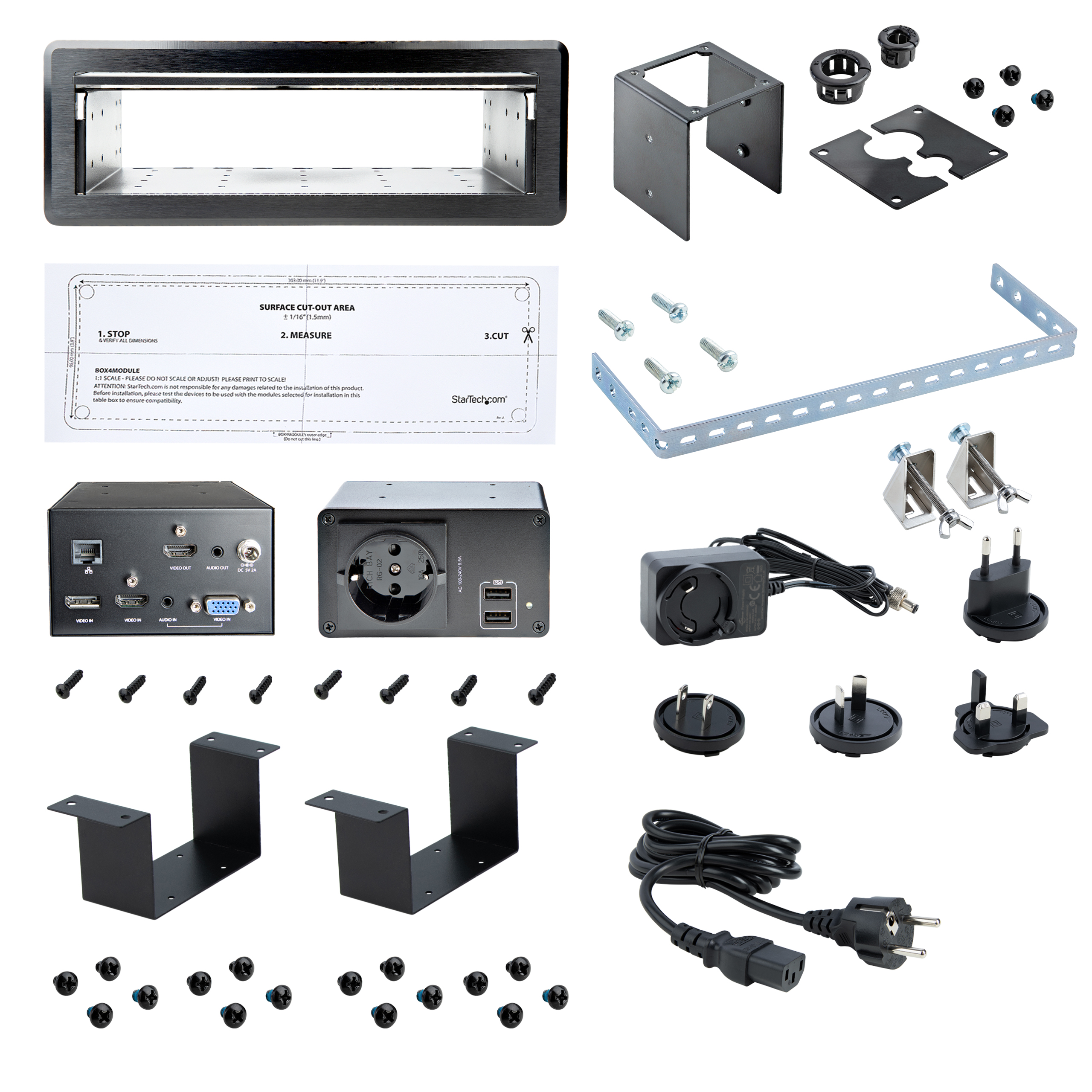

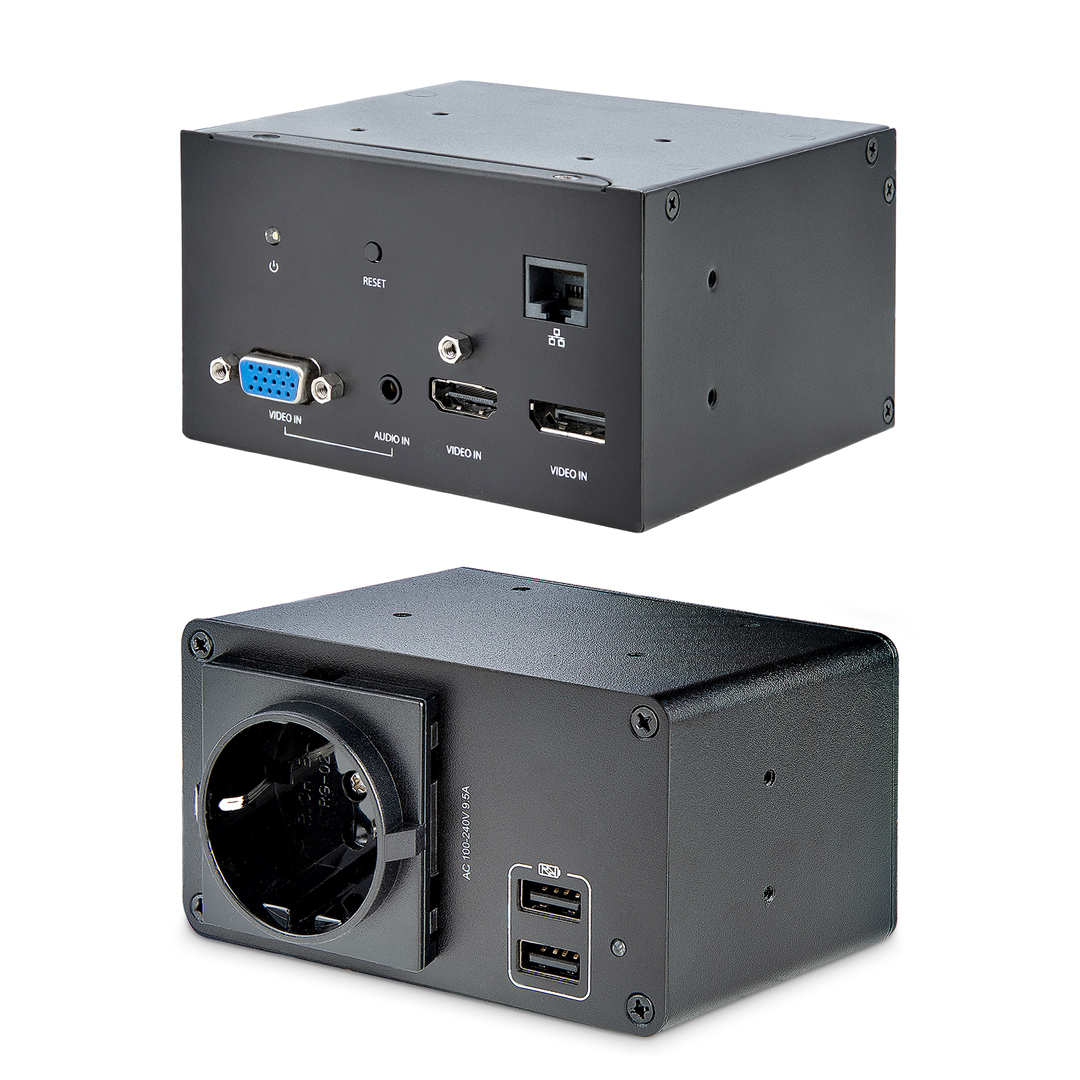

Included in Package	1 - A/V Module (MOD4AVHD) 1 - Power Module (MOD4POWEREU) 1 - Modular Table Box (BOX4MODULE) 1 - Universal Power Adapter (MOD4AVHD) 3 - Power Clips (NA, EU, UK) (MOD4AVHD) 1 - Power Cord (EU) (MOD4POWEREU) 1 - Die-Cut Outline (BOX4MODULE) 2 - Mounting Brackets (1 - MOD4POWEREU, 1 - MOD4AVHD) 8 - Mounting Bracket Screws (M5 x 20 mm) (4 - MOD4POWEREU, 4 - MOD4AVHD) 16 - Module Screws (#6-32 x 3/16") (8 - MOD4POWEREU, 8 - MOD4AVHD) 1 - Cable Management Bracket (BOX4MODULE) 2 - Cable Management Top Plates (BOX4MODULE) 4 - Cable Management Plate Screws (#6-32 x 3/8") (BOX4MODULE) 4 - Cable Management Bracket Mounting Screws (#6-32 x 3/8") (BOX4MODULE) 1 - Small Cable Bushing (BOX4MODULE) 1 - Large Cable Bushing (BOX4MODULE) 1 - Lacing Bar (BOX4MODULE) 4 - Lacing Bar Screws (M4 x 4mm) (BOX4MODULE) 2 - Wing Fasteners (BOX4MODULE) 2 - Quick-Start Guides (1 - MOD4POWEREU, 1 - MOD4AVHD) 1 - User Manual (BOX4MODULE)
Package Depth (mm)	360
Package Height (mm)	240
Package Width (mm)	140
Package Quantity	1
Package Weight (g)	5562
Packaging Description	Conference Table Connectivity Box with A/V and Power Modules
Packaging Description India	Conference Table Connectivity Box with A/V and Power Modules
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Connector 1	CEE 7/7 (250V AC, 16A)
Connector 1 (Quantity)	1
Connector 2	HDMI
Connector 2 (Quantity)	2
Connector 3	VGA
Connector 3 (Quantity)	2
Connector 4	3.5mm (3 Conductors, TRS)
Connector 4 (Quantity)	2
Connector 5	RJ-45
Connector 5 (Quantity)	1
Connector 6	DisplayPort
Connector 6 (Quantity)	2
Connector 7	HDMI
Connector 7 (Quantity)	1
Connector 8	RJ-45
Connector 8 (Quantity)	1
Connector 9	3.5mm (3 Conductors, TRS)
Connector 9 (Quantity)	1
Connector 10	IEC C13 (250V AC, 10A)
Connector 10 (Quantity)	1
