KITBXAVHDPNA

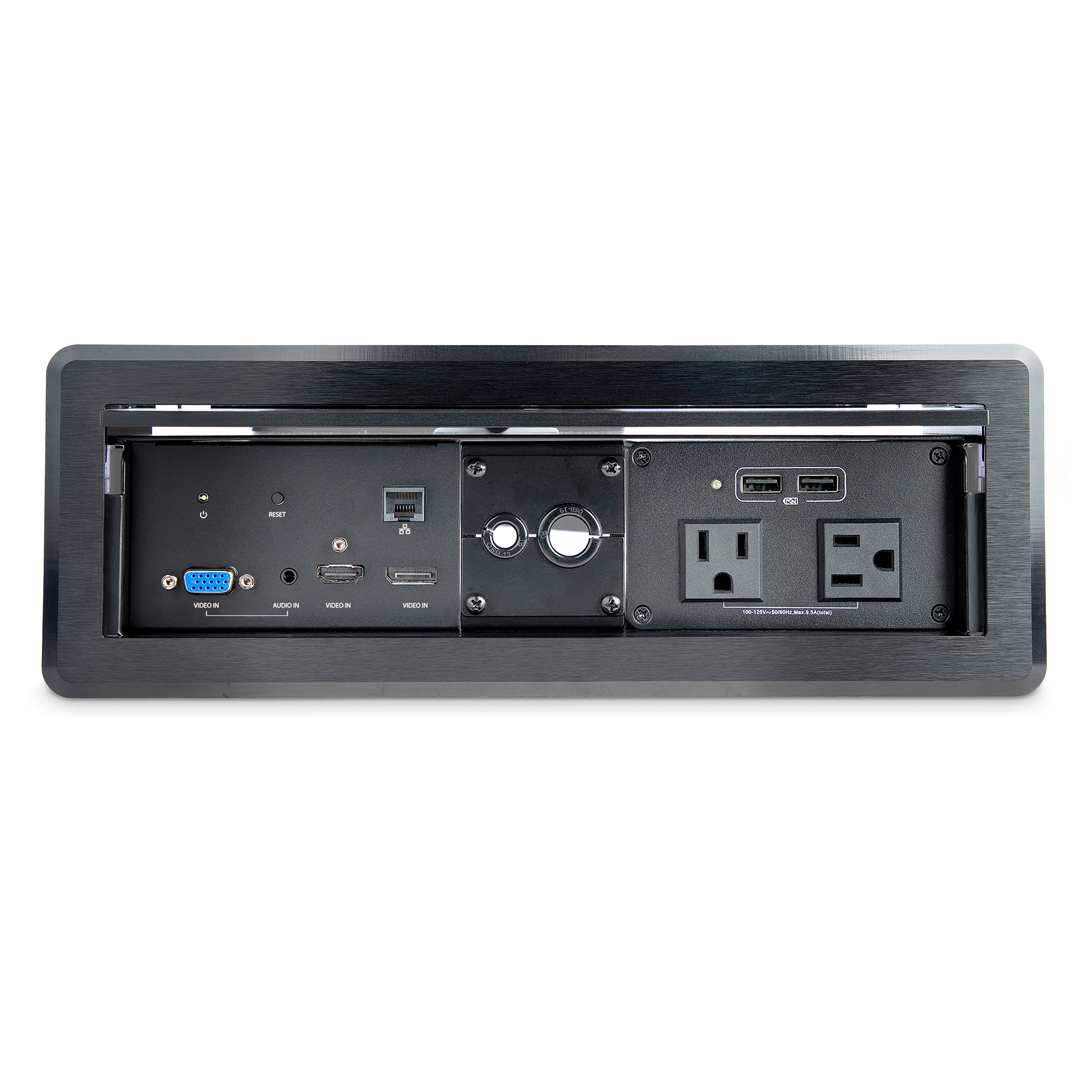

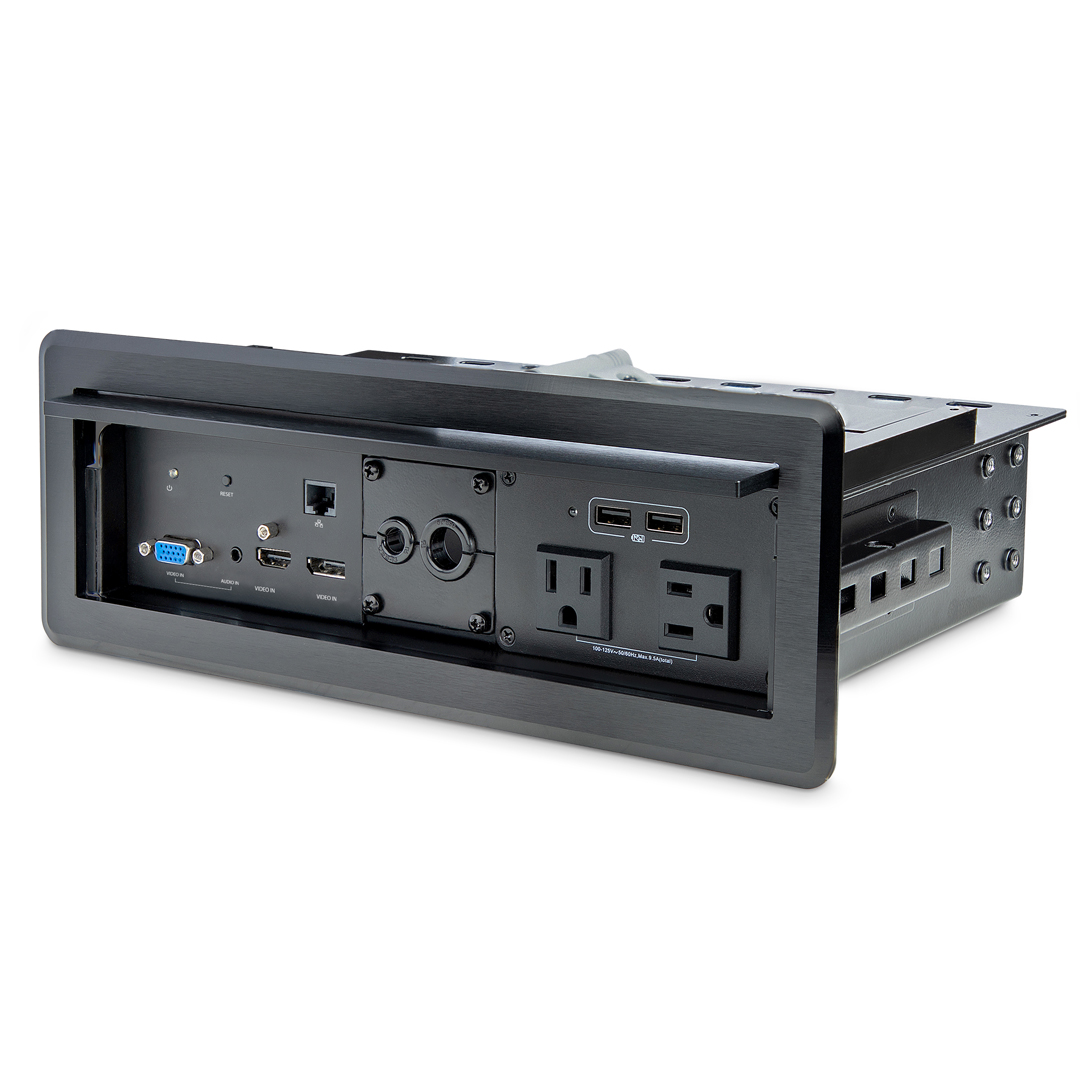

Kit for BOX4MODULE MOD4AVHD MOD4POWERNA

Architectural Connectivity | 4K | HDMI®, DisplayPort™ and VGA | 2x AC and 2x USB-A

Main Image

Product Images

Product Images

Product Images

Product Images

Product Images

Product Images

BOM Image

Video Link YouTube

Product Name	Kit for BOX4MODULE MOD4AVHD MOD4POWERNA
Product Number	KITBXAVHDPNA
UPC	065030891189
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Other > Table Panel Boxes
Category Level 1	Video Display Connectivity
Category Level 2	Table Panel Boxes
Category Level 3	Conversion Boxes
Family	Modular Table Box Kit
Country of Origin Europe & Japan	China
Country of Origin North America	China

Diagram https://images.salsify.com/image/upload/s--a4TdglYi--/a934712aea3c9dada79d33ff9e9e372e3ff18d08.pdf

Product Title (Ultra-Short)	Table Box A/V Power
Product Title (Short)	Conference Table Box for AV Connectivity
Product Title (Medium)	Conference Table Connectivity Box with A/V and Power Modules and Cable Organizer
Product Title (Standard)	Conference Table Box for AV Connectivity & Charging, 4K HDMI/DP or VGA, GbE, Audio, Power Center w/ 2x USB & 2x UL AC Outlets
Product Title (Long)	Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A & 2x 120V UL AC Outlets
Product Title (AMZ)	Conference Table Box for AV Connectivity & Power/Charging - 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio - Charging Station w/ 2x USB-A & 2x 120V UL AC Outlets (KITBXAVHDPNA)
Title Ingram (Part 1)	Conference Table Connectivity
Title Ingram (Part 2)	Box with AV & Power Modules
Website Product Headline	Architectural Connectivity \| 4K \| HDMI®, DisplayPort™ and VGA \| 2x AC and 2x USB-A

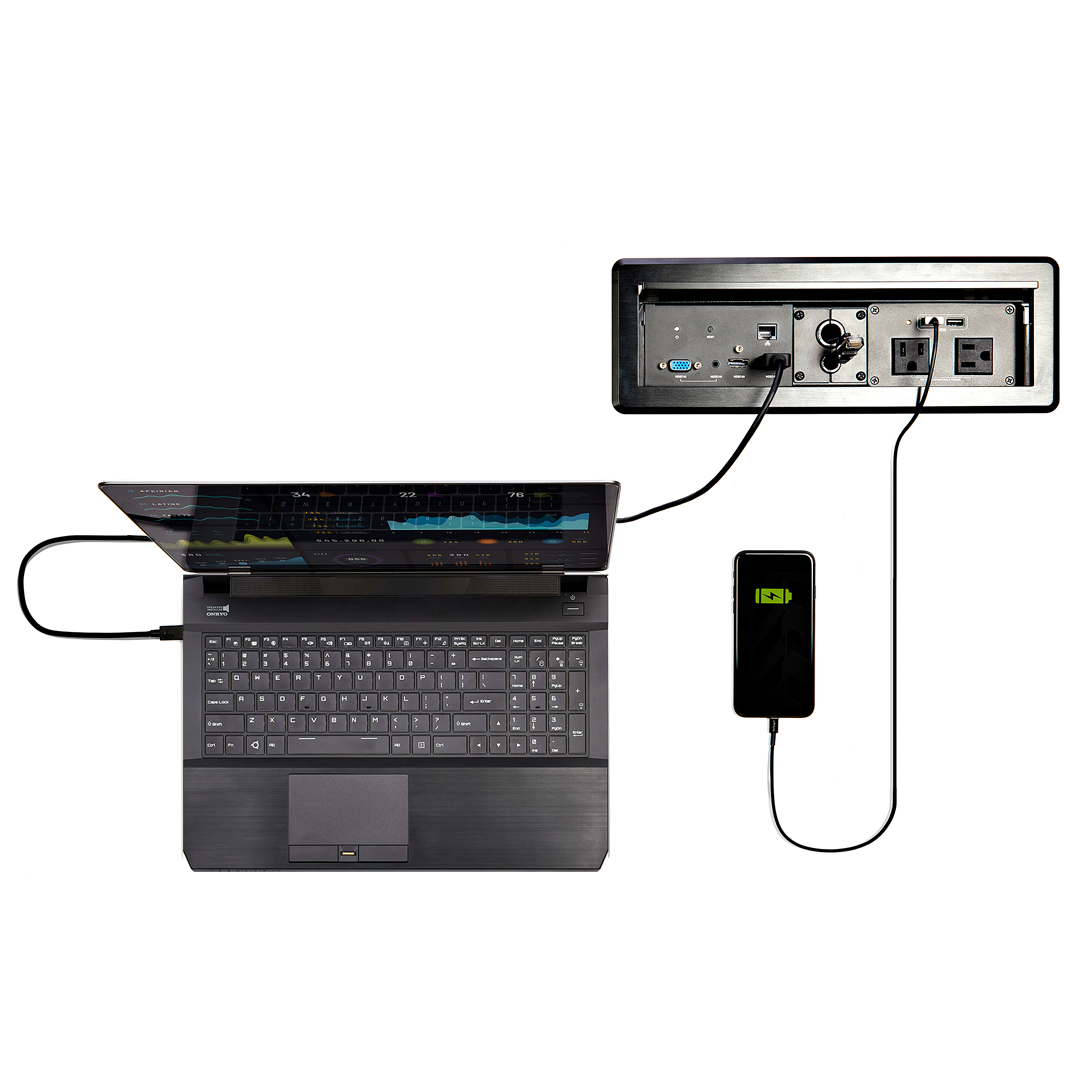

Bullet 1	CONFERENCE TABLE BOX FOR AV & POWER: Setup an in-desk or in-table power, charging & AV solution \| Connectivity inputs: HDMI, DisplayPort, or VGA laptops \| Video Output: HDMI 4K 30Hz \| GbE Pass-Through \| 3.5mm mic & stereo output \| 2x AC outlets & 2x USB-A
Bullet 2	FLEXIBLE POWER & CHARGING STATION: Recessed power strip w/ 2x UL Certified 100-125V AC outlets positioned for use w/larger power adapters; Power center with 2x cETLus Certified USB Type-A fast charge ports to charge phones/tablets (2.4A/port)

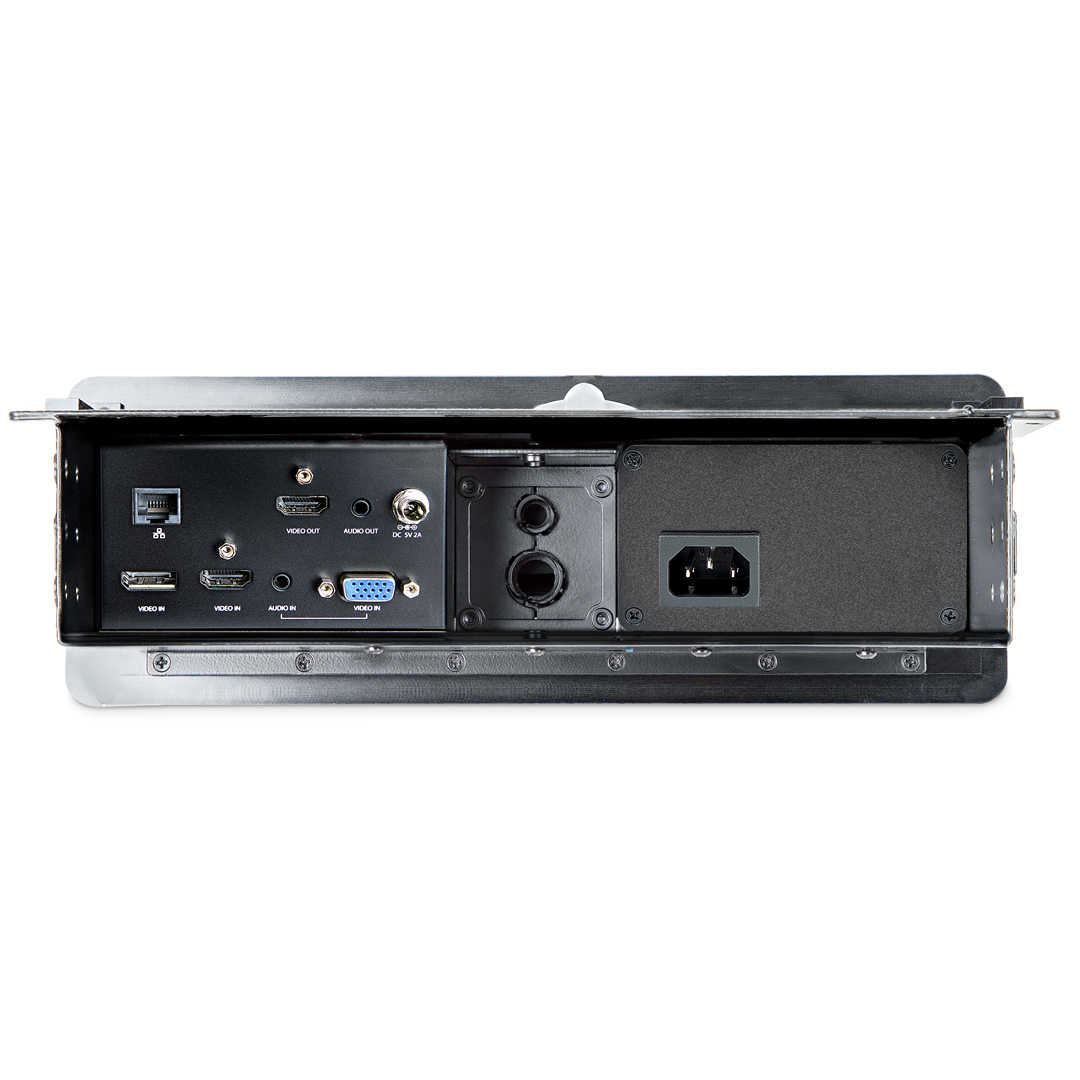

Bullet 3	AUTO VIDEO SWITCHING: AV connection box automatically detects and converts AV input and switches to the most recent video source on an HDMI display; 2nd set of inputs on bottom of AV switch for a cleaner under table installation

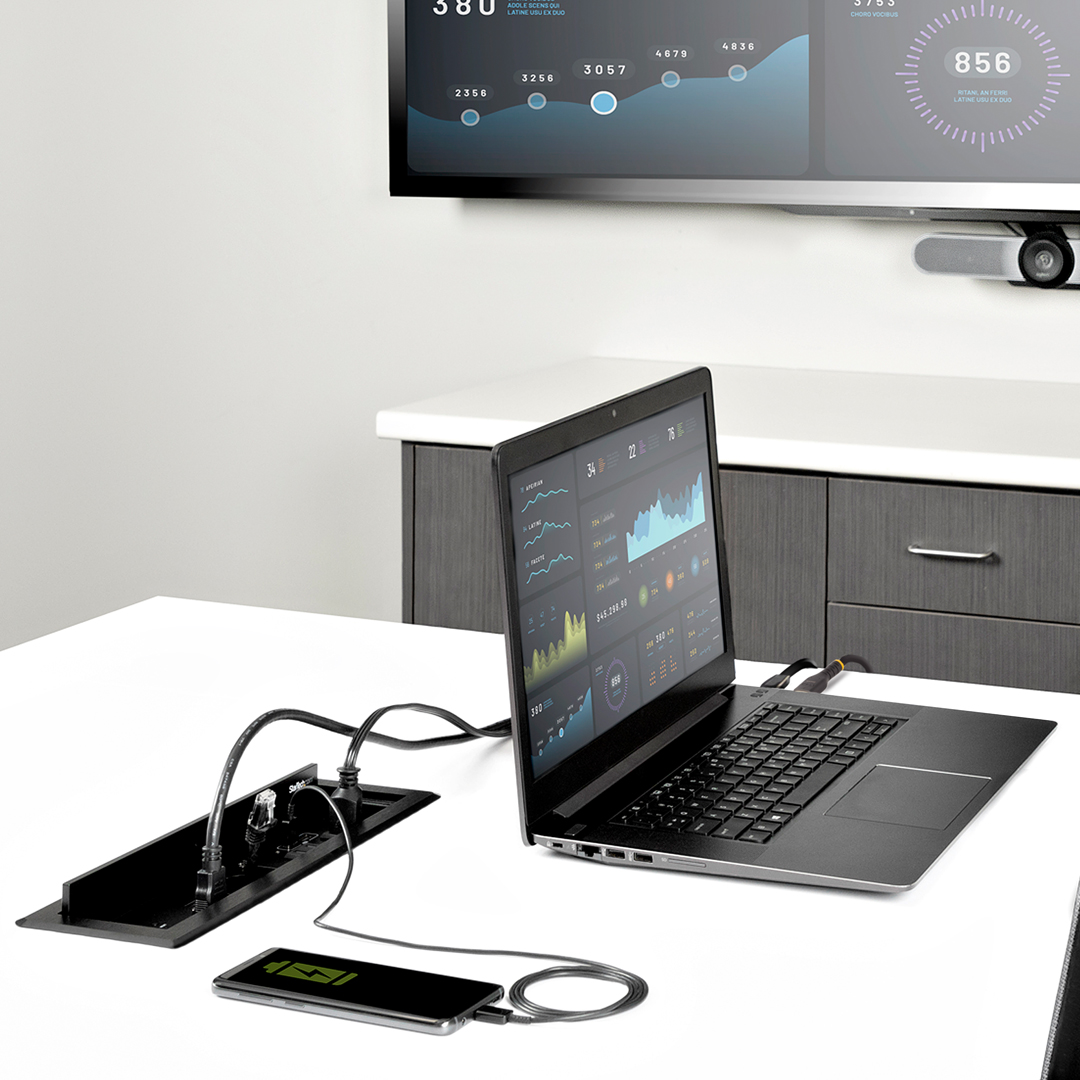

Bullet 4	COLLABORATION: This audio video conference table connectivity box allows you to connect to your boardroom/huddle space equipment; works w/conferencing apps like MS Teams/Zoom/SKYPE/Google Meet/others; Works w/ laptops, desktops, iPad Pro, Chromebooks, etc

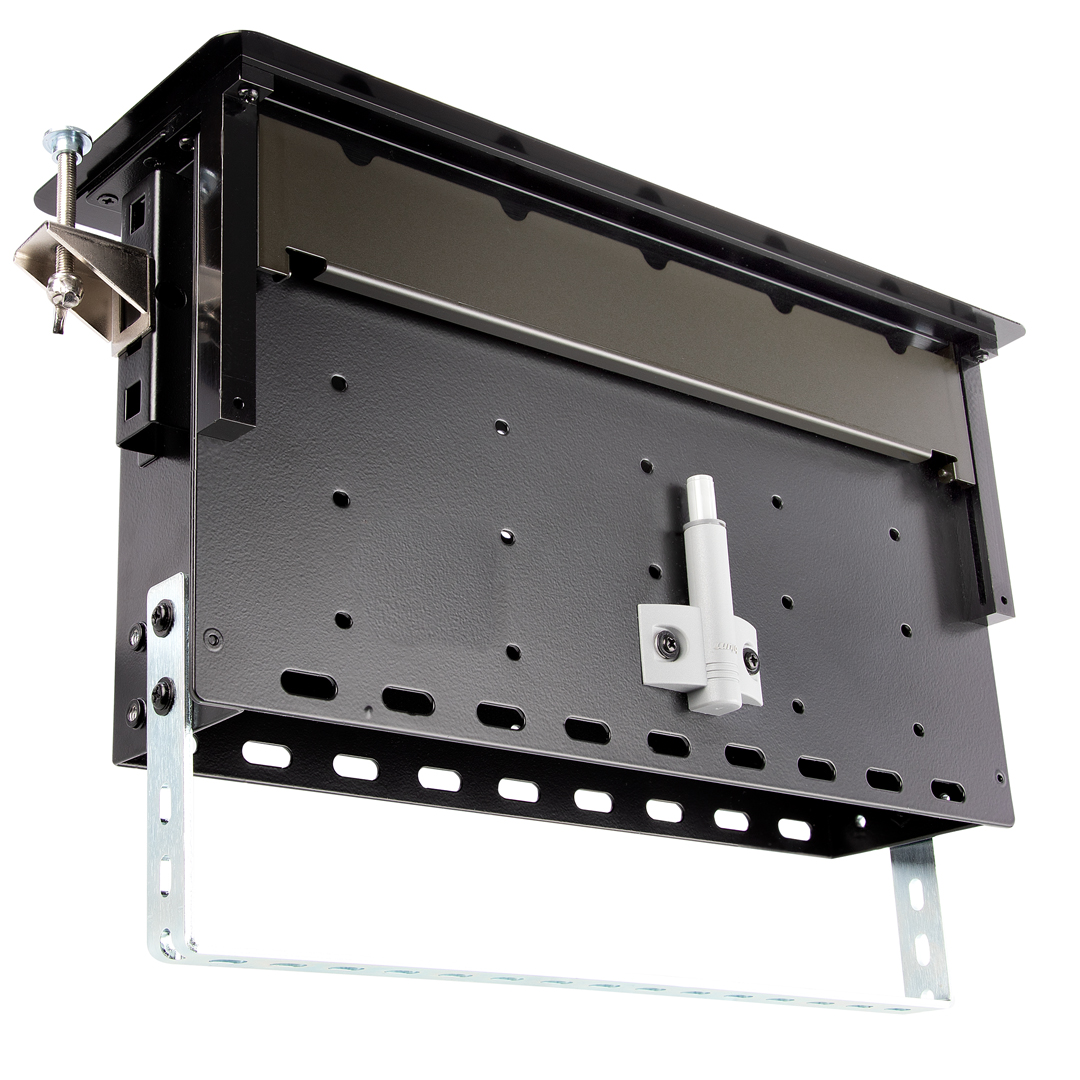

Bullet 5	FLEXIBLE INSTALLATION OPTIONS: Incl. manual, cut-out template, and all mounting hardware / bracket for in table or under the table installation\| designed to work with range of variable depth tabletop thicknesses \|cable management \| Black aluminum finish
Bullets (Compact)	Charging Station and AV Conference table connectivity for HDMI/DP/VGA laptops to connect to HDMI displays 4K 30Hz video; GbE, Audio - In-desk power center w/2x AC outlets; 2x USB-A fast charge - Connect boardroom equipment for use w/ Teams/Zoom/SKYPE
Bullets (Consolidated)	In-desk/conference table box with charging and AV connectivity works with HDMI/DisplayPort/VGA laptops to connect to HDMI displays \| 4K 30Hz \| GbE \| 3.5mm Audio - Recessed power center w/ 2x UL Certified 120V AC outlets + 2x cETLus Certified USB-A fast charge ports (up to 2.4A/port) - Auto video switching to recently connected source \| 2nd set of inputs for under table connection - Connect to boardroom equipment (speakers/mics) for use w/ conferencing apps Teams/Zoom - Mounting hardware incl
Marketing Copy
Marketing Copy (No HTML)
Applications	Provide additional power and charging outlets Simplify connectivity between your laptop and a large display Ideal for meeting rooms, classrooms, and huddle spaces
Website Search Keyword	AC Power Module AMX Table box Architectural Connectivity architectural connectivity box architectural power connectivity Boardroom cable management Boardroom Connectivity Kit Boardroom Docking Station Boardroom Table Kit Boardroom Video Connectivity Cable Cubby cable management table box cable organizer Cable Well Charging Station Conference Room AV Box conference room connection box Conference Room Connectivity Panel Conference Room Table Box Conference room table outlet conference table cable box conference table connection box Conference Table Connectivity conference table connectivity box Conference table data ports hdmi Conference Table HDMI Insert conference table inserts Conference table ports hdmi conference table power hub conference table room inserts conference table with power connectivity architecture Crestron Table box Desktop Electrical Outlet Desktop Outlet Desktop Power Outlet direct connect architecture DisplayPort Module DisplayPort to HDMI extron cable cubby furniture electrical outlet HDMI Module in desk usb In-Desk video module Kramer table box Modular Conference Room Table Box Modular Power Supply Power and USB outlet for Table Box Power Hub Table AC Power and USB Charging Table Box Table Cable Management Table Connectivity Box Table Mounted Power Station table power outlet table power outlets table top box Table video converter Tabletop Power Table-Top Power Tabletop Power Hub tabletop power outlet Universal architectural connectivity usb charging module USB Charging Station USB Tabletop power VGA Module VGA to HDMI

Required Regulatory Compliance Marks

Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark

Special Notes	VGA (Input) to HDMI (Output) - HDMI Output Port is Active DisplayPort (Input) to HDMI (Output) - HDMI Output Port is Active HDMI (Input) to HDMI (Output) - HDMI Output Port is Passive Cables with ferrites may impact cable maneuverability within the cable hole. If ferrites are required, we recommend using cables with ferrites that are positioned as close to the connector as possible

Accessory Products	HDMM1MP HDMM2MP HDMM3MP PXT1011 HDMM5MP PXT101_3 PXT101 MXT101MMHQ PXT101_10 MXT101MMHQ10 PXT10115 MXT105MMHQ PXT10120 PXT10125 UUSBHAUB50CM UUSBHAUB6 DISPLPORT3L UUSBHAUB3M DISPLPORT6L DISPLPORT10L UUSBHAUB10 DISPLPORT15L UUSBHAUB1 MU6MMS MU10MMS MU15MMS UUSBHAUB3 USB2HABM3 USB2HABM6 USB2HABM10 USBLT1MW USBLT2MW USBLT3MW RJ45PATCH10 RJ45PATCH25
Related Products	BEZ4MOD MOD4CABLEH MOD4DOCKACPD KITBXDOCKPNA BOX4HDECP2 BOX4CABLE BOX4HDECP
Equivalent Part Number in the EU	KITBXAVHDPEU
Equivalent Part Number in the UK	KITBXAVHDPUK

Power Source AC Adapter Included

Color	Black
Humidity
Material	Aluminum, Steel and Plastic
Operating Temperature
Product Length (mm)	165.000
Product Width (mm)	318.000
Product Height (mm)	110.000
Product Weight (g)	3149.000
Storage Temperature
TAA Compliant	No

General Specifications	(MOD4AVHD) Center Tip Polarity: Positive (MOD4AVHD) Input Voltage: 100 ~ 240 AC (MOD4AVHD) Output Current: 2 A (MOD4AVHD) Output Voltage: 5 DC (MOD4AVHD) Plug Type: M (MOD4AVHD) Power Consumption (In Watts): 10 (MOD4AVHD) Power Source: AC Adapter Included (MOD4POWERNA) Input Voltage: 110 ~ 240 AC (MOD4POWERNA) Nominal Input Voltage: 110V ~ 240V (MOD4POWERNA) Nominal Output Voltage: 110V ~ 240V (MOD4POWERNA) Number of AC Power Outlets: 2 (MOD4POWERNA) Number of USB Power Ports : 2 (MOD4POWERNA) Output Current: 10 A (MOD4POWERNA) Output Voltage: 5 DC (MOD4POWERNA) Power Source: Standard 120V Power Cords Included
Maximum Analog Resolutions	1920 x 1080 60Hz
Maximum Digital Resolutions
OS Compatibility	OS Independent
Supported Resolutions
Wide Screen Supported	Yes

Active or Passive Adapter	Active Passive
Aspect Ratio	16:9
Audio	Yes
AV Input	VGA 3.5 mm Audio HDMI DisplayPort
AV Output	HDMI
Chipset ID
Converter Type	Presentation Adapters
LED Indicators	2 - Power (1 - MOD4POWERNA, 1 - MOD4AVHD)
Matrix Video Switch (Filter)	No
USB Pass-Through	No

Carton Depth (mm)	360
Carton Height (mm)	240
Carton Quantity	1
Carton Weight Gross (g)	5667

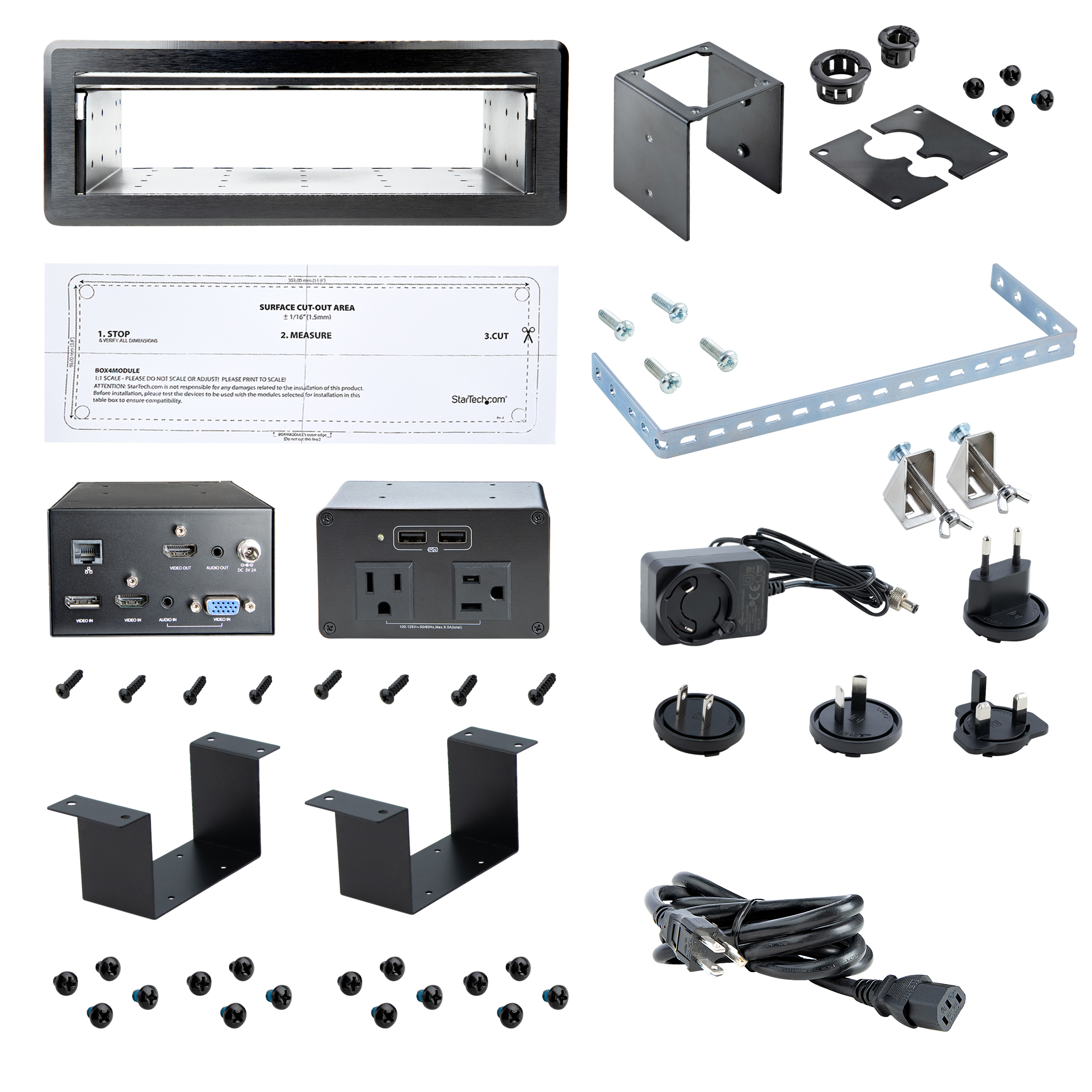

Included in Package	1 - A/V Module (MOD4AVHD) 1 - Power Module (MOD4POWERNA) 1 - Modular Table Box (BOX4MODULE) 1 - Universal Power Adapter (MOD4AVHD) 3 - Power Clips (NA, EU, UK) (MOD4AVHD) 1 - Power Cord (NA) (MOD4POWERNA) 1 - Die-Cut Outline (BOX4MODULE) 2 - Mounting Brackets (1 - MOD4POWERNA, 1 - MOD4AVHD) 8 - Mounting Bracket Screws (M5 x 20 mm) (4 - MOD4POWERNA, 4 - MOD4AVHD) 16 - Module Screws (#6-32 x 3/16") (8 - MOD4POWERNA, 8 - MOD4AVHD) 1 - Cable Management Bracket (BOX4MODULE) 2 - Cable Management Top Plates (BOX4MODULE) 4 - Cable Management Plate Screws (#6-32 x 3/8") (BOX4MODULE) 4 - Cable Management Bracket Mounting Screws (#6-32 x 3/8") (BOX4MODULE) 1 - Small Cable Bushing (BOX4MODULE) 1 - Large Cable Bushing (BOX4MODULE) 1 - Lacing Bar (BOX4MODULE) 4 - Lacing Bar Screws (M4 x 4mm) (BOX4MODULE) 2 - Wing Fasteners (BOX4MODULE) 2 - Quick-Start Guides (1 - MOD4POWERNA, 1 - MOD4AVHD) 1 - User Manual (BOX4MODULE)
Package Depth (mm)	357
Package Height (mm)	339
Package Width (mm)	389
Package Quantity	1
Package Weight (g)	5380
Packaging Description	Conference Table Connectivity Box with A/V and Power Modules
Packaging Description India	Conference Table Connectivity Box with A/V and Power Modules
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Connector 1	NEMA 5-15 (125V AC, 15A)
Connector 1 (Quantity)	1
Connector 2	HDMI
Connector 2 (Quantity)	2
Connector 3	VGA
Connector 3 (Quantity)	2
Connector 4	3.5mm (3 Conductors, TRS)
Connector 4 (Quantity)	2
Connector 5	RJ-45
Connector 5 (Quantity)	1
Connector 6	DisplayPort
Connector 6 (Quantity)	2
Connector 7	HDMI
Connector 7 (Quantity)	1
Connector 8	RJ-45
Connector 8 (Quantity)	1
Connector 9	3.5mm (3 Conductors, TRS)
Connector 9 (Quantity)	1
Connector 10	IEC C13 (250V AC, 10A)
Connector 10 (Quantity)	2
