KITBXDOCKPEU
Kit for BOX4MODULE MOD4DOCKACPD MOD4POWEREU
Architectural Connectivity | 4K HDMI® | USB-C™ and USB-A | USB-C PD | 1x AC and 2x USB-A
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name Kit for BOX4MODULE MOD4DOCKACPD MOD4POWEREU Product Number KITBXDOCKPEU UPC 065030891172 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Table Panel Boxes Category Level 3 Conversion Boxes Family Modular Table Box Kit Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) Table Box Dock Power Product Title (Short) In-Table Connectivity Box - Dock & Power Product Title (Medium) Conference Table Connectivity Box with Laptop Docking and Power Modules Product Title (Standard) Conference Room Docking Station w/ Power; Table Connectivity A/V Box, Universal Laptop Dock, 60W PD, AC Outlet, USB Charging Product Title (Long) Conference Room Docking Station with Power/Charging; Table Connectivity Box, Universal USB-C Laptop Dock, 60W PD, 4K HDMI, USB Hub, Audio, 1x AC Outlet, 2xUSB Charge Ports Product Title (AMZ) Conference Room Docking Station with Power/Charging; Table Connectivity Box, Universal USB-C Laptop Dock, 60W PD, 4K HDMI, USB Hub, Audio, 1x AC Outlet, 2xUSB Charge Ports (KITBXDOCKPEU) Title Ingram (Part 1) Conference Table Connectivity Title Ingram (Part 2) Box - Laptop Docking & Power Website Product Headline Architectural Connectivity | 4K HDMI® | USB-C™ and USB-A | USB-C PD | 1x AC and 2x USB-A Bullet 1 CONFERENCE TABLE BOX FOR DOCKING & POWER: Setup an in-desk/in-table conference room docking station w/ USB-C or USB-A host connectivity to connect all your boardroom or workstation peripherals; Easy one-cable docking; Integrated USB charging & AC power Bullet 2 AUDIO/VIDEO FLEXIBILITY: Supports auto switching between USB-C or USB-A host laptops; USB-C (DP Alt-mode/DisplayLink), USB-A (DisplayLink), or HDMI pass through video ports (HDMI mode for AV connectivity only); Up to 4K UHD (3840x2160 30Hz) & 7.1 CH audio Bullet 3 DOCKING CONNECTIVITY PORTS: Integrated USB 3.0 5Gbps hub with 4x USB-A ports (incl. 1x BC1.2 fast charge port) | Gigabit Ethernet | 3.5mm mic input and 3.5mm stereo audio output; Charge your laptop via USB-C Power Delivery up to 60W Bullet 4 COMPATIBILITY: This conference room connectivity box works with conferencing collaboration apps like MS Teams/Zoom/others; Works with USB-A, USB-C & Thunderbolt 3 laptops; Works w/ Windows (7+)/macOS (v10.8+)/Linux (v4.15+)/iPadOS/ChromeOS (v55+) Bullet 5 SAFETY & RELIABILITY: Power center w/AC electrical outlet; USB-A fast charge ports; Includes manual, cut-out template, all mounting hardware / bracket(s) for in table or under the table install; Power module is EMC 2014/30/EU & CE LVD 2014/35/EU compliant Bullets (Compact) In-desk/table universal docking station w/ auto host switching for USB-C/TB3 or USB-A laptops - 4x USB 3.0 5Gbps Hub, GbE - USB-C DP Alt Mode, USB-A, HDMI video - 4K 30Hz, 60W Power Delivery - 1x AC power outlet and 2x USB-A (BC 1.2 up to 2.4A/port) Bullets (Consolidated) In-desk/table universal conference room docking station w/ auto host switching for USB-C or USB-A laptops; USB charging and AC power - USB-C (DP Alt Mode and 60W Power Delivery) or USB-A docking or HDMI pass through video | 4K 30Hz - 4-Port USB 3.0 hub | GbE | 3.5mm Audio in/out - 1x 100-240V (passive) AC outlet and 2x USB-A BC 1.2 (up to 2.4A/port) - Connectivity box for USB-A/USB-C/Thunderbolt 3 laptops | Windows/mac/iPadOS/Chrome/etc - For boardroom collaboration works w/Teams/Zoom/etc Marketing Copy Marketing Copy (No HTML) Applications - Provide additional power and charging outlets
- Simple connectivity between your laptop and your rooms devices
- Perfect for conference calls and presentations
- Ideal for meeting rooms, classrooms, and huddle spaces
Website Search Keyword - Architectural Connectivity
- architectural connectivity box
- Boardroom cable management
- Boardroom Connectivity Kit
- Boardroom Table Kit
- Cable Cubby
- cable management table box
- cable organizer
- conference room connection box
- Conference Room Table Box
- Conference Room USB C Docking Station
- conference table cable box
- conference table connection box
- Conference Table Connectivity
- conference table connectivity box
- conference table inserts
- conference table power hub
- conference table with power
- connectivity architecture
- Crestron Table box
- Desktop Outlet
- direct connect architecture
- extron cable cubby
- furniture electrical outlet
- Modular Conference Room Table Box
- Modular Power Supply
- Power Hub
- Table Box
- Table Box Power Delivery
- Table Connectivity Box
- table top box
- Tabletop Power
- Tabletop Power Hub
- tabletop power outlet
- Universal architectural connectivity
- USB C Docking Station
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
- 4K resolution is supported. A 4K-capable display is required to achieve 4Kx2K resolution
- If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- Cables with ferrites may impact cable maneuverability within the cable hole. If ferrites are required, we recommend using cables with ferrites that are positioned as close to the connector as possible
- The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-B to A cable (included), but Power Delivery to charge your laptop is not available through USB-A
Accessory Products - HDMM50CMP
- HDMM1MP
- HDMM2MP
- HDMM3MP
- HDMM5MP
- HDMM7MP
- MU6MMS
- MU10MMS
- MU15MMS
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- USB2HABM3
- USB2HABM6
- USB2HABM10
- USBLT1MW
- USBLT2MW
- USBLT3MW
- RJ45PATCH10
- RJ45PATCH25
- PXT101EUR
- HDMM6
- HDMM10
- HDMM3
- USB315CC1M
- USB315CC2M
- USB3CAB2M
Related Products - BEZ4MOD
- MOD4CABLEH
- KITBXAVHDPNA
- BOX4HDECP2
- MOD4AVHD
- BOX4CABLE
- BOX4HDECP
Equivalent Part Number in the UK KITBXDOCKPUK Power Source AC Adapter Included Color Black Humidity Material Aluminum, Steel and Plastic Operating Temperature 0 to 40℃ (32°F to 104°F) (MOD4DOCKACPD and MOD4POWEREU) Product Length (mm) 165.000 Product Width (mm) 318.000 Product Height (mm) 110.000 Product Weight (g) 2719.000 Storage Temperature TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes General Specifications - (MOD4DOCKACPD) Center Tip Polarity: Positive
- (MOD4DOCKACPD) Input Voltage: 100 ~ 240 AC
- (MOD4DOCKACPD) Output Current: 6 A
- (MOD4DOCKACPD) Output Voltage: 20V DC
- (MOD4DOCKACPD) Plug Type: N
- (MOD4DOCKACPD) Power Source: AC Adapter Included
- (MOD4DOCKACPD) USB Power Delivery: 60W
- (MOD4POWEREU) Input Voltage: 110 ~ 240 AC
- (MOD4POWEREU) Nominal Input Voltage: 110V ~ 240V
- (MOD4POWEREU) Nominal Output Voltage: 110V ~ 240V
- (MOD4POWEREU) Number of AC Power Outlets: 1
- (MOD4POWEREU) Number of USB Power Ports : 2
- (MOD4POWEREU) Output Current: 10 A
- (MOD4POWEREU) Output Voltage: 5 DC
- (MOD4POWEREU) Power Source: EU Power Cord Included
Maximum Data Transfer Rate Maximum Digital Resolutions 3840 x 2160p (4K) @ 30Hz OS Compatibility - Windows 10
- Windows 8
- Windows 7
- macOS Mojave (10.14)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Chrome OS
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type - USB-C
- USB 3.2 Gen 1 (5Gbps)

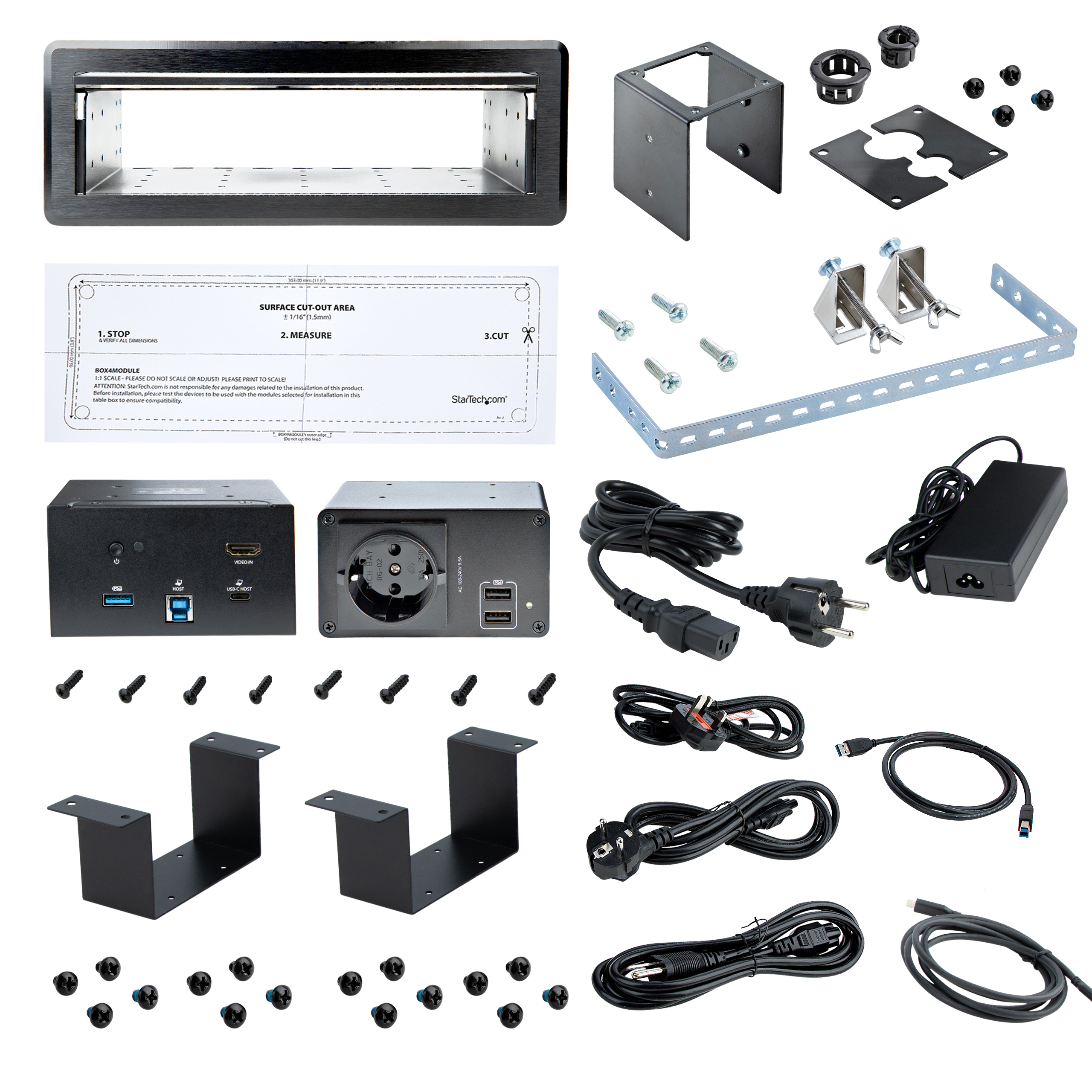

Chipset ID Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 2 - Power (1 - MOD4POWEREU, 1 - MOD4DOCKACPD) Carton Depth (mm) 360 Carton Height (mm) 240 Carton Quantity 1 Carton Weight Gross (g) 5593 Included in Package - 1 - Docking Station Module (MOD4DOCKACPD)
- 1 - Power Module (MOD4POWEREU)
- 1 - Modular Table Box (BOX4MODULE)
- 1 - Universal Power Adapter (MOD4DOCKACPD)
- 2 - Mounting Brackets (1 - MOD4POWEREU, 1 - MOD4DOCKACPD)
- 3 - Power Cords (NA, EU, UK) (MOD4DOCKACPD)
- 1 - USB-A to USB-B Cable (MOD4DOCKACPD)
- 1 - USB-C Cable (MOD4DOCKACPD)
- 8 - Mounting Bracket Screws (M5 x 20 mm) (4 - MOD4POWEREU, 4 - MOD4DOCKACPD)
- 16 - Module Screws (#6-32 x 3/16") (8 - MOD4POWEREU, 8 - MOD4DOCKACPD)
- 1 - Power Cord (EU) (MOD4POWEREU)
- 1 - Cable Management Bracket (BOX4MODULE)
- 2 - Cable Management Top Plates (BOX4MODULE)
- 4 - Cable Management Plate Screws (#6-32 x 3/8") (BOX4MODULE)
- 4 - Cable Management Bracket Mounting Screws (#6-32 x 3/8") (BOX4MODULE)
- 1 - Small Cable Bushing (BOX4MODULE)
- 1 - Large Cable Bushing (BOX4MODULE)
- 1 - Lacing Bar (BOX4MODULE)
- 4 - Lacing Bar Screws (M4 x 4mm) (BOX4MODULE)
- 2 - Wing Fasteners (BOX4MODULE)
- 2 - Quick-Start Guides (1 - MOD4POWEREU, 1 - MOD4DOCKACPD)
- 1 - User Manual (BOX4MODULE)
Package Depth (mm) 360 Package Height (mm) 240 Package Width (mm) 140 Package Quantity 1 Package Weight (g) 5593 Packaging Description Conference Table Connectivity Box with Laptop Docking and Power Modules Packaging Description India Conference Table Connectivity Box with Laptop Docking and Power Modules Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 3 Connector 2 USB-A (7.5W Power Only) Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 3 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 USB-C (5Gbps, 4.5W) Connector 6 (Quantity) 1 Connector 7 USB-B (5Gbps, 4.5W) Connector 7 (Quantity) 1 Connector 8 CEE 7/7 (250V AC, 16A) Connector 8 (Quantity) 1 Connector 9 IEC C13 (250V AC, 10A) Connector 9 (Quantity) 1 Connector 10 USB-A (480Mbps, 2.5W) Connector 10 (Quantity) 2 Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2021-04-08 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE Primary Technology - HDMI 2.0 / 4K 60 Hz and HDR
