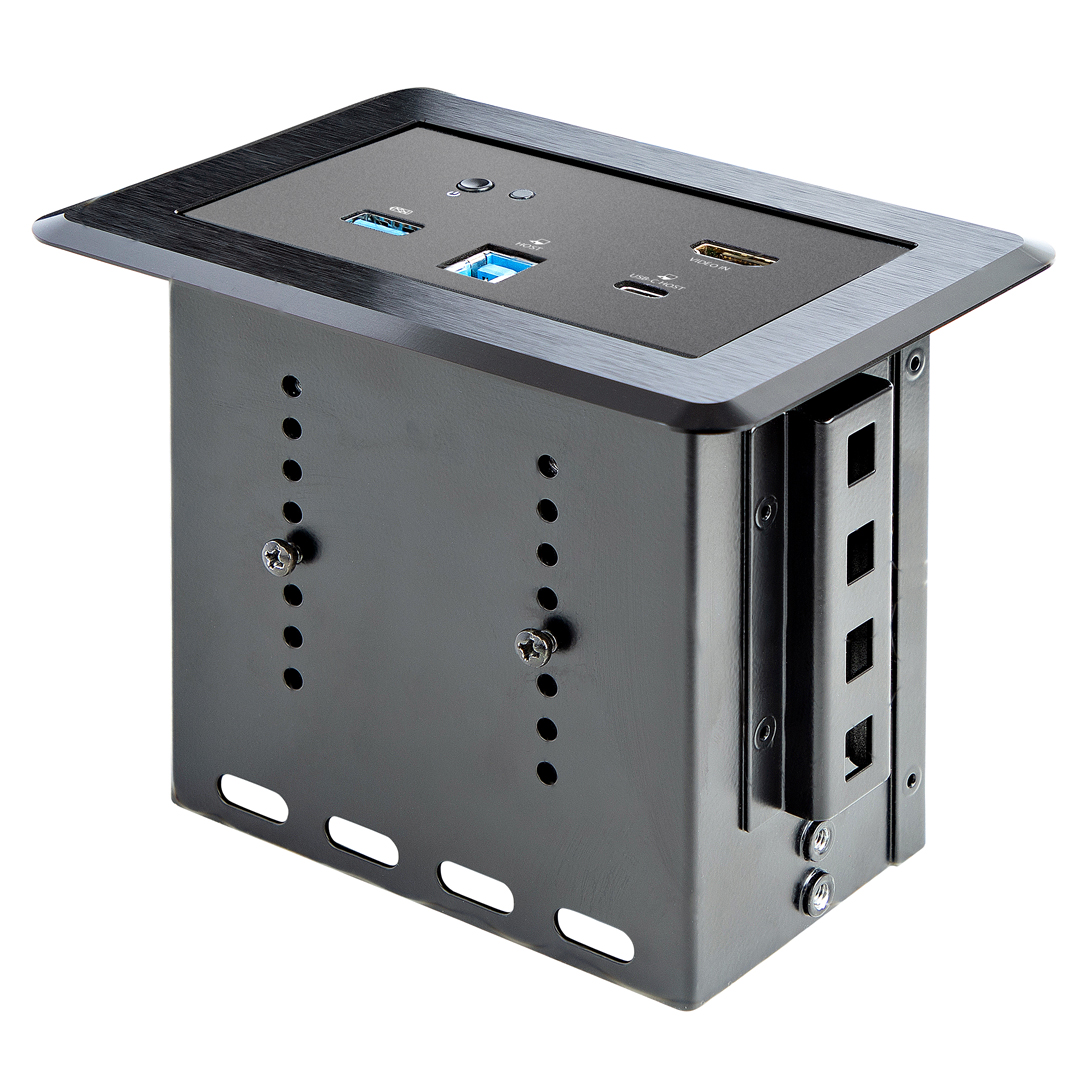

KITBZDOCK
Kit for BEZ4MOD MOD4DOCKACPD
Conference Room Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power Delivery
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name Kit for BEZ4MOD MOD4DOCKACPD Product Number KITBZDOCK UPC 065030891219 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Table Panel Boxes Category Level 1 Video Display Connectivity Category Level 2 Table Panel Boxes Category Level 3 Conversion Boxes Family Modular Table Box Kit Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) Conference Table Box Product Title (Short) In-Table Conference Room Laptop Dock Product Title (Medium) Conference Table Connectivity Box w/ Laptop Docking - 4K HDMI - USB-C / USB-A PD Product Title (Standard) Conference Room Docking Station, In-Table Universal Laptop Dock, HDMI/60W PD/USB Hub/GbE, Huddle/Boardroom Connectivity, TAA Product Title (Long) Conference Room Docking Station - Universal Laptop Dock - 4K HDMI, 60W Power Delivery, USB Hub, GbE, Audio - In-Table Connectivity Box For Huddle/Boardroom Collaboration Space - TAA Product Title (AMZ) Conference Room Docking Station - Universal Laptop Dock - 4K HDMI, 60W Power Delivery, USB Hub, GbE, Audio - In-Table Connectivity Box For Huddle/Boardroom Collaboration Space , TAA Title Ingram (Part 1) Conference Room Table Title Ingram (Part 2) Connectivity Box w/ Laptop Docking Website Product Headline Conference Room Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power Delivery Bullet 1 CONFERENCE TABLE BOX UNIVERSAL DOCKING: Setup an in-desk or in-table docking station with USB-C or USB-A host connectivity to connect to your boardroom or workstation peripherals; Easy one-cable docking with your conference room hardware Bullet 2 VIDEO FLEXIBILITY: Auto switching between USB-C or USB-A host laptops; Features USB-C (DP Alt-mode/DisplayLink), USB-A (DisplayLink), or HDMI pass through video ports (HDMI mode for AV connectivity only); Max resolution 4K UHD (3840x2160 30Hz) Bullet 3 DOCKING CONNECTIVITY PORTS: Integrated USB 3.0 5Gbps hub with 4x USB-A ports (incl. 1x BC1.2 fast charge port) | USB-C Power Delivery up to 60W to charge your laptop | Gigabit Ethernet | 3.5mm mic input and 3.5mm stereo audio output Bullet 4 AUDIO OUTPUT: Meeting room multimedia connection box supports up to 7.1 CH audio with USB-C docking or HDMI pass through or up to 5.1 CH audio when used with USB-A docking (DisplayLink) Bullet 5 COMPATIBILITY: This conference room connectivity box/insert works w/ conferencing/collaboration apps like MS Teams/Zoom/others; Works w/ USB-A, USB-C & Thunderbolt 3 laptops; Works w/ Windows (7+)/macOS (v10.8+)/Linux (v4.15+)/iPadOS/ChromeOS (v55+) Bullets (Compact) In-desk/table conference room docking station w/ USB-C / USB-A / HDMI video ports 4K 30Hz; 60W Power Delivery; USB 3.0 5Gbps Hub (4x USB-A) and GbE - Universal dock for USB-A/USB-C/TB3 laptops - Works w/ Teams/Zoom - Windows/macOS/iPadOS/ChromeOS Bullets (Consolidated) In-desk/table universal conference room docking station w/ auto host switching on USB-C or USB-A laptops - USB-C (DP Alt-mode/60W Power Delivery) or USB-A docking or HDMI pass through video | 4K (3840x2160 30Hz) - 4-Port USB 3.0 Type-A hub (1x BC1.2 fast charge) | GbE | 3.5mm Audio in/out - Tabletop connectivity box works w/ USB-A/USB-C/Thunderbolt 3 laptops | Windows/mac/Linux/iPadOS/Chrome - Mounting hardware incl - Ideal for docking w/ boardroom peripherals; For collaboration Teams/Zoom Marketing Copy Marketing Copy (No HTML) Applications - Simple connectivity between your laptop and your room's devices

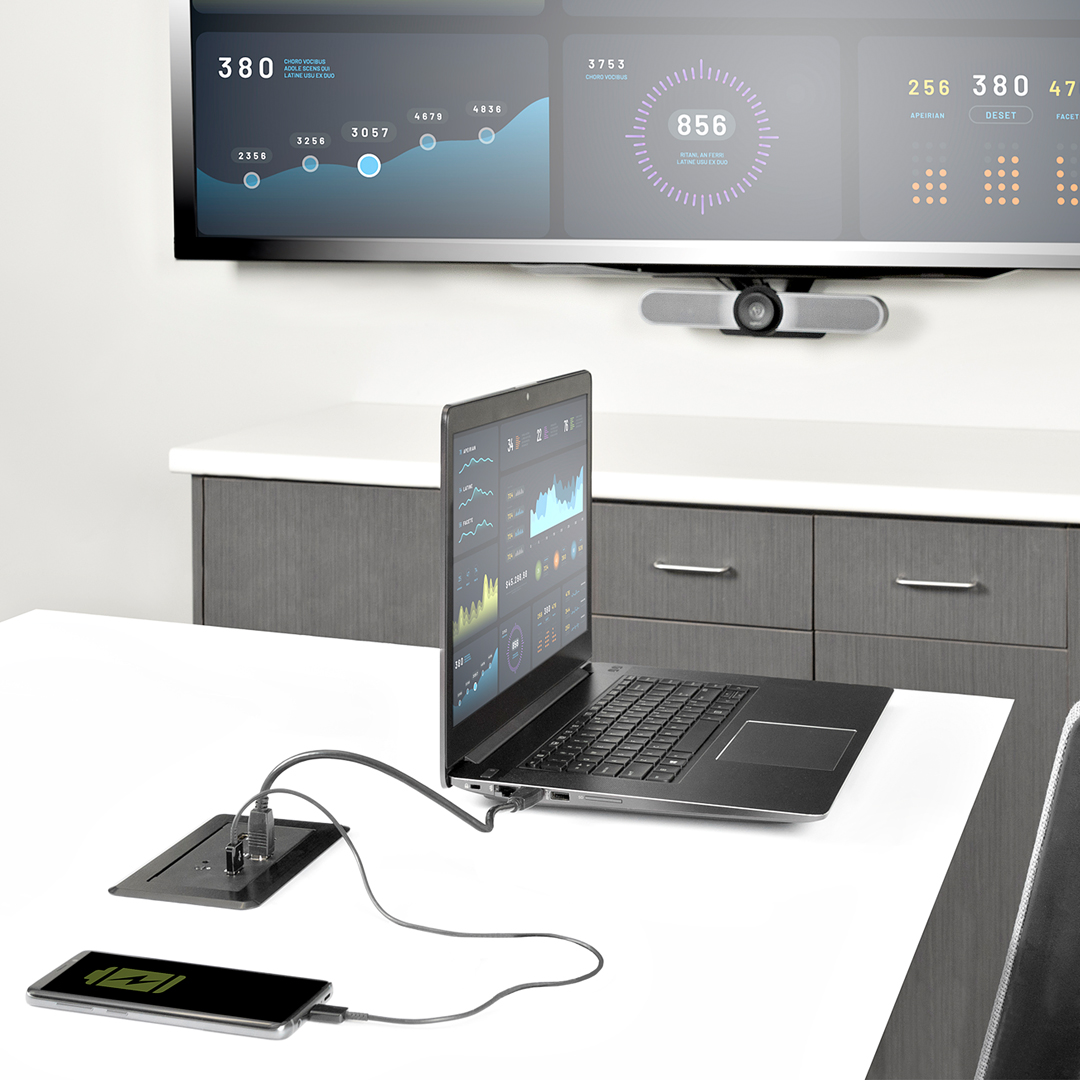

- Perfect for conference calls and presentations
- Ideal for meeting rooms, classrooms, and huddle spaces
Website Search Keyword - Conference Room Docking Station
- Conference Room Table Box
- Conference room table outlet
- conference table av box
- conference table box for av connectivity
- conference table cable box
- conference table connection box
- conference table connection box hdmi
- Conference Table Connectivity
- conference table connectivity box
- conference table connectivity box hdmi
- conference table hdmi
- conference table inserts
- conference table power hub
- conference table usb port
- conference table with power
- connectivity architecture
- Desktop usb Outlet
- direct connect architecture
- furniture usb outlet
- hdmi conference table port
- in desk power
- In Desk Power Center
- in desk usb
- Table Connectivity Box
- Table Mount Power outlet
- table power outlet
- table top box
- table top power
- tabletop multimedia connectivity box
- Tabletop Power
- Tabletop Power Hub
- tabletop power outlet
- Tabletop usb
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
- 4K resolution is supported. A 4K-capable display is required to achieve 4Kx2K resolution
- If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps

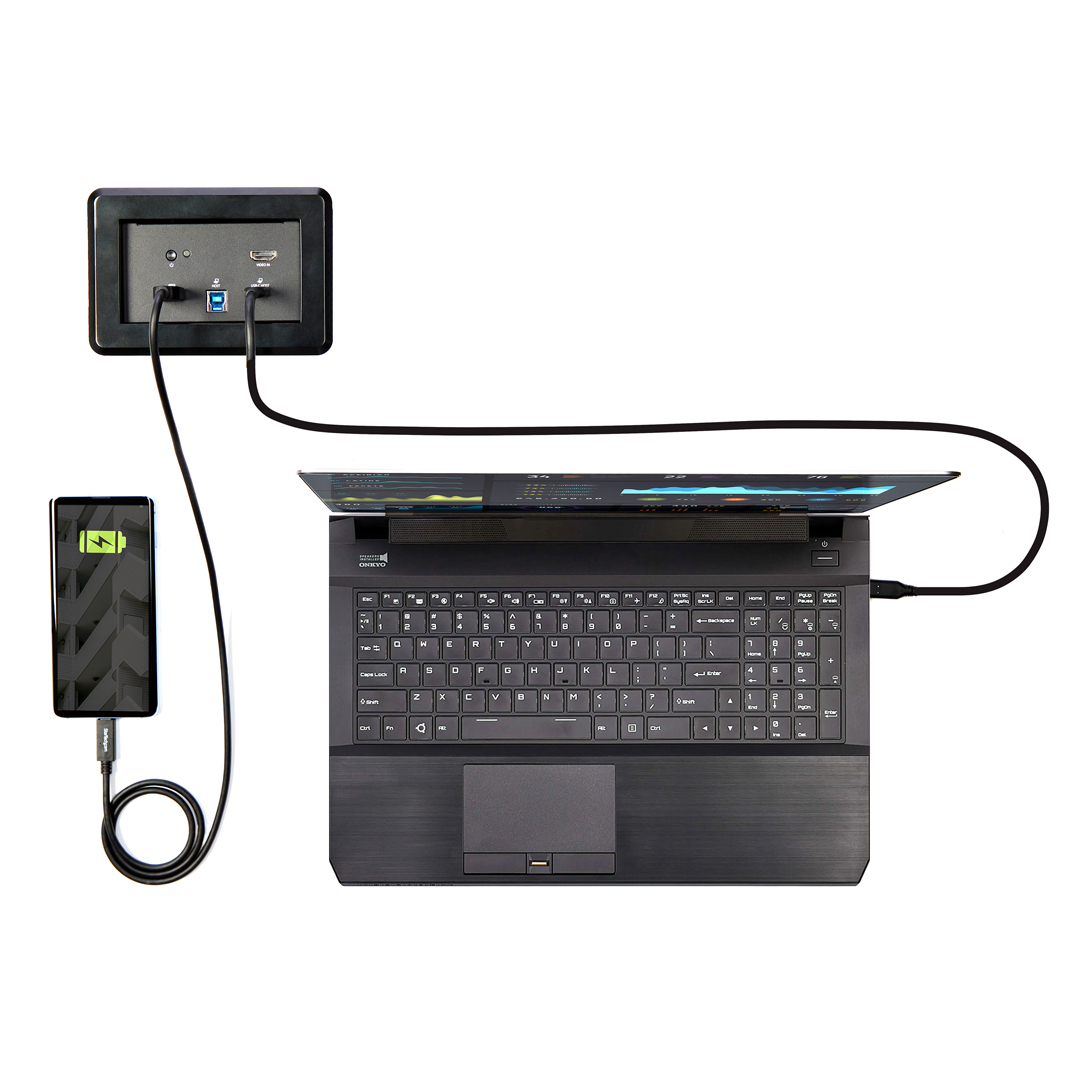

- The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-B to A cable (included), but Power Delivery to charge your laptop is not available through USB-A
- DisplayLink drivers are required for connecting your USB-A laptop to the USB-B port on the module. If you’re laptop doesn’t have the proper drivers installed and you’re unable to download and install the drivers, you can connect your laptop directly to the HDMI port to access the room’s HDMI display.
Accessory Products - HDMM50CMP
- HDMM1MP
- HDMM2MP
- HDMM3MP
- HDMM5MP
- HDMM7MP
- MU6MMS
- MU10MMS
- MU15MMS
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- USB2HABM3
- USB2HABM6
- USB2HABM10
- USBLT1MW
- USBLT2MW
- USBLT3MW
- RJ45PATCH10
- RJ45PATCH25
- HDMM6
- HDMM10
- HDMM3
Related Products - BOX4MODULE
- MOD4CABLEH
- KITBXDOCKPNA
- KITBXAVHDPNA
- KITBZPOWNA
Input Current 2 A Input Voltage 100 - 240 AC Output Current 6 A Output Voltage (V) 20V DC Power Delivery 60W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 20~80% RH Material Aluminum and Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 100.000 Product Width (mm) 145.000 Product Height (mm) 115.000 Product Weight (g) 1107.000 Storage Temperature -20°C to 65°C (-4°F to 149°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions 3840 x 2160p (4K) @ 30Hz OS Compatibility - Windows 10
- Windows 8
- Windows 7
- macOS Mojave (10.14)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Chrome OS
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type - USB-C
- USB 3.2 Gen 1 (5Gbps)

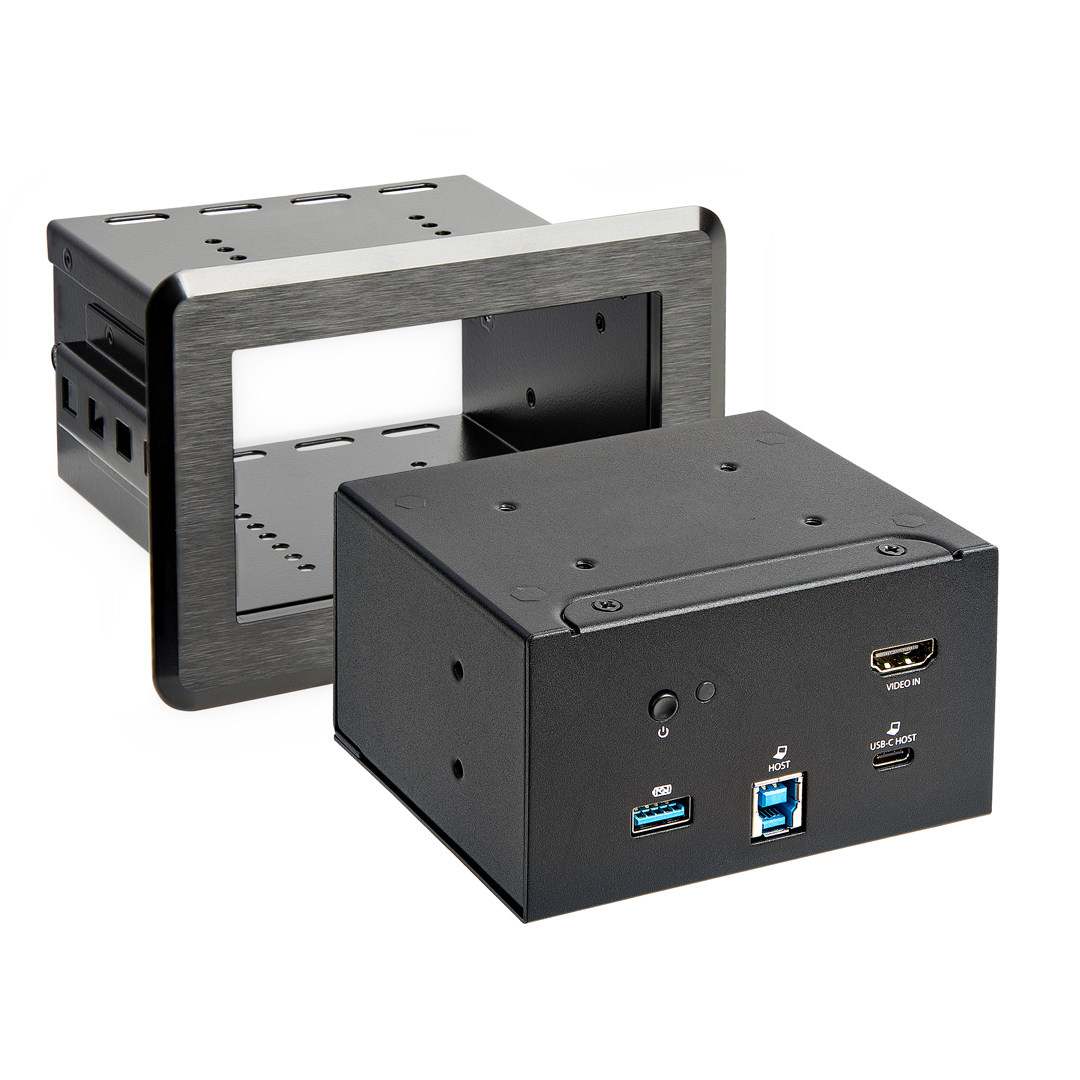

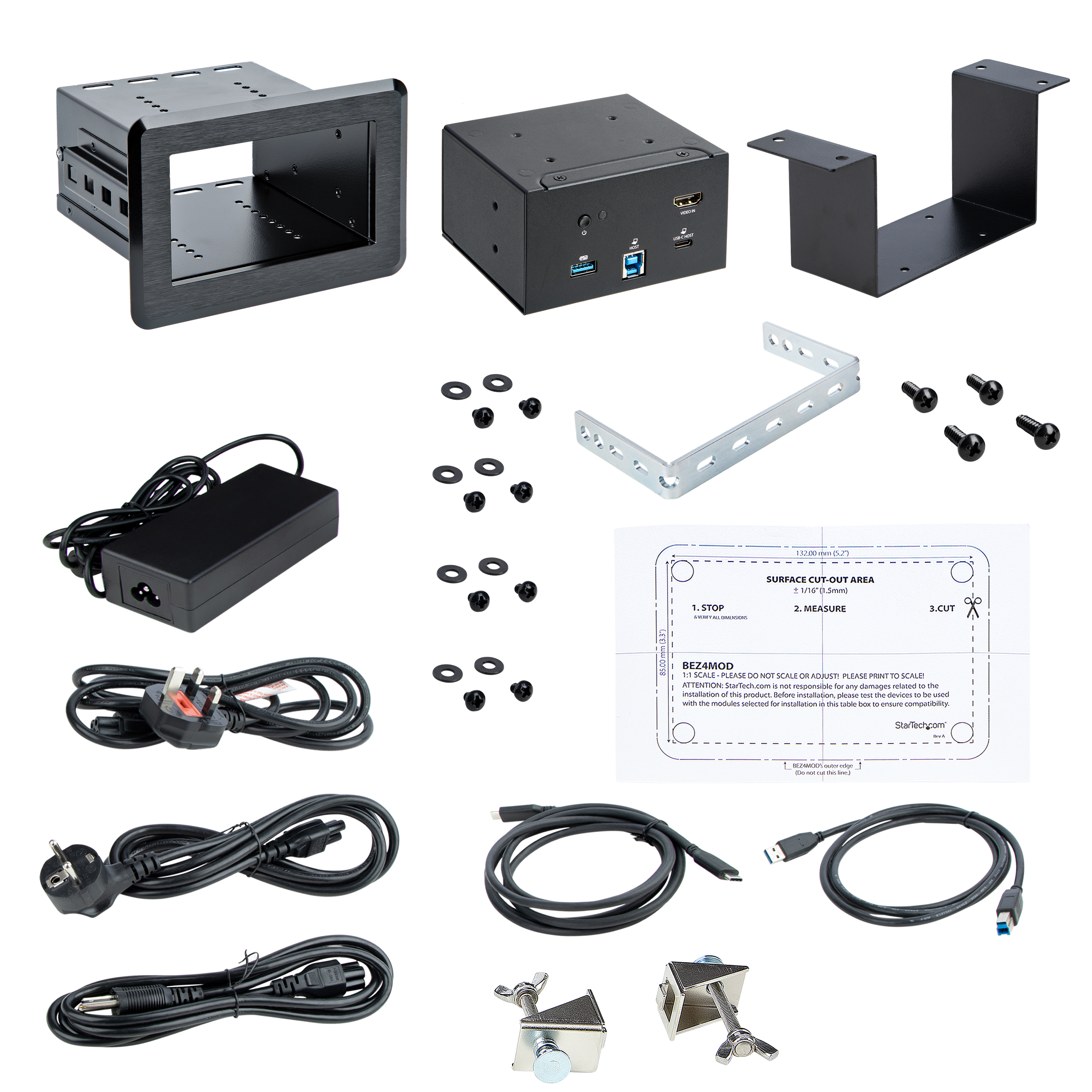

Chipset ID Industry Standards Laptop Dock 4K Support Yes Laptop Dock Number of Displays 1 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power Carton Depth (mm) 190 Carton Height (mm) 134 Carton Quantity 1 Carton Weight Gross (g) 2969 Included in Package - 1 - BEZ4MOD
- 1 - MOD4DOCKACPD

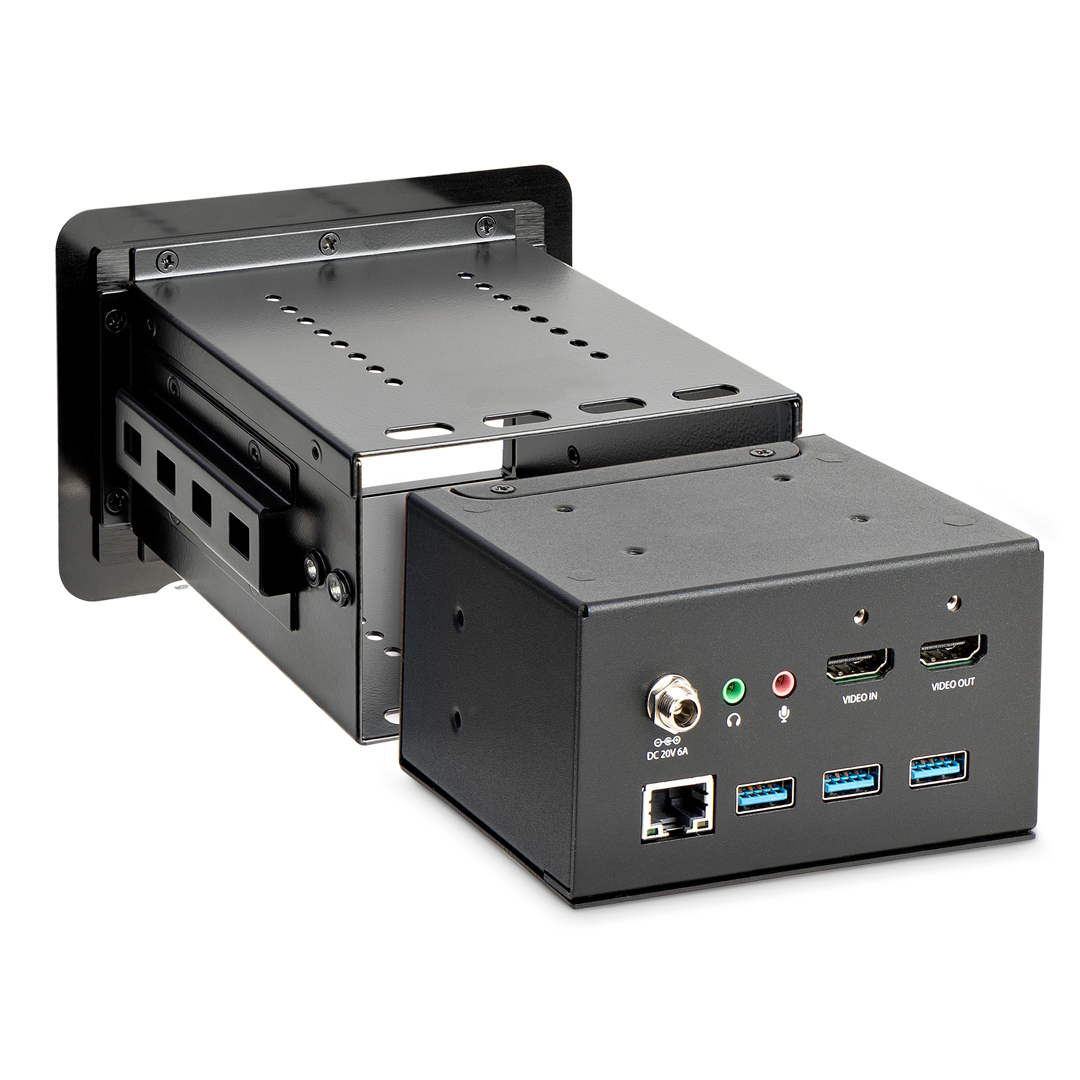

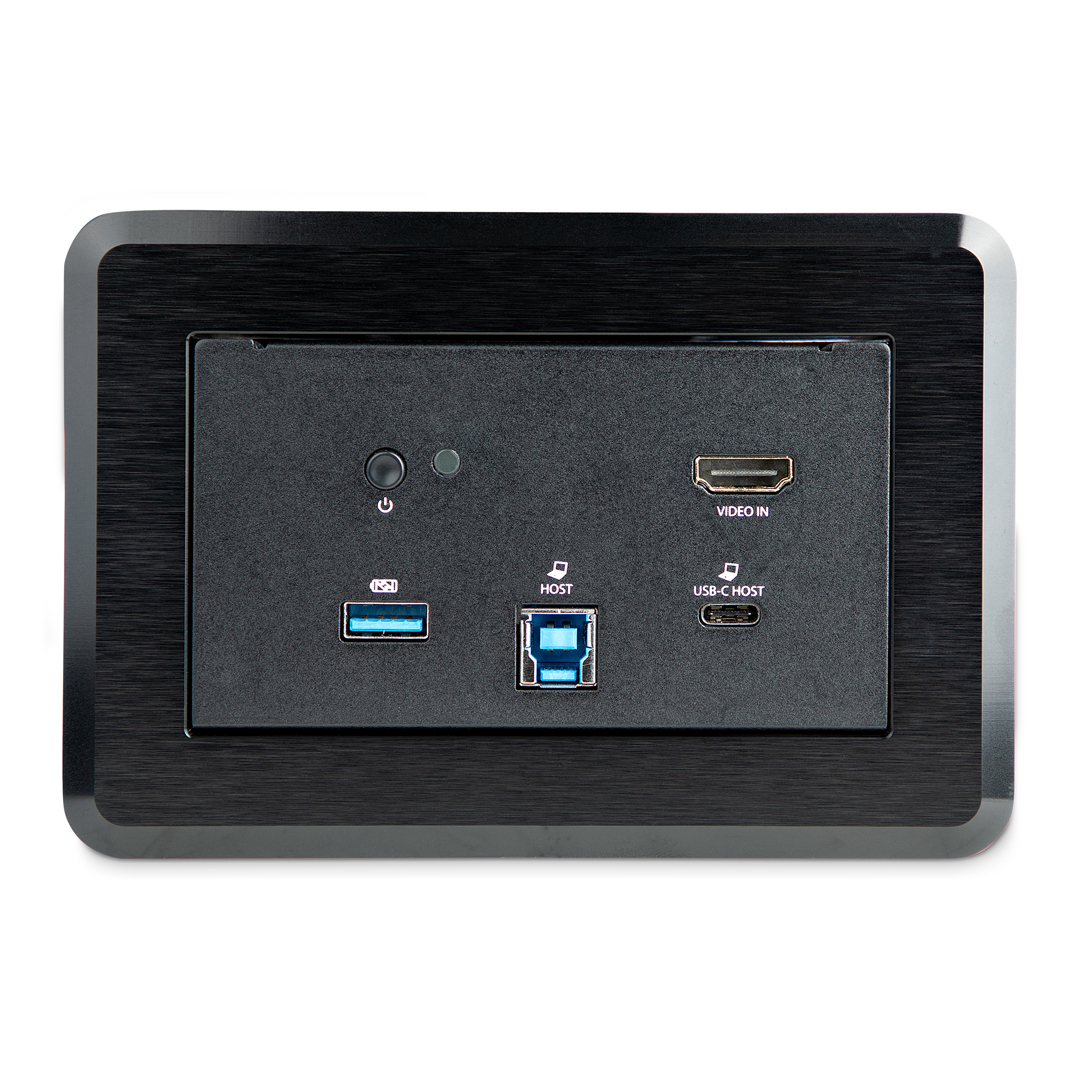

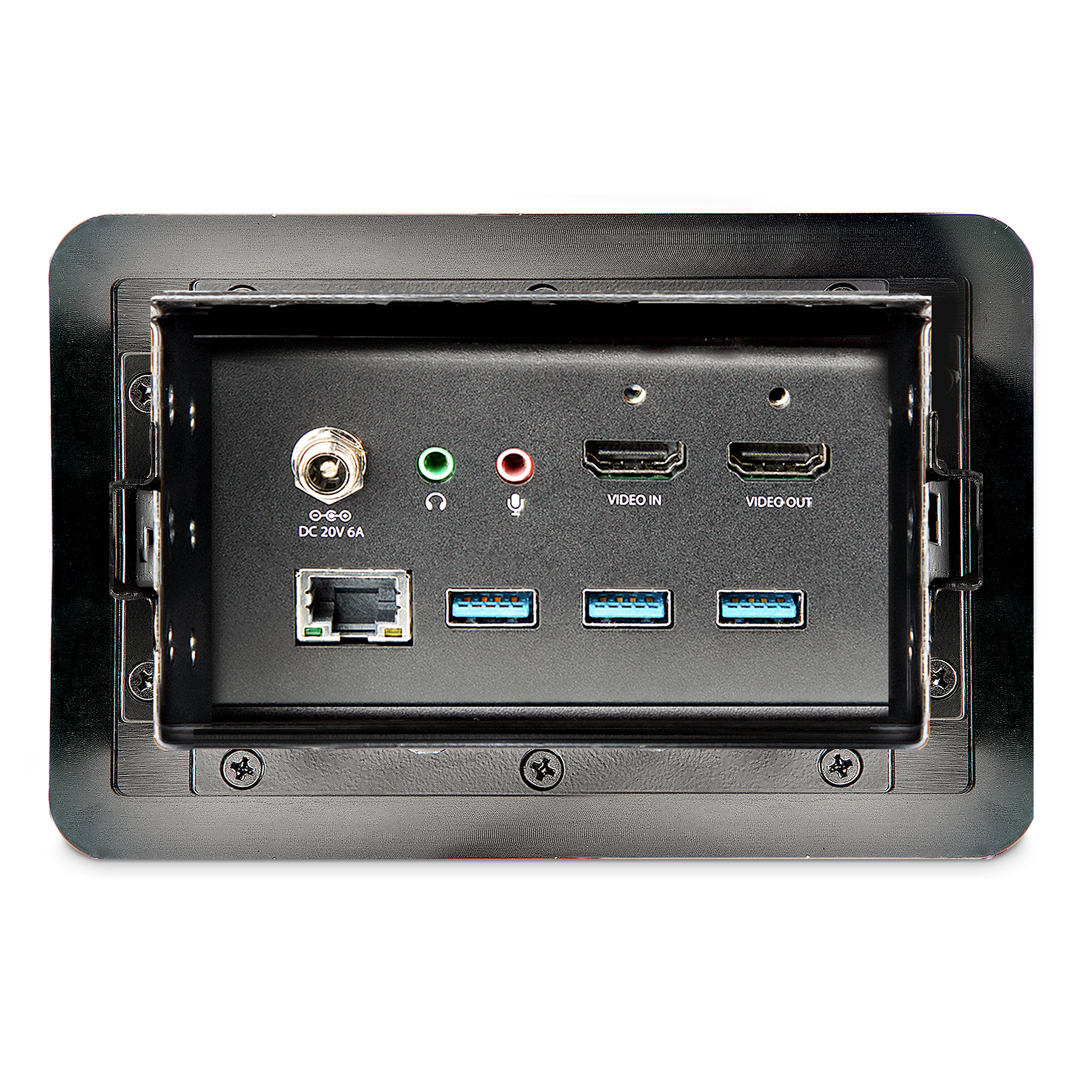

Package Depth (mm) 422 Package Height (mm) 232 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 3382 Packaging Description Conference Table Connectivity Box with Laptop Docking Packaging Description India Conference Table Connectivity Box with Laptop Docking Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 3 Connector 2 USB-A (7.5W Power Only) Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 3 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 USB-C (5Gbps, 4.5W) Connector 6 (Quantity) 1 Connector 7 USB-B (5Gbps, 4.5W) Connector 7 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2020-02-13 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2021-04-08 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-02-21 Target Production Release 2020-03-12 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
