LCT200BK4
Main Image
Product Name RJ45 LAN Cable Tester with ID Plugs *D* Product Number LCT200BK4 UPC 065030781879 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) RJ45 LAN Cable Tester with ID Plugs *D* Bullet 1 Easy to read LCD display shows continuity, opens, shorts, and pin mismatches. Bullet 2 A pin mapping of the current cable is displayed while the unit performs the test. Bullet 3 Identifies (8) different wiring schemes plus (1) temporary user-defined scheme. Bullet 4 Includes (4) remote locator plugs, each programmed with a unique ID number so multiple drops can be tested before moving the plugs to new outlets. Bullet 5 Tests both shielded and unshielded cable in local and remote mode. Marketing Copy The StarTech.com Advanced RJ45 LAN Cable tester allows a single person to test several long cables faster and more efficiently than ever before. The tester uses remote loop-back plugs that each have their own unique ID number that the tester can identify. If several cables need to be tested, the user simply puts a loop-back plug on the end of each cable run and goes to the other end to test and identify each one. The tester provides a basic continuity test with a pin-map that will identify wiring errors, allowing them to be quickly corrected. It also identifies several common pinnings and displays the applications for each. TAA Compliant No General Specifications - LCD Display: 2 lines by 16 characters with LED backlight
- Connectors: (2) shielded RJ45 (8P8C) jacks
- Control Keys: Left arrow, Right arrow, Enter, ESC
- Power Source: (4) AA Batteries
- Dimensions: 157 x 97 x 45 mm (6.2 x 3.8 x 1.8 in)
- Weight: 300 g (10.5 oz.) net

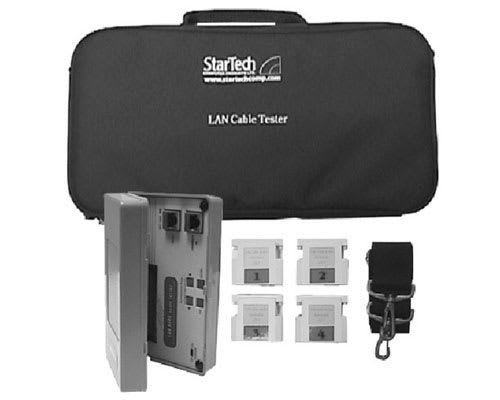

Included in Package 1 - Professional LAN Cable Tester with Remote en-US Content Approved Yes
