Main Image
LSATA12RA1

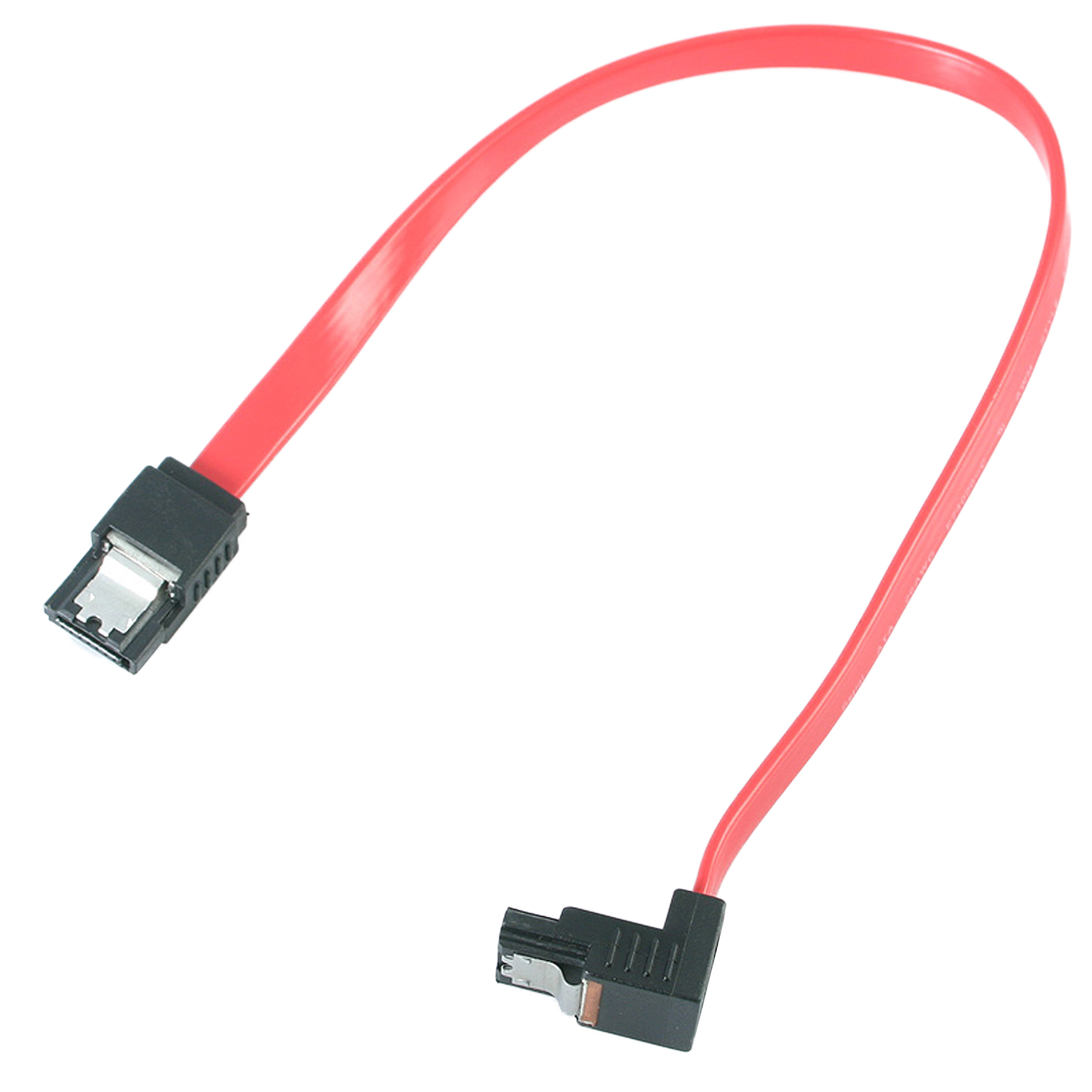

12 latching sata cable 1 Right Angle
.
Main Image
BOM Image
Product Name 12 latching sata cable 1 Right Angle Product Number LSATA12RA1 UPC 065030818698 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Internal Data & Power Category Level 1 Cables - Other Category Level 2 Drive Cables Category Level 3 SATA Cables Family Latching SATA Cables Angled Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX087X Product Title (Ultra-Short) . Product Title (Short) 12in SATA to Right Angle SATA Cable Product Title (Medium) . Product Title (Standard) 12in Latching SATA to Right Angle SATA Serial ATA Cable Product Title (Long) 12in Latching SATA to Right Angle SATA Serial ATA Cable Product Title (AMZ) 12in Latching SATA to Right Angle SATA Serial ATA Cable (LSATA12RA1) Title Ingram (Part 1) 12in Latching SATA to Right Angl Title Ingram (Part 2) e SATA Serial ATA Cable Website Product Headline . Bullet 1 Bullets (Consolidated) SATA cable - Serial ATA 150/300 - SATA (F) to SATA (F) - 1 ft - latched - right-angled connector - red - for P/N: PEXSAT31E1 - PEXSAT32 Marketing Copy Website Search Keyword - SATA
- Latching
- RoHS
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Cable Length (mm) 304.8 Color Red Connector Style Straight to Right Angle Humidity 0-95% Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 304.800 Product Width (mm) 14.000 Product Height (mm) 6.000 Product Weight (g) 8.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No SATA Type and Rate SATA III (6 Gbps) Carton Depth (mm) 338 Carton Height (mm) 218 Carton Quantity 200 Carton Weight Gross (g) 4082 Included in Package 1 - 12in SATA to Right Angle SATA Serial ATA Cable Included In Package for Label 1 - 12In SATA To Right Angle SATA Serial Ata Cable Number of Sub-Cartons 20 Package Depth (mm) 119 Package Height (mm) 42 Package Width (mm) 195 Package Quantity 1 Package Weight (g) 16 Packaging Description 12in/30cm SATA to Right Angle SATA Serial ATA Cable Packaging Description India 12in SATA to Right Angle SATA Serial ATA Cable Sub-Carton Depth (mm) 291 Sub-Carton Height (mm) 46 Sub-Carton Width (mm) 237 Sub-Carton Quantity 10 Sub-Carton Weight (g) 166 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DK,EU,IE,IN,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
