M2-HDD-DUPLICATOR-N1

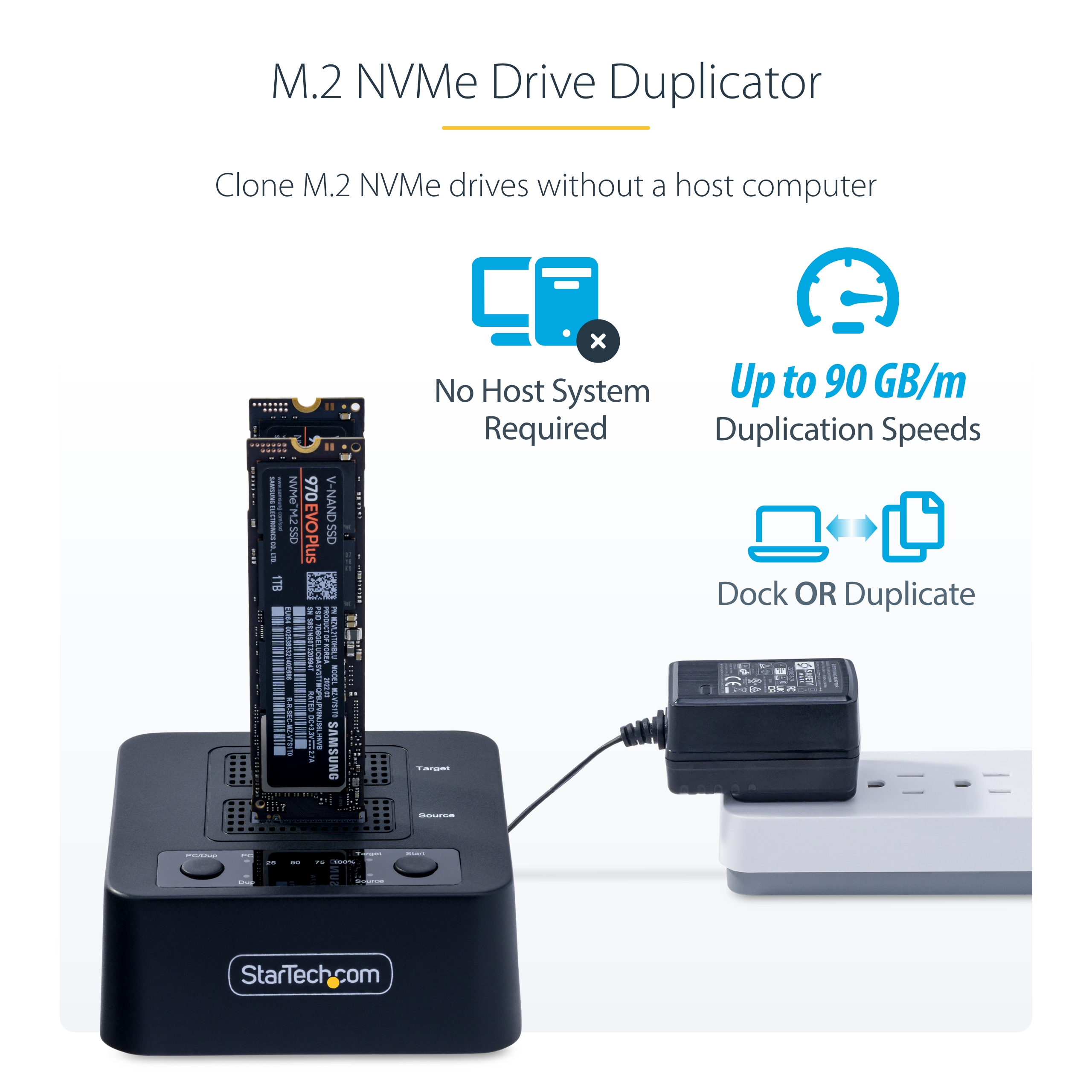

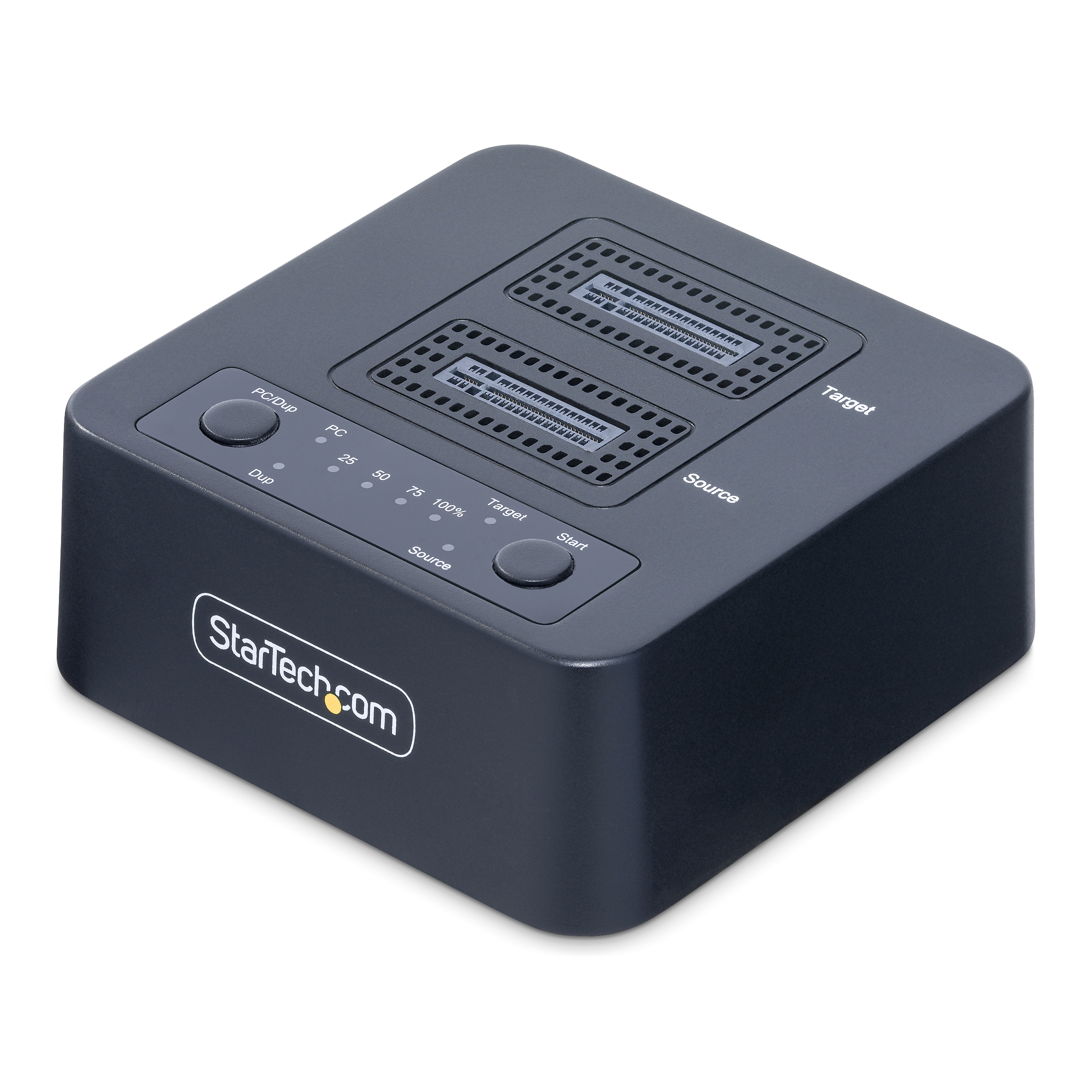

M 2 NVMe 1 1 Drive Duplicator

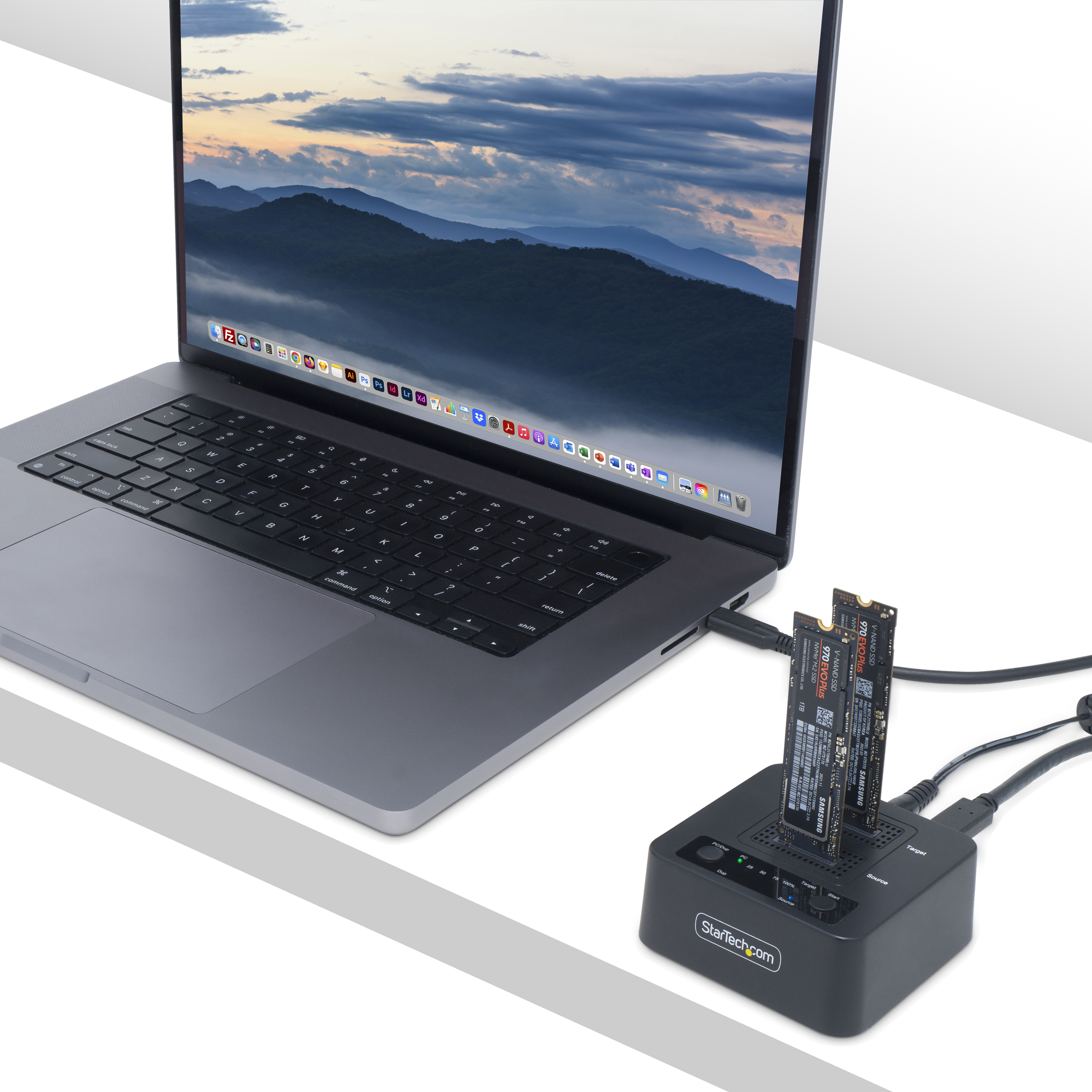

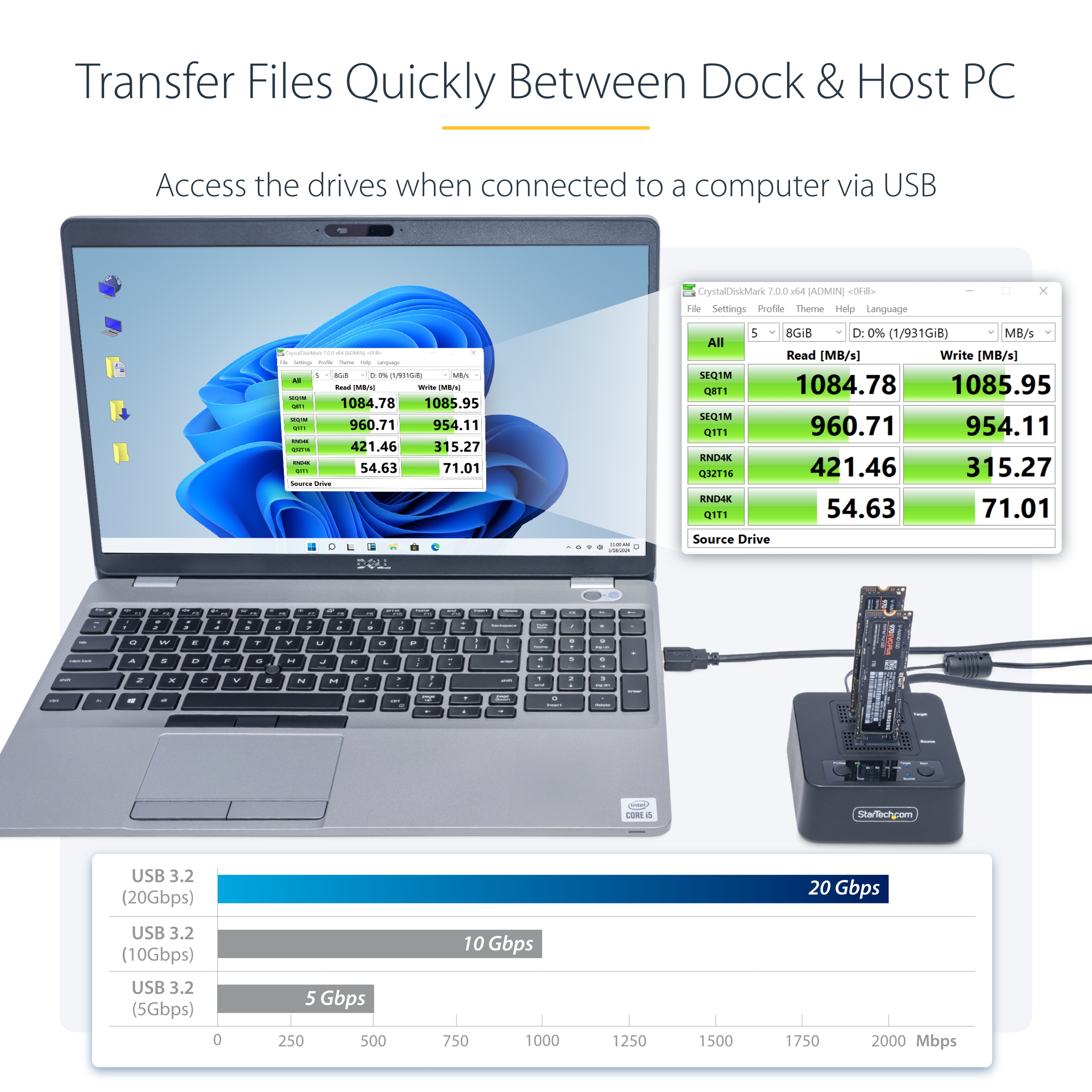

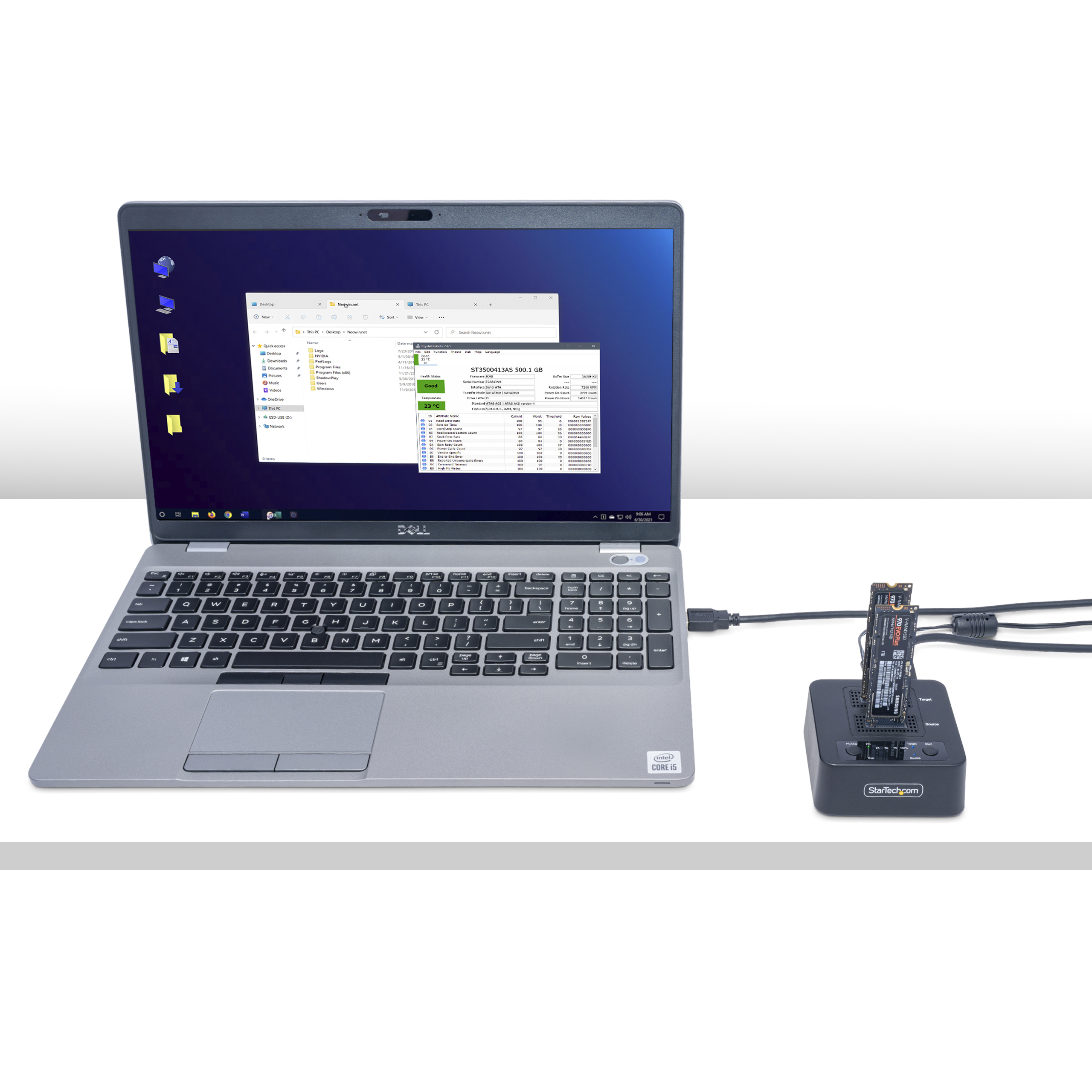

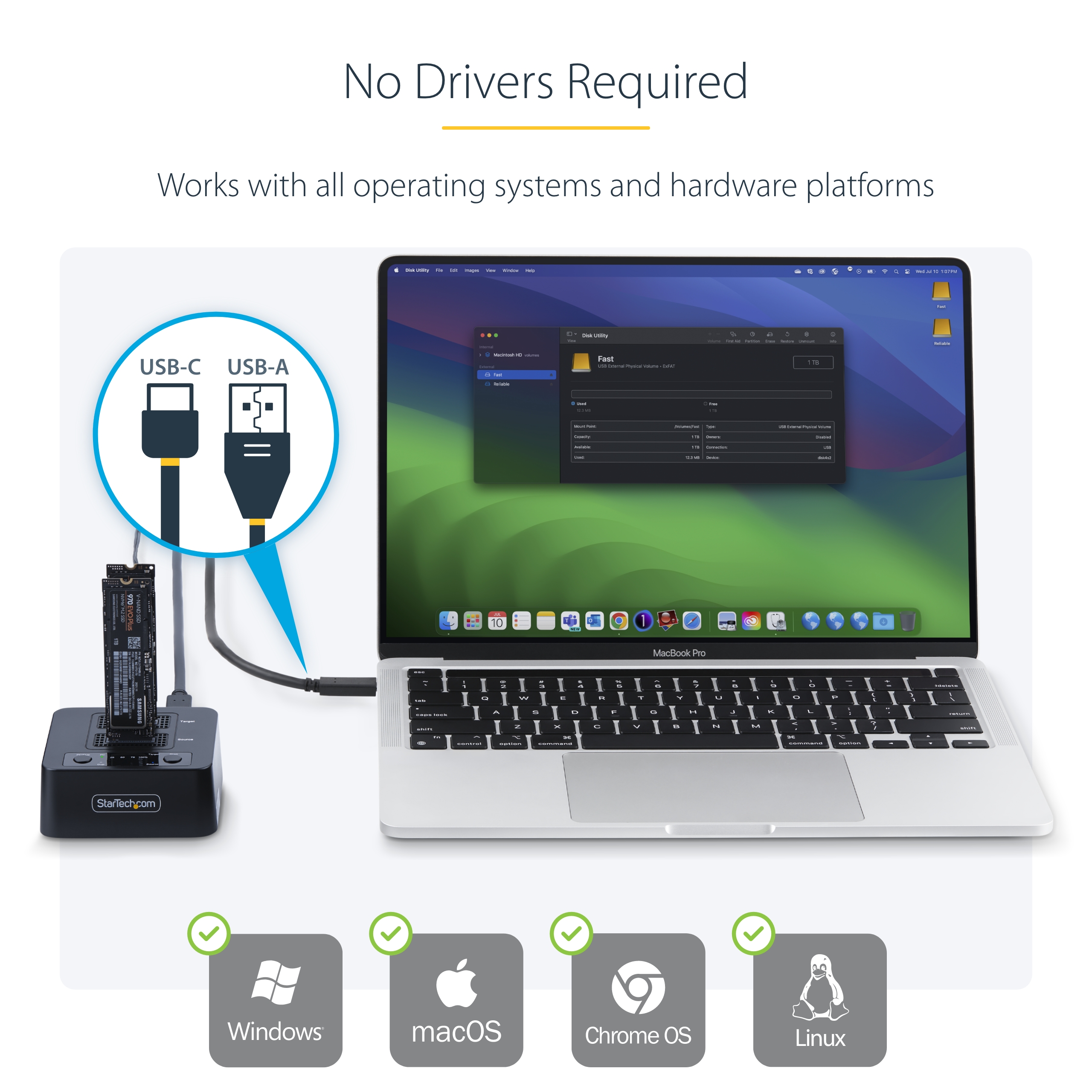

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name M 2 NVMe 1 1 Drive Duplicator Product Number M2-HDD-DUPLICATOR-N1 UPC 065030898003 Lifecycle status Active Warranty 2 Years Weighted Opportunity 257904 Taxonomy Product > Cards & Adapters > Duplicators and Erasers Category Level 1 Data Storage Category Level 2 Drive Duplicators and Erasers Category Level 3 Drive Duplicators and Erasers - M.2 NVMe Family M.2 NVMe Duplicator Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) M.2 NVMe Duplicator Product Title (Short) 1:1 M.2 NVMe Drive Duplicator Dock Product Title (Medium) 1:1 M.2 NVMe Drive Duplicator, Standalone SSD Cloner/Copier and Drive Dock Product Title (Standard) 1:1 M.2 NVMe Drive Duplicator, 90GBpm Standalone M.2 SSD Cloner/Copier, USB-C 3.2 20Gbps M.2 Dual-Bay Drive Docking Station Product Title (Long) 1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier up to 90GBpm, USB 3.2 20Gbps M.2 Dual-Bay Drive Dock, USB-C/A Cables Included Product Title (AMZ) 1:1 M.2 NVMe Drive Duplicator, 90GBpm Standalone M.2 SSD Cloner/Copier, USB-C 3.2 20Gbps M.2 Dual-Bay Drive Dock Title Ingram (Part 1) 1:1 M.2 NVMe Duplicator - Title Ingram (Part 2) M.2 SSD Cloner and Drive Dock Website Product Headline Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB Bullet 1 STANDALONE M.2 DUPLICATOR: Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer; High performance sector-by-sector duplication rates of up to 90GBpm; Works with any file format and copies the entire drive Bullet 2 M.2 DRIVE DOCK: USB 3.2 Gen2x2 (20Gbps) host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need to install the drives internally Bullet 3 COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, progress, and SMART status; Audible buzzer confirms duplication completion; Active and passive cooling ensure optimal performance Bullet 4 COMPATIBILITY: No drivers or software required; Top-loading (toaster-style) design ensures all PCIe M.2 (M-Key) will fit, even those with pre-installed heat sinks; Supports 4Kn sector size; Target disk must be equal to or larger than the source disk Bullet 5 APPLICATIONS: Standalone solution for cloning M.2 NVMe drives without using computer resources; Ideal for data backup, hardware upgrades, IT system imaging and support tasks, routine maintenance, and educational environments Bullets (Compact) Clone/duplicate M.2 NVMe SSDs without a computer; 90GBpm copy speeds; Sector-by-sector duplication copies whole drive; USB 3.2 (20Gbps) host connection; Progress/Status/Power LEDs; Top-loading/toaster style design; No drivers/software required Bullets (Consolidated) - Clone/duplicate M.2 NVMe SSDs without a computer; Sector-by-sector duplication speeds up to 90GBpm; Works with any file format; Copies the entire drive - USB 3.2 (20Gbps) host port enables data transfer without installing the drives internally - No drivers/software required; Progress/Status/Power LEDs; Audible buzzer confirms duplication completion - Top-loading/toaster-style design supports drives with pre-installed heat sinks; Target drive must be equal to (or larger than) the source drive Marketing Copy Marketing Copy (No HTML) Applications - Back up critical data stored on NVMe SSDs and ensure efficient recovery in the event of drive failure or data loss
- Streamline the deployment of identical system configurations by creating exact copies of a configured NVMe drive
- Upgrade or replace an M.2 NVMe SSD by duplicating the existing drive contents to a new drive, eliminating time-consuming data transfers and reinstallations

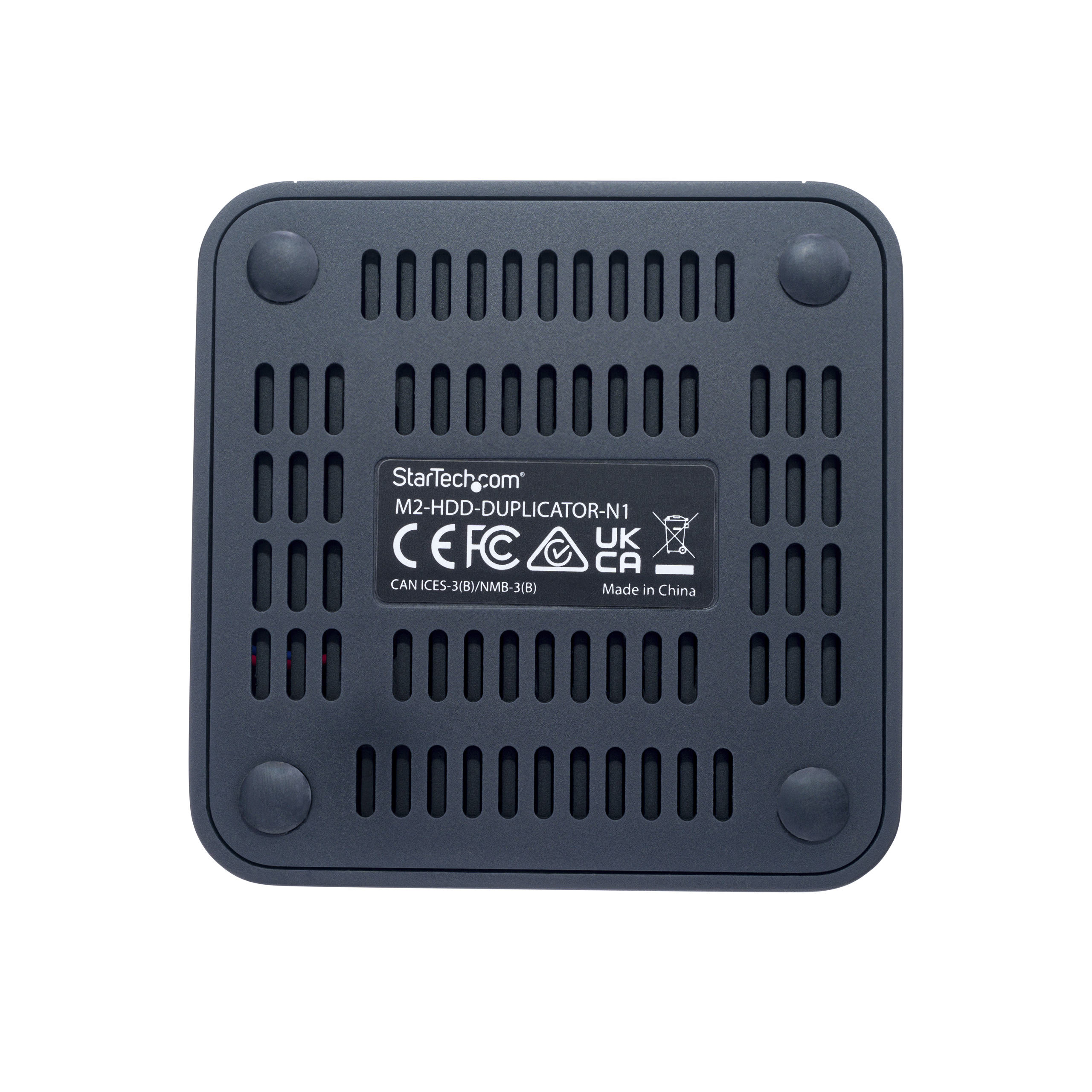

Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - All other Plastics
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
Special Notes - For duplication, the target drive must be of equal or greater size than the source drive.
- Duplication speed of up to 90 GB per minute achieved in benchmark testing environment; actual speed will vary based on drive model, algorithm, and other factors. Results may vary.
Accessory Products - M2-USB-C-NVME-SATA
- M2E1BMU31C

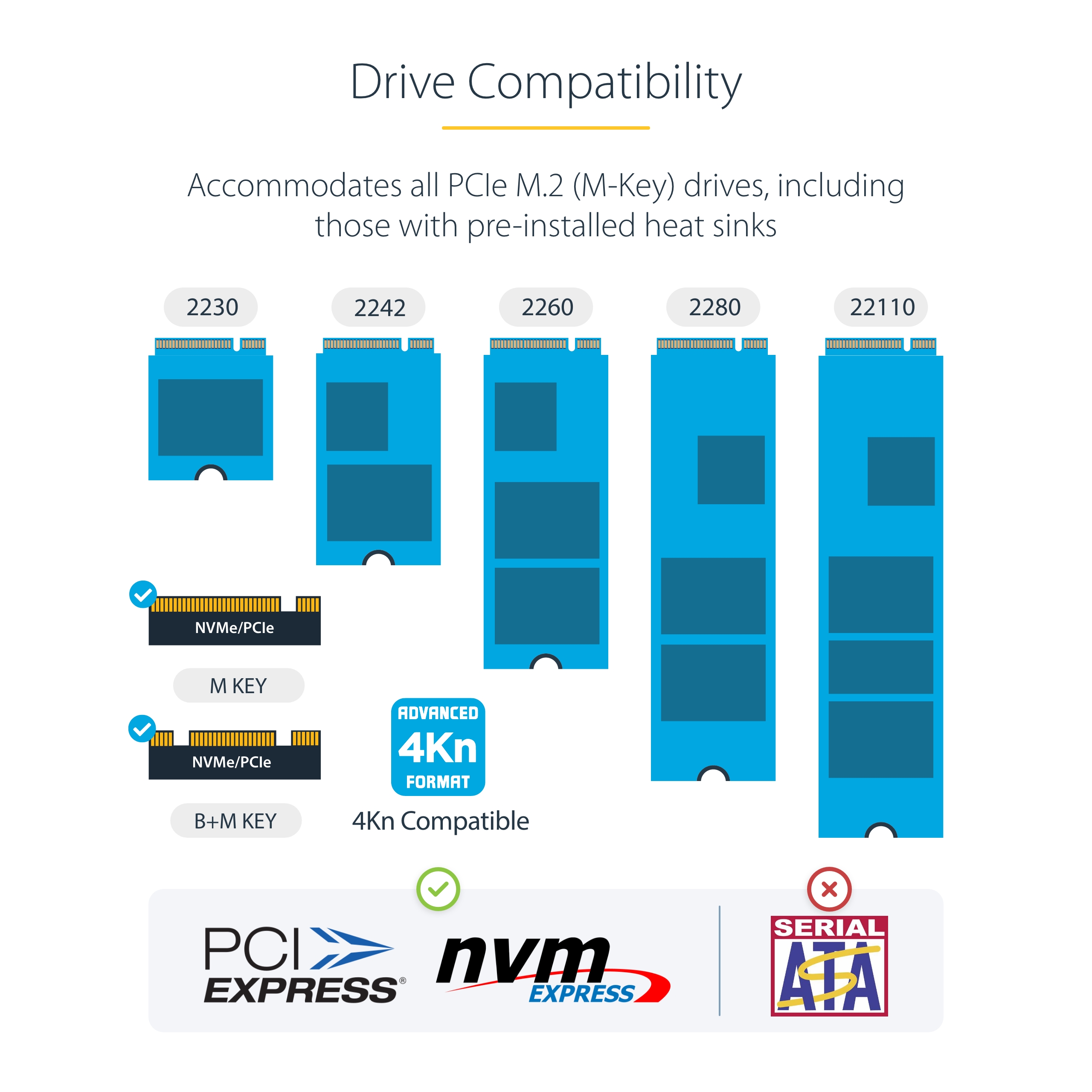

Related Products SM2DUPE11 Input Current 0.6A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 0.1W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1000 Color Black Humidity 20% ~ 80% RH Material Plastic Operating Temperature 5°C to 55°C (41°F to 131°F) Product Length (mm) 77.000 Product Width (mm) 77.000 Product Height (mm) 44.000 Product Weight (g) 129.000 Storage Temperature -20°C to 55°C (-4°F to 131°F) TAA Compliant No Duplication Modes Sector by Sector (Whole Drive) Duplication Speed 90GBpm Hot Swap Capability No MTBF (hours) 50,000 Hours OS Compatibility OS Independent Chipset ID JMS586U Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Fans 1 - 60 mm Fans Included? Yes/No Yes LED Indicators Number of Drives 2 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280
- 22110

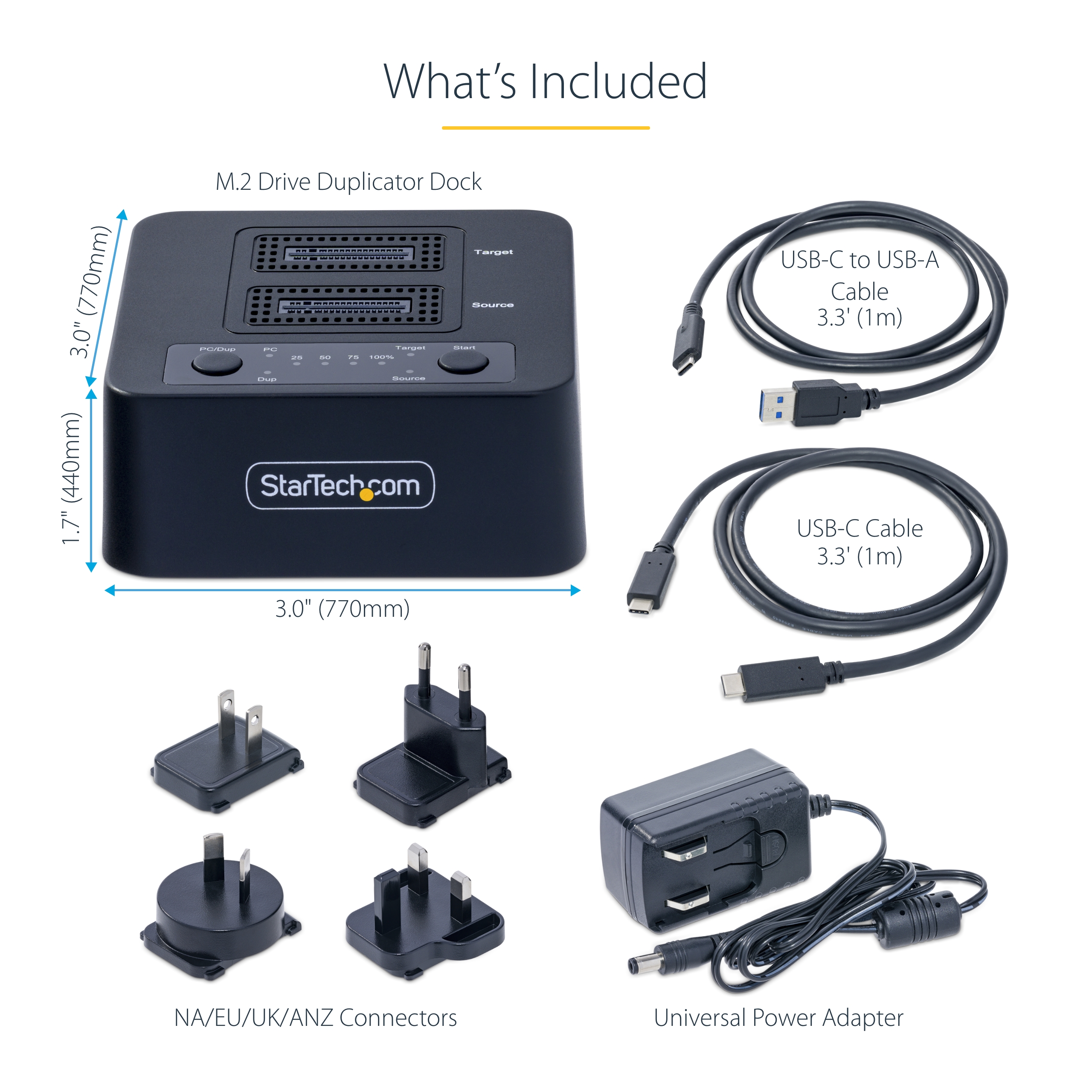

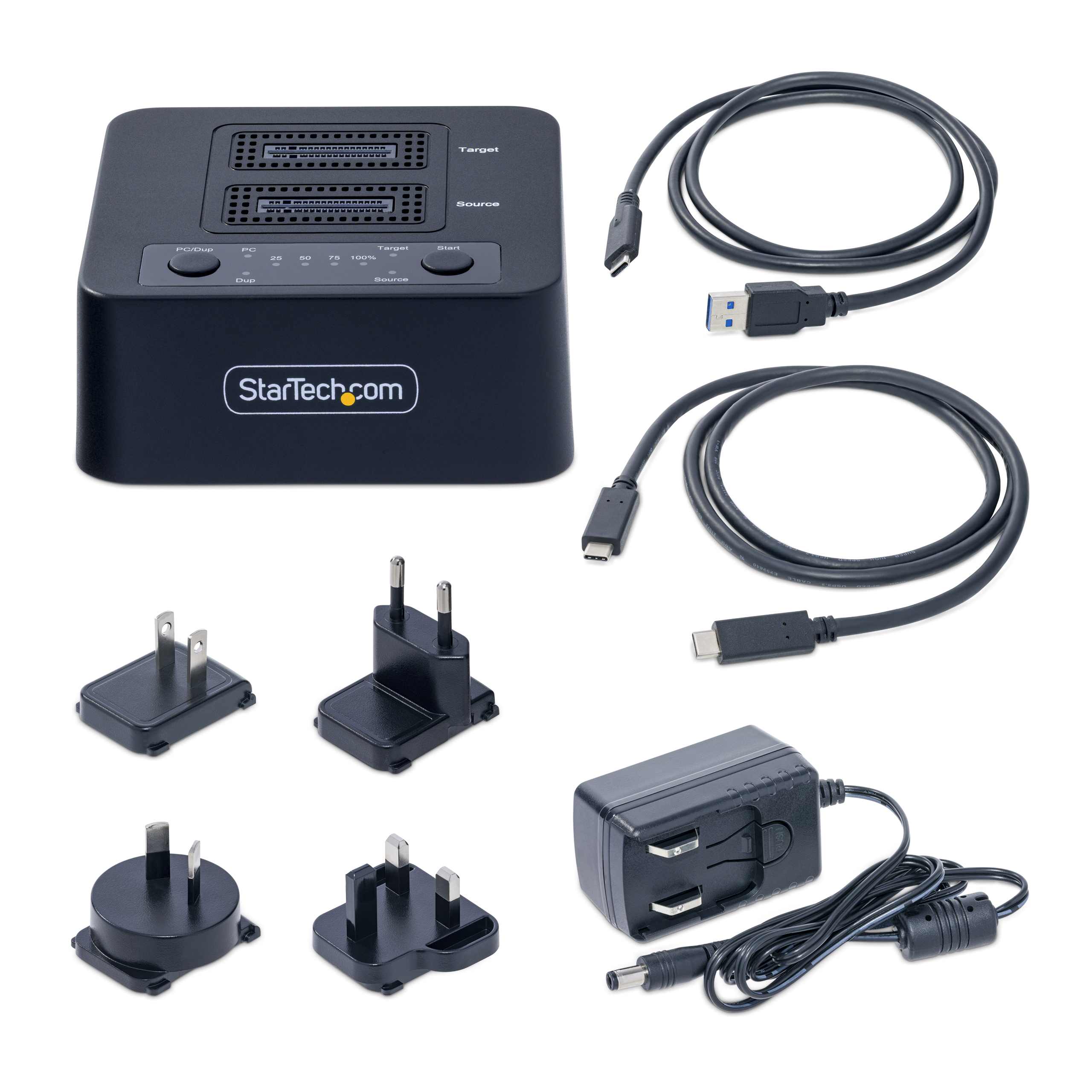

Carton Depth (mm) 500 Carton Height (mm) 228 Carton Quantity 20 Carton Weight Gross (g) 10510 Included in Package - 1 - M.2 Drive Duplicator Dock
- 1 - 3.3ft (1m) USB-C to USB-C Cable
- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Quick-Start Guide
- 1 - 3.3ft (1m) USB-A to USB-C Cable

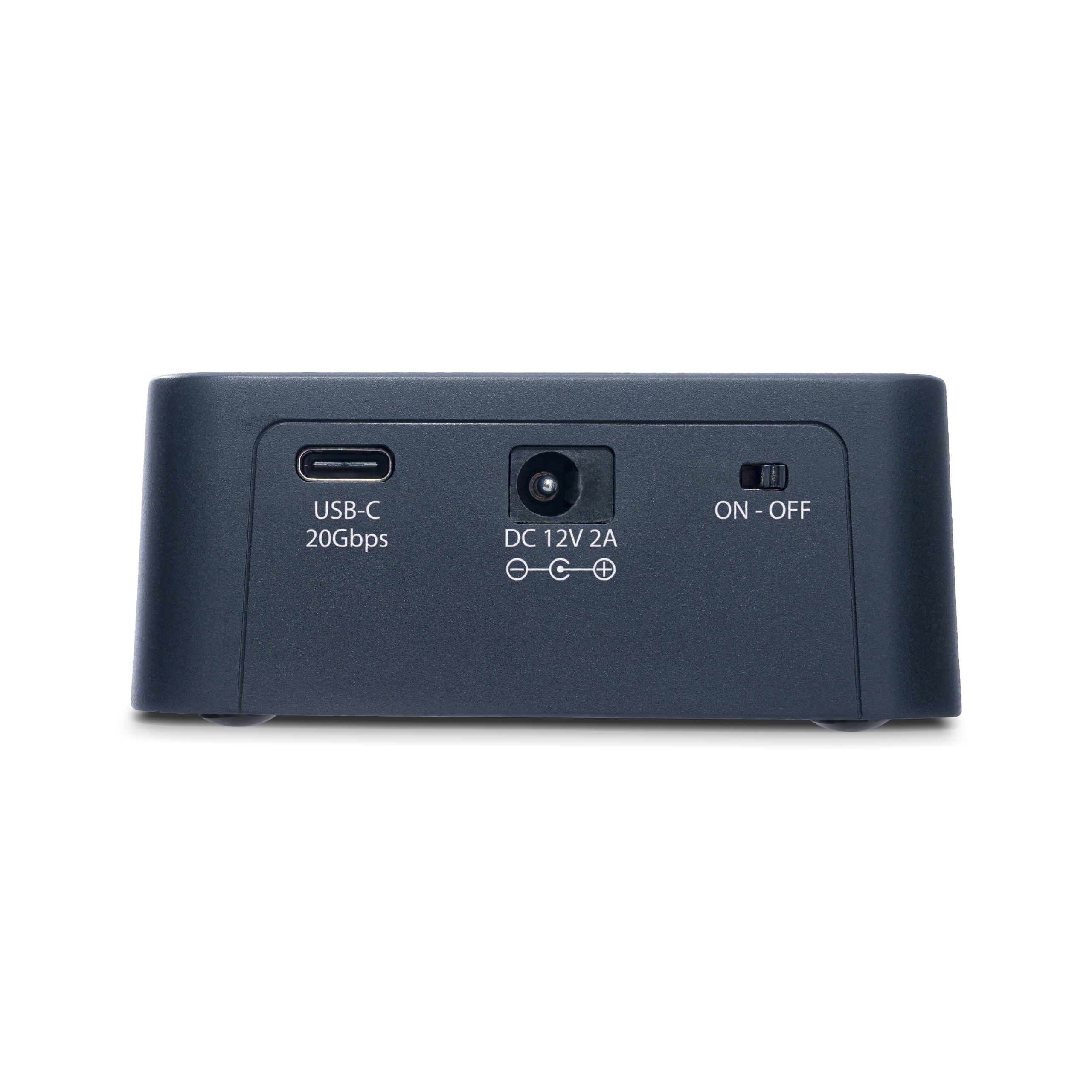

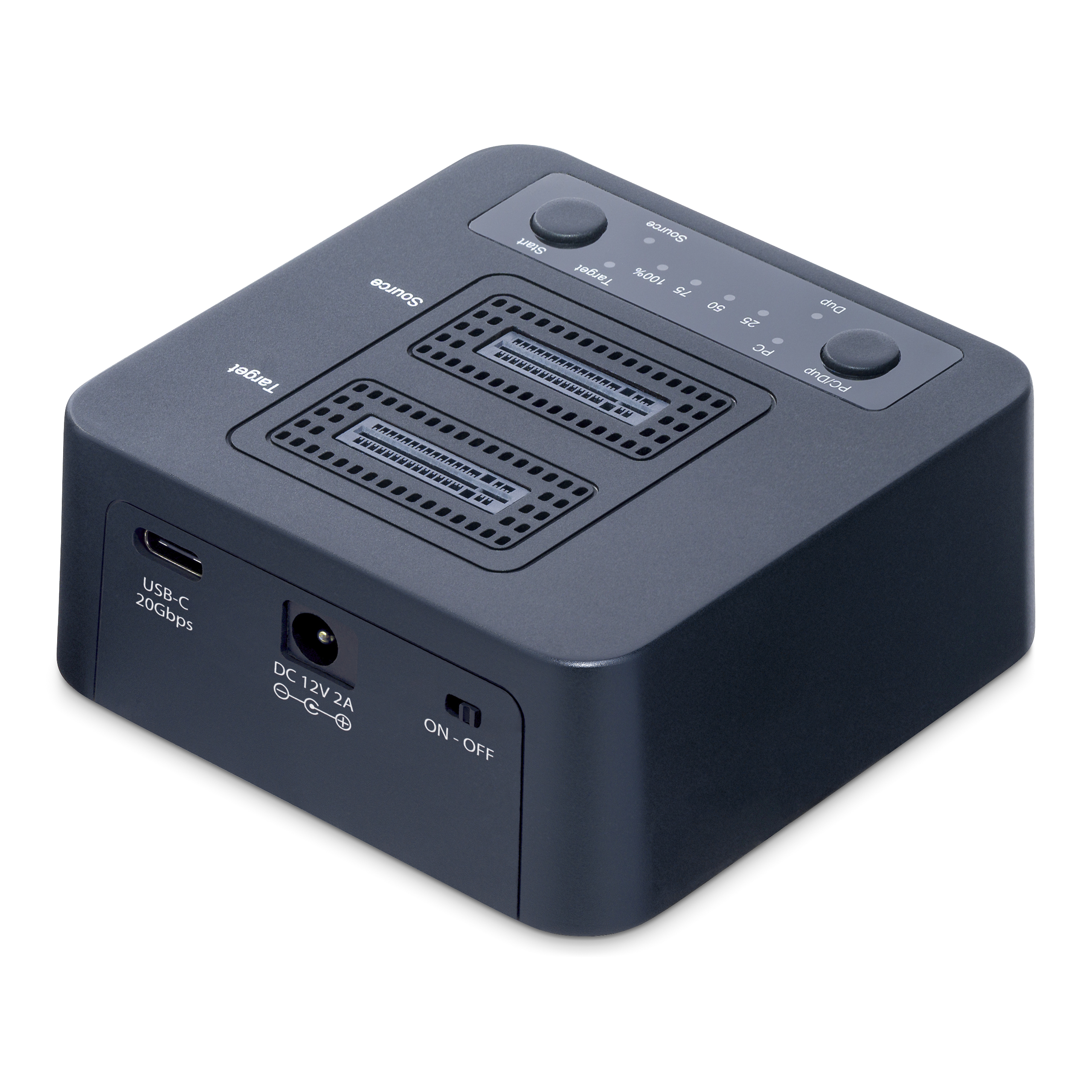

Package Depth (mm) 160 Package Height (mm) 95 Package Width (mm) 90 Package Quantity 1 Package Weight (g) 482 Packaging Description 1 to 1 M.2 NVMe Drive Duplicator Dock Packaging Description India 1 to 1 M.2 NVMe Drive Duplicator Dock Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 1 (Quantity) 1 Connector 2 M.2 M-Key (PCIe, AHCI / NVMe) Connector 2 (Quantity) 2 Host Connector 1 USB-C (20Gbps, 4.5W) Host Connector 1 (Quantity) 1 A+ Uploaded Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2023-09-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment USB3.1 HDD Cloner/Dock for 2.5"/3.5" SATA SSD/HDD Comparable SKU 2 Comment NVMe and SATA 1:1 drive duplicator and Eraser Digital Content Due Date 2024-03-27 Enhanced Gallery Not Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Development Completion Date 2023-08-17 Target Production Release 2023-09-30 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
