M2-REMOVABLE-PCIE-N1
Removable M 2 NVMe SSD Mobile Rack Bay for PCIe Expansion Sl

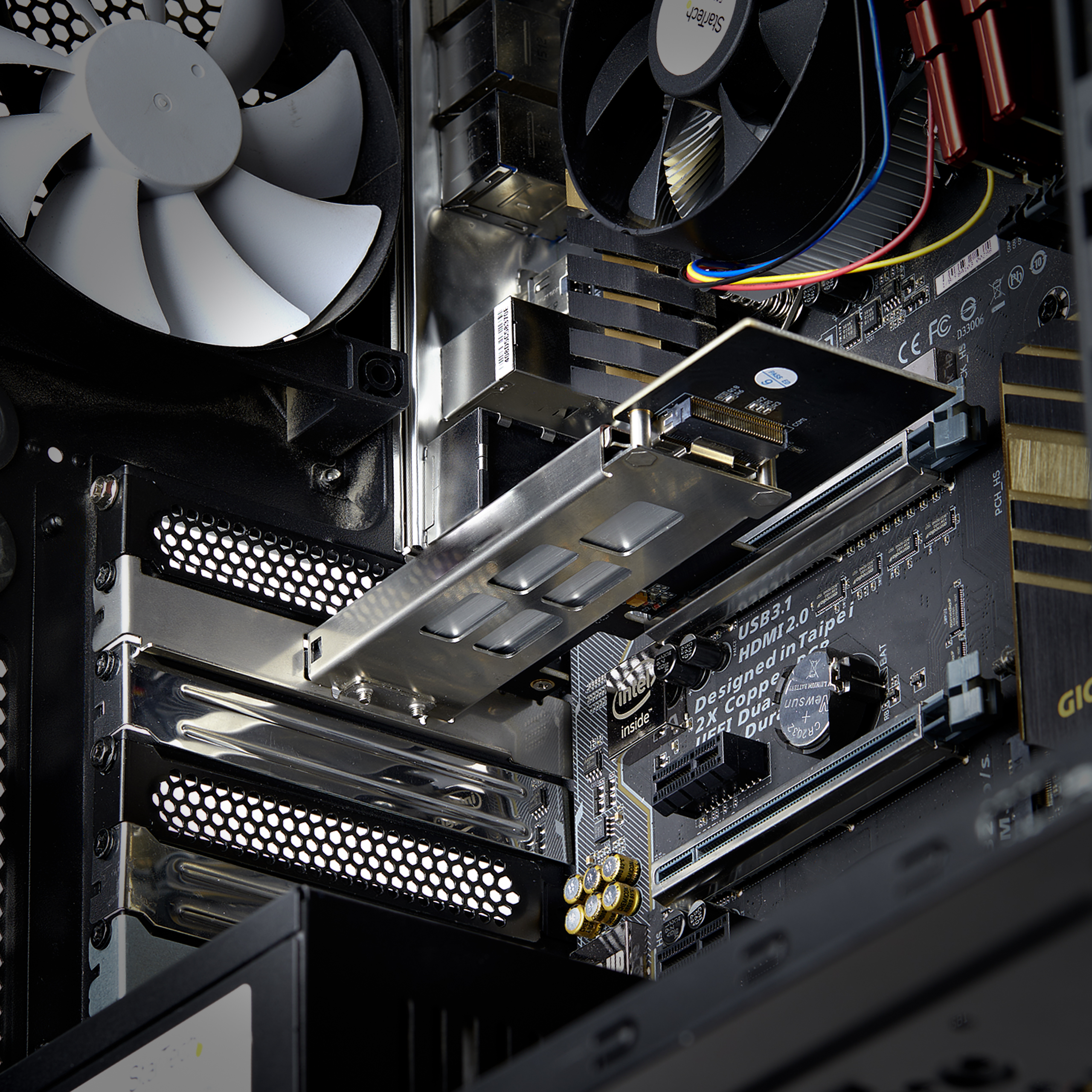

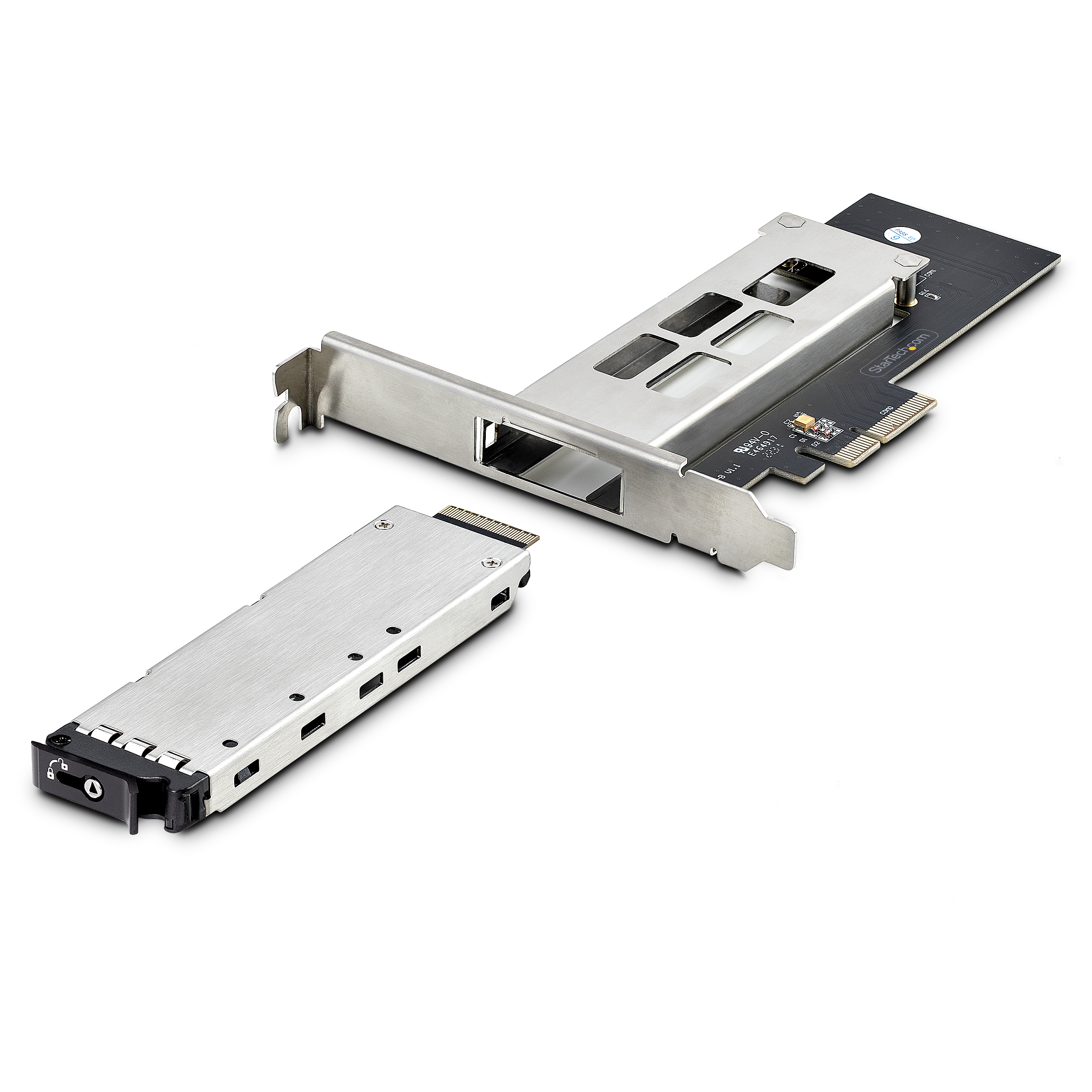

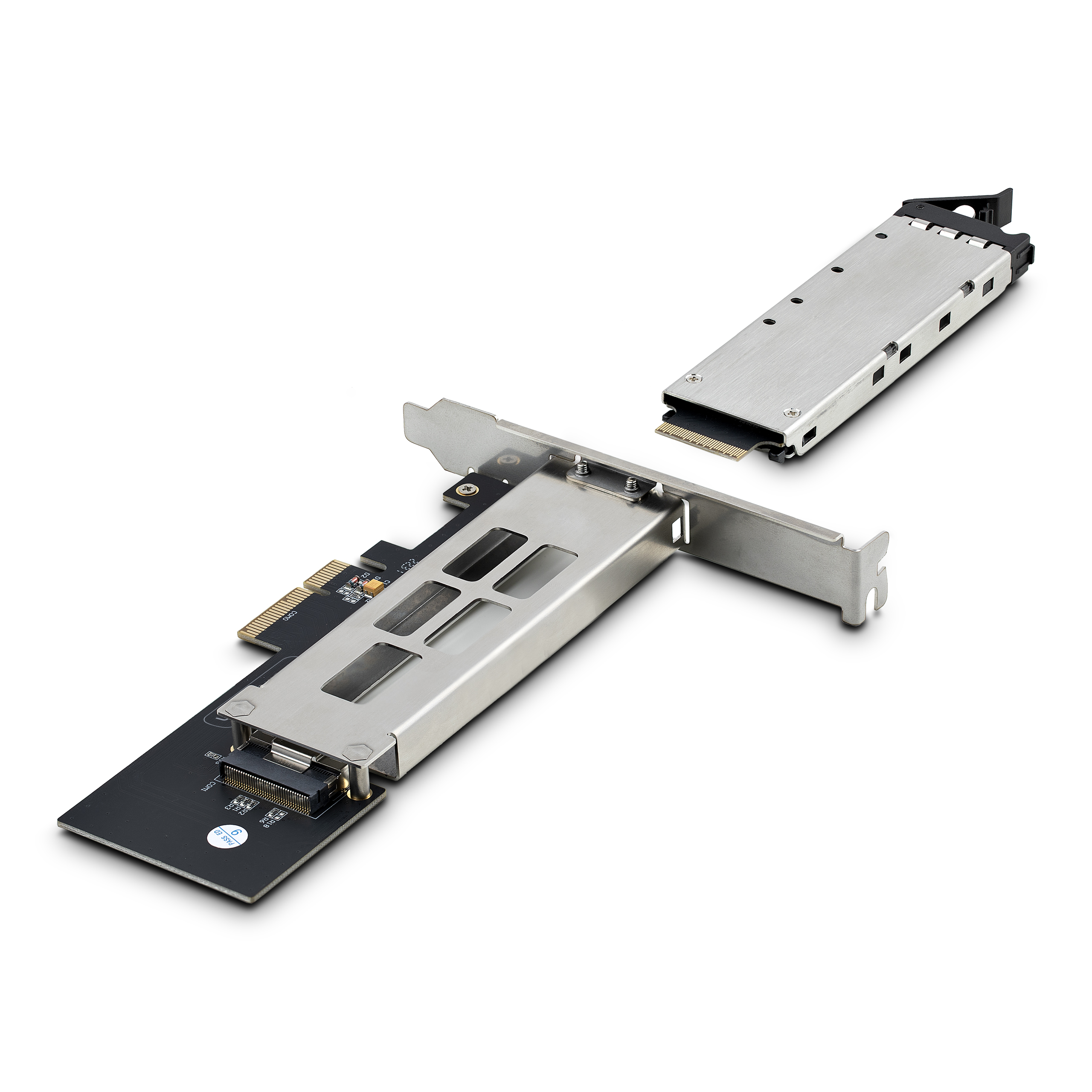

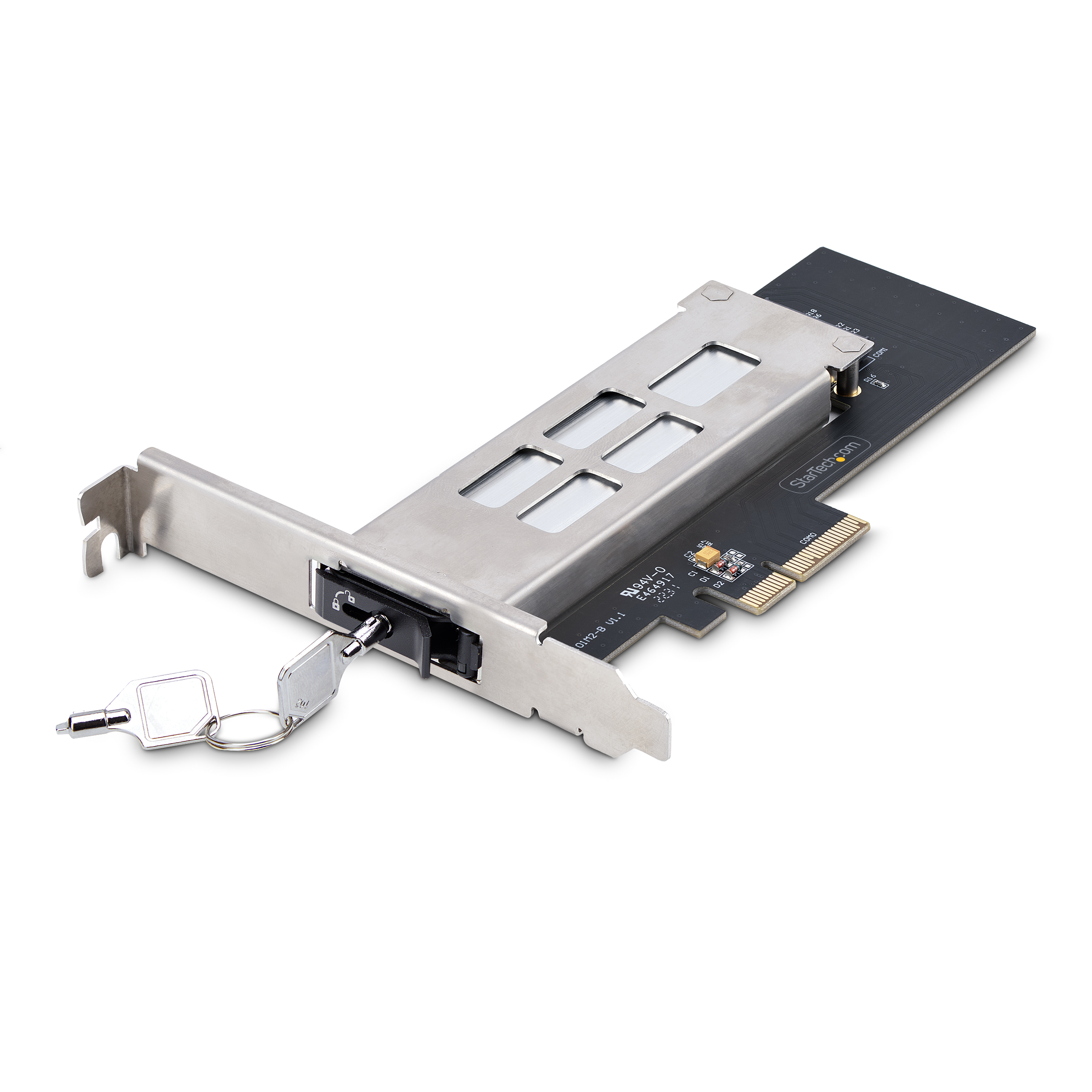

Install into a PCIe x 4 (and up) expansion slot to add a removable and lockable M.2 NVMe drive tray (drive not included)
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Removable M 2 NVMe SSD Mobile Rack Bay for PCIe Expansion Sl Product Number M2-REMOVABLE-PCIE-N1 UPC 065030898997 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 M.2 Drive Mounting Family Removable M.2 NVMe Bay for PCIe Slot Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX122X Product Title (Ultra-Short) M.2 SSD to PCIe x4 Product Title (Short) M.2 NVMe SSD to PCIe x4 Expansion Slot Product Title (Medium) M.2 NVMe SSD to PCIe x4 Removable Mobile Rack/Backplane for PCIe Expansion Slot Product Title (Standard) M.2 NVMe SSD to PCIe x4 Removable Mobile Rack for PCI Express Expansion Slot, Tool-less Installation, PCIe Hot-Swap Drive Bay Product Title (Long) M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included Product Title (AMZ) M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock (M2-REMOVABLE-PCIE-N1) Title Ingram (Part 1) M.2 NVMe SSD to PCIe x4 Slot - Title Ingram (Part 2) Hot Swap Mobile Rack/Backplane Website Product Headline Install into a PCIe x 4 (and up) expansion slot to add a removable and lockable M.2 NVMe drive tray (drive not included) Bullet 1 REMOVABLE M.2 DRIVE BAY: Use an available PCIe 4.0 x4 expansion slot to install, remove, or swap PCIe M.2 SSDs (NVMe or AHCI); Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs; Capable of reaching high-performance read/write speeds up to 64Gbps Bullet 2 TOOLLESS INSTALLATION: Install an M.2 drive into the drive tray or insert the tray into the drive bay without the need for tools; Power/Activity LED indicator; Drive tray features a latching mechanism and is lockable for secure installation (2 keys incl.) Bullet 3 OPTIMAL PERFORMANCE: Vented stainless steel frame, bracket, and tray with thermal pads and aluminum cover aid heat dissipation; Anti-vibration springs on the drive tray reduce shock or vibrations; Optional screw for stability; Incl. Low-profile bracket Bullet 4 COMPATIBILITY: No drivers or software required and works on any operating system including Windows, Windows Server, Linux; Supports PCI Express 4.0 and 3.0 motherboards with an available x4, x8, or x16 slot; Not compatible with M.2 SATA drives Bullet 5 HOT SWAP: Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) offer flexibility/convenience when working with multiple drives; PCIe hot swap support is dependent on the motherboard, check with the manufacturer to confirm support Bullets (Compact) Utilize a PCIe x4 expansion slot as a removable drive bay for M.2 SSDs; Supports up to 2280 M-Key M.2 NVMe SSDs; Tool-less installation; Lockable Drive Tray (2 keys incl.); Tray with thermal pads/anti-vibration springs; No drivers/software required Bullets (Consolidated) - Utilize a PCIe x4/x8/x16 expansion slot as a removable drive bay for M.2 NVMe SSDs (up to 2280); Capable of read/write speeds up to 64Gbps - Toolless installation of drive to tray and tray to bay; Lockable Drive Tray (2 keys incl.) - Vented frame aids heat dissipation; Tray features thermal pad/anti-vibration springs; Low-profile bracket incl. - No drivers required; PCI Express 4.0/3.0 support; Not compatible with M.2 SATA drives - Additional drive trays sold separately (TR-M2-REMOVABLE-PCIE) Marketing Copy Marketing Copy (No HTML) Applications Add a high-speed external storage solution to quickly transfer and backup large files, such as videos, images, and project files Website Search Keyword - m.2 ssd expansion slot
- hard drive rack
- hot swap drive bay
- removable ssd
- ide mobile rack
- pcie nvme adapter
- m 2 expansion slot
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic tray
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - All other Plastics
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Accessory Products - TR-M2-REMOVABLE-PCIE
- FANCASE
Related Products - 2M2-REMOVABLE-PCIE
- S25SLOTR
- DUAL-M2-PCIE-CARD-B
Power Source Bus Powered Color Black & Silver Humidity 0% ~ 90% RH Operating Temperature 0⁰C to 65⁰C (32°F to 149°F) Product Length (mm) 167.000 Product Width (mm) 120.000 Product Height (mm) 19.000 Product Weight (g) 65.000 Storage Temperature -35⁰C to 70⁰C (-31°F to 158°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Maximum Data Transfer Rate 64Gbps MTBF (hours) 10,000 Hours OS Compatibility OS Independent RAID No SATA Type and Rate PCI Express 4.0 (16 Gbps per lane) S.M.A.R.T. Support Yes TRIM Support Yes Bus Type PCI Express Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Fans Included? Yes/No No Front Door Key Lock Yes Industry Standards PCI Express 4.0 Interface/Bridge M.2 PCIe (x4 PCIe) LED Indicators Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

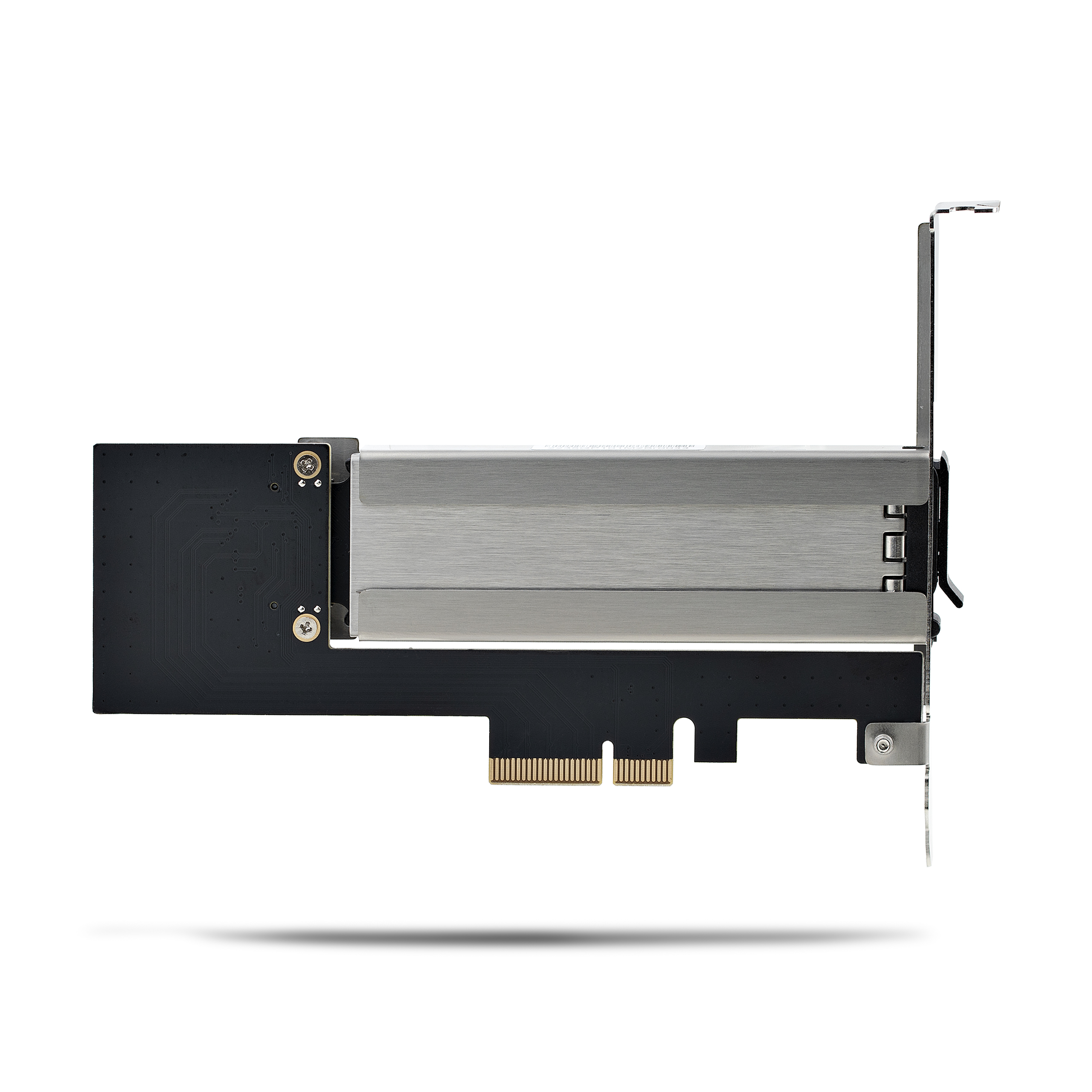

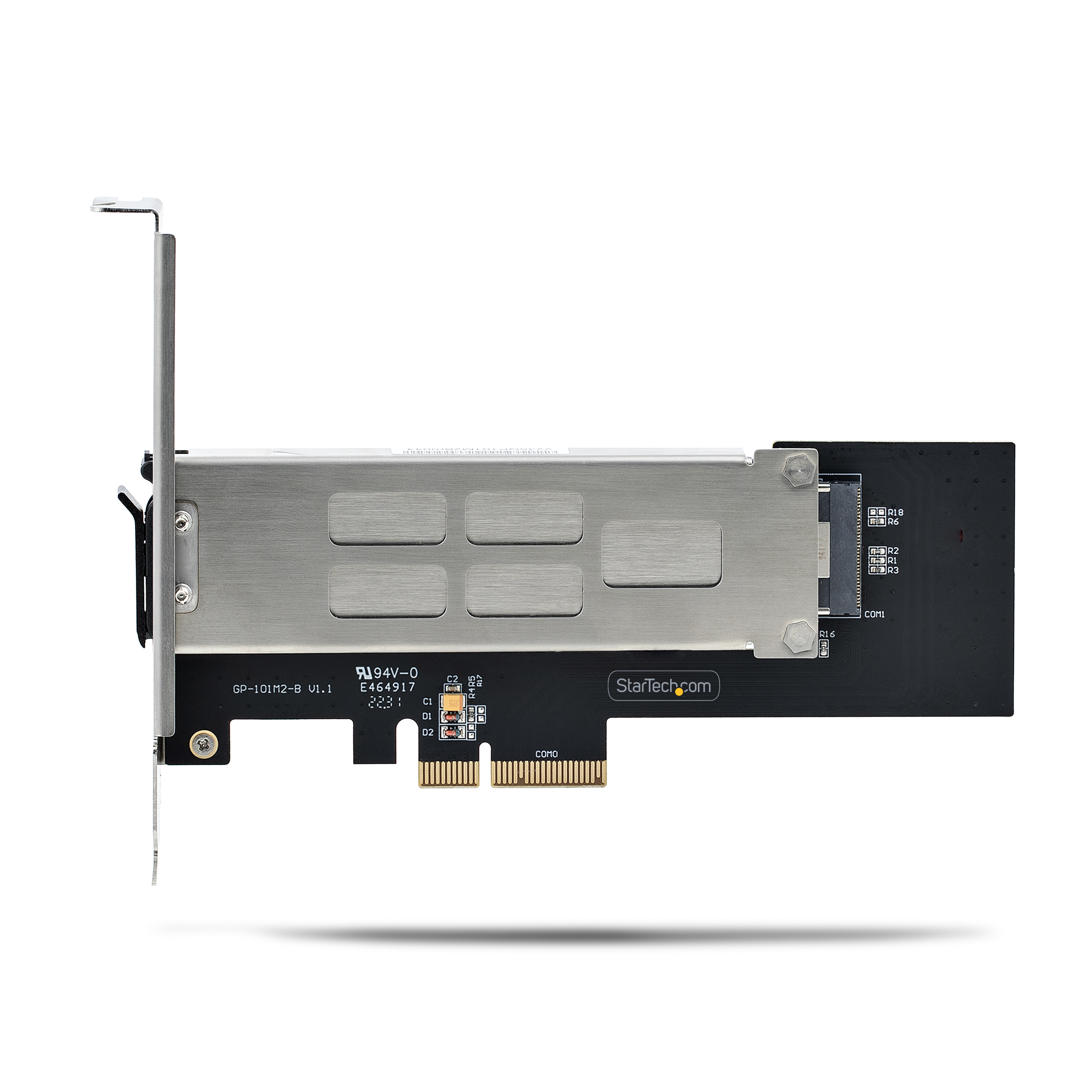

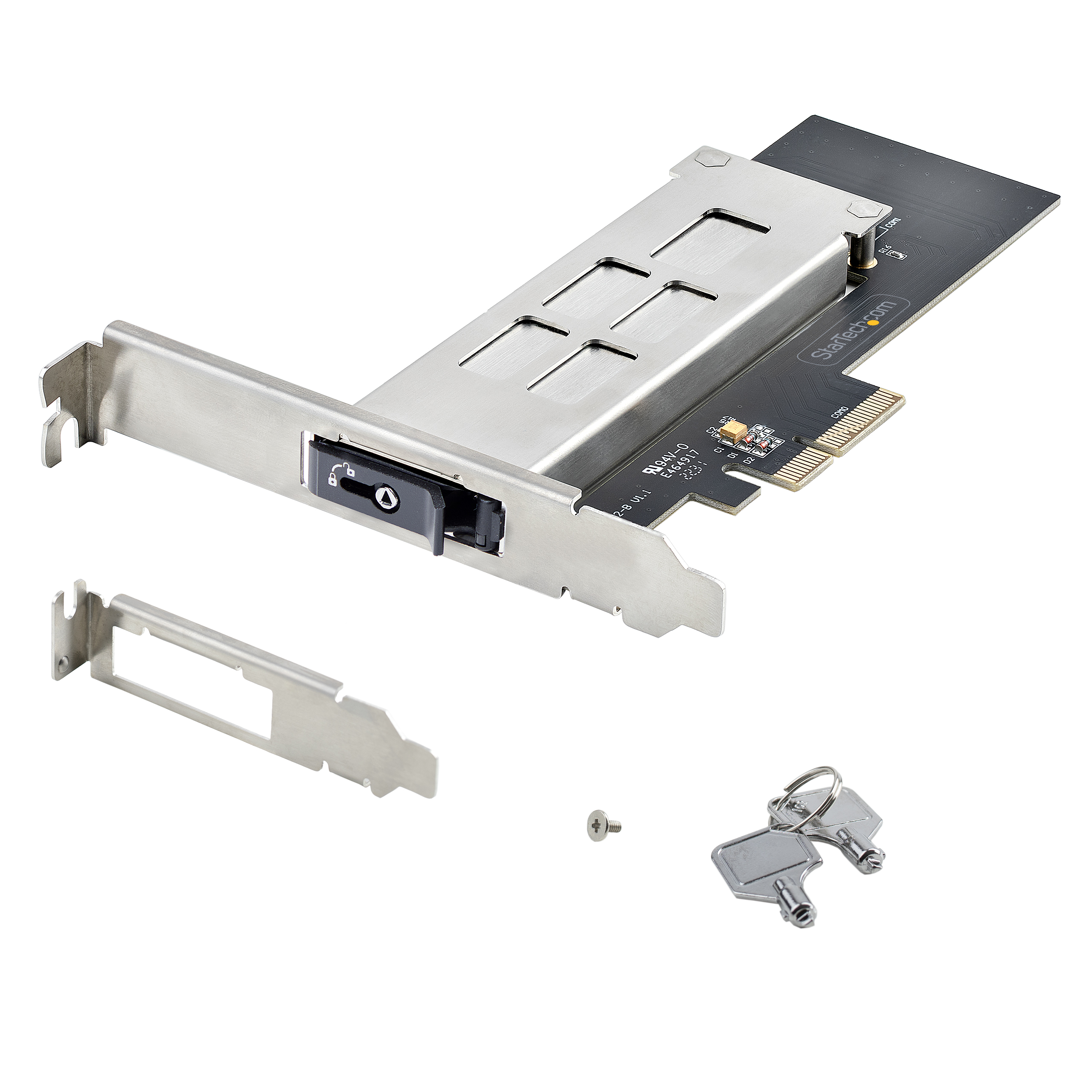

Carton Depth (mm) 325 Carton Height (mm) 270 Carton Quantity 20 Carton Weight Gross (g) 5725 Included in Package - 1 - M.2 to PCIe Adapter Card
- 1 - Low-Profile Bracket

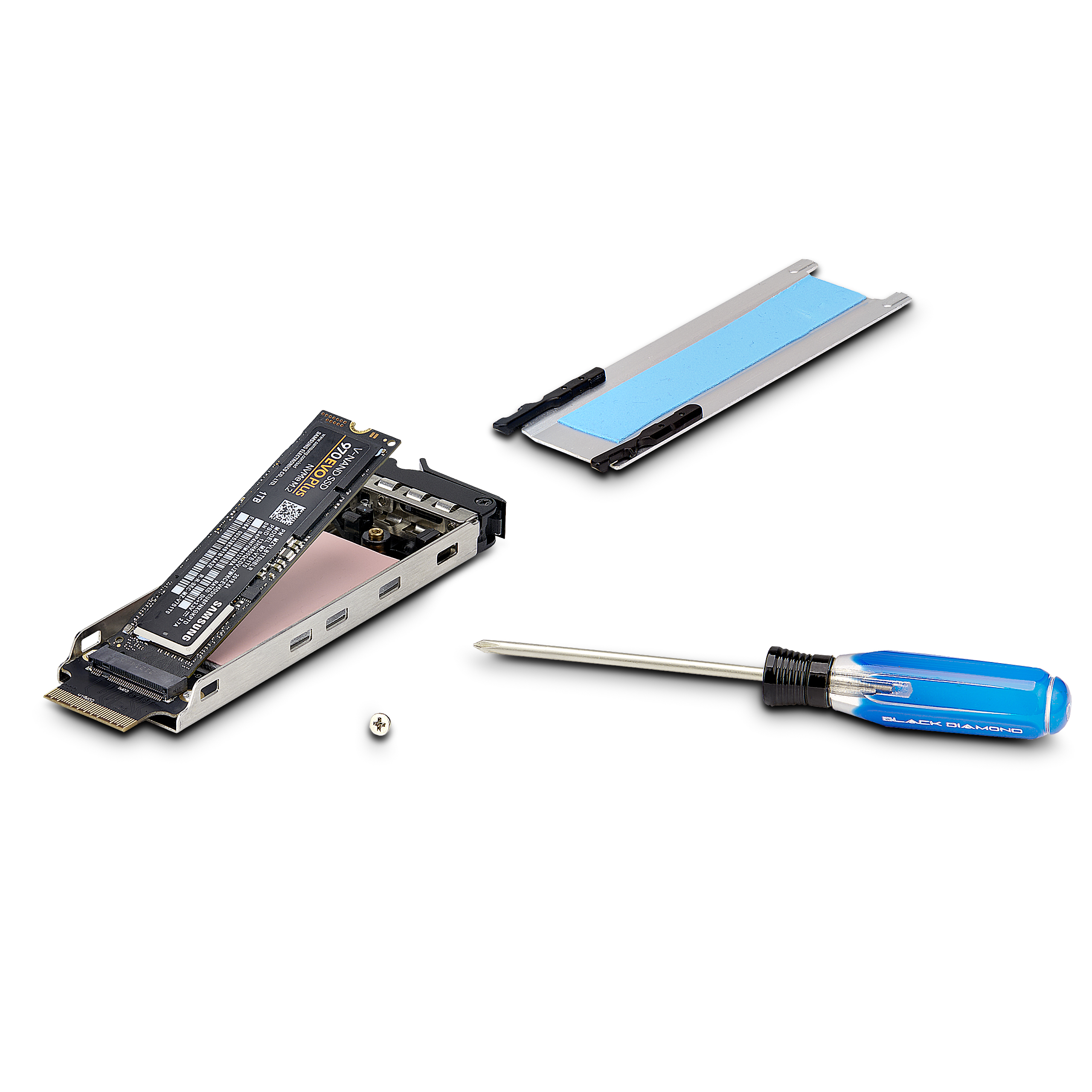

- 1 - M.2 Drive Tray
- 1 - Quick-Start Guide

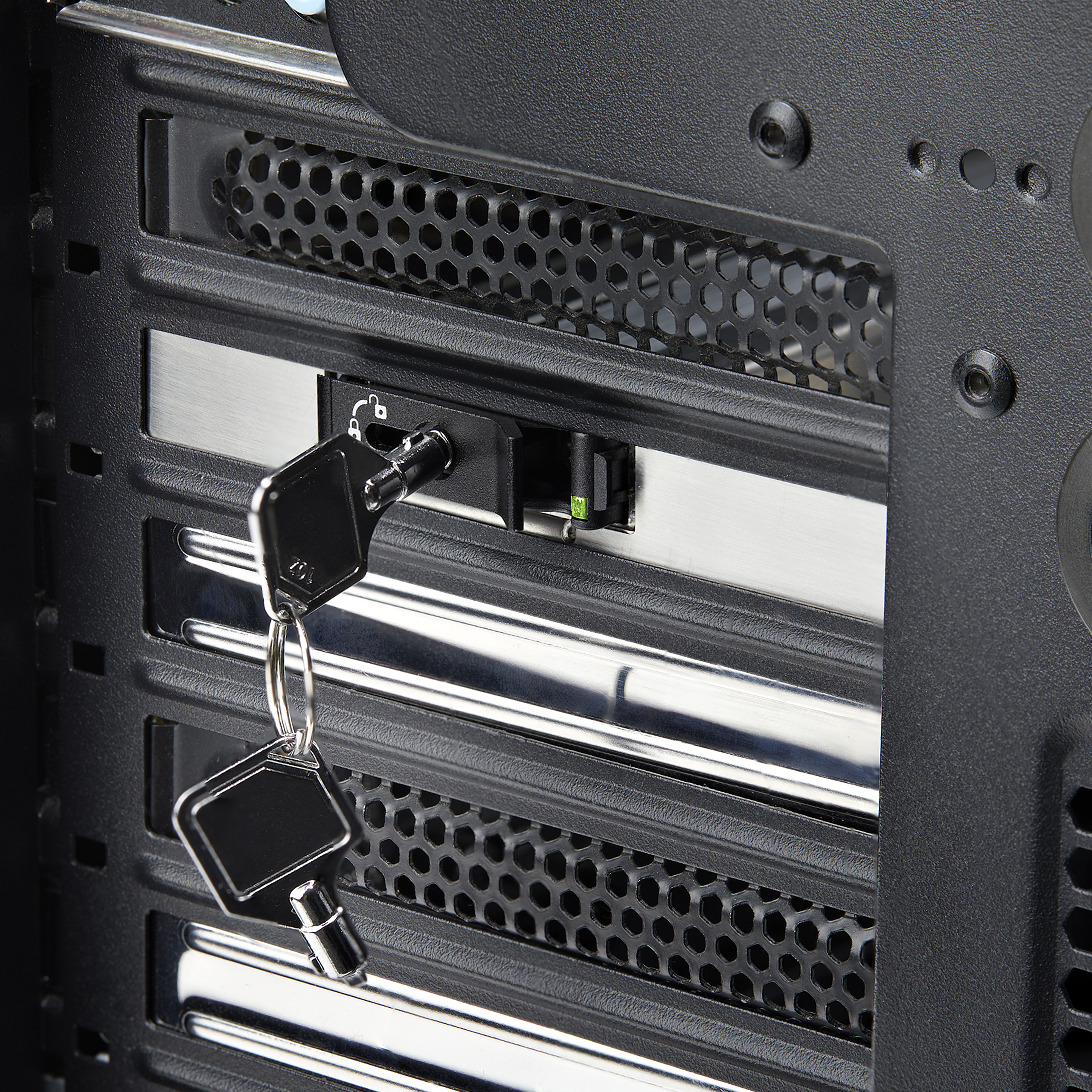

- 1 - Set of Keys
Included In Package for Label - 1 - Set of Keys
- 1 - M.2 to PCIe Converter Card
- 1 - Low-Profile Bracket
- 1 - M.2 Drive Tray
- 1 - Quick-Start Guide
Package Depth (mm) 119 Package Height (mm) 47 Package Width (mm) 153 Package Quantity 1 Package Weight (g) 246 Packaging Description M.2 NVMe SSD Bay for PCIe x4 Expansion Slot Packaging Description India M.2 NVMe SSD Bay for PCIe x4 Expansion Slot Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 1 Host Connector 1 PCI Express x4 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Required Artwork Due Date 2023-05-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 2.5" SATA Removable Hard Drive Bay for PC Expansion Slot Comparable SKU 2 Comment x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter Digital Content Due Date 2023-09-11 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,PE,SE,UK,US Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-02-10 Target Production Release 2023-05-15 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Not Required
